ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) | 90MB1L80-M0EAY0
Please sign in so that we can notify you about a reply
Product Features
- Versatile expansion capabilities
Equipped with multiple expansion slots, including 4 PCIe slots and 3 M.2 slots, this motherboard allows for extensive customization and upgrade options to meet various needs. - Robust audio support
The integrated high definition audio (8-channel) ensures rich sound output, making it suitable for gaming and media consumption. - Efficient cooling design
Integrated cooling solutions, such as M.2 heatsinks and VRM heatsink, help maintain optimal temperatures for sustained performance under heavy workloads. - Advanced networking options
Features 2.5 Gigabit Ethernet and supports Wi-Fi 6E, allowing for high-speed data transfer and a reliable Internet connection. - User-friendly BIOS features
The BIOS includes ASUS EZ Flash 3 and CrashFree BIOS 3, making system management and recovery straightforward for users of all levels.
Special Fetures
- Supports AMD Ryzen 7000/8000/9000 Series processors
- High-speed DDR5 RAM support up to 4000 MHz
- Multiple connectivity options including USB-C 3.2 Gen 2
- Integrated 2.5 Gigabit Ethernet and Bluetooth 5.3
- Enhanced BIOS features for easy system management
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, dual channel memory architecture |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU <br /> 4 x DIMM 288-pin <br /> 1 x PCIe 5.0 x16 <br /> 1 x PCIe 4.0 x16 (x4 mode) <br /> 2 x PCIe 3.0 x16 (x1 mode) <br /> 2 x M.2 socket (2280 M.2 Key M slot) <br /> 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 <br /> PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 <br /> PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features | AMD RAID Xpert2 Technology |

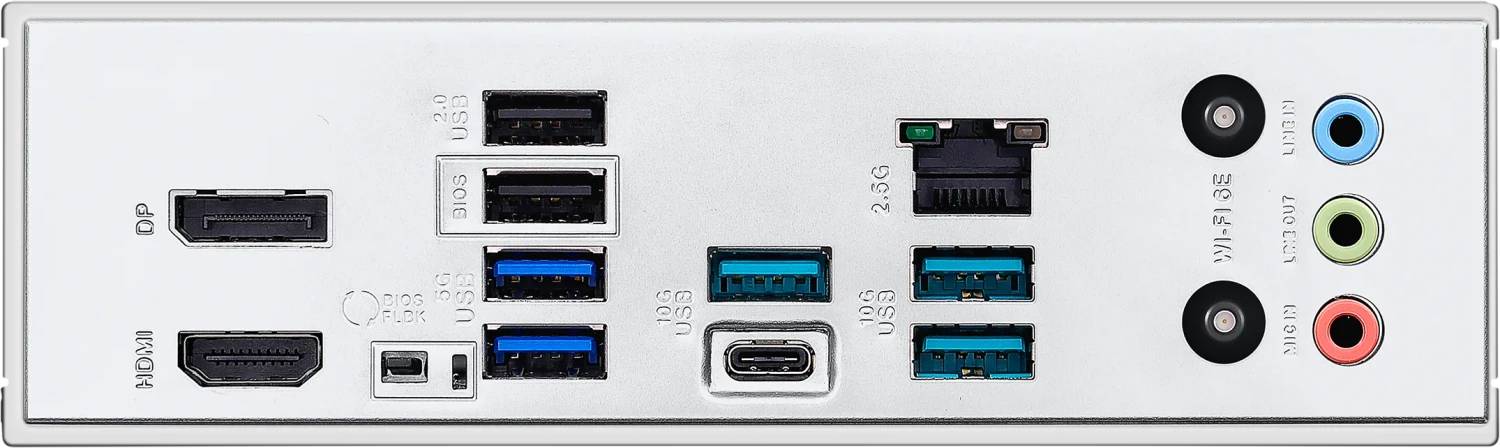

| Interfaces | 1 x USB-C 3.2 Gen 2 <br /> 3 x USB 3.2 Gen 2 <br /> 2 x USB 3.2 Gen 1 <br /> 2 x USB 2.0 <br /> 1 x DisplayPort <br /> 1 x HDMI <br /> 2 x aerial <br /> 1 x LAN (2.5Gigabit Ethernet) <br /> 1 x microphone - mini-jack <br /> 1 x audio line-out - mini-jack <br /> 1 x audio line-in - mini-jack |
| Internal Interfaces | 6 x USB 2.0 - header <br /> 2 x USB 3.2 Gen 1 - header <br /> 1 x USB-C 3.2 Gen 1 - header <br /> 1 x audio - header <br /> 1 x serial - header <br /> 1 x Thunderbolt 4 - header <br /> 1 x SPDIF out - header <br /> 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 4-pin ATX12V connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, BIOS FlashBack button, BIOS FlashBack LED, LANGuard, M.2 heatsink, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, 8+2+1 Phase Power Design, ASUS Enhanced Memory Profile (AEMP), chipset heatsink, 6 Layer PCB |
| Miscellaneous | |
| Included Accessories | ASUS Wi-Fi Q-antenna, 1 x M.2 rubber package, 3 x M.2 SSD screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Armoury Crate, Adobe Creative Cloud (free trial), ASUS AI Advisor, ASUS AURA Creator, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 2+, ASUS GlideX, Norton 360 Deluxe (60 days trial), TurboV Core, WinRAR (40 days trial) |
| Compliant Standards | DisplayPort 1.4 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1L80-M0EAY0
CPU Socket
- Socket AM5
More Details
Product Code
03:266151
EAN Code
4711387931509
Manufacturer
Asus
