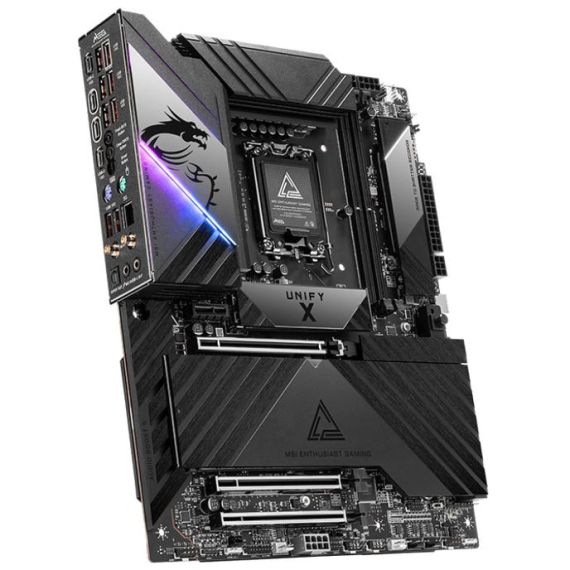

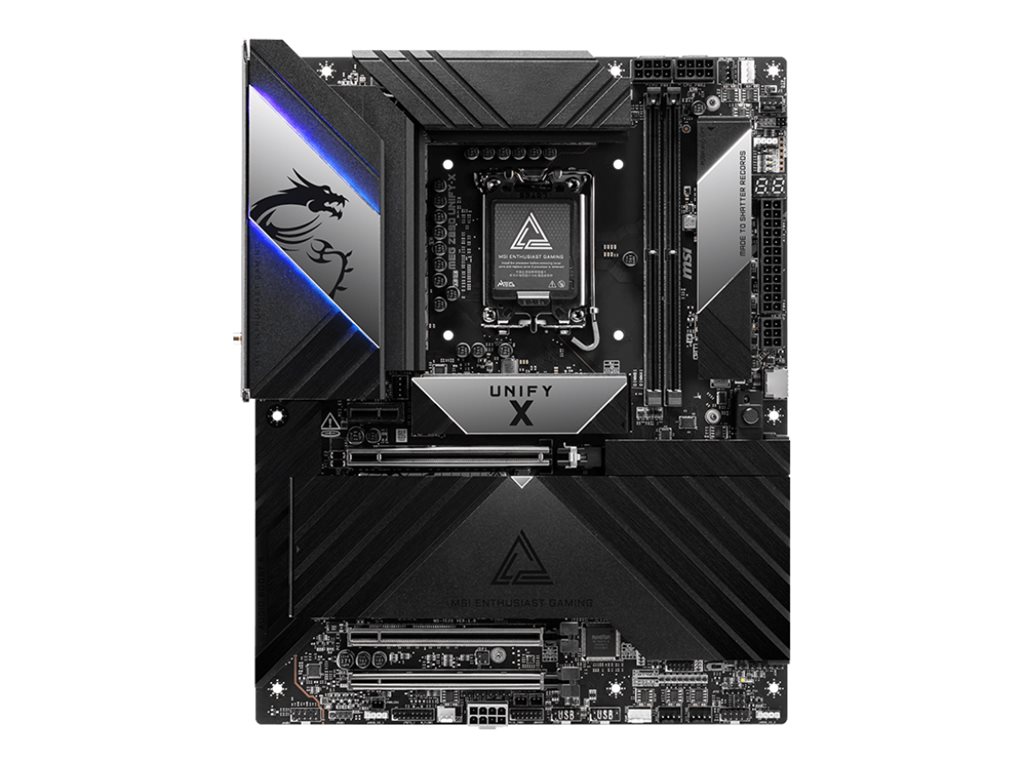

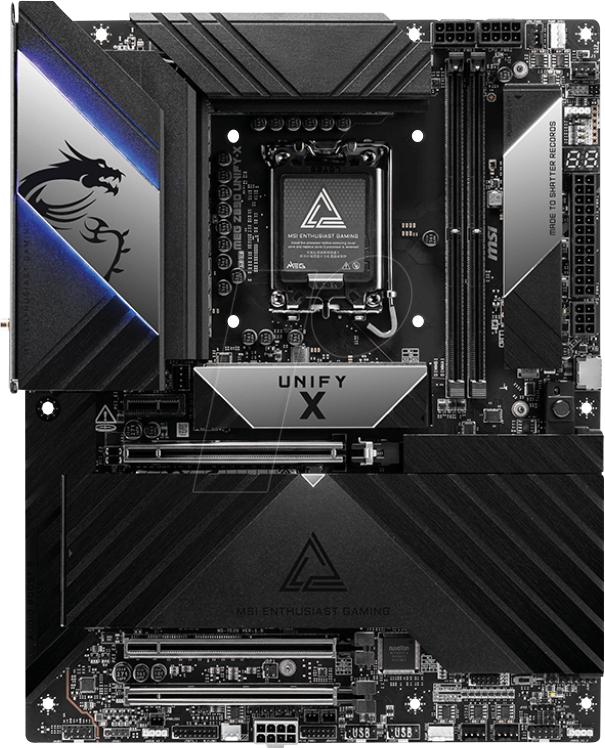

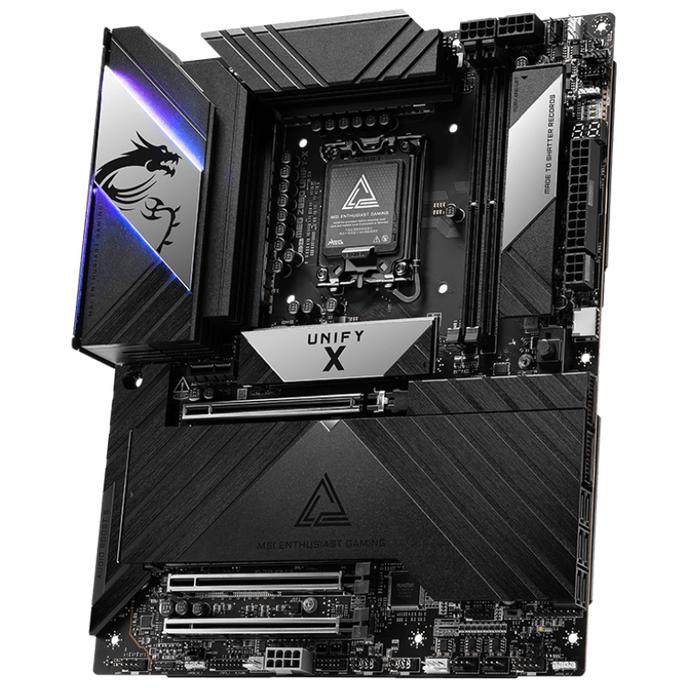

MSI MEG Z890 UNIFY-X / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 / 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7E20-001R
Please sign in so that we can notify you about a reply
Product Features
- Robust power design
The MEG Z890 UNIFY-X features a 20+2+1+1 phase power design, ensuring stable power delivery for enhanced performance under load. - Advanced cooling solutions
Equipped with Frozr AI Cooling and an enlarged chipset heatsink, this motherboard optimizes thermal performance, allowing sustained operation even during intense tasks. - Versatile expansion options
With five expansion slots including PCIe 4.0 support, users have flexibility for future hardware upgrades, whether for graphics cards or other add-ons. - Improved memory management
MSI Memory Boost technology enhances memory performance and stability, especially for high-speed DDR5 modules. - Enhanced user convenience
Featuring a pre-mounted I/O shield and EZ M.2 Clip II, installation and setup become hassle-free for builders of any experience level.
Special Features
- Supports Intel Core Ultra processors with Intel Z890 chipset
- Dual-channel memory architecture with DDR5 SDRAM up to 4800 MHz
- Extensive connectivity with six SATA-600 ports and multiple M.2 sockets
- High definition audio via Realtek ALC4080 codec
- Includes Wi-Fi 7 support and 5 Gigabit Ethernet for high-speed networking
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z890 / Nuvoton NCT6687D-M |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz (O.C.), 3200 MHz (O.C.), 2400 MHz, 3600 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel Killer BE1750x / Intel Killer E5000B |
| Network Interfaces | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 2 x PCIe 5.0 x16 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1 5 x M.2 socket (2260/2280) 1 x M.2 socket (2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 PCIe 4.0 -connectors: 4 x M.2 PCIe 5.0 -connectors: 1 x M.2 |
| Interfaces | 2 x Thunderbolt 4 2 x USB-C 3.2 Gen 2 8 x USB 3.2 Gen 2 1 x LAN (5Gigabit Ethernet) 1 x PS/2 mouse 1 x PS/2 keyboard 2 x aerial 1 x SPDIF out 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header 1 x Thunderbolt 5 - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector, 6-pin PD power connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, SMBIOS 3.7 support, ACPI 6.5 support, MSI ClickBIOS |
| Hardware Features | CUDIMM support, 2oz Copper PCB, Cooling Wizard, reset button, EZ Debug LED, EZ LED control, EZ M.2 Clip II, EZ M.2 Sheild FROZR II, EZ PCIe Release, Frozr AI Cooling, lightning gen4 solution, lightning gen5 solution, MSI AI Engine, MSI Audio Boost 5 HD, MSI Companion, MSI Core Boost, MSI Memory Boost, MSI Mystic Light, MSI Steel Armor II, pre-mounted I/O shield, Super Charger+, MSI Frozr Heatsink Design, EZ Magnetic M.2, 24+2+1+1 Phase Power Design, metal backplate, Enlarged Chipset Heatsink, 8 Layer PCB, aluminium cover, 20+2+1+1 Phase Power Design |
| Miscellaneous | Miscellaneous |
| Included Accessories | JRGB extension cable (1 to 2), JRGB extension cable (1 to 3), JARGB extension cable, 2 thermistor cables, EZ front panel cable, 1 to 3 EZ Conn-Cable, Tuning controller, EZ Wi-Fi antenna, 4 x EZ M.2 clip II, EZ M.2 clip II remover, m.2 screw / standoff sets |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities, MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI CPU-Z, MSI App Player, Norton 360, Intel Killer Networking, Intel Extreme Tuning Utility |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - MSI - 7E20-001R
CPU Socket
- Socket 1851
More Details
Product Code
07:21231217
EAN Code
4711377266970
Manufacturer
MSI
