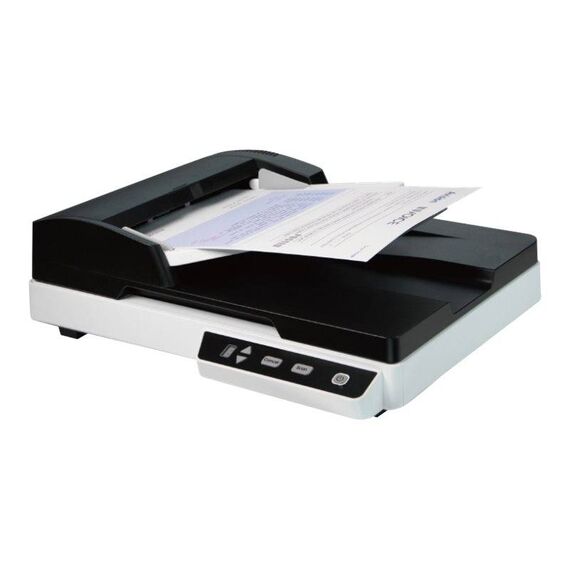

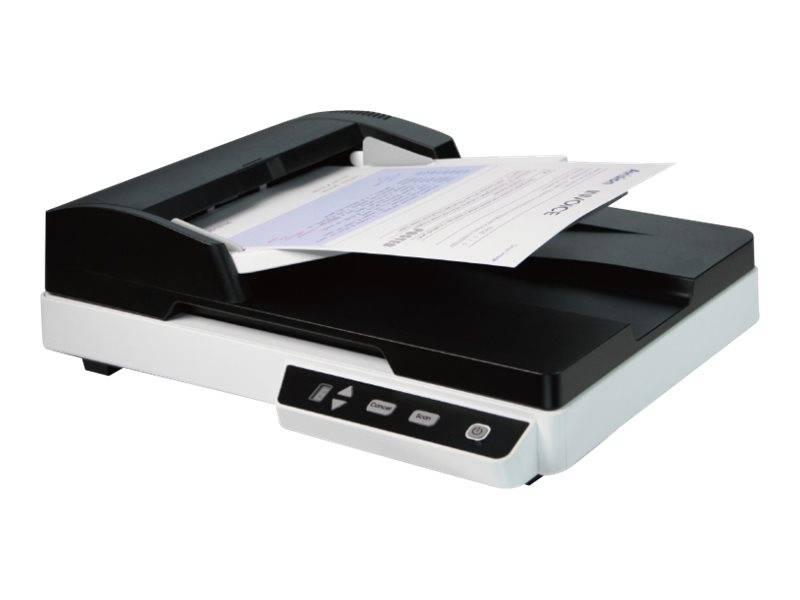

Avision AD120 / Document scanner / Contact Image Sensor (CIS) / Duplex / 216 x 3000 mm / 1200 dpi / up to 25 ppm (mono) / up to 25 ppm (colour) / ADF (50 sheets) / up to 2000 scans per day / USB 2.0 | DL-1707B
Avision AD120 / Document scanner / Contact Image Sensor (CIS) / Duplex / 216 x 3000 mm / 1200 dpi / up to 25 ppm (mono) / up to 25 ppm (colour) / ADF (50 sheets) / up to 2000 scans per day / USB 2.0 | DL-1707B
€358.08 inc. VAT
DL-1707B
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Type | Document scanner - desktop |
| Interface Type | USB 2.0 |
| Max Supported Document Size | 216 x 3000 mm |
| Scanner | Scanner |
| Input Type | Colour |
| Grayscale Depth | 16-bit (64k colours) |
| Grayscale Depth (External) | 8-bit (256 colours) |
| Colour Depth | 48-bit colour |
| Colour Depth (External) | 24-bit (16.7 million colours) |
| Optical Resolution | 1200 dpi |
| Automatic Duplexing | Yes |
| Scanning Sensor Type | Contact Image Sensor (CIS) |
| Bulb / Light Source Type | LED |
| Max Document Scan Speed B/W | 25 ppm |
| Max Document Scan Speed Colour | 25 ppm |
| Duty Cycle | 2000 scans per day |
| Scanner Speed Details | 25 ppm - colour - A4 - 300 dpi ¦ 50 ipm - duplex - colour - A4 - 300 dpi |
| Scanner Features | Error Diffusion |
| Scan File Formats | BMP, GIF, JPEG, TIFF, PDF, RTF, TXT, XPS, DOC, XLS, XLSX, PPTX, HTML, PPT |
| Compliant Standards | TWAIN, ISIS, WIA |
| Media Handling | Media Handling |
| Max Document Size | 216 mm x 3000 mm |
| Supported Document Type | Plain paper |
| Supported Document Size Details | ADF - up to 216 x 356 mm |
| Document Feeder Type | Automatic |
| Document Storage Capacity | 50 sheets |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | USB 2.0 |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB cable |
| Environmental Standards | Environmental Standards |
| ENERGY STAR Certified | Yes |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational (Standby) | 24 Watt |
| Power Consumption Stand by | 5 Watt |
| Power Consumption Sleep | 2.9 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Avision Button Manager 2, ScanSoft PaperPort 14 SE, Avision AvScan X |
| OS Required | Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits) SP3, Windows 8 / 8.1 / 10 |
| System Requirements Details | Windows XP/7/8/8.1/10 - Core 2 Duo - 1 GHz (USB) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 33 cm |
| Depth | 40.2 cm |
| Height | 11.2 cm |
| Weight | 2.7 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 85% |
Features - Avision - DL-1707B
More Details
Product Code
04:302335
EAN Code
4719868539527
Manufacturer
Avision
