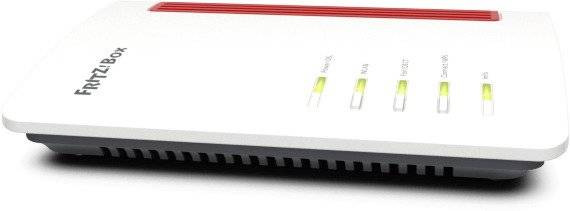

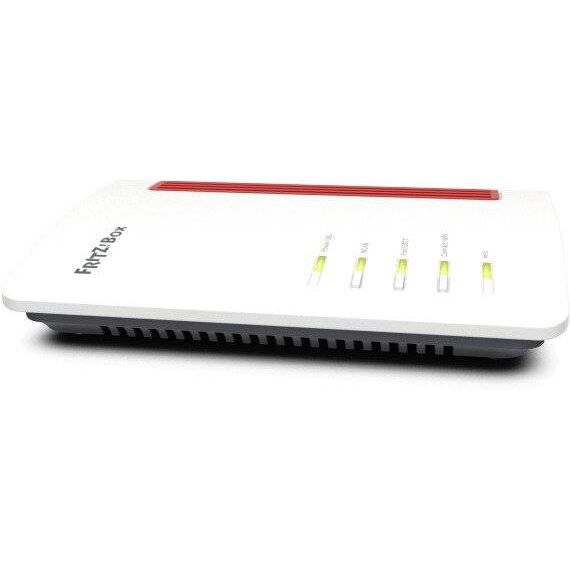

AVM FRITZ!Box 7530 AX / Wireless router / DSL modem / 4-port switch / GigE / 802.11a/b/g/n/ac/ax / Dual Band / VoIP phone adapter (DECT) | 20002930
Product Features
- Wi-Fi 6 for IP-based connections
The new Wi-Fi 6 for all DSL and VDSL connections including 35b super vectoring. The FRITZ!Box 7530 AX has the latest technology on board, effortlessly connecting all your devices to the Internet. - Mesh Wi-Fi with FRITZ!
The FRITZ!Box 7530 AX supports Mesh Wi-Fi, meaning your videos, music and photos seamlessly reach every corner of your home, apartment or office. How does it work? The FRITZ! devices work together as part of a single network, communicating with each other and optimizing your wireless devices and network usage. With Mesh you can enjoy high speeds while surfing, streaming or gaming. Instead of waiting for breathtaking HD television and your favorite music, your media will wait for you. - A convenient telephone system for IP-based connections
The FRITZ!Box 7530 AX includes a telephone system for modern IP-based connections. With DECT you can create a telephone system with up to six cordless phones. There are also ports for connecting your analog telephone or fax machine. Multiple answering machines, online telephone books and numerous convenience features make phone calls via the FRITZ!Box 7530 AX a joy. - A variety of connections
The FRITZ!Box 7530 AX is suitable for all DSL connections up to 300 Mbit/s. Whether ADSL, ADSL2+, VDSL or 35b super vectoring: your FRITZ!Box establishes the connection, meaning you can sit back and enjoy high-speed Internet access. Four gigabit LAN ports and one USB port offer a wide range of options: Not only can you use these to easily integrate all your terminal devices, they also mean you can integrate your printer into your home network and provide USB storage media. This means you can access your videos, pictures and music whenever and wherever you like. - FRITZ!OS - a fully loaded operating system
FRITZ!OS, the operating system for your FRITZ!Box, is updated with new features on a regular basis. With the FRITZ!Apps you can also use your smartphone to access your data from anywhere, make landline calls in your home network, or control your Smart Home. Alongside FRITZ! Smart Home devices, the FRITZ!Box 7530 AX also supports a wide range of devices with HAN FUN and DECT ULE wireless technology from other manufacturers. And of course, all updates and apps for FRITZ! products are free of charge. - FRITZ!Box for safety's sake
You're always on the safe side with FRITZ!Box! The comprehensive security concept protects your communications. It undergoes constant testing and development. Thanks to the free updates, you can always rest assured.
Special Features
- DSL up to 300 Mbit/s for all DSL connections
- Wi-Fi 6 up to 1800 Mbit/s + 600 Mbit/s
- Intelligent Mesh Wi-Fi for your home network
- Telephone system with DECT base station for IP-based connections
- Network with 4 x gigabit LAN, 1 x USB 2.0
- Media server, NAS, MyFRITZ!, Smart Home
Product Specification
Device Type | Wireless router - 4-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Maximum data rate (2.4 GHz): 600 Mbps ¦ Maximum data rate (5 GHz): 1800 Mbps |
Network / Transport Protocol | IPSec, DHCP, DDNS, IPv6 |
Encryption Algorithm | WPA2, WPA3 |
Features | NAT support, VPN support, wake on LAN (WOL), print server, parental control, firmware upgradable, wall mountable, Mesh networking, IPSec Virtual Private Network (VPN), Wi-Fi Protected Setup (WPS), DHCP server, UPnP Media Server, DLNA Media Server, Stateful Packet Inspection Firewall (SPIF), 3G/4G USB Dongle Support, NAS support, MU-MIMO technology, AVM Stick & Surf, answering machine, Hotspot Access Point Capability, guest access, dynamic DNS client |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Built-in Devices | Led panel |
Communications | Communications |
Type | DSL modem |
Digital Signaling Protocol | ADSL, VDSL, ADSL2+, Vplus 35b |
Max Transfer Rate | 300 Mbps |
IP Telephony | IP Telephony |
VoIP Functionality | VoIP phone adapter (DECT) |
VoIP Protocols | SIP |
Telephony Interfaces | 1 phone (FXS), DECT |
IP Telephony Features | Call transfer, Number blocking, 3-way conferencing, call diversion, internal calls support |
Expansion / Connectivity | Expansion / Connectivity |

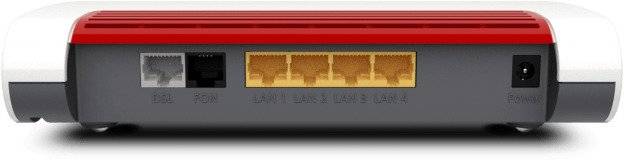

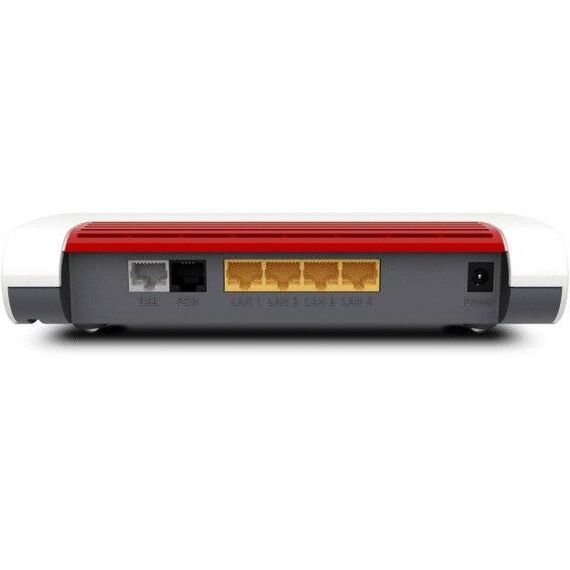

Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ 1 x phone line ¦ WAN: 1 x VDSL / ADSL2+ |
Power | Power |
Power Device | External power adapter |
Power Consumption Operational | 6 Watt |
Miscellaneous | Miscellaneous |
Cables Included | 1 x network cable - 1.5 m ¦ 1 x phone cable - 4 m |
Localisation | Germany |
Software / System Requirements | Software / System Requirements |
OS Provided | FRITZ!OS |
Dimensions & Weight | Dimensions & Weight |
Width | 20.8 cm |
Depth | 15 cm |
Height | 3.7 cm |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 5 years |
