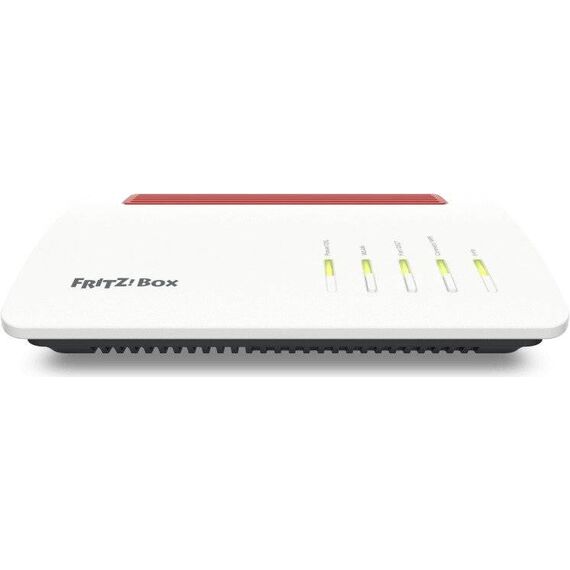

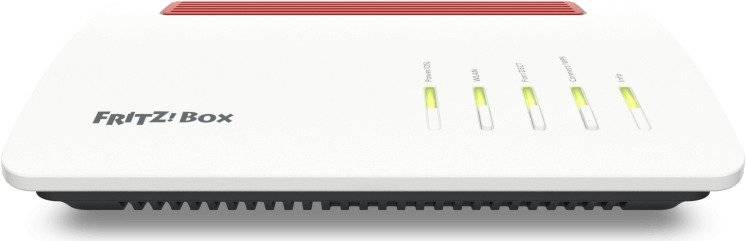

AVM FRITZ!Box 7590 AX / Wireless router / DSL modem / 4-port switch / GigE / 802.11a/b/g/n/ac/ax / Dual Band / VoIP phone adapter (DECT) | 20002998
Product Features
- Wi-Fi 6 - faster Wi-Fi for any situation
Wi-Fi 6 is the newest and fastest wireless standard, reaching speeds up to 40 percent higher than previous Wi-Fi generations. With the FRITZ!Box 7590 AX's high-speed Wi-Fi, browsing and streaming enters the fast lane. The highlight: Even with multiple devices active at the same time, the data rates remain high - for each individual device. In tense multiplayer battles, you'll benefit from lower latency with Wi-Fi 6. The icing on the cake is the new power-saving features, improving battery life performance for your devices. The FRITZ!Box 7590 AX also supports established standards such as Wi-Fi 5 and 4, for full compatibility with all devices. - Mesh Wi-Fi with FRITZ!
The FRITZ!Box 7590 AX supports Mesh Wi-Fi, meaning your videos, music and photos seamlessly reach every corner of your home, apartment or office. How does it work? The FRITZ! devices work together as part of a single network, communicating with each other and optimizing wireless devices and network usage. With Mesh you enjoy high speeds while surfing, streaming or gaming. Breathtaking HD TV and your favorite music will now wait for you - and not the other way around. - Making phone calls fun
The FRITZ!Box 7590 AX includes a complete telephone system to which any phone can be connected: IP, ISDN or analog. You can register up to six cordless phones to the built-in DECT base station; with FRITZ!Fon you'll never want to hang up the phone! The answering machine and fax function including fax-to-mail offer additional convenience. - FRITZ!Apps for added convenience and Smart Home
Discover the convenience of Smart Home with FRITZ! - connect FRITZ! Smart Home and third-party devices with your FRITZ!Box 7590 AX using DECT ULE / HAN FUN technology: With the FRITZ!Apps you can also use your smartphone to access FRITZ!Box convenience features, make phone calls in the home network and keep an eye on your Smart Home. - FRITZ!Box for safety's sake
The security concept covers all FRITZ!Box areas: secure browsing thanks to the built-in firewall, Wi-Fi protected with an individual network key upon delivery, and guest access that lets friends and family access the internet but not your home network. These and many other features make your communication secure. - FRITZ!OS: the genius behind FRITZ!
FRITZ!OS is the smart operating system for all FRITZ! products. It combines ease-of-use with versatile features and comprehensive security. A clear user interface and wizards accompany you every step of the way. Regular updates keep your FRITZ!Box up to date - you can also turn on automatic updates.
Special Features
- DSL up to 300 Mbit/s for all DSL connections
- Wi-Fi 6 up to 2400 Mbit/s + 1200 Mbit/s
- Intelligent Mesh Wi-Fi for your home network
- 4 x gigabit LAN, 1 x gigabit WAN, 2 x USB 3.0
- Telephone system for analog, ISDN and IP
- Media server, NAS, MyFRITZ!, Smart Home
Product Specification
Device Type | Wireless router - 4-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Maximum data rate (2.4 GHz): 1200 Mbps ¦ Maximum data rate (5 GHz): 2400 Mbps |
Encryption Algorithm | WPA2, WPA3 |
Features | Firewall protection, VPN support, print server, parental control, firmware upgradable, Mesh networking, built-in DECT phone base station, 3G/4G USB Dongle Support, guest access, 4K UHD video streaming |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
Built-in Devices | Led panel |
Line Properties | Line Properties |
Line Coding Format | 1024 QAM, OFDMA |
Communications | Communications |
Type | DSL modem |
Digital Signaling Protocol | VDSL, ADSL2+ |
Max Transfer Rate | 300 Mbps |
IP Telephony | IP Telephony |
VoIP Functionality | VoIP phone adapter (DECT) |
Telephony Interfaces | 2 phone (FXS), DECT |
Expansion / Connectivity | Expansion / Connectivity |

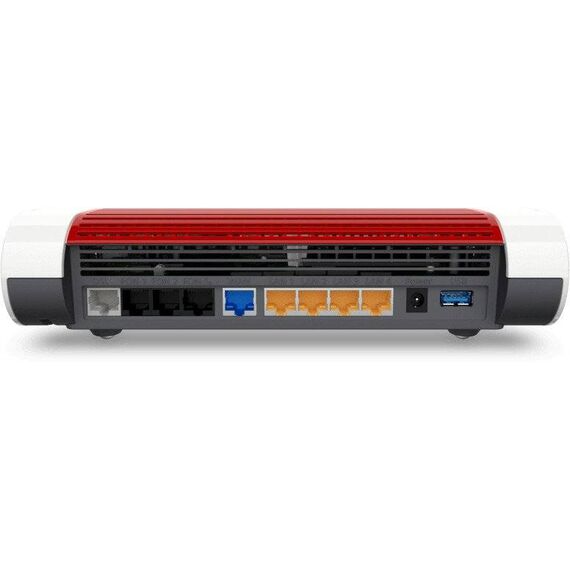

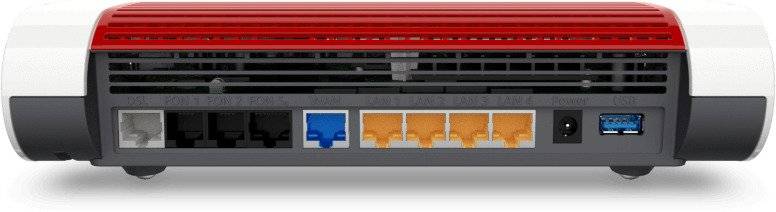

Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 2 x 9 pin USB Type A ¦ Phone line: 2 x RJ-11 ¦ WAN: 1 x VDSL / ADSL2+ - RJ-45 |
Power | Power |
Power Device | External power adapter |
Miscellaneous | Miscellaneous |
Cables Included | 1 x phone cable - 4 m ¦ 1 x network cable - 1.5 m ¦ 1 x RJ-11 to TAE adapter |
Software / System Requirements | Software / System Requirements |
OS Provided | FRITZ!OS |
Dimensions & Weight | Dimensions & Weight |
Width | 25 cm |
Depth | 18.4 cm |
Height | 4.8 cm |
Weight | 836 g |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 30.5 cm |
Shipping Depth | 24 cm |
Shipping Height | 6.8 cm |
Shipping Weight | 1.076 kg |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 5 years |
