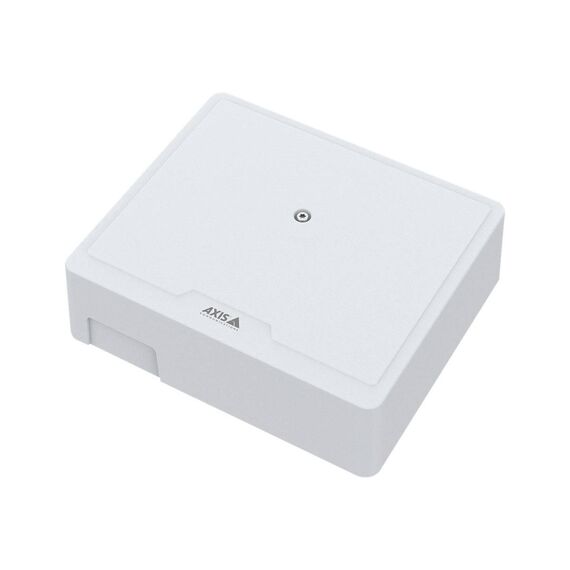

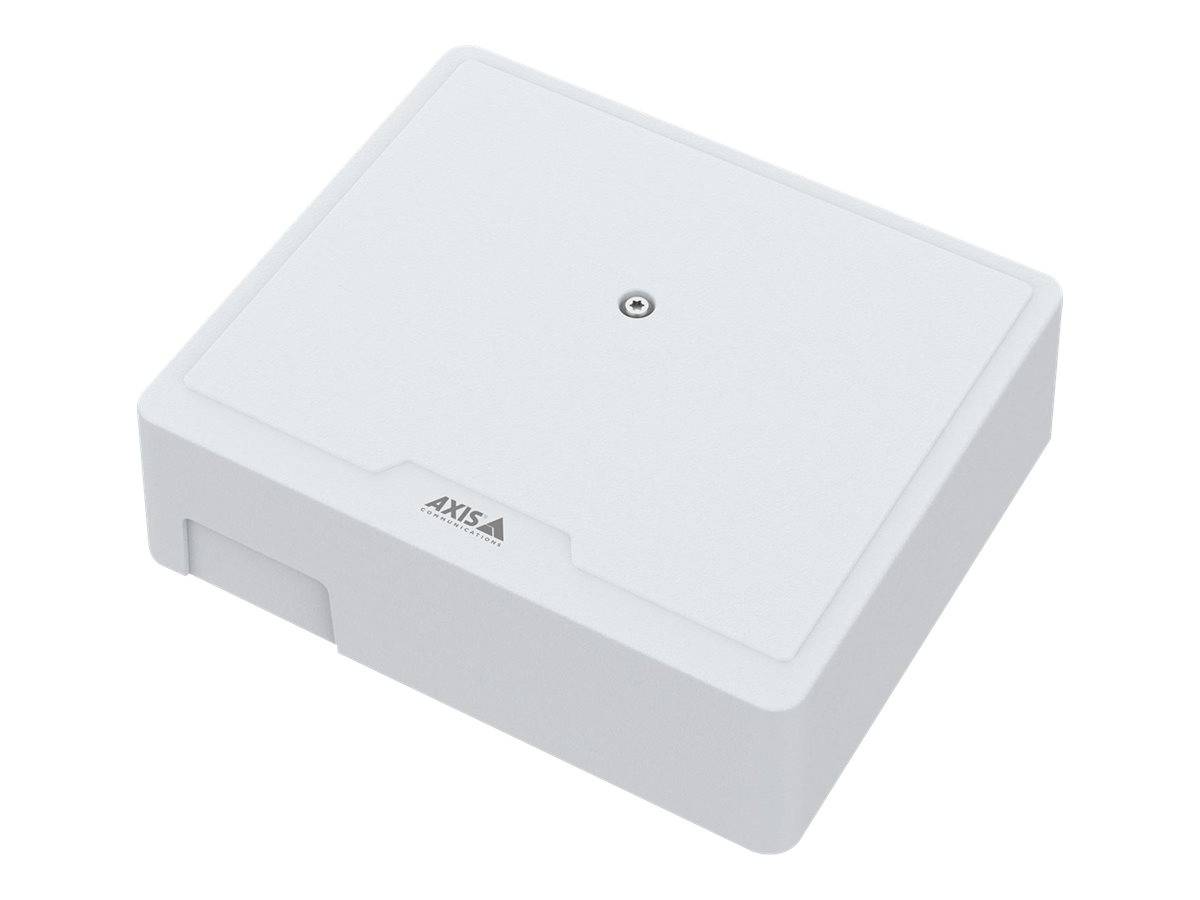

Axis A1210 / Door controller / wired / serial RS-485/Gigabit Ethernet/Wiegand / white, NCS S 1002-B | 02368-001
Product Features
- Flexible and cost efficient
AXIS A1210 Network Door Controller is a lightweight barebone unit that offers easy installation in areas where space is limited. This compact, competitively priced device offers a smaller footprint design than previous Axis door controllers. It includes a keyhole mounting plate and support for DIN rail mount for fast and easy installation on walls. Plus, with plenum rating it's suitable for installation in plenum spaces and eliminates the need for an additional installation cabinet. - Reliable and secure
Featuring two reader connections as well as a Form C relay to power the lock, AXIS A1210 includes everything you need to control one door. Plus, it's all powered using one PoE cable. Thanks to intelligence on the edge, this smart door controller can internally handle all tasks related to door access - even if the network is down. AXIS A1210 offers built-in cybersecurity features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Furthermore, it ensures cryptographic keys are safely and securely stored in the onboard EAL6+ Certified compute module. - Grows with your needs
AXIS A1210 is fully integrated within Axis end-to-end solution. This scalable solution is optimized for both small and large installations and is designed to meet your changing needs as they develop. You can store up to 250k credentials and 250k event logs on the device itself. And it ensures flexible and secure authentication using different types of credentials. For instance, you can grant access to thousands of visitors using traditional access types such as card or PIN codes, as well as dynamic QR code for visitor access, and license plates verification for vehicle access.
Special Features
- Complete control for one door
- Compact form factor
- Intelligence on the edge
- Built-in cybersecurity features
- Fully integrated within Axis end-to-end solutions
Product Specification
Product Type | Door controller |
Functions | Tamper detection |
Power Source | PoE |
Placing / Mounting | Wall-mounting, DIN rail-mounting |
Connectivity Technology | Wired - Ethernet, Fast Ethernet, Gigabit Ethernet, RS-485, Wiegand |
Interfaces | LAN/power ¦ Serial (RS-485)/Wiegand ¦ 12 x input/output ¦ Relay |
Features | For single door, up to 2 OSDP readers, up to 250000 events, up to 250000 credentials, PoE+, DHCP support, Syslog support, DiffServ support, IPv6 support, IP address filtering, IPv4 support, SNMP support, secure boot, Open Supervised Device Protocol (OSDP), password protection, mDNS, MQTT support, DNS support, NTP support, IGMP support, HTTP support, RTSP support, UDP support, RTCP support, TCP support, digest authentication, signed firmware, SOCKS support, RTP support, HTTPS support, Axis Edge Vault, DDNS (Dynamic Domain Name Service), SMTP support, brute force delay protection |
RAM | RAM |
Installed Size | 512 MB |
Flash Memory | Flash Memory |
Installed Size | 2 GB |
Miscellaneous | Miscellaneous |
Included Accessories | Cable ties, grounding kit |
Product Material | Aluminium |
Colour | White, NCS S 1002-B |
Localisation | Argentina, Australia, China, Japan, India, Brazil, United Kingdom, United States, European Union |
Encryption Algorithm | TLS 1.2, TLS 1.3, EAP-TLS |
Authentication Method | Secure Shell (SSH) |
Compliant Standards | EN 61000-3-2, EN 61000-3-3, X.509, EAC, KN35, EN 55032 Class B, KN32 Class B, BFR-free, EAL 6+, IEEE 802.3at, IEC/EN 60950-1, EN 55035, IEC/EN/UL 62368-1, IEEE 802.1x, PVC-free, EN 50130-4, NEMA TS-2 (2.2.7-2.2.9), CFR free, IEEE 802.1ar |
Dimensions & Weight | Dimensions & Weight |
Width | 14.4 cm |
Depth | 12.2 cm |
Height | 5 cm |
Weight | 645 g |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 55 °C |
Humidity Range Operating | 20 - 85% RH (non-condensing) |
