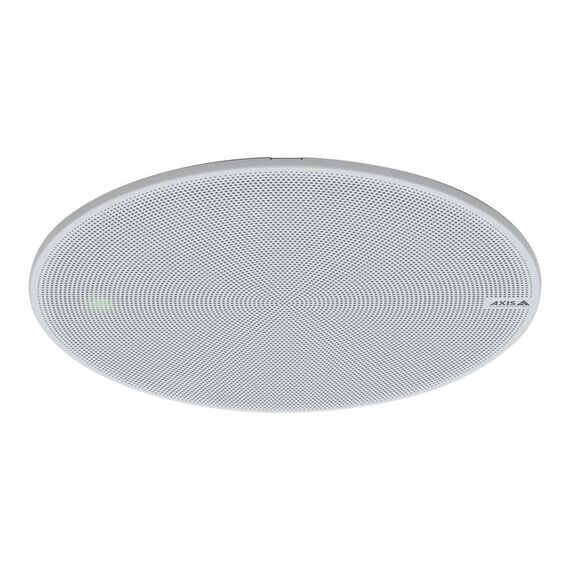

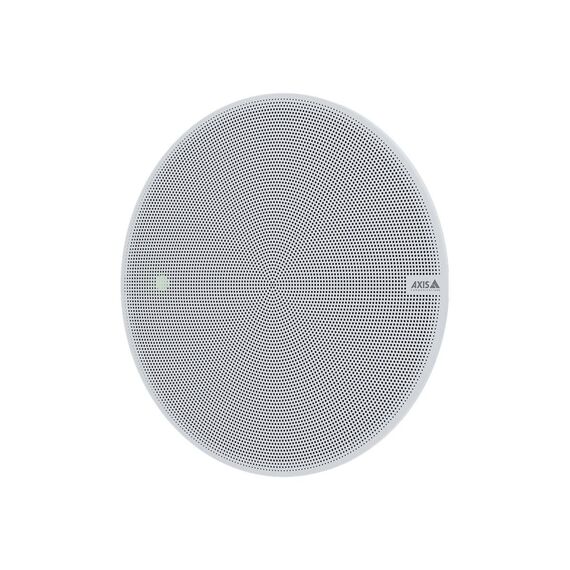

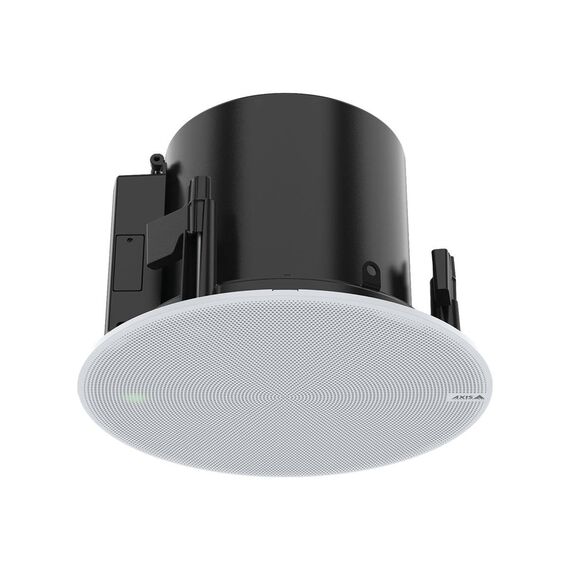

Axis C1211-E / IP speaker / for PA system / Ethernet, Fast Ethernet, PoE / App-controlled / coaxial (grille colour / RAL 9010) | 02323-001
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | IP speaker - for PA system |
| Features | DSP, AXIS Audio Manager Edge, 2-way audio talkback |
| Integrated Memory | Flash - 512 MB |
| Light | LED lights |
| Microphone | Yes |
| Protection | Splashproof |
| Enclosure Material | Plastic |
| Design Features | Paintable |
| Grille Colour | RAL 9010 |
| Speaker System | Speaker System |
| Speaker Type | Coaxial active |
| Frequency Response | 40 - 16000 Hz |
| Max Output Level (Max SPL) | 93 dB |
| Maximum Sampling Rate Supported | 48 kHz |
| Amplifier | Integrated |
| Amplifier Class | D |
| Amplifier Output Power | 7W |
| Coverage | 130° |
| Interfaces | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet) |
| VoIP Protocols | SIP, SRTP, SIPS |
| Voice Codecs | Speex, Opus, L16, PCMA, PCMU, G.726-32 |
| Network Protocols | TCP, ICMP, ARP, HTTP, DNS, SNMP, HTTPS, RTCP, RTP, NTP, UPnP, SSH, FTP, SSL, SFTP, TLS, IPv6, IPv4, CIFS, SMB, SMTP, DynDNS, RTSP, IGMP, DHCP, SOCKS, NTCIP, SIP |
| Recommended Placing | In-ceiling mounted |
| Audio Formats | WAV, PCM, G.726, MP3, ADPCM, AAC-LC, G.711 |
| App-Controlled | Yes |
| Memory Card | Memory Card |
| Supported Memory Cards | microSDHC, microSD, microSDXC |
| Speaker System Details | Speaker System Details |
| Driver Details | Speaker: full-range driver - 4" - dynamic cone |
| Connections | Connections |
| Connector Type | LAN (RJ-45) ¦ Audio line-in / microphone (mini-phone stereo 3.5 mm) ¦ (4 pin terminal block) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | CISPR 24, EN55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, EN 61000-6-3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class B, EN 55032 Class B, KCC KN32 Class B, CISPR 32 Class B, KCC KN35, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60529 IP44, IEC/EN 62368-1, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), CAN/CSA-C22.2 No. 60950-22, UL 60529-22 |
| Power | Power |
| Power Source | Power over Ethernet (PoE) |
| Dimensions & Weight | Dimensions & Weight |
| Diameter | 21.5 cm |
| Height | 15 cm |
| Weight | 2 kg |
| Cutout & Mounting Dimensions | Cutout & Mounting Dimensions |
| Diameter | 19.4 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 50 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 65 °C |
| Humidity Range Operating | 10 - 100% RH (condensing) |
| Humidity Range Storage | 5 - 95% RH (non-condensing) |
Features - AXIS - 02323-001
More Details
Product Code
CE50322
EAN Code
7331021075894
Manufacturer
AXIS
