Product Features
- Reliable two-way communication
Ideal for surveillance in complete darkness and demanding situations, AXIS I8016-LVE features invisible IR night vision allowing you to clearly identify your visitors - 24/7. It offers 5MP resolution and a 140° FOV for capturing wider-angle views with more detail. This robust, outdoor-ready device features high-quality audio with echo and noise cancellation to ensure voices are audible regardless of background noise. It offers versatile installation at entrances or unmanned gates where known and / or unknown visitors pass through on a regular basis. And, it can be used to grant access to drivers at warehouses, delivery areas, or loading docks. Furthermore, it can be used as a help point or emergency phone within larger areas such as cities, parks, and university campuses. - Compact and highly robust
This compact and robust network intercom offers easy installation and fits into 2-gang installation boxes. It benefits from no visible screws, so the casing simply snaps on. Plus, you can be confident that it's safe and secure thanks to its vandal-resistant IK10-rated casing. Additionally, it supports Session Initiation Protocol (SIP) for IP phone system integration as well as open programming interfaces for software integration. - Open and easy integration
With AXIS I8016-LVE you're not dependent on proprietary hardware or software so you're free to use open-standard hardware or software from the supplier of your choice - integrated with the solutions you already own or the ones you decide to purchase next year. It features ACAP support as well as support for intelligent onboard analytics. With open interfaces it offers countless possibilities for integration, making it easy to combine with a long list of other systems within your security solution, as well as solutions for video surveillance, access control, and VoIP communication. Additionally, it includes a multitude of connections, ports, and relays, as well as audio input / output allowing you to connect external sensors, activate lights, open doors, trigger cameras, or sound alarms. The smart possibilities are practically endless.
Special Features
- High-quality audio and video
- Easy installation with PoE
- Open interface with IP phone integration, SIP support
- Outdoor-ready, vandal-resistant IK10-rated
- IP66 / IP69-rated with wall-mount
Product Specification
| Product Type | IP intercom station wall mount |
| Environment | Outdoor |
| Functions | Motion detection, camera |
| Integrated Components | Microphone, speaker, camera |
| Integrated Sensors | Temperature |
| Power Source | PoE |
| Placing / Mounting | Wall-mounting |
| Connectivity Technology | Wired - Ethernet, Fast Ethernet |

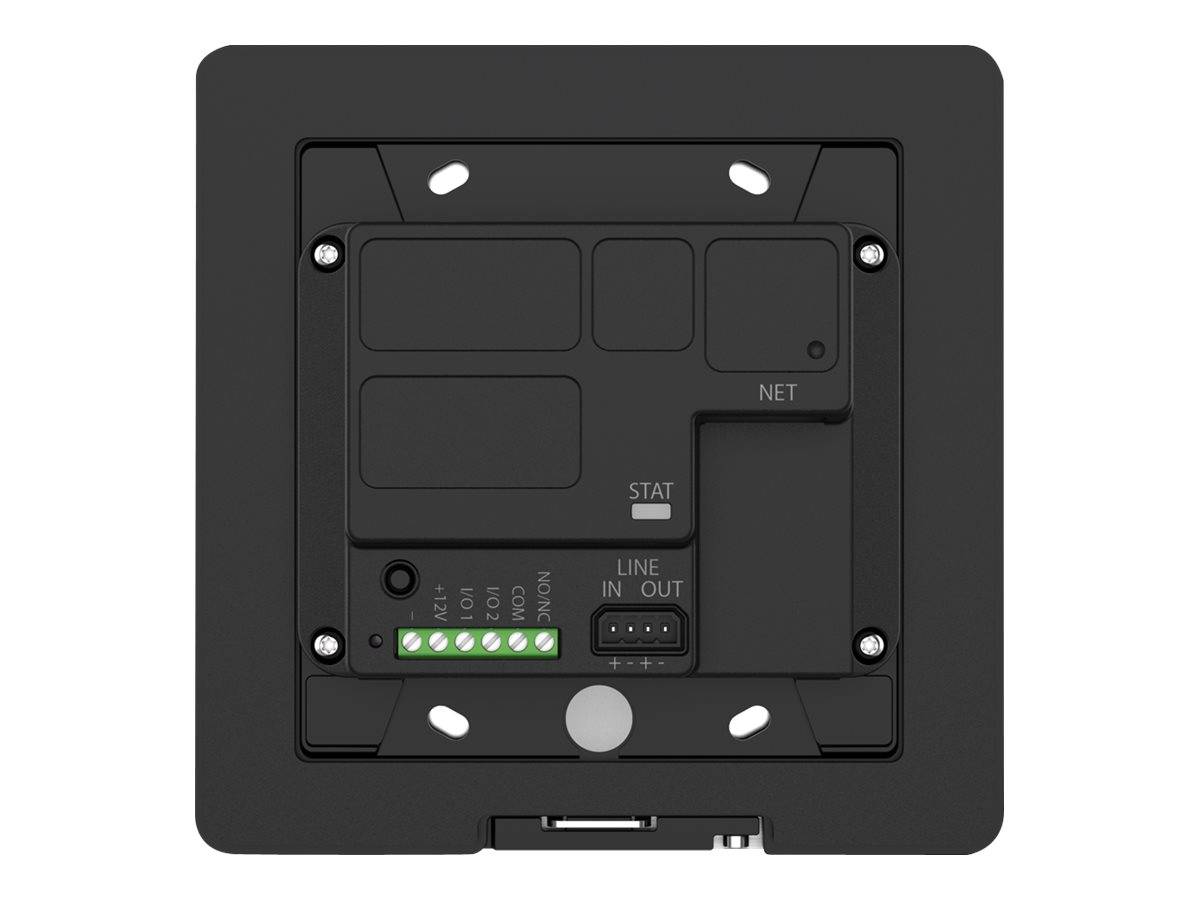

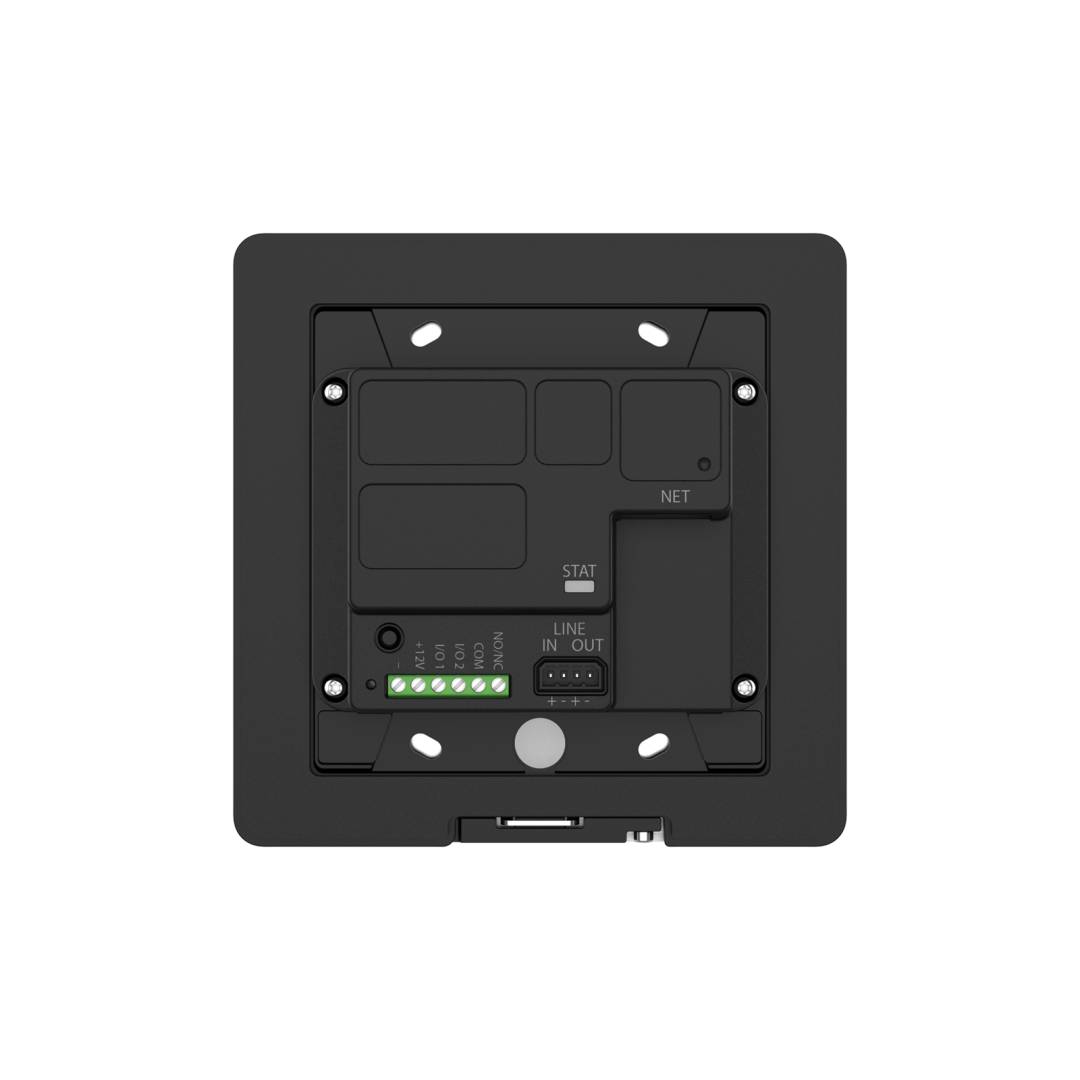

| Interfaces | 6-pin terminal block ¦ Relay ¦ LAN/power ¦ 4-pin terminal block |
| Features | E-mail notification, H.264 streaming video, SIP compliant, MJPEG streaming video, MPEG-4 streaming video, audio detection, casing open detection, H.265 streaming video, PoE, power over Ethernet (PoE), ARP support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, IP address filtering, Quality of Service (QoS), SSH support, SMTP proxy, IPv4 support, LLDP support, Network Access Control (NAC), Internet Control Message Protocol (ICMP), Network Timing Protocol (NTP), secure boot, HTTPS encryption, DHCPv6 guard, Bonjour proxy, DynDNS, Brute Force Protection, password protection, IGMP support, HTTP support, RTSP support, UDP support, RTCP support, TCP support, digest authentication, user access log, centralised certificate management, signed firmware, HTTP/2 support, SRTP support, DHCPv4 guard, SOCKS support, NTCIP support |
| Control Unit | Control Unit |
| Built-in Devices | Microphone, speaker, camera, microSD card reader, microSDHC card reader |
| Buttons Qty | 1 |
| Camera | Camera |
| Image Sensor | RGB CMOS - 1/2.7" |
| Lens Aperture | F/2.2 |
| Focal Length | 1.95 mm |
| Day & Night Functionality | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Features | Sharpness control, white balance, saturation control, brightness control, contrast control, Camera Tampering Detection, microSDXC card slot, shock detection, tone correction, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, exposure zone, 30 fps, TPM 2.0 module, 140° field of view (horizontal), 114° field of view (vertical), WDR technology, fixed iris, day/night threshold, defogging, compression, text overlay, polygon privacy mask |
| RAM | RAM |
| Installed Size | 2048 MB |
| Flash Memory | Flash Memory |
| Installed Size | 512 MB |
| Supported Flash Memory Cards | microSDHC, microSD |
| Software | Software |
| Type | AXIS Camera Station, AXIS Companion |
| Miscellaneous | Miscellaneous |
| Product Material | Plastic, stainless steel |
| Colour | NCS S 9000-N |
| Rated Current | 0.7 A |
| Power Provided | 4.7 Watt |
| Compliant Standards | EN 61000-6-1, EN 61000-6-2, FIPS 140-2, IEC 60068-2-27, IEC 60068-2-6, IK10, FCC Part 15 B Class A, IP66, EN 50121-4, IEC 62236-4, VCCI Class A, IEC 62471, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, KCC KN35, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IP69, CAN/CSA C22.2 No. 60950-22, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP69 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.4 cm |
| Height | 12.4 cm |
| Weight | 900 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
Features - AXIS - 01995-001
More Details
Product Code
CA76375
EAN Code
7331021070561
Manufacturer
AXIS
