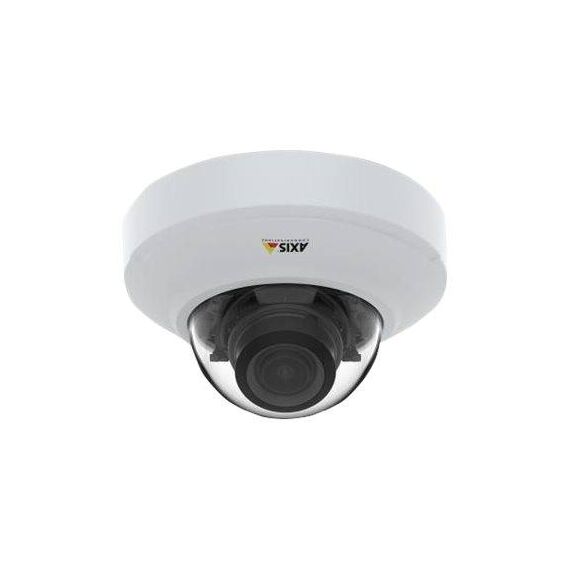

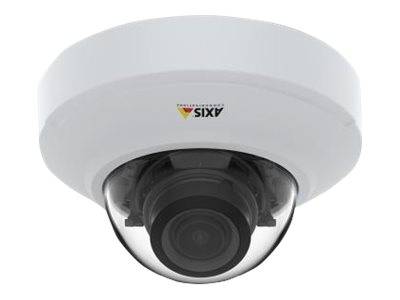

AXIS M42 Network Camera Series M4216-V / Network surveillance camera / dome / colour (Day&Night) / 2304 x 1728 / fixed iris / vari-focal / audio / LAN 10/100 / MPEG-4, MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 / PoE Class | 02112-001
Please sign in so that we can notify you about a reply
Product Features
- Great images, every time
Ideal for any indoor surveillance application, Axis M4216-V delivers 4 MP for wide 4:3 view and 3 MP for 16:9 aspect ratio. Thanks to its varifocal lens it offers a flexible field of view with a viewing angle of up to 100°. Wide dynamic range (WDR) ensures clarity even when there's both dark and light areas in the scene. And, thanks to lightfinder, you also get sharp, color images in low light. Additionally, with remote zoom and auto focus capabilities, there's no need for hands-on fine tuning saving you time and effort. - Extended possibilities
Axis M4216-V offers great possibilities to add value to your camera and extend the functionality of your surveillance system. With a DLPU, it enables unique opportunities to take advantage of intelligent analytics based on deep learning on the edge. And it comes with Axis object analytics enabling object classification for reliable detection with fewer false alarms. And the HDMI port lets you display live video on a public viewing monitor. Furthermore, Axis edge vault protects your Axis device ID and simplifies authorization of Axis devices on your network. - Small and discreet
Compact and flexible in design, it's easy to conceal in recessed ceilings. This makes the camera perfect for any location where discreet monitoring is needed to protect your assets. Axis M4216-V can be easily repainted to blend in seamlessly with any environment. Furthermore, thanks to its vandal-, impact-, and dust-resistant casing you can be confident it's always safe and secure.
Special Features
- Great image quality in 4 MP
- Varifocal lens with remote zoom and focus
- WDR and lightfinder
- Support for analytics with deep learning
- HDMI output for public viewing monitors
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Dome |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 12.1 cm |
| Depth | 12.1 cm |
| Height | 7.1 cm |
| Weight | 350 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 2304 x 1728 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/37500 sec |
| Minimum Illumination | 0.18 lux - colour - F2.0 - 50 IRE ¦ 0.03 lux - B&W - F2.0 - 50 IRE |
| Digital Video Capture Resolution | 320 x 240, 2304 x 1728 |
| Frame Rate (max) | 60 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Sharpness control, white balance, colour control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Privacy Mask Function, NAS-Ready, tamper-detection, notification picture to E-mail, digital PTZ function, password protection, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, CorridorView, ONVIF (Profile T) support, VAPIX support, Lightfighter technology, motion-adaptive exposure, compression, text overlay, object classification, ONVIF (Profile M) support, AXIS Object Analytics |
| Image Sensor | Image Sensor |
| Type | PS RGB CMOS 1/2.7" |
| Lens Construction | Lens Construction |
| Type | Vari-focal |
| Optical Zoom | 1.4 x |
| Focal Length | 3 mm - 6 mm |
| Lens Iris | F/1.9-2.7 fixed iris |
| Horizontal Field of View (degree) | 45 - 100 |
| Vertical Field of View (degree) | 34 - 72 |
| Panning | Panning |
| Range (degree) | -180 to +180 |
| Tilting | Tilting |
| Range (degree) | -40 to +65 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, EAP, SFTP, LLDP, Zeroconf, USGv6, MQTT |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ HDMI - Type D |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, VCCI Class A, RCM, IS13252, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, EN 55035, IEC/EN/UL 62368-1, IEEE 802.1x, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP52 |
| Power | Power |
| Power Requirements | PoE Class 2 |
| Power Device | 2.8 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence, AXIS Video Motion Detection, AXIS Object Analytics |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
Features - AXIS - 02112-001
More Details
Product Code
CD04023
EAN Code
7331021072800
Manufacturer
AXIS
