AXIS P1280-E / Thermal network camera / outdoor, indoor / colour / 208 x 156 / fixed focal / LAN 10/100 / MPEG-4, MJPEG, H.264 / PoE | 02114-001
Please sign in so that we can notify you about a reply
Product Features
- Where privacy is paramount
AXIS P1280-E can be used as a sensor to avoid compromising privacy, for example schools and care homes - thermal imaging detects incidents without revealing personal details of the people in the image. Together with analytics the thermal camera can trigger alerts or alarms in response to patient or resident falls, allowing staff to take immediate action. - Flexible and discreet
AXIS P1280-E is small in size and extremely discreet. Mount it behind surfaces, on walls or inside a bullet-shaped accessory - whichever best suits your requirements.
Special Features
- Reliable and budget-friendly detection
- Thermal technology for low rate of false alarm
- Functional and highly discreet design
- For indoors and outdoors
Product Specification
| Device Type | Thermal network camera |
| Connectivity Technology | Wired |
| Width | 1.65 cm |
| Depth | 4.6 cm |
| Height | 10.9 cm |
| Weight | 72 g |
| Localisation | Argentina, Australia, China, Japan, Brazil, United Kingdom, United States, Europe |
| Camera | Camera |
| Type | Colour - fixed - outdoor, indoor |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution | 208 x 156 |
| Motion Detection | Yes |
| Frame Rate (max) | 8.3 frames per second |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Features | Sharpness control, brightness control, contrast control, e-mail alerts, AXIS Video Hosting System (AVHS), Live Streaming, password protection, Edge Storage, Variable Bitrate (VBR), auto gain control, Zipstream technology, Access Control, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, digest authentication, IP address filtering, HTTPs encryption, temperature control system, signed firmware, Corridor mode, Adaptive Bitrate (ABR), VAPIX support, compression, text overlay |
| Image Sensor | Image Sensor |
| Type | Uncooled Micro bolometer |
| Total Pixels | 208 x 156 |
| Lens Construction | Lens Construction |
| Type | Fixed focal |
| Focal Length | 2.2 mm - 2.2 mm |
| Lens Iris | F/1.05 |
| Horizontal Field of View (degree) | 63 |
| Vertical Field of View (degree) | 47 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, IGMPv2, IGMPv3, CIFS, SFTP, LLDP, USGv6, MQTT |
| Expansion / Connectivity | Expansion / Connectivity |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting bracket, AVHS Authentication key |

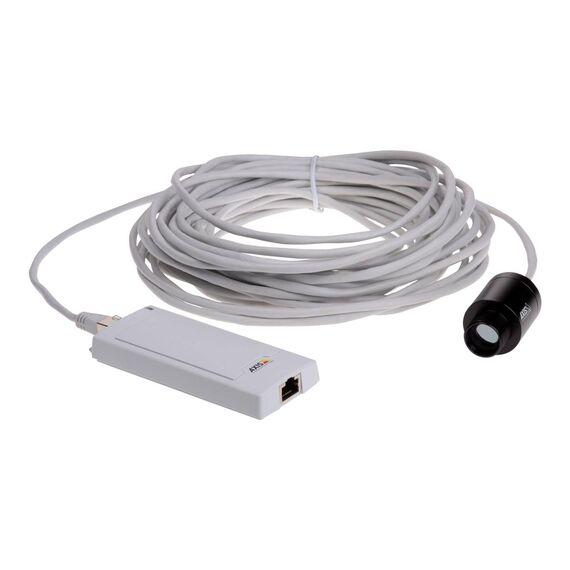

| Cables Included | 1 x sensor cable - external - 12 m |
| Compliant Standards | EN55024, IEC 60529 IP66, IEC 60529 IP67, ICES-003 Class B, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IP67, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class B, EN 50581, EAC, KN35, EN 55032 Class B, KCC KN32 Class B, IEC/EN/UL 60950-22, IEEE 802.3af, IEEE 802.3at, IEC/EN/UL 62368-1, AS/NZS CISPR 23 Class B, NIST SP500-267, FCC Part 15 Subpart B Class B |
| Colour | White |
| Power | Power |
| Power Requirements | PoE |
| Power Device | 4 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence, AXIS Fence Guard, AXIS Video Motion Detection, AXIS Loitering Guard, AXIS Motion Guard |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
Features - AXIS - 02114-001
More Details
Product Code
CA26026
EAN Code
7331021072855
Manufacturer
AXIS
