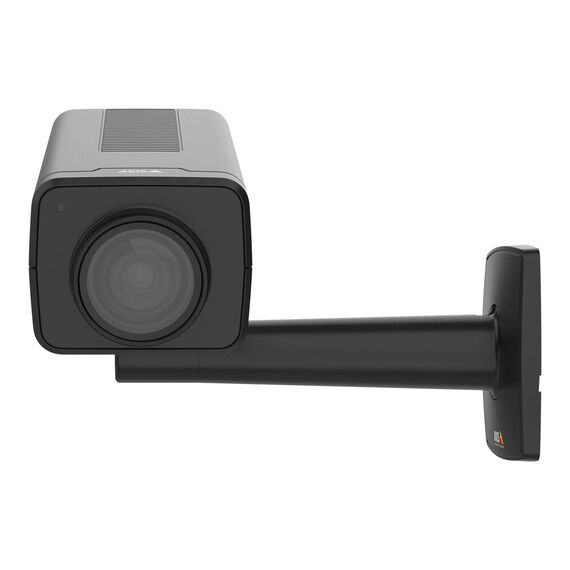

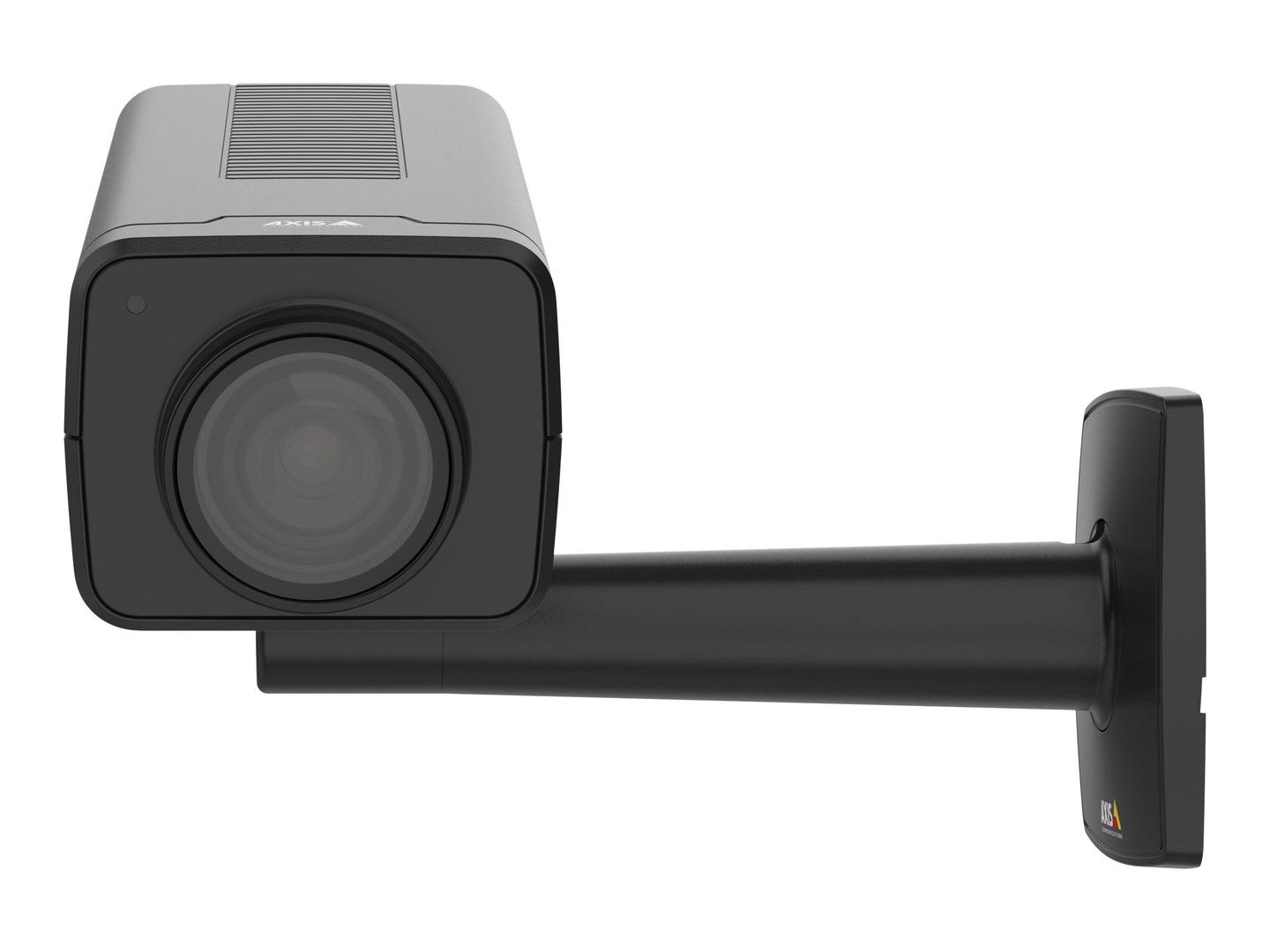

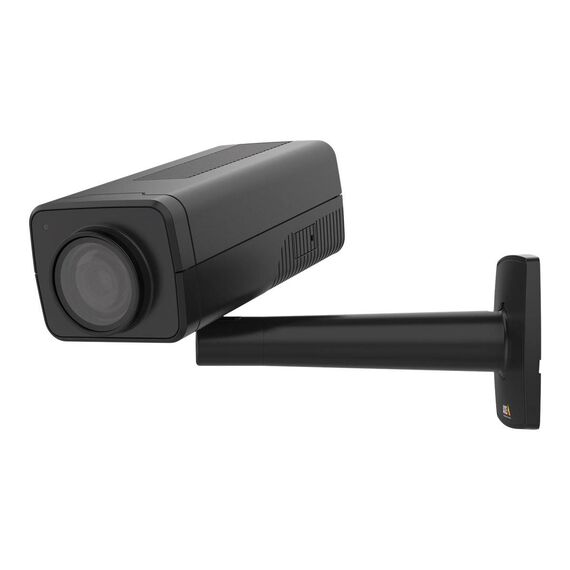

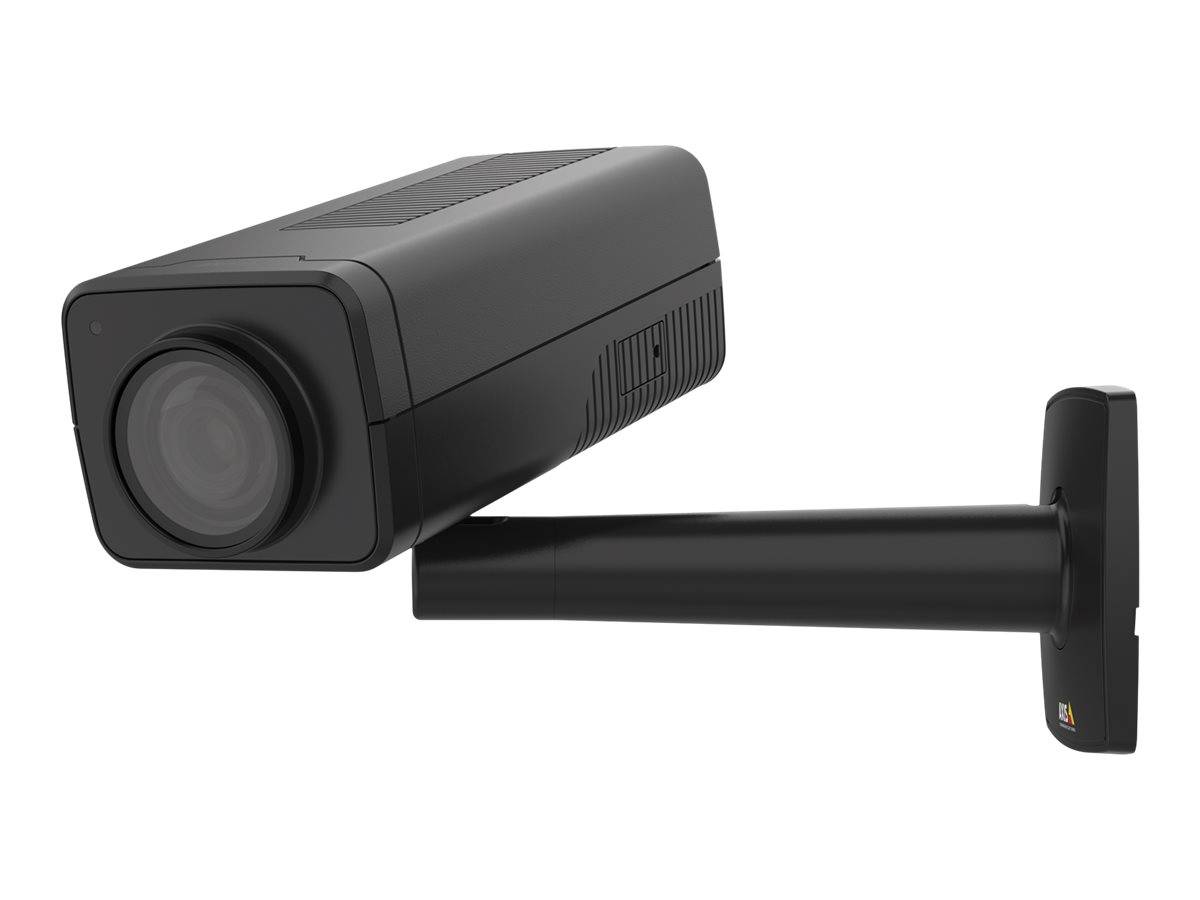

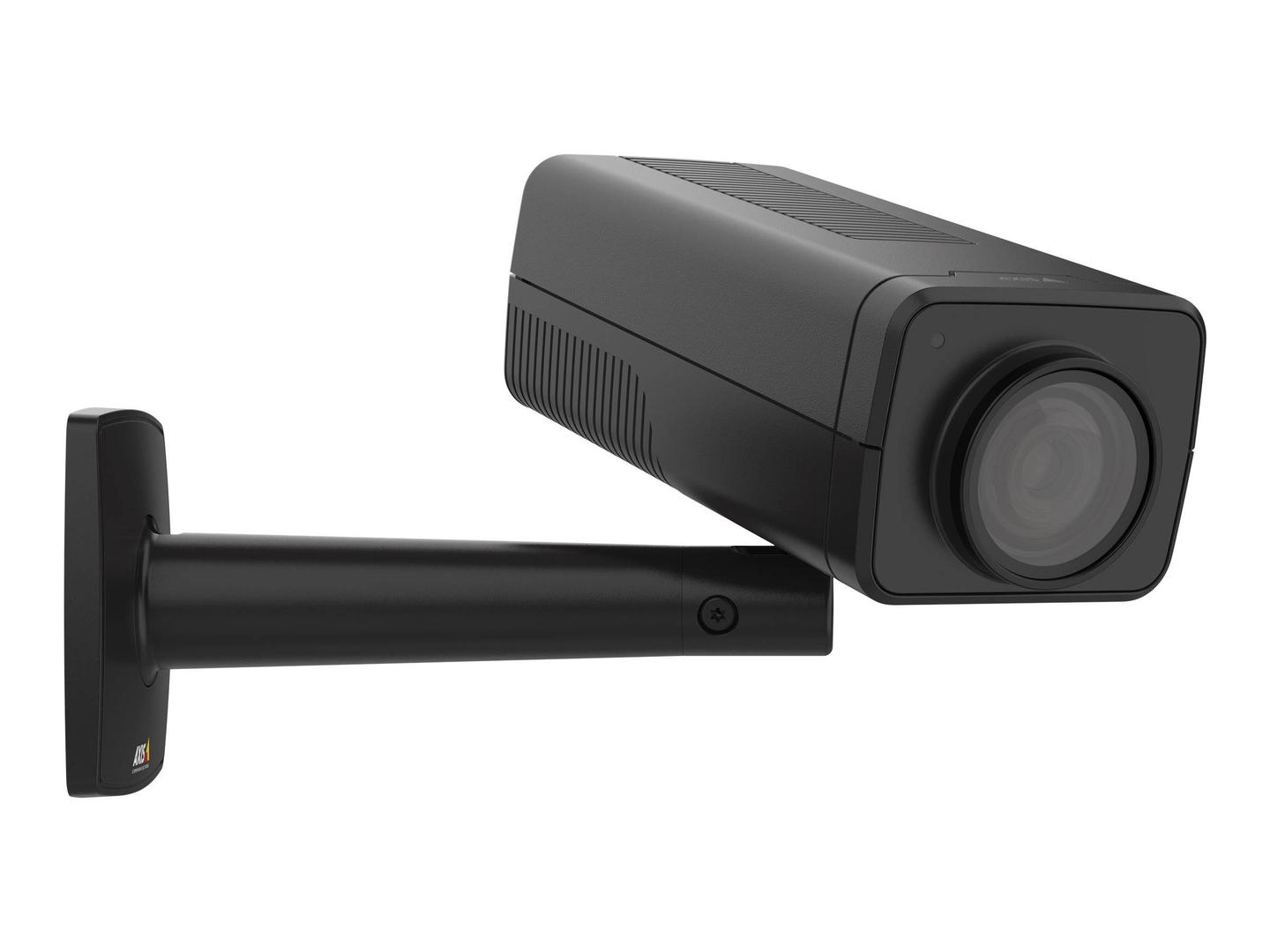

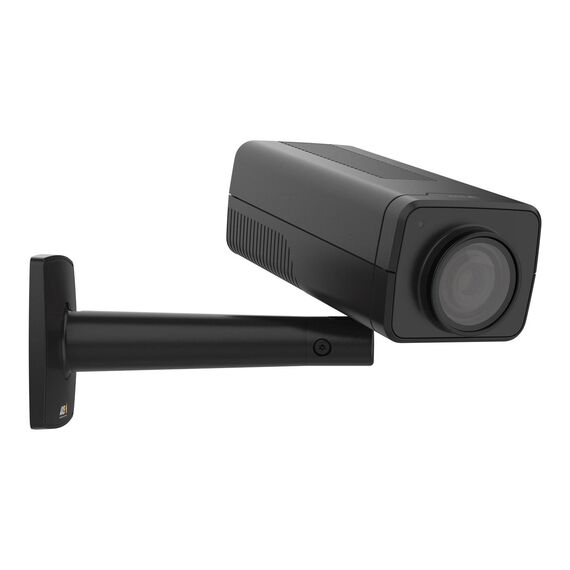

AXIS Q1715 / Network surveillance camera / block / colour (Day&Night) / 1920 x 1080 / 1080p / auto iris / motorized / audio / HDMI, HD-SDI / GbE / MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 / DC 10 / | 02220-001
Please sign in so that we can notify you about a reply
Product Features
- High performance
AXIS Q1715 features a deep learning processing unit (DPLU), enabling advanced features and powerful analytics based on deep learning on the edge. AXIS Object Analytics offers highly nuanced object classification and reliable detection with fewer false positives. Additionally, Axis Edge Vault ensures secure storage of all cryptographic keys and certificates and protects your Axis device ID, simplifying the authorization of Axis products on your network. It also includes a Trusted Platform Module (TPM), that is FIPS 140-2 Security Level 2 certified. - More options
This lightweight block camera can be easily built into accessory housings and casings. It includes a serial port for controlling AXIS T99A10 Positioning Unit or pan-tilt motors. Plus, HDMI and HD-SDI outputs let you display live video on a public viewing monitor and you can connect to most video equipment. Thanks to I2C, it's possible to control IR-illumination when mounted in optional AXIS TQ1809-LE Housing T92G. It even comes with supervised inputs to notify you if the connection is cut. And, it can be powered with DC power and PoE. Even if there is a power outage, redundant DC power ensures a reliable power supply to safeguard your data. - The perfect image
AXIS Q1715 delivers HDTV 1080p at 60 fps and 21x optical zoom for all the details. It ensures the required pixel density and highest image quality for performing analytics. Thanks to Lightfinder 2.0, it captures images with more realistic and saturated colors and sharper images of moving objects. And, Axis Forensic WDR ensures clarity even when there's both dark and light areas in the scene. It offers electronic image stabilization (EIS) for stable video despite vibration. Furthermore, with scene profiles and auto-rotate functionality, it ensures optimal coverage and always-great image quality.
Special Features
- 1080p at 60 fps with 21x zoom
- Support for analytics with deep learning
- Granular object classification
- Ideal for accessory housings and casings
- HDMI and HD-SDI output
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Block |
| Connectivity Technology | Wired |
| Width | 8 cm |
| Depth | 19.5 cm |
| Height | 6.6 cm |
| Weight | 650 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed |
| Digital Video Format | MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 2 sec - 1/66500 sec |
| Minimum Illumination | 0.1 lux - colour - F1.5 - 50 IRE ¦ 0.02 lux - B&W - F1.5 - 50 IRE |
| Frame Rate (max) | 60 frames per second |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Features | White balance, saturation control, brightness control, contrast control, image mirror, heater, multi-streaming, notification picture to E-mail, digital PTZ function, notification picture to FTP, password protection, distortion correction function, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Defog, Zipstream technology, Pelco Protocol, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Line Crossing Detection, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone, Remote Back Focus, signed firmware, secure boot, TPM 2.0 module, Audio Noise Reduction, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, brute force delay protection, ONVIF (Profile M) support, AXIS Object Analytics |
| Image Sensor | Image Sensor |
| Type | RGB CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 21 x |
| Focal Length | 4 mm - 84.6 mm |
| Lens Iris | F/1.6-4.5 auto iris (P-Iris) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 3.6 - 76 |
| Vertical Field of View (degree) | 2.2 - 42 |
| Interfaces | Interfaces |
| Video | HDMI, HD-SDI |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTT |
| Control Interface | RS-485, RS-422 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line out - 3.5 mm jack ¦ Audio line-in/microphone - 3.5 mm jack ¦ Serial RS-485/RS-422 - terminal block ¦ HDMI ¦ HD-SDI - BNC |
| Supported Memory Cards | SD Memory Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Stand, connector kit, Resistorx L-key, Torx T20 screw driver |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, NEMA TS-2, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, EN 55035, CISPR 35, IEEE 802.1x, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547 |
| Colour | Black |
| Power | Power |
| Power Requirements | DC 10 - 28 V / PoE Plus Class 4 |
| Power Device | 12 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
