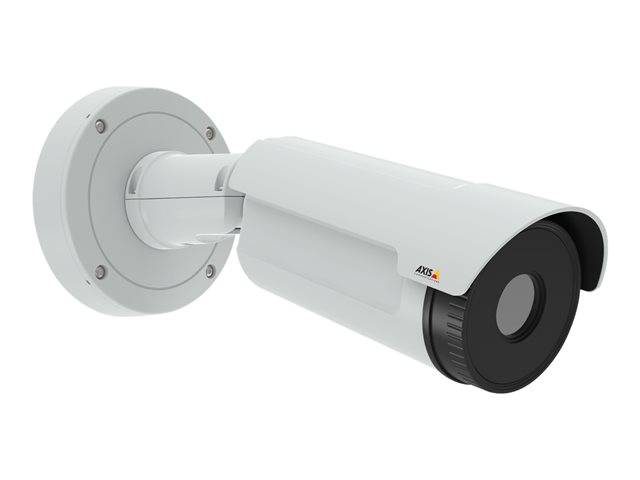

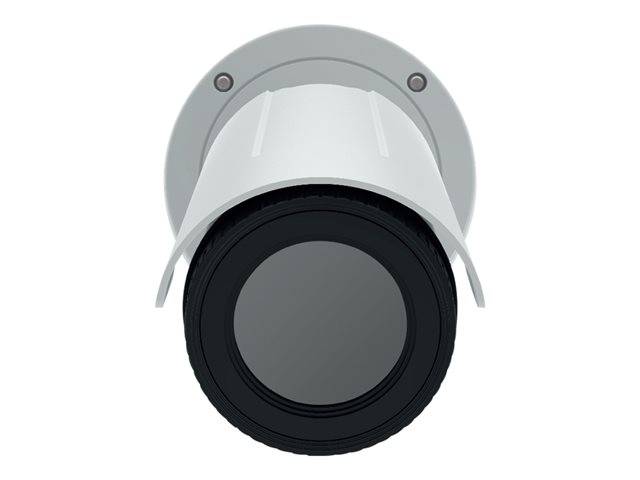

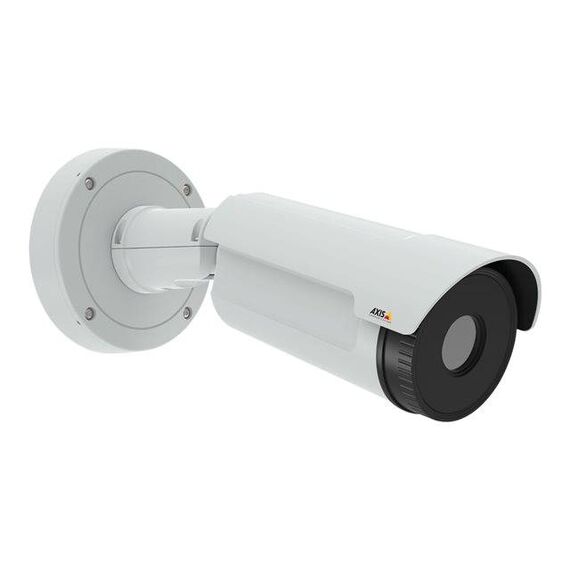

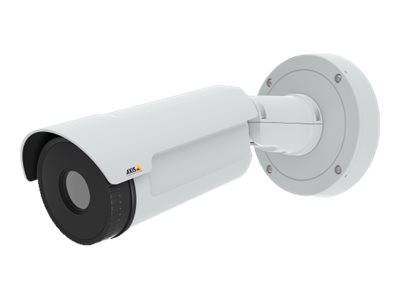

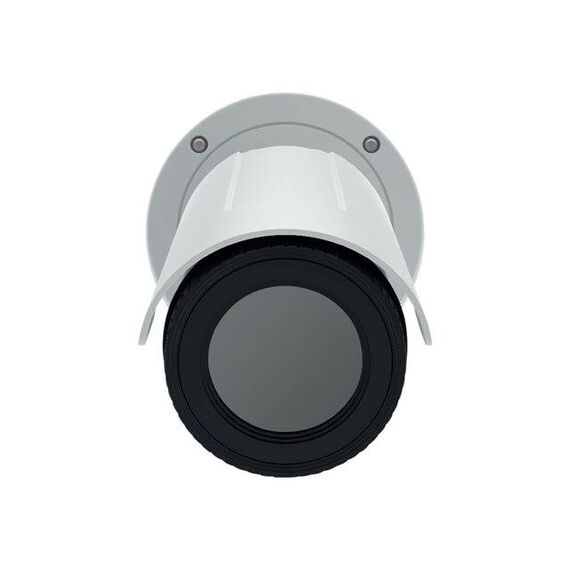

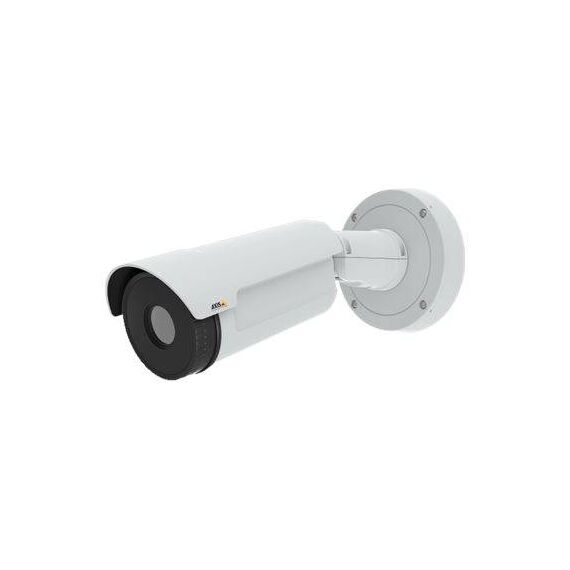

AXIS Q1941-E / Thermal network camera / outdoor / weatherproof / colour / 768 x 576 / audio / 10/100 / MJPEG, H.264, MPEG-4 AVC / DC 8 / 28 V / AC 20 / 24 V / PoE | 0789-001
AXIS Q1941-E / Thermal network camera / outdoor / weatherproof / colour / 768 x 576 / audio / 10/100 / MJPEG, H.264, MPEG-4 AVC / DC 8 / 28 V / AC 20 / 24 V / PoE | 0789-001
Description Thanks to its powerful processor, AXIS Q1941-E has high capacity for running video analytics. The camera also offers a memory card slot for storing recordings locally. Special Features
Product features
|
Product Specification
Device Type | Thermal network camera |
Audio Support | Yes : two-way audio capability |
Camera Mount Type | Wall mount, ceiling mount |
Connectivity Technology | Wired |
Width | 14.5 cm |
Depth | 34.4 cm |
Height | 14.5 cm |
Weight | 2.2 kg |
Localisation | Argentina, Australia, China, Japan, Brazil, United Kingdom, United States, European Union |
Type | Colour - fixed - outdoor - weatherproof |
Digital Video Format | MJPEG, H.264, MPEG-4 AVC |
Max Digital Video Resolution | 768 x 576 |
RAM | 512 MB |
Flash Memory | 256 MB |
Features | Exposure compensation, sharpness control, digital image rotation, brightness control, contrast control, image mirror, Privacy Mask Function, Electronic Image Stabilizer (EIS), text stamp, Video Motion Detection Technology, password protection |
Effective Pixels | 384 x 288 |
Focal Length | 60 mm |
Lens Iris | F/1.25 |
Horizontal Field of View (degree) | 6.2 |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS |
Ports | LAN - RJ-45 ¦ Audio line in ¦ Audio line out |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Included Accessories | Wall mount bracket, ceiling mount bracket |
Compliant Standards | EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, IEC 60529 IP66, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, EN 60950-1, IEC 60068-2-27, IEC 60068-2-6, IP67, KCC Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, EN 50121-4, EN 60950-22 |
Colour | White |
Power Requirements | DC 8 - 28 V / AC 20 - 24 V / PoE |
Power Device | 4.4 Watt |
Software Included | AXIS Camera Companion, AXIS Camera Station |
Service & Support | 3 years warranty |
Service & Support Details | Limited warranty - 3 years |
Min Operating Temperature | -40 °C |
Max Operating Temperature | 60 °C |
Relative Humidity (operating) | 10 - 100% |
