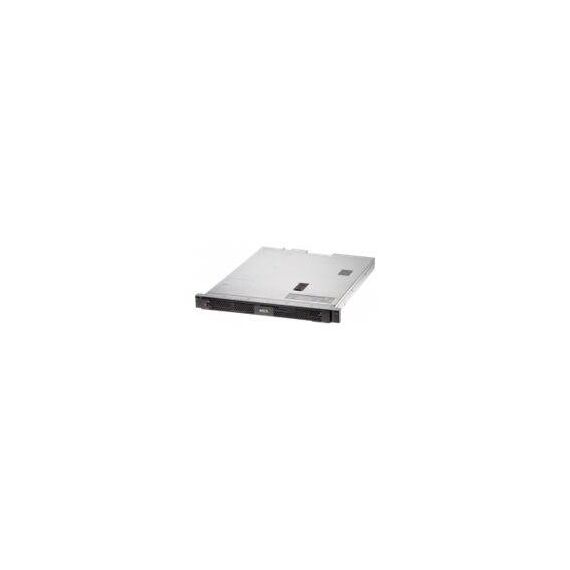

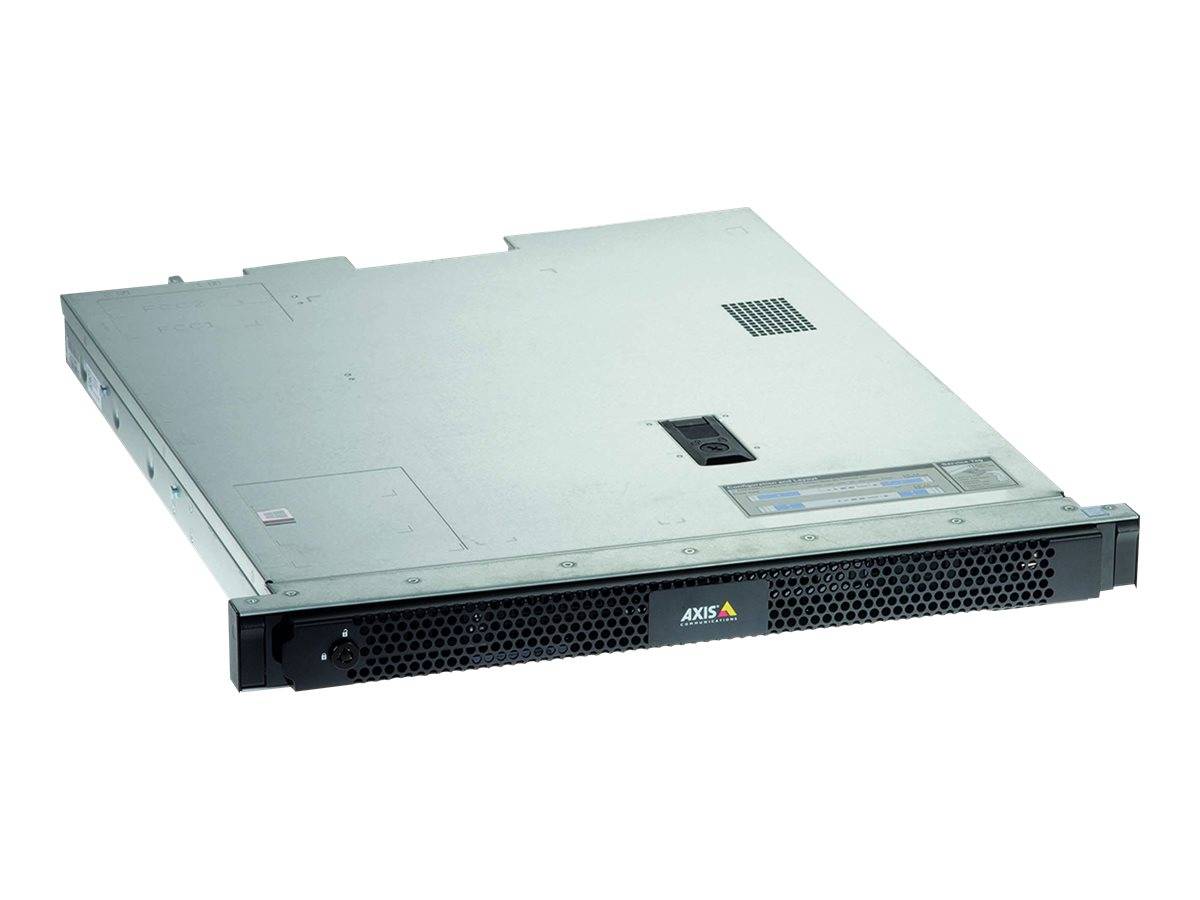

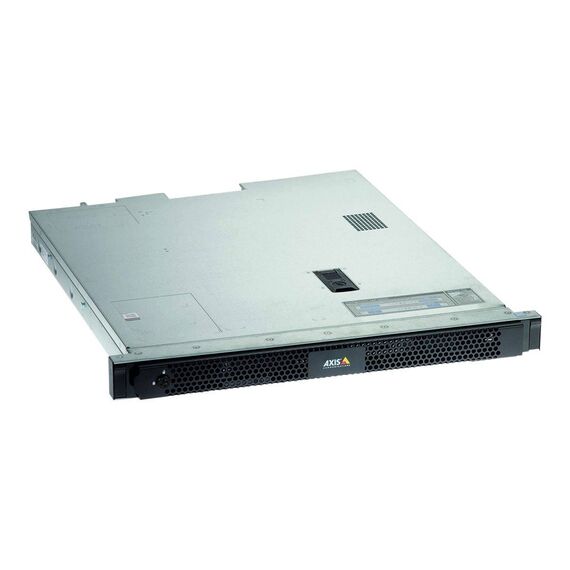

AXIS Camera Station S1116 Recorder / Server / rack-mountable / 1 x Core i5 8500 / 3 GHz / RAM 8 GB / SSD 256 GB, HDD 8 TB / GigE / Windows 10 Enterprise / monitor: none | 01618-001
Please sign in so that we can notify you about a reply
Product Features
- Out-of-the-box, ready-to-use solution
AXIS Camera Station allows you to verify system performance at installation, so you can be sure your solution is effective and secure. And with the integrated recording toolbox, you get easy access to a complete end-to-end solution with total control over your entire surveillance system. - Improved performance and reliability
AXIS S1116 provides increased performance and contains a powerful CPU to allow for fast processing of data. The operating system is stored on a SSD meaning system start-up is fast, and the operating system is safeguarded in the event of failure.
Special Features
- Out-of-the-box, ready-to-use solution
- Improved performance and reliability
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable |
| Built-in Devices | SD card reader |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i5 (8th Gen) 8500 / 3 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| RAM | RAM |
| Installed Size | 8 GB |
| Hard Drive | Hard Drive |
| Type | SSD |
| Capacity | 1 x 256 GB |
| Hard Drive (2nd) | Hard Drive (2nd) |
| Type | HDD |
| Capacity | 1 x 8 TB |
| Spindle Speed | 7200 rpm |
| Monitor | Monitor |
| Monitor Type | None. |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 2 (total) / 2 (free) x |
| Interfaces | 2 x USB 3.1 ¦ 1 x USB-C 3.1 ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 2 x DisplayPort/USB-C 3.1 ¦ 1 x audio line-in ¦ 1 x serial |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rack rail kit, USB-C to VGA adapter |
| Compliant Standards | BSMI, EN 61000-3-2, IEC 61000-3-2, NOM, EN55024, ICES-003 Class A, FCC Part 15 A, VCCI Class A, EAC, RCM, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-1, IEC/EN 61000-3-3 |
| Power | Power |
| Device Type | Power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 550 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | Windows 10 Enterprise |
| Software | 16 AXIS Camera Station core licences |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 58.9 cm |
| Depth | 48.2 cm |
| Height | 4.3 cm |
| Weight | 9.6 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
Features - AXIS - 01618-001
More Details
Product Code
B093540
EAN Code
7331021065970
Manufacturer
AXIS
