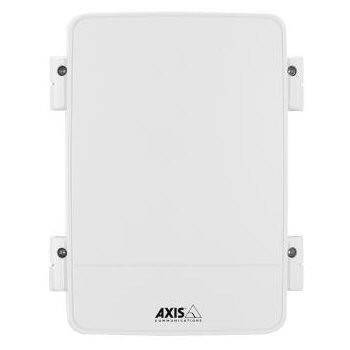

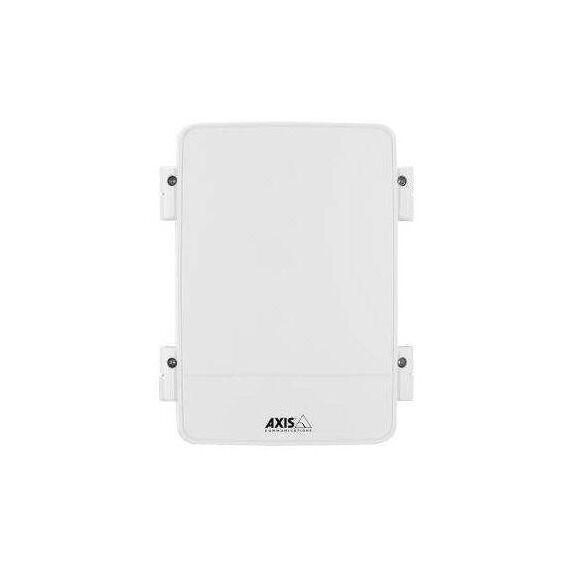

AXIS T98A16-VE / Cabinet / wall mountable / white | 5900-161

Description

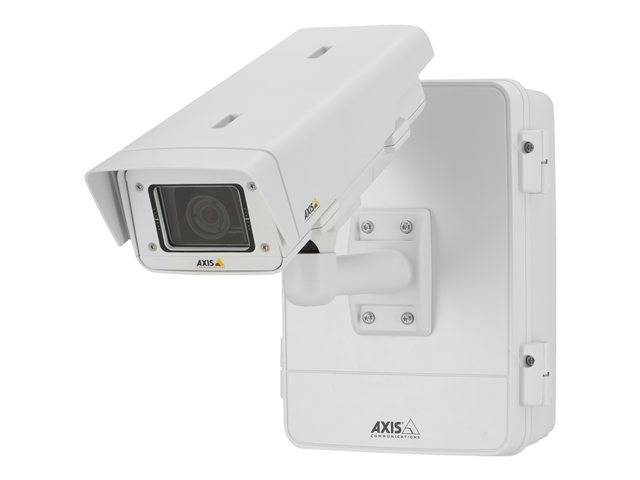

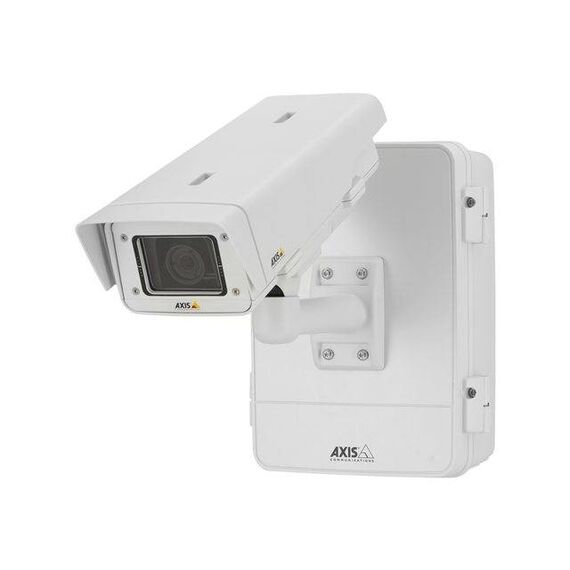

AXIS T98A-VE Surveillance Cabinet series is a unique, outdoor-ready cabinet, specially designed for Axis outdoor network cameras. AXIS T98A-VE Surveillance Cabinet series protects mains power and low-voltage units from tough weather and vandalism.AXIS T98A-VE series is a system solution that saves time and money in the field. AXIS T98A-VE Surveillance Cabinet series is designed for electrical safety and to enable installation in steps, with a compartment that fits many accessories such as midspan, power supply and media converter switches used for a network camera installation.AXIS T98A-VE Surveillance Cabinet series comes with a mounting plate to simplify installation and cable protection attachment. The cabinet is IP66- and NEMA 4X-rated for protection against the ingress of dust and high pressure water jets from any direction as well as IK10-rated for protection against impact and vandal acts. An optional electrical safety kit is available, which includes surge protection, a fuse and a door switch to detect intrusion or vandalism of the cabinet.AXIS T98A-VE cabinet is ideal in city surveillance or critical infrastructure installations where a sturdy, vandal resistant and water-protected box is a must.

Special Features

• Versatile, outdoor-ready cabinets for easy and sleek installation
• Ease-of-installation
• Vandal-resistant to withstand adversities
• Separated compartments to enhance security

Product features

• Versatile, outdoor-ready cabinets for easy and sleek installation
  AXIS T98A-VE series combines and protects mains-powered and low-voltage components in an easy-to-install, sleek design that blends together with outdoor-ready PTZ, fixed and fixed dome IP cameras.
• Ease-of-installation
  AXIS T98A-VE offers several ease of installation features to simplify the work for the installers. With a selection of optional mounting brackets, AXIS T98A-VE can be installed on a wall, pole or building corner. The polycarbonate cabinet base is extremely lightweight and can easily be carried in one hand. For maximum installation flexibility the cabinet door can be left or right hinged. To facilitate cable routing the cabinet is fitted with a specially designed mounting plate allowing the cabinet base to temporarily be mounted in a higher position and the hinges have a stop that locks the cabinet door at 105-degree. The cabinet is also designed with pre-mounted DIN rails to make it easy to connect components.
• Vandal-resistant to withstand adversities
  The polycarbonate cabinet is IP66-rated for protection against the ingress of dust and high pressure water jets from any direction. The NEMA 4X rating protects against windblown dust, salt spray, rain, hose-directed water, and damage from external ice formation. It provides also IK10-rated material for protection against impact and vandalism.
• Separated compartments to enhance security
  For better installation and improve cost efficiency, the inner compartment with a DIN rail can be split into two sections: one to fit mains power units and a second for low-voltage units that do not require installation by a certified electrician. An optional electrical safety kit is available, which includes surge protection, a fuse and an alarm-door switch to detect cabinet intrusion or damage.
