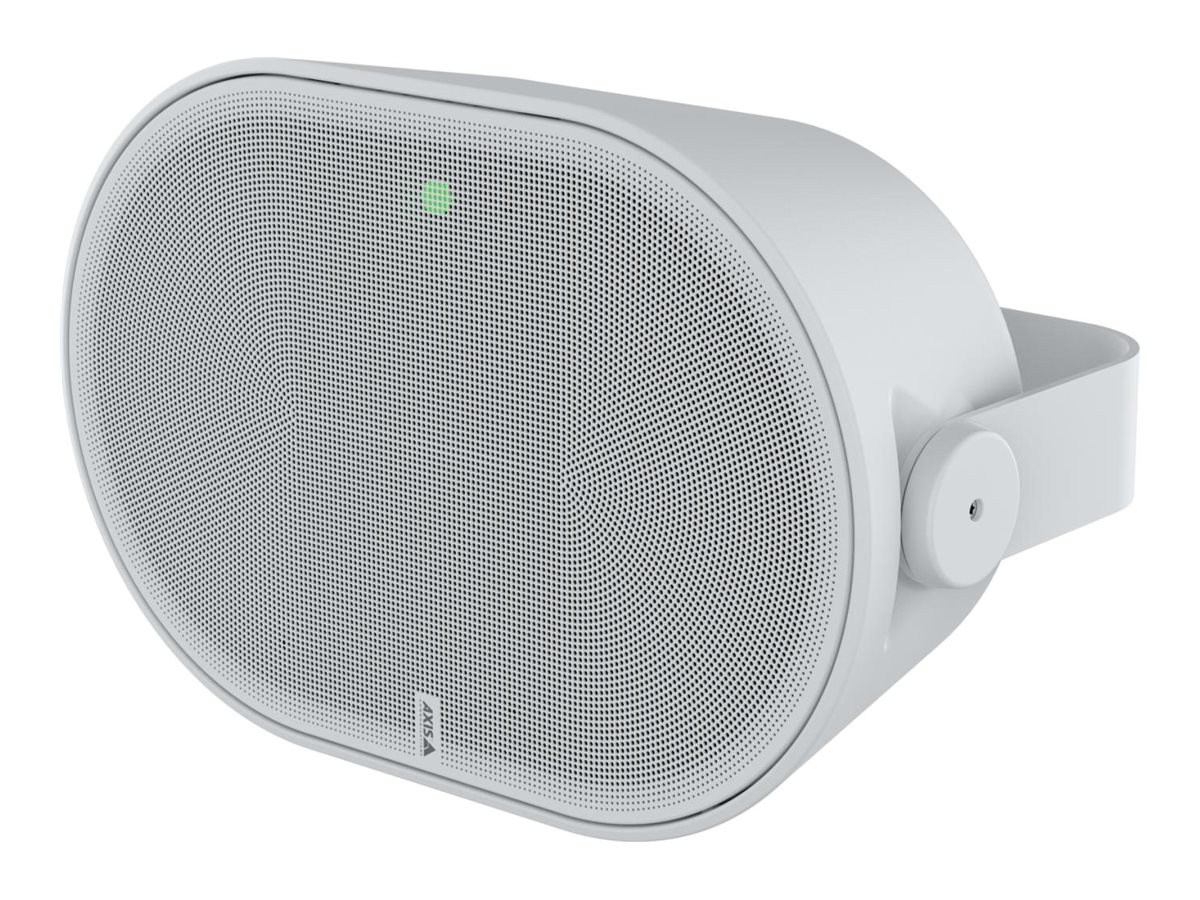

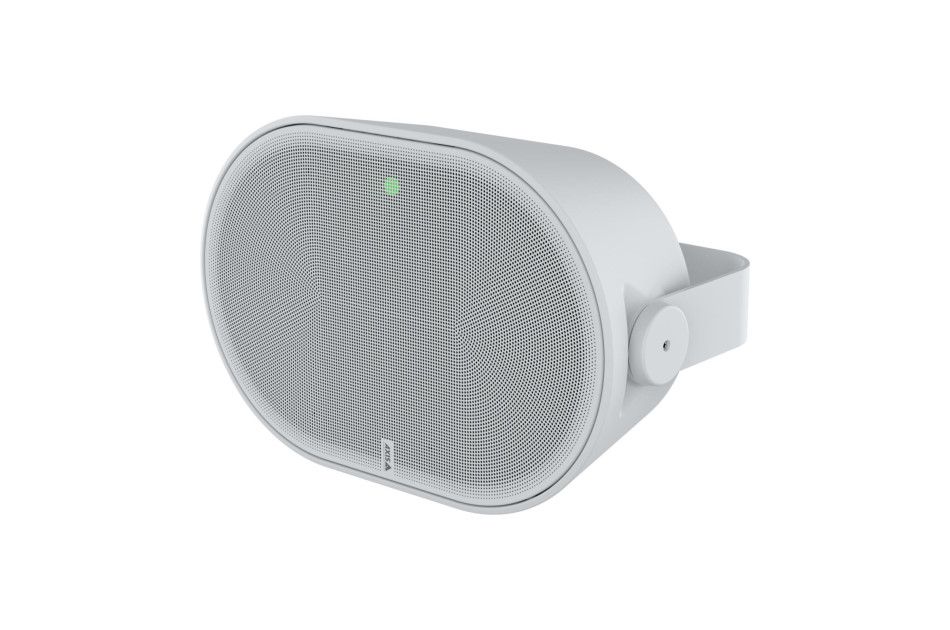

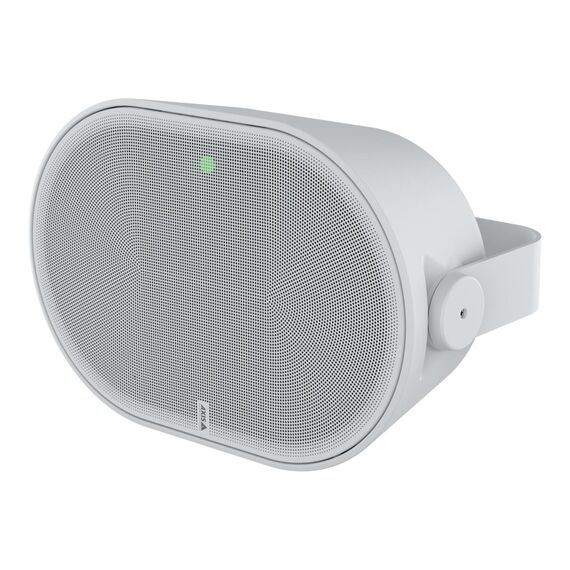

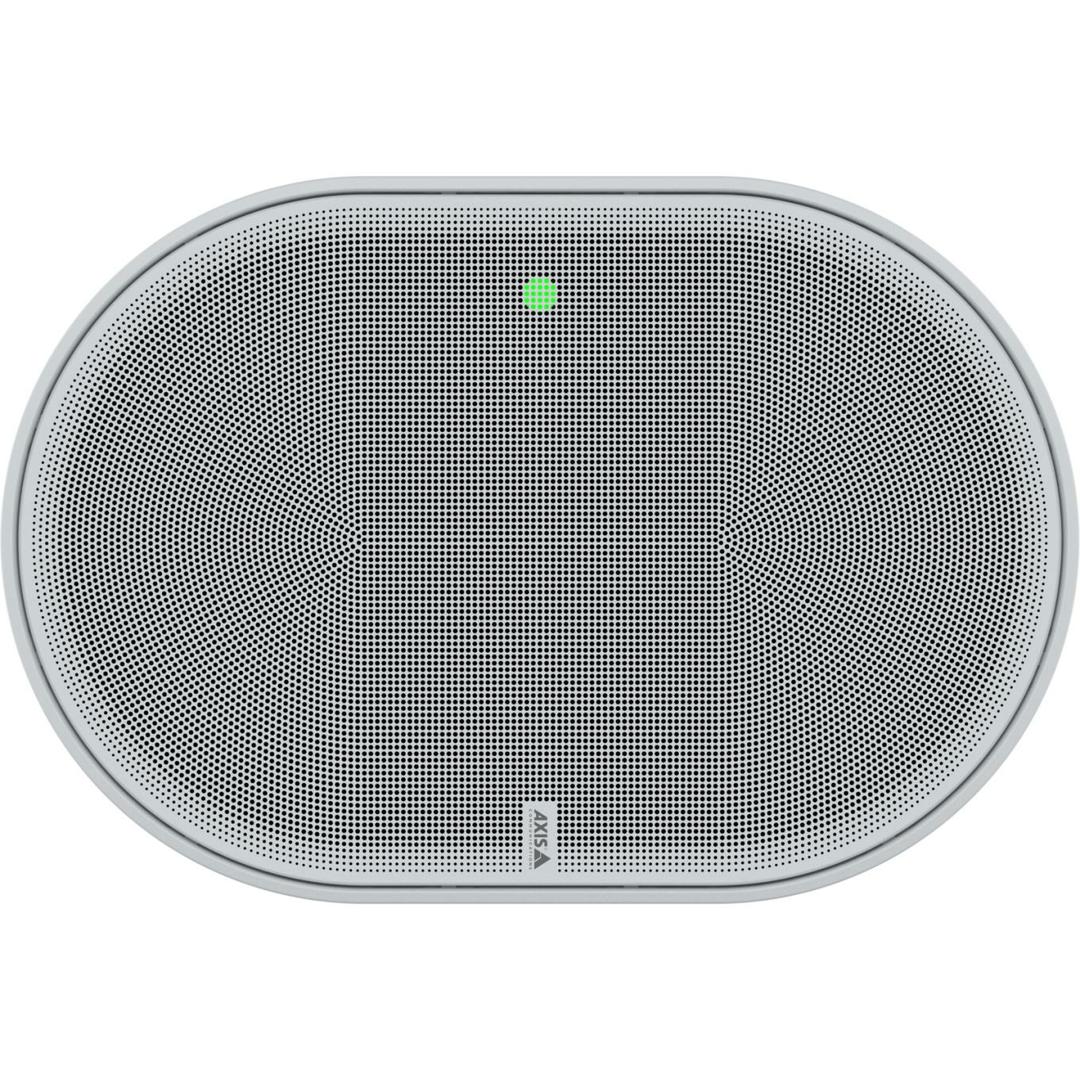

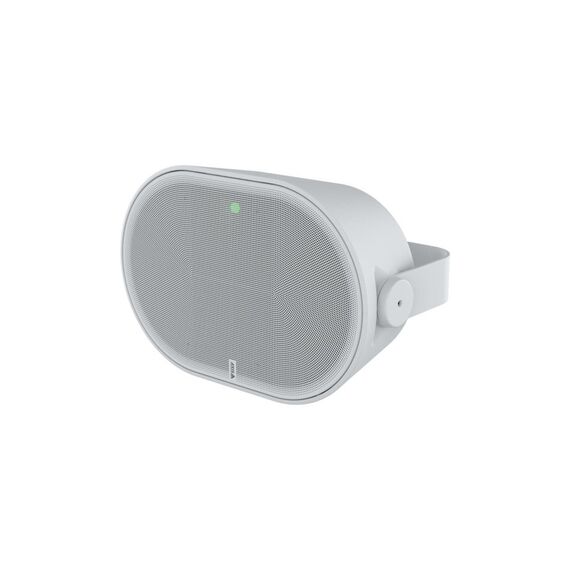

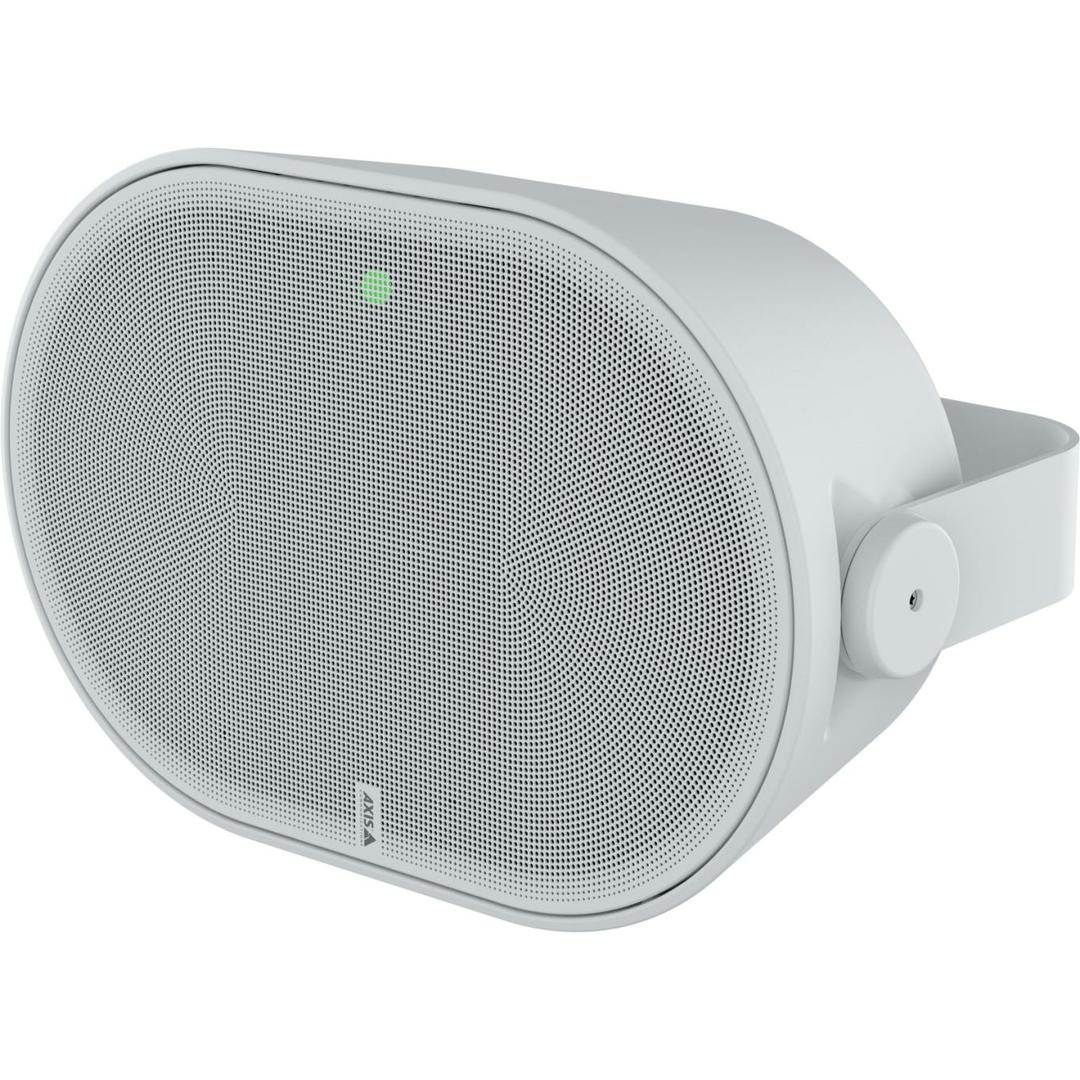

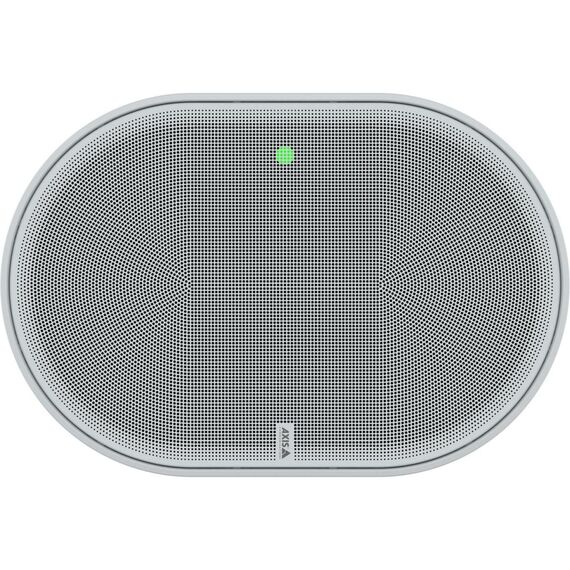

Axis C1110-E - IP speaker - for PA system - Ethernet, Fast Ethernet, PoE, PoE-Plus - 2-way - white | 02695-001
Please sign in so that we can notify you about a reply
Product Features
- Smart and easy to integrate
This smart network speaker combines hardware and software in a single cost-effective unit. Built on an open platform, it's made to work with your systems, from your VMS to your VoIP (using SIP) to the analytics you depend on. The built-in microphone supports remote health testing and two-way audio with full duplex and echo cancellation. Plus, AXIS Audio Manager Edge software comes built in, so you can schedule content, set user permissions, and reconfigure zones from anywhere. For coordinating audio across multiple sites, a standard version of multisite management software, AXIS Audio Manager Center, is also available free of charge. - Great sound for all your audio needs
Enjoy outstanding audio, starting the moment you take the speaker out of the box. A preconfigured digital signal processor (DSP) ensures clear voice and background music every time. Live, scheduled, and event-triggered voice messages help you improve business efficiency, keep people safe and informed, and protect your property. And if background music is your primary use case, AXIS C1110-E delivers - its deeper sound impression and bass range offer premium sound for just the right atmosphere. Plus, with flexible audio zoning and content prioritization, you can count on your messages getting to the right place at the right time. - Easy, flexible installation
It doesn't get much easier. A single network cable provides both power and connectivity using Power over Ethernet, so you don't need to fuss with dedicated audio cabling. Its all-in-one design saves space and eliminates the need for external amplifiers or other audio equipment, and the click-in mounting process supports a safe and easy installation. Finally, it's got a visual design worth showing off - in any setting. Sleek and stylish, it's available in white and black, and it's suitable for mounting on walls, ceilings, and poles, both indoors and in semi-protected outdoor installations - for example, under eaves.
Special Fetures
- Stylish, flexible all-in-one speaker
- Connects to the standard network
- Easy installation with PoE
- Two-way audio with echo cancellation
- Remote health testing
Product Specification
| Product Type | IP speaker - for PA system |
| Features | DSP, AXIS Audio Manager Edge, 2-way audio talkback, echo cancelling |
| Integrated Memory | Flash - 1024 MB |
| Light | LED lights |
| Microphone | Yes |
| Enclosure Colour | White |
| Enclosure Design | Bass reflex |
| Enclosure Material | Aluminium |
| Speaker System | |
| Speaker Type | 2-way - active |
| Frequency Response | 60 - 20000 Hz |
| Max Output Level (Max SPL) | 96 dB |
| Maximum Sampling Rate Supported | 48 kHz |
| Amplifier | Integrated |
| Amplifier Class | D |
| Amplifier Output Power | 7W |
| Coverage | 140° x 90° |
| Interfaces | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus) |
| VoIP Protocols | SIP, SRTP, SIP over TLS, SIPS |
| Voice Codecs | Speex, Opus, L16, PCMA, PCMU, G.726-32 |
| Network Protocols | TCP, ICMP, ARP, HTTP, DNS, SNMP, HTTPS, RTCP, RTP, NTP, UPnP, SSH, FTP, SSL, SFTP, TLS, IPv6, IPv4, CIFS, SMB, SMTP, DynDNS, RTSP, IGMP, DHCP, SOCKS, NTCIP, SIP |
| Recommended Placing | Ceiling mountable, wall-mountable, pole mount |
| Audio Formats | WAV, PCM, G.726, MP3, ADPCM, AAC-LC, G.711 |
| Memory Card | |
| Supported Memory Cards | microSDHC, microSD, microSDXC |
| Speaker System Details | |

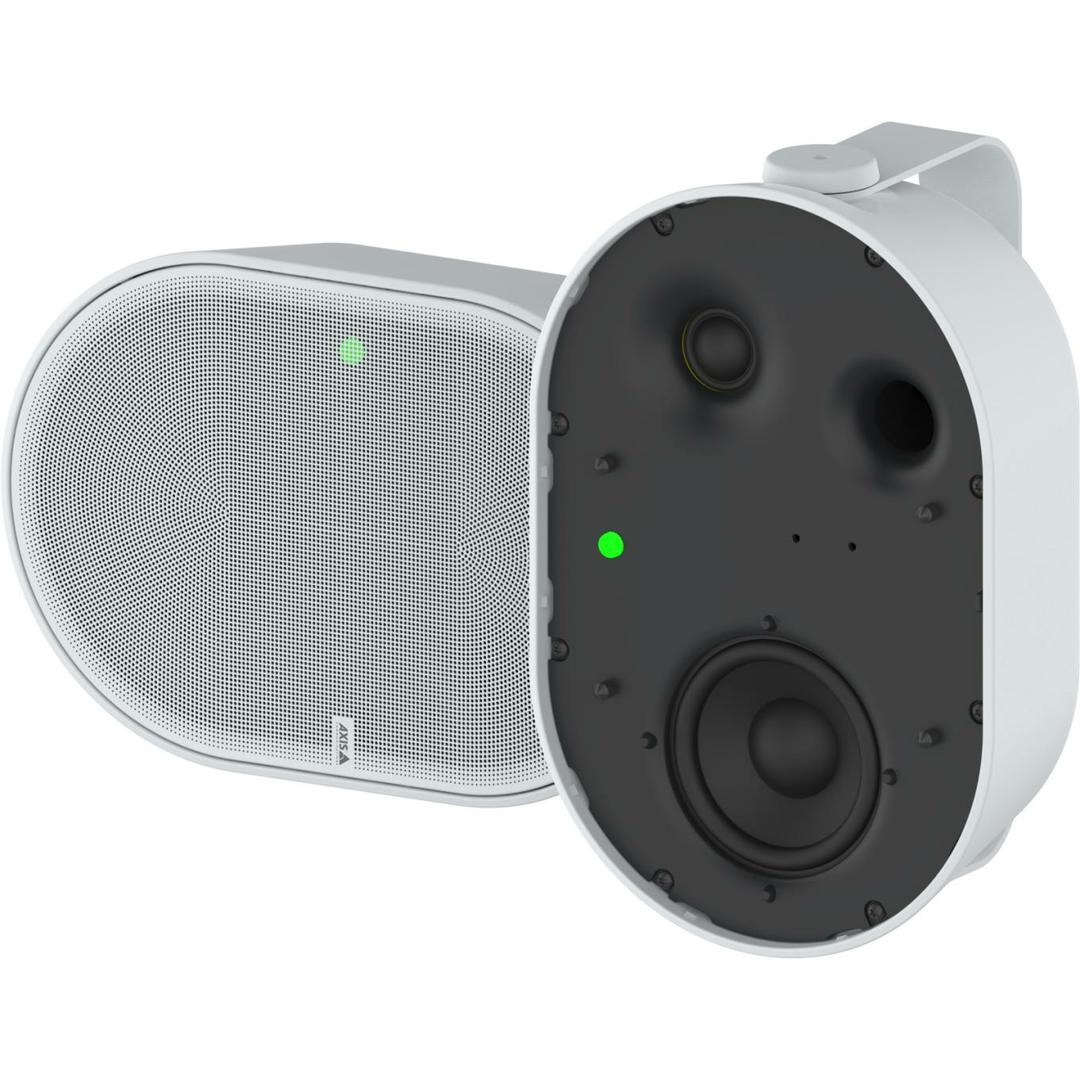

| Driver Details | Speaker: woofer driver - 4" - dynamic cone ¦ Speaker: tweeter driver - 1.25" |
| Connections | |

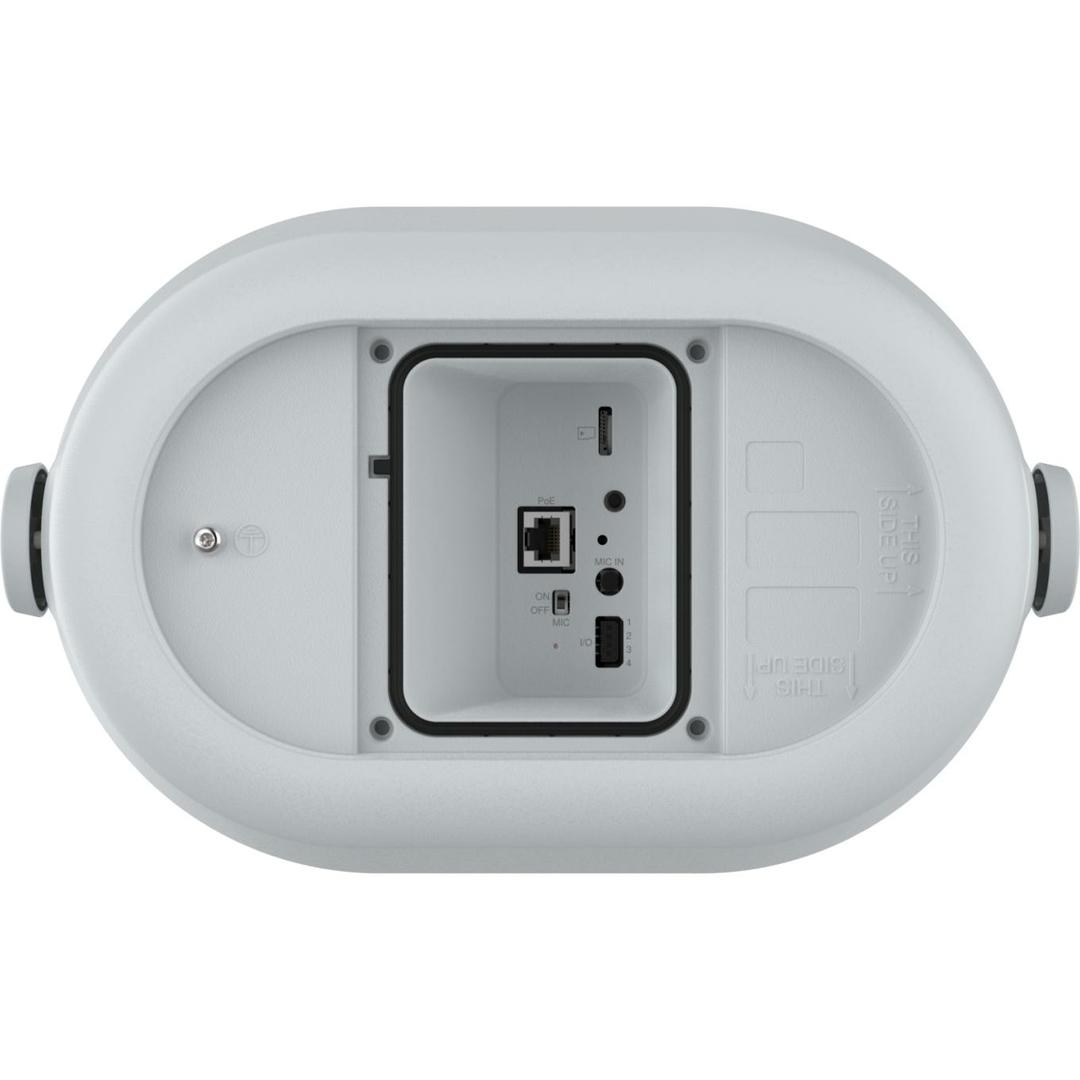

| Connector Type | LAN (RJ-45) ¦ (4 pin terminal block) |
| Miscellaneous | |
| Included Accessories | Connector protector, AVHS authentication key, terminal block, gasket |
| Compliant Standards | CISPR 24, EN55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, EN 61000-6-3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, VCCI Class B, EN 55032 Class B, IEC/EN/UL 60950-22, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60529 IP44, IEC/EN 62368-1, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), KS C 9835, ETSI EN 303 645, KS C 9832 Class B, CAN/CSA-C22.2 No. 60950-22 |
| Power | |
| Power Source | Power over Ethernet (PoE) |
| Dimensions & Weight | |
| Width | 31 cm |
| Depth | 16.5 cm |
| Height | 20.7 cm |
| Weight | 4.1 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 50 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 65 °C |
| Humidity Range Operating | 10 - 100% RH (condensing) |
| Humidity Range Storage | 5 - 95% RH (non-condensing) |
