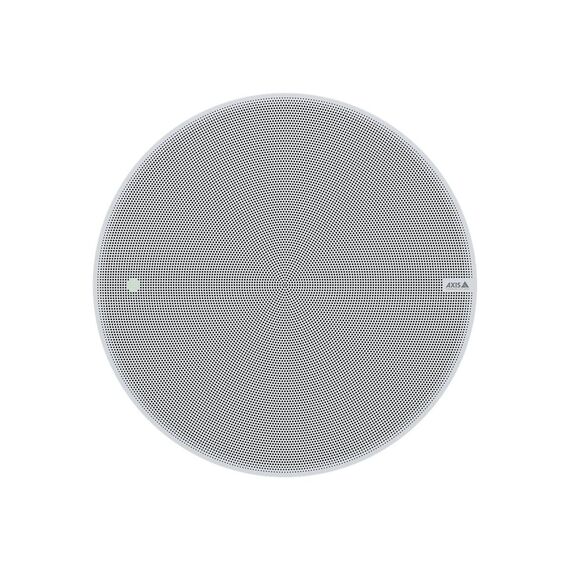

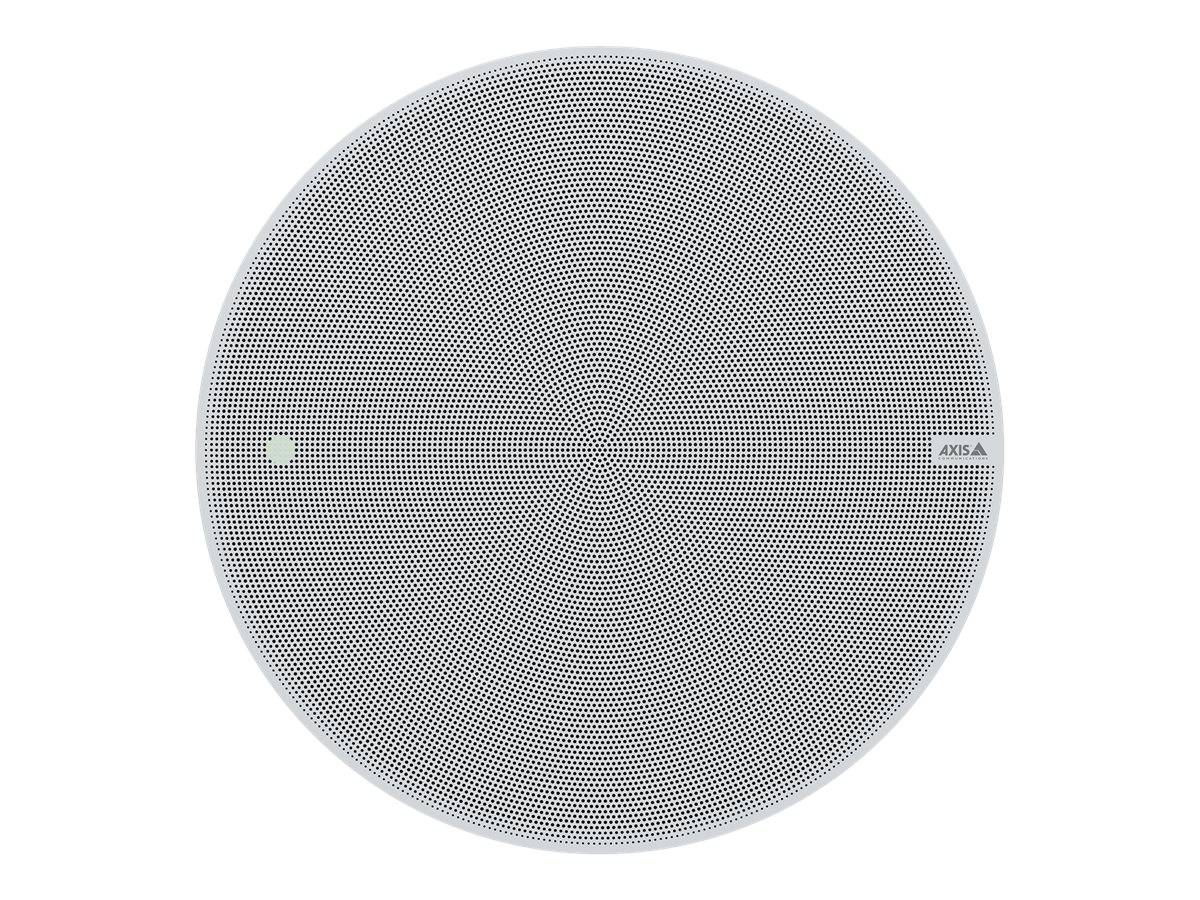

Axis C1210-E / IP speaker / for PA system / Ethernet, Fast Ethernet, PoE / App-controlled / coaxial / grey | 02324-001

02324-001
663.24
(789.26 inc. VAT)
Availability: 20 item(s)
Standard DeliveryStandard delivery within 3 to 8 business days.
Find similar
Delivery
Payment options
Product Code07:451519 EAN Code7331021075900 ManufacturerAXIS

Product Features

  • Smart and easy to integrate
    Based on open standards, AXIS C1210-E offers easy integration for instance with your video management software (VMS), with Voice over IP (VoIP) telephony (using SIP), and with analytics from Axis and Axis' partners. Axis network speakers connect to your standard network and use one network cable for both power and connectivity (Power over Ethernet). With everything in one solution, installed on one network, there's no need for additional audio equipment or cabling, and it's easy to add or remove speakers. This enables more flexible, scalable, and cost-effective solutions. The bottom line? AXIS C1210-E offers a future-proof solution that follows your business needs and gives you the flexibility and possibility needed to quickly respond to future changes.
  • Smart features at the edge
    This all-in-one ceiling speaker is packed with smart features to ensure great performance. With support for I/O, it enables various use cases when integrated with other systems and devices such as PIR sensors, buttons, strobe lights, and more. It features a preconfigured digital signal processor (DSP) to produce clear voice every time. And the built-in microphone supports 2-way audio talk-back enabling conversations with people near the speaker. It also supports speaker-test functionality for remote health testing - so you can rest assured that your system is working. Plus, thanks to external microphone input, you can connect an additional microphone that can be used in situations where the speaker is installed far from the audience. Another smart feature is the built-in and clearly visible LED which adds visual status information ideal for many different use cases.
  • Multipurpose speaker
    AXIS C1210-E makes voice announcements smart and easy. You can use the same system to deliver general information for operational efficiency, warnings and crucial safety instructions helping to keep people safe, and to proactively warn off intruders from remote locations with live or prerecorded messages. It's also suitable for playing background music, helping to increase business efficiency and customer experience. If background music is your primary use case, AXIS C1210-E is the perfect speaker for you. That's because it offers a deeper sound impression and bass range to guarantee premium sound - every time.
  • Discrete ceiling installation
    Ideal for delivering voice announcements and background music on your premises, AXIS C1210-E offers discrete recessed ceiling installation. Designed to blend in seamlessly into any surroundings, it can be repainted in any color. Additionally, it features a backbox that meets plenum requirements allowing for secure installation and helping to limit unwanted noise spreading above the ceiling into other areas. This multipurpose ceiling speaker is ideal for indoor installation across various segments such as retail and offices, and it can be used in protected outdoor areas like under the eaves.

Special Features

  • All-in-one speaker system
  • Connects to standard network
  • Easy installation with just one network cable (PoE)
  • Scalable and easy to integrate
  • Remote health testing

Product Specification

Product Type IP speaker - for PA system
Features DSP, AXIS Audio Manager Edge, 2-way audio talkback
Integrated Memory Flash - 512 MB
Light LED lights
Microphone Yes
Enclosure Material Plastic
Design Features Paintable
Grille Colour RAL 9010
Speaker System Speaker System
Speaker Type Coaxial active
Frequency Response 40 - 20000 Hz
Max Output Level (Max SPL) 96 dB
Maximum Sampling Rate Supported 48 kHz
Amplifier Integrated
Amplifier Class D
Amplifier Output Power 7W
Coverage 130°
Interfaces IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet)
VoIP Protocols SIP, SRTP, SIP over TLS, SIPS
Voice Codecs Speex, Opus, L16, PCMA, PCMU, G.726-32
Network Protocols TCP, ICMP, ARP, HTTP, DNS, SNMP, HTTPS, RTCP, RTP, NTP, UPnP, SSH, FTP, SSL, SFTP, TLS, IPv6, IPv4, CIFS, SMB, SMTP, DynDNS, RTSP, IGMP, DHCP, SOCKS, NTCIP, SIP
Recommended Placing In-ceiling mounted
Audio Formats WAV, PCM, G.726, MP3, ADPCM, AAC-LC, G.711
App-Controlled Yes
Memory Card Memory Card
Supported Memory Cards microSDHC, microSD, microSDXC
Max Supported Size 64 GB
Speaker System Details Speaker System Details
Driver Details Speaker: full-range driver - 6.5" - dynamic cone
Connections Connections
Connector Type LAN (RJ-45) ¦ Audio line-in / microphone (mini-phone stereo 3.5 mm) ¦ (4 pin terminal block)
Miscellaneous Miscellaneous
Compliant Standards CISPR 24, EN55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, EN 61000-6-3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EN 55032 Class A, KCC KN32 Class A, RCM Class A, CISPR 32 Class A, KCC KN35, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60529 IP44, ICES-3(A)/NMB-3(A), IEC/EN 62368-1, FCC Part 15 Subpart B:2020 Class A, CAN/CSA-C22.2 No. 60950-22, UL 60529-22
Power Power
Power Source Power over Ethernet (PoE)
Dimensions & Weight Dimensions & Weight
Diameter 28.5 cm
Height 15 cm
Weight 3.1 kg
Cutout & Mounting Dimensions Cutout & Mounting Dimensions
Diameter 26.1 cm
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 5 years
Environmental Parameters Environmental Parameters
Min Operating Temperature -30 °C
Max Operating Temperature 50 °C
Min Storage Temperature -40 °C
Max Storage Temperature 65 °C
Humidity Range Operating 10 - 100% RH (condensing)
Humidity Range Storage 5 - 95% RH (non-condensing)

Features - AXIS - 02324-001

More Details
Product Code
07:451519
EAN Code
7331021075900
Manufacturer
AXIS
