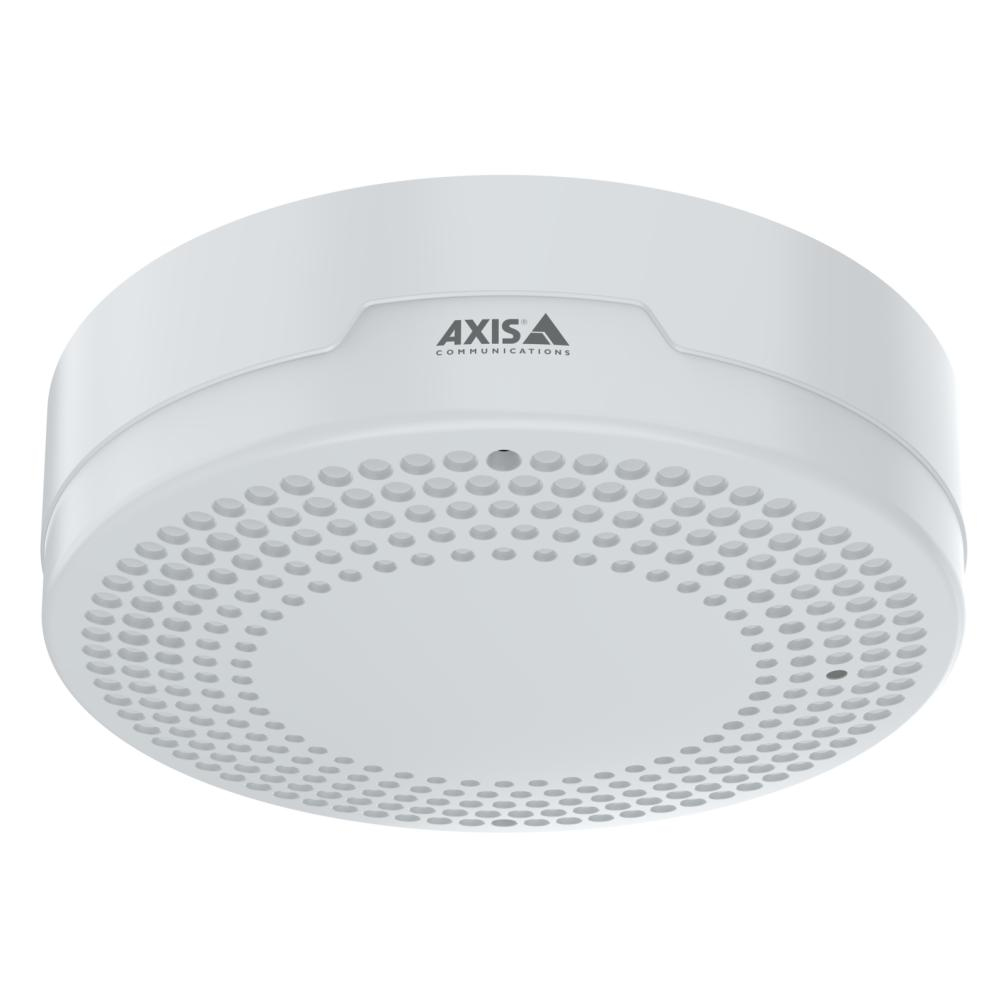

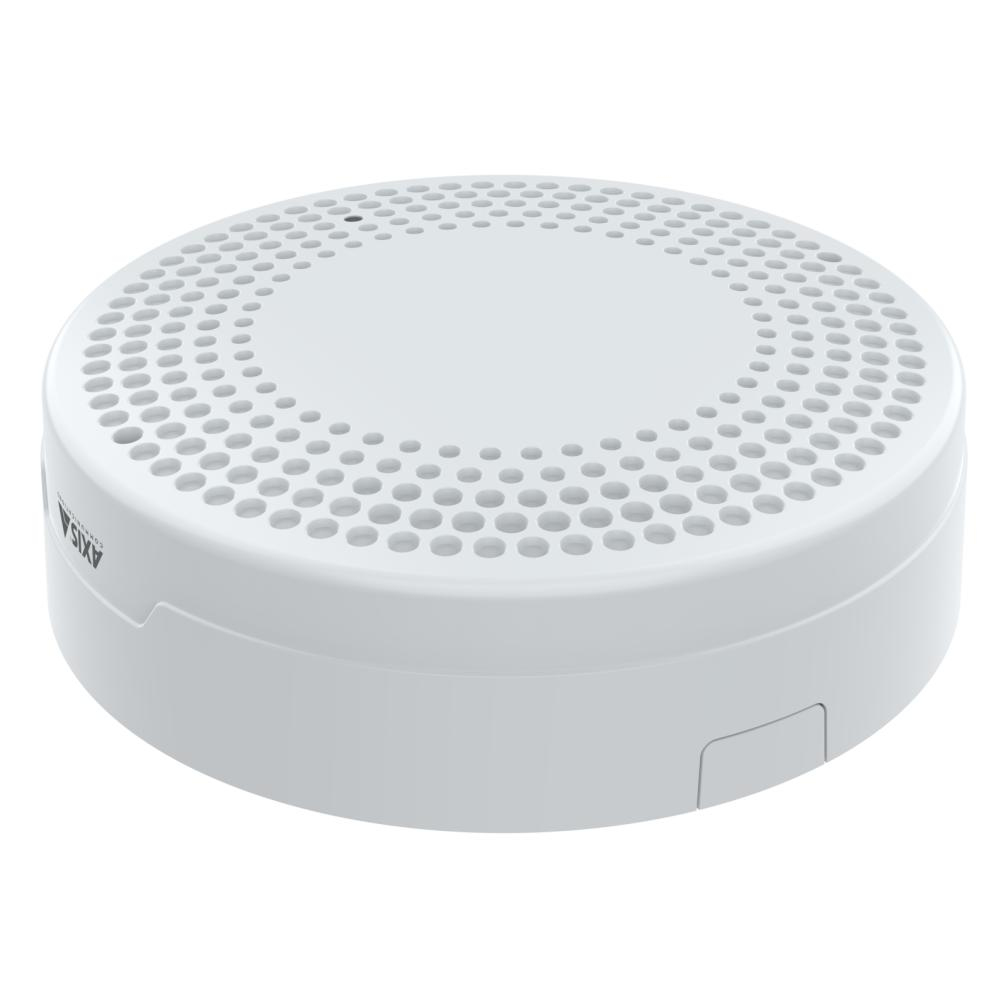

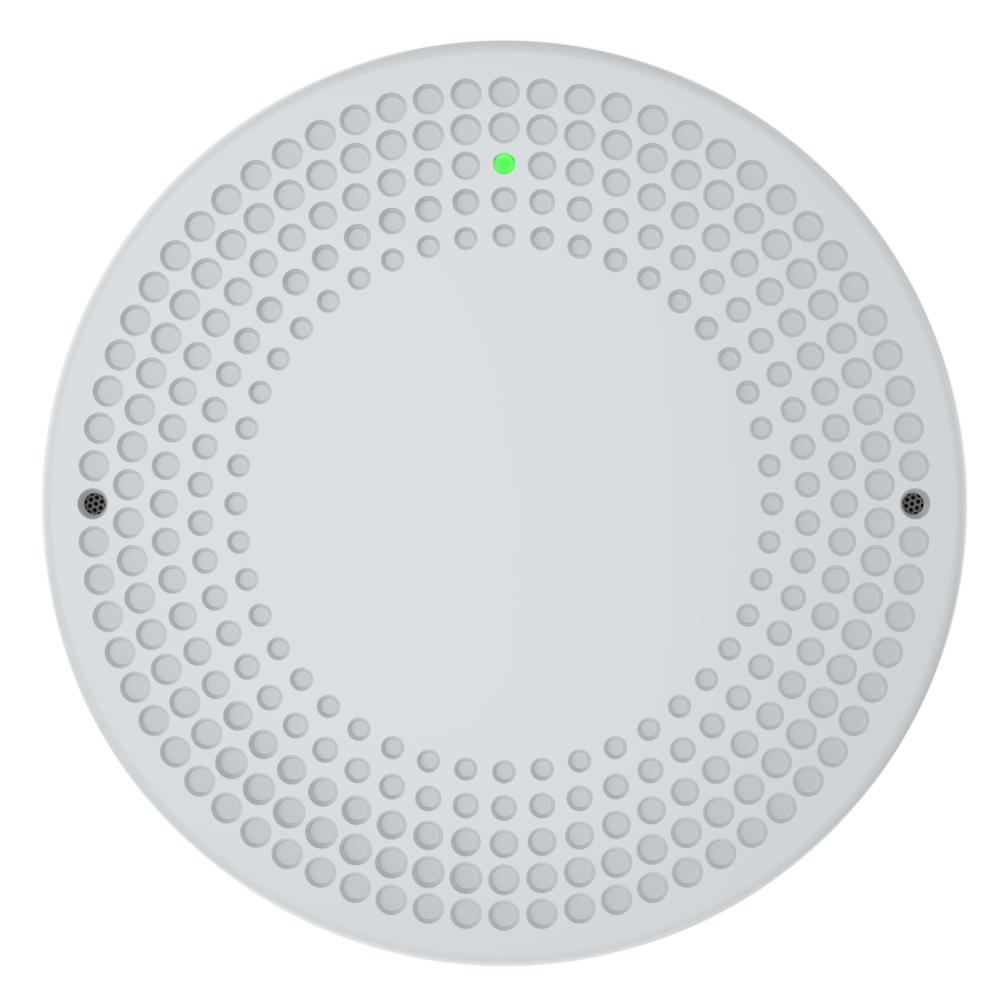

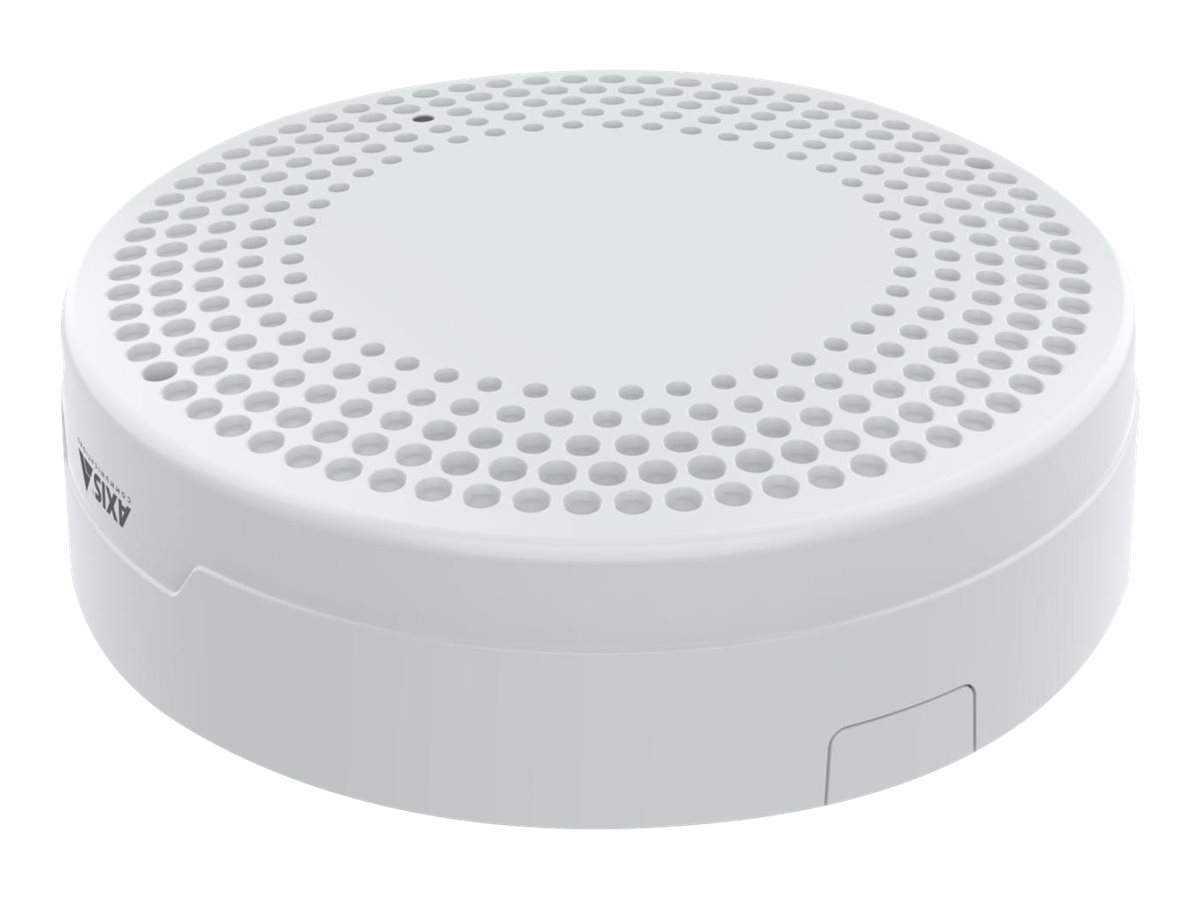

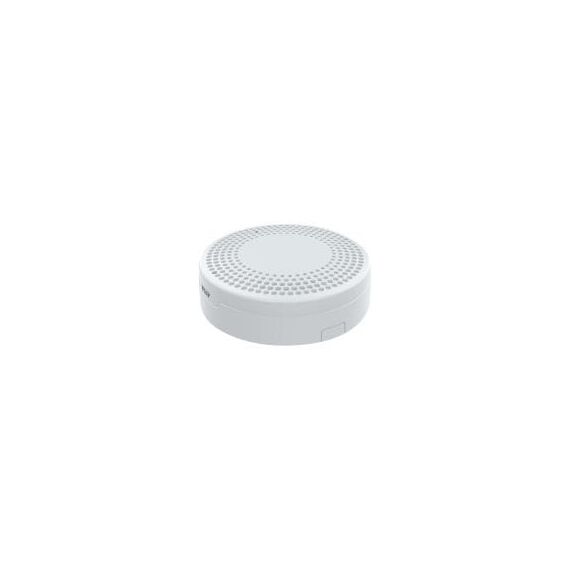

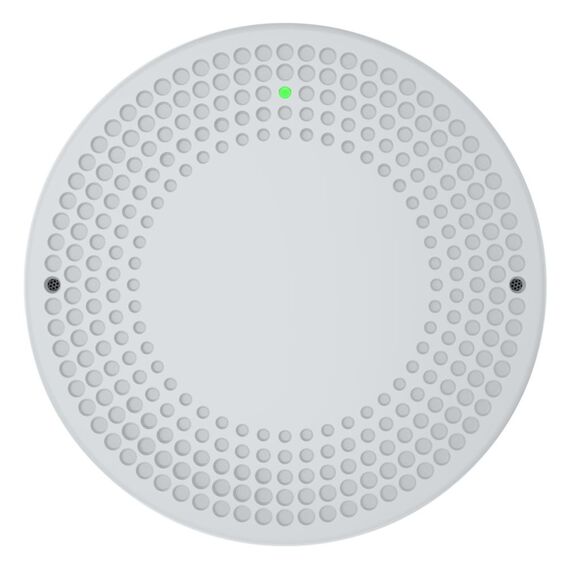

AXIS - Camera terminal expansion module - for AXIS M4215-V; M42 Series M4215-LV, M4218-LV | 02554-001
Please sign in so that we can notify you about a reply
Product Features
- Add functionality to your cameras
AXIS T6112 Mk II offers great possibilities to add value to your Axis cameras and extend the functionality of your surveillance system. It allows you to add a built-in microphone and I/O connectivity to your Axis cameras making it possible to use audio analytics or record video and audio in one stream. When connected to an external speaker, it also allows you to play audio clips. And, thanks to digital input/outputs, it's possible to connect external sensors or detectors to trigger alarms or actions. - Seamless installation and integration
AXIS T6112 Mk II offers Plug-and-Play installation using a single Ethernet cable between the camera and the switch. Plus, it can be seamlessly integrated into your video management software without the need for additional IP addresses or VMS licenses.
Special Fetures
- Add microphone and I/O to Axis cameras
- No need for additional IP address
- One stream for audio and video
- Plug-and-Play installation
Product Specification
| Product Type | Camera terminal expansion module |
| Height | 4.1 cm |
| Weight | 230 g |
| Enclosure Colour | White, NCS S 1002-B |
| Expansion / Connectivity | |
| Interfaces | 1 x audio - line-In - mini-phone 3.5 mm ¦ 1 x audio - line-out - mini-phone 3.5 mm ¦ 1 x peripheral - input / output ¦ 1 x network / power - input - RJ-45 ¦ 1 x network / power - output - RJ-45 |
| Miscellaneous | |
| Included Accessories | Mounting bracket, terminal block connector |
| Features | For indoor use, polycarbonate cover, portcast technology |
| Compliant Standards | EN55024, EN 61000-6-1, EMC, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, USGv6, BFR-free, EN 55032 Class A, RCM Class A, IEC/EN/UL 62368-1, IEEE 802.1x, PVC-free, IPv6, FCC Part 15 Subpart B, KS C 9832 Class A, KS C 9835, IPv4, CFR free, IEEE 802.1ar |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Compatibility Information | |
| Designed For | AXIS M4215-V ¦ AXIS M42 Series M4215-LV, M4218-LV |
Features - AXIS - 02554-001
More Details
Product Code
CH00763
EAN Code
7331021079342
Manufacturer
AXIS
