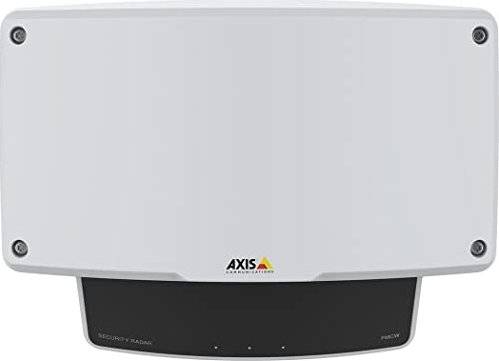

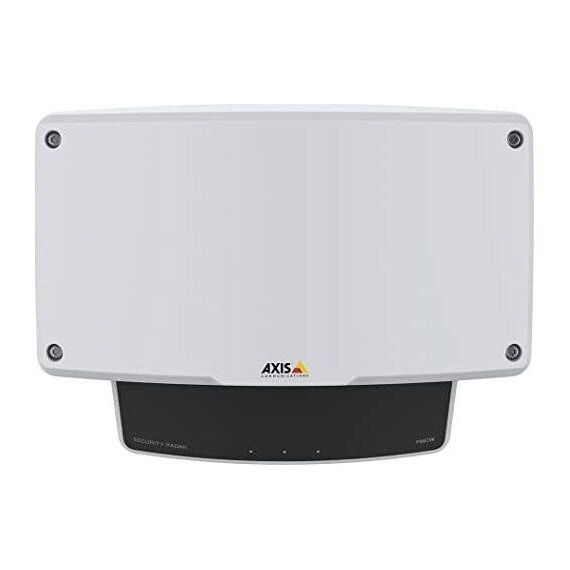

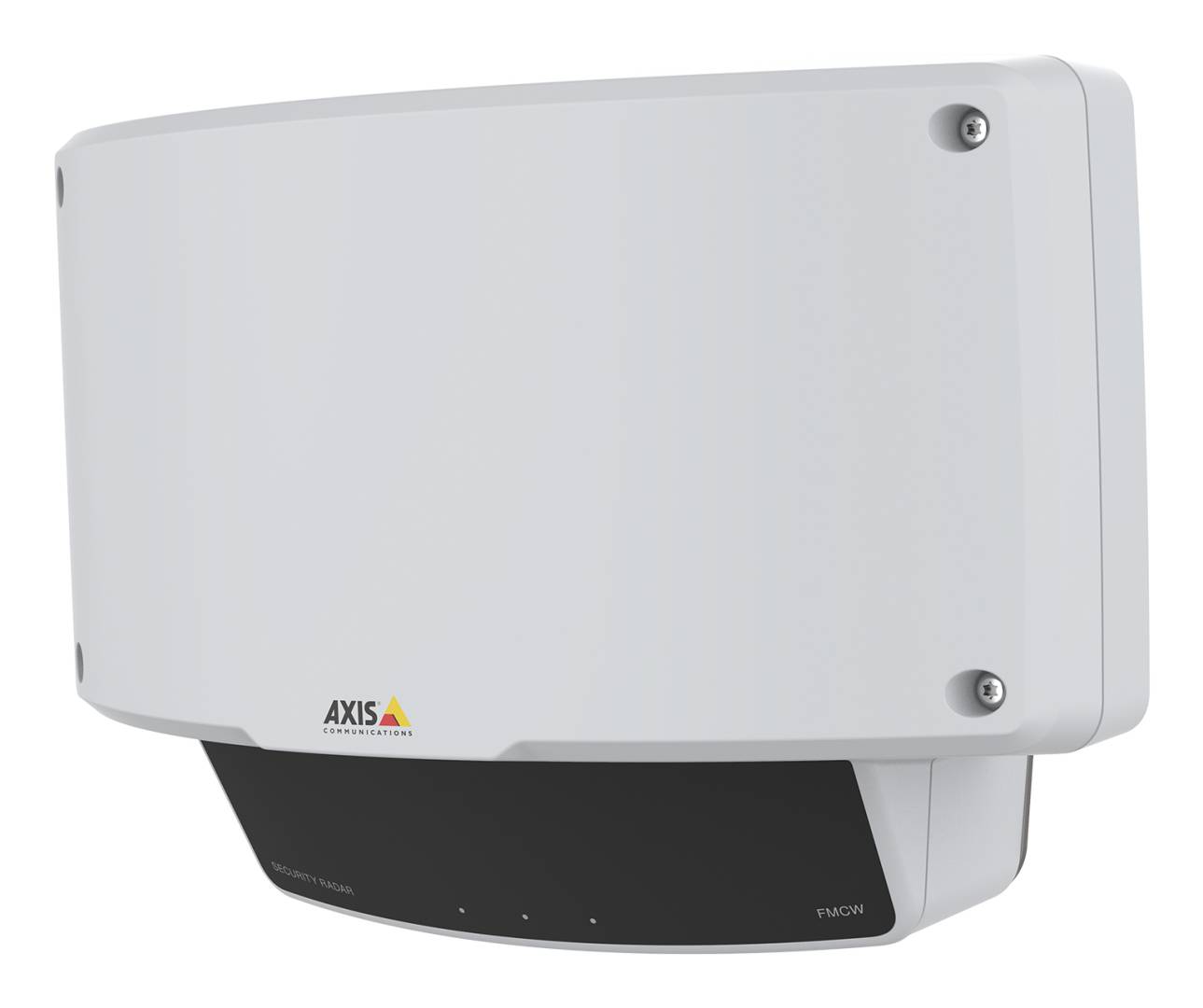

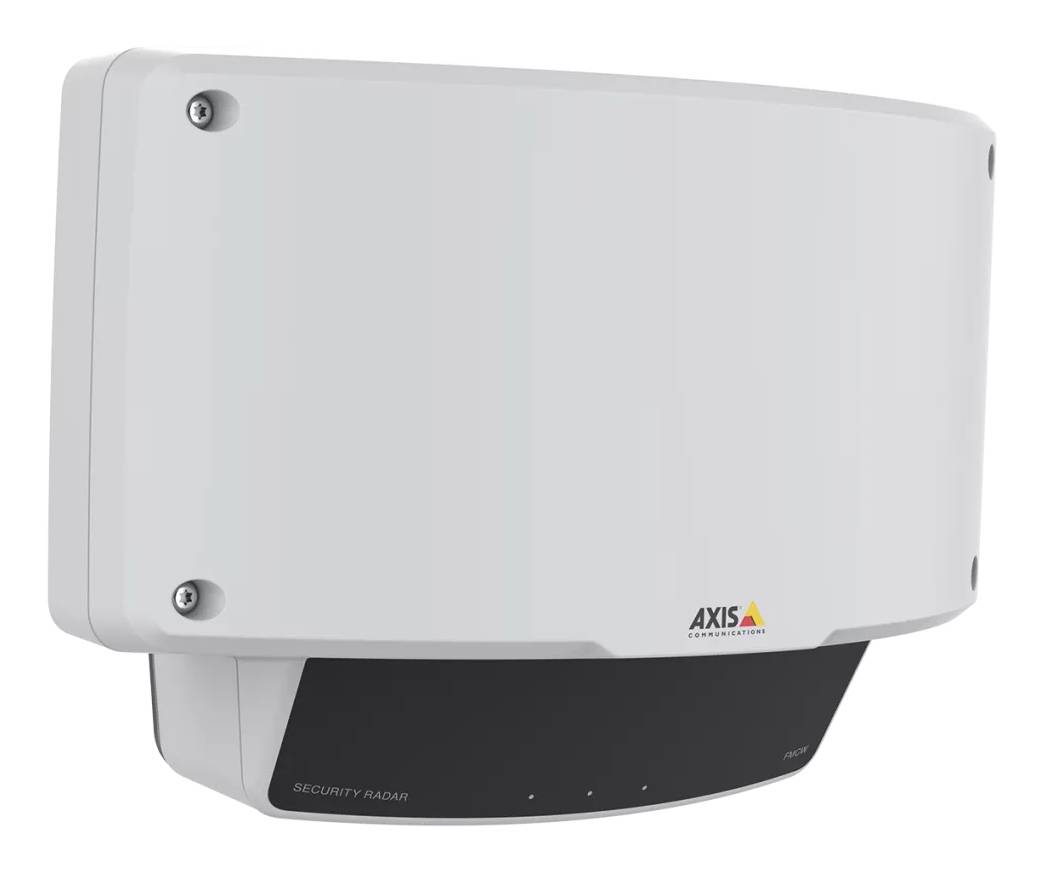

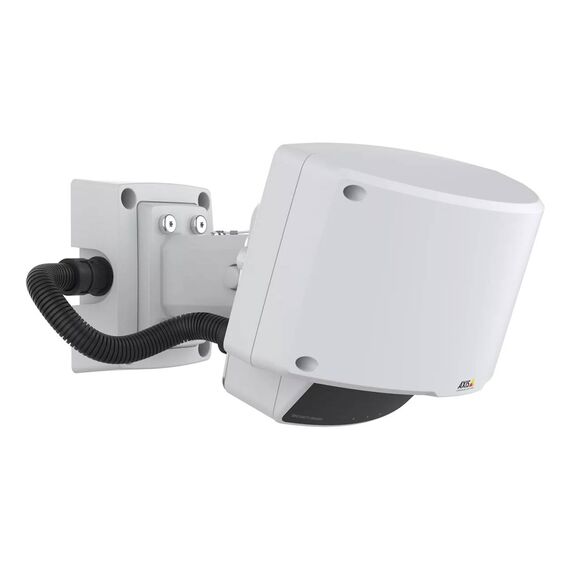

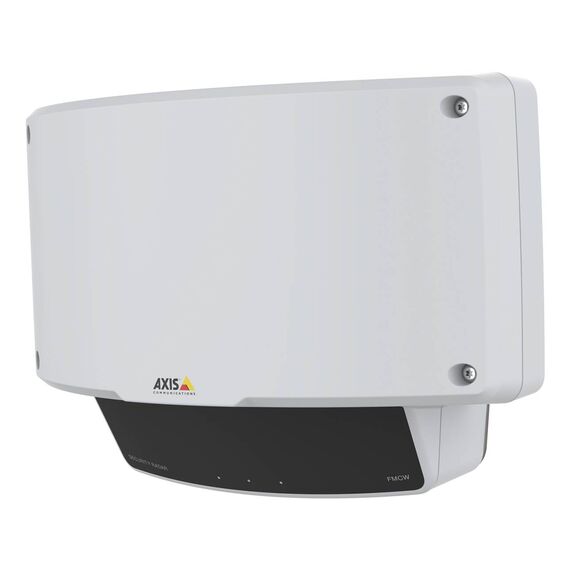

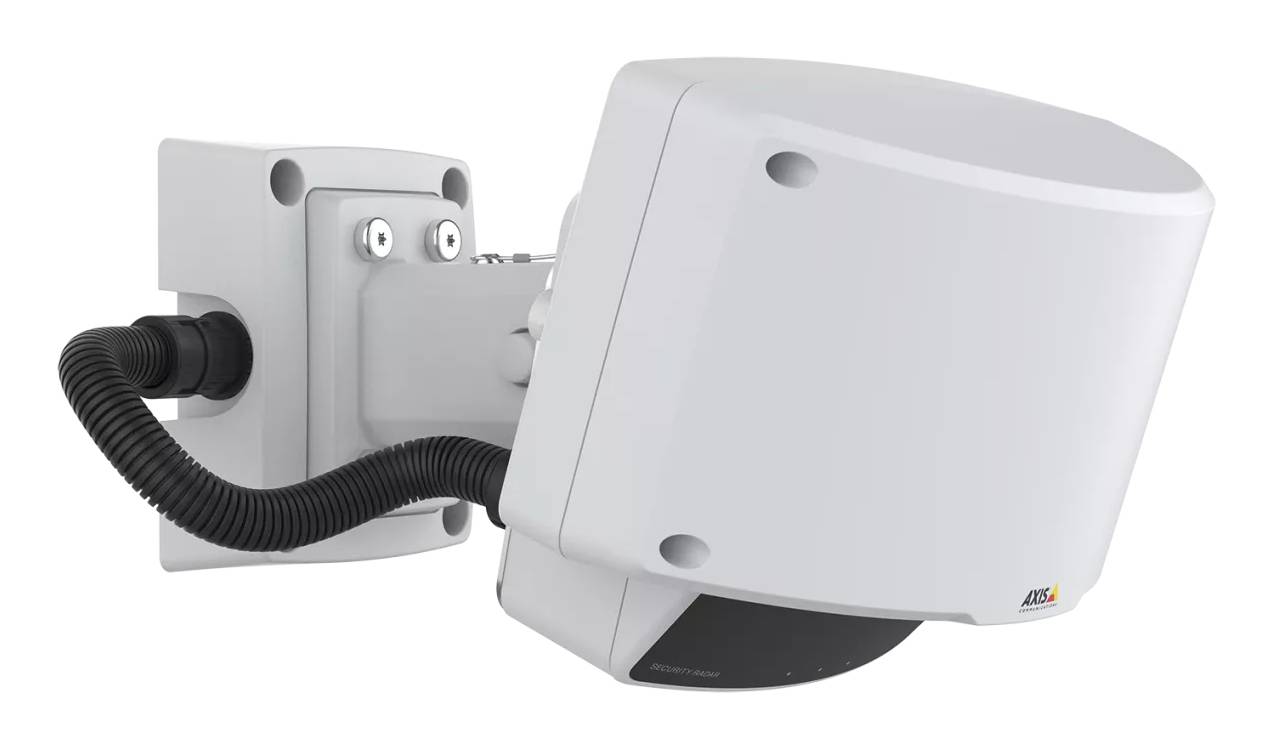

Axis D2110-VE Security Radar / Motion sensor / wired / white | 01564-001
Product Features
- Full protection that's accurate 24/7
Using advanced radar technology, AXIS D2110-VE delivers the position of an object for accurate detection 24 hours a day, seven days a week, in various weather conditions. Featuring built-in analytics developed using machine learning and deep learning, it can accurately detect, classify, and track people and vehicles with a low false alarm rate. This results in cost-efficient operation so security personnel can focus on real threats. It can also provide the speed of an object, for instance to determine if a vehicle is exceeding the speed limit in a port or harbor area. - Powerful coverage and security
With 180° horizontal coverage, AXIS D2110-VE enables wide area protection. Furthermore, smart coexistence functionality allows the use of multiple radars close to each other. For instance, it's possible to mount two radars back to back for complete 360° coverage allowing you to detect vehicles in a large area. For added peace of mind, it includes shock and casing open detection so you can be informed if there's any attempt to tamper with the radar. - Full flexibility for cost-efficient installation
This smart device features PoE out for powering another device such as a camera for visual verification or a network horn speaker for deterrence, reducing cabling costs. This security radar is also easy to integrate with various third-party video management software systems. The smart possibilities are practically endless.
Special Features
- Extensive 180° area coverage
- Built-in analytics
- Low false alarm rate 24/7
- Smart coexistence functionality
- PoE to power additional devices
Product Specification
Product Type | Motion sensor |
Power Source | Power adapter, PoE |
Connectivity Technology | Wired - SNMP |
Interfaces | Gigabit Ethernet ¦ Gigabit Ethernet ¦ Relay ¦ Terminal block |
Features | H.264 streaming video, MPEG-4 streaming video, casing open detection, shock detected, UPOE, DHCP support, ARP support, DiffServ support, IPv6 support, Quality of Service (QoS), IPv4 support, LLDP support, SNMP trap, 802.1x authentication, Internet Control Message Protocol (ICMP), Network Timing Protocol (NTP), User Datagram Protocol (UDP) |
Control Unit | Control Unit |
Built-in Devices | microSD card reader, SDHC card reader, SDXC card reader |
Camera | Camera |
Max Digital Video Resolution | 1920 x 1080 |
Video Modes | 1080p |
Features | ONVIF (Profile S) support, ONVIF (Profile G) support |
Motion Sensor | Motion Sensor |
Detection Range | 80 m |
Detection Angle | 180 degree(s) |
RAM | RAM |
Installed Size | 1024 MB |
Flash Memory | Flash Memory |
Installed Size | 512 MB |
Supported Flash Memory Cards | SDHC, microSD, SDXC |
Software | Software |
Type | Windows decoder 1-user licence |
Miscellaneous | Miscellaneous |
Included Accessories | Connector kit, pipe adapters, cable gland, cable gaskets |
Colour | White |
Encryption Algorithm | SSL, TLS |
Authentication Method | Secure Shell (SSH), Extensible Authentication Protocol (EAP) |
Power Consumption Operational | 15 Watt |
Compliant Standards | EN55024, EN 61000-6-1, FCC Part 15 C, EN 61000-6-2, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, EN 62311, VCCI Class B, EAC, EN 300.440, RCM, EN 301 489-1, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEEE 802.3at, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, IEC/EN 62262 IK08, IEEE 802.3bt, ICES-3(A)/NMB-3(A), EN 301 489-51 |
Dimensions & Weight | Dimensions & Weight |
Width | 28.5 cm |
Depth | 20.6 cm |
Height | 15.2 cm |
Weight | 2.4 kg |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -40 °C |
Max Operating Temperature | 60 °C |
Humidity Range Operating | 10 - 100% |
