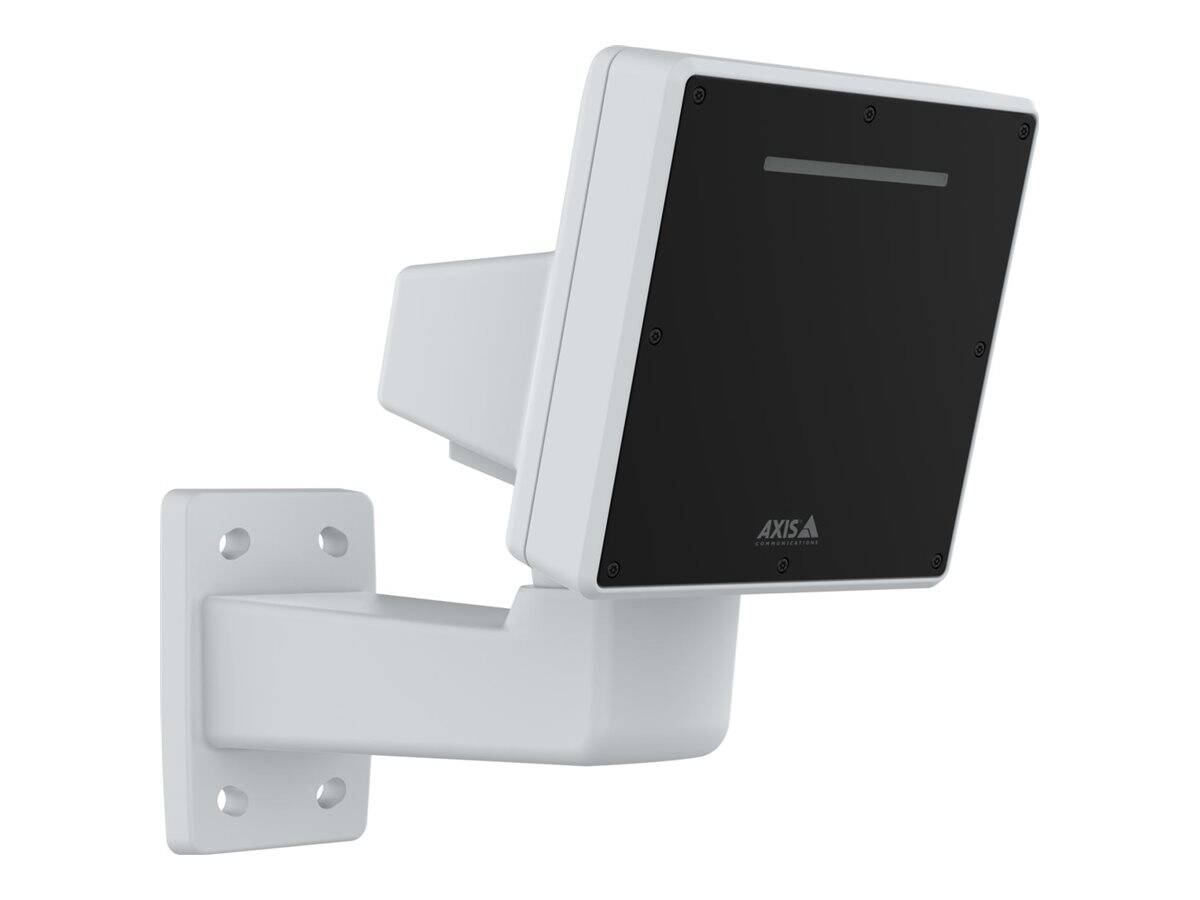

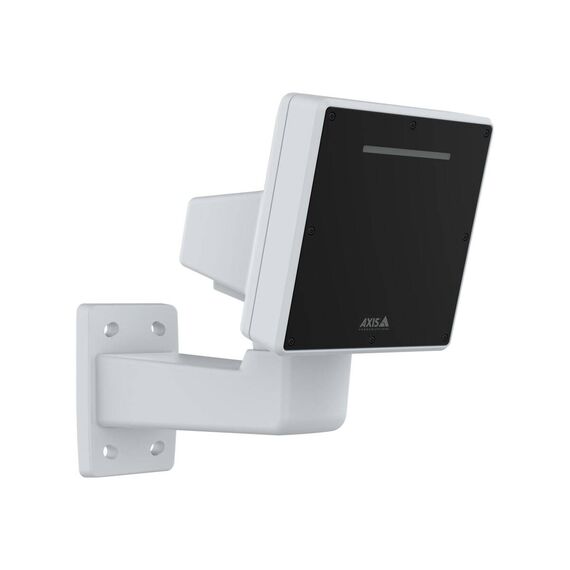

Axis D2210-VE Radar - Motion sensor - wired - 61 GHz - black - TAA Compliant | 02770-001
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motion sensor |
| Power Source | Power adapter, PoE |
| Connectivity Technology | Wired |
| Frequency Band | 61 GHz |
| Interfaces Details | Gigabit Ethernet ¦ Gigabit Ethernet ¦ DC input ¦ Terminal block |
| Features | H.264 streaming video, edge-to-edge, H.265 streaming video, Motion JPEG support, integrated dynamic LED strip, PoE Class 4 / PoE Class 6, ARP support, IPv6 support, SSH support, IPv4 support, LLDP support, Internet Control Message Protocol (ICMP), Trusted Platform Module 2.0 (TPM 2.0), mDNS, NTP support, HTTP support, RTSP support, RTCP support, TCP support, HTTP/2 support, RTP support, DDNS (Dynamic Domain Name Service), SMTP support, FTP support, SFTP support, NTS support, CDP support, ZeroConf support, UDP, HTTPSg support, ICMPv4/ICMPv6 support, TLSg support, QoS Layer 3 DiffServ support, CIFS/SMB support, UPnP, SNMP v1/v2c/v3 (MIB-II) support, DNS/DNSv6 support, SRTP/RTSPS support, IGMPv1/v2/v3 support, DHCPv4/v6 support, MQTT v3.1.1 support |
| Camera | |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080p |
| Features | ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support |
| Motion Sensor | |
| Detection Mode | Frequency Modulated Continuous Wave (FMCW) |
| Detection Range | 150 m |
| Detection Angle | 95 degree(s) |
| Installation Height | 350 - 1200 cm |
| RAM | |
| Installed Size | 1048 MB |
| Flash Memory | |
| Installed Size | 8192 MB |
| Supported Flash Memory Cards | SDHC, microSD, SDXC |
| Miscellaneous | |
| Included Accessories | Wall mount, cable gaskets, terminal block connectors, connector guard, owner authentication key |
| Colour | Black |
| Encryption Algorithm | 256-bit AES-XTS |
| Authentication Method | EAP-TLS |
| Compliant Standards | CSA, UL, cUL, EN 61000-3-3, EN 61000-6-1, FIPS 140-2 Level 2, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, Common Criteria EAL4+, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, USGv6, EN 55032 Class A, RFC5424, EN 55035, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP67, NEMA TS-2 (2.2.7-2.2.9), CAN/CSA-C22.2 No. 62368-1 Third Edition, FCC Part 15 Subpart C, ETSI EN 303 645, EN 301489-1, IEEE 802.1ar, RFC3164, EN 301.489.3, EN 305550-2, IEC/EN/UL 62368-1 Third Edition, NEMA 250 Type 4X |
| TAA Compliant | Yes |
| Dimensions & Weight | |
| Weight | 1.25 kg |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 10 - 100% |
Features - AXIS - 02770-001
More Details
Product Code
CJ54552
EAN Code
7331021083646
Manufacturer
AXIS
