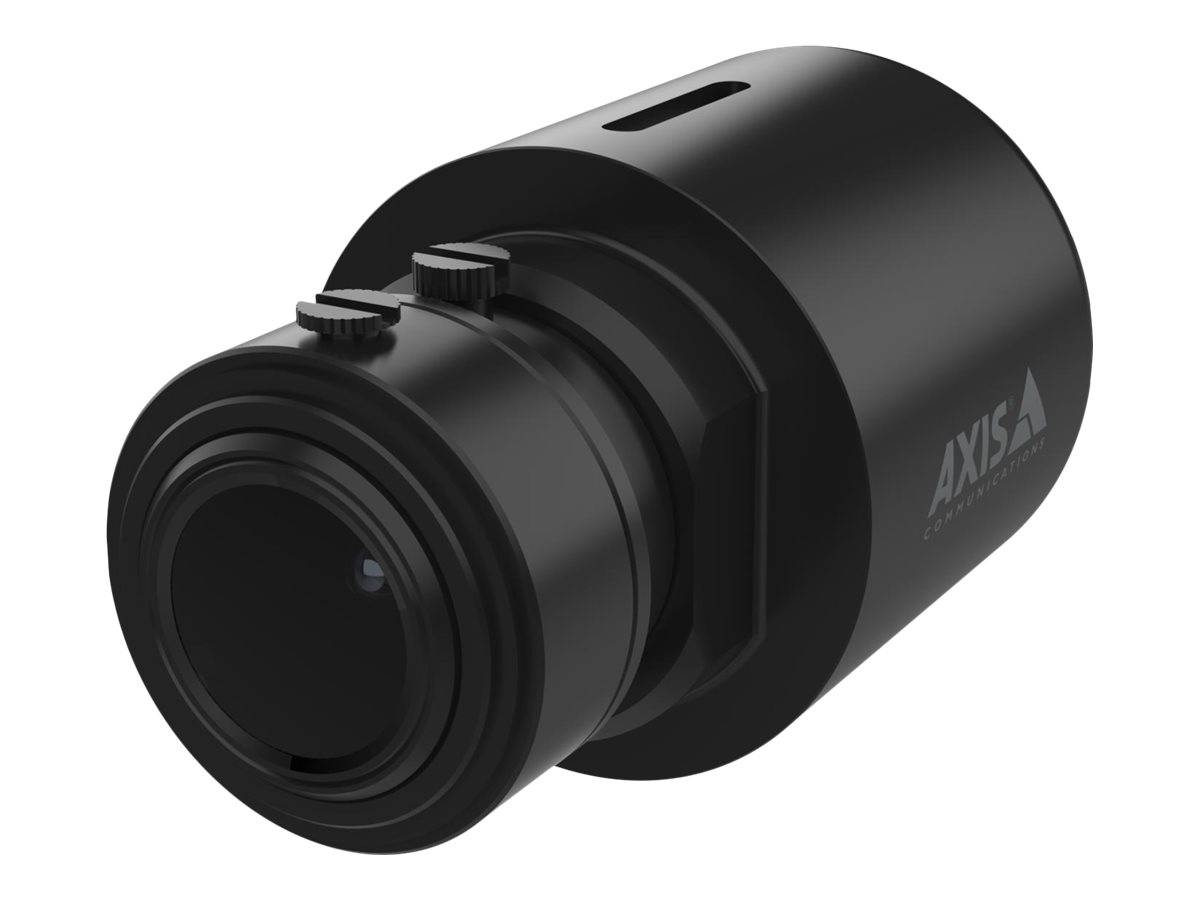

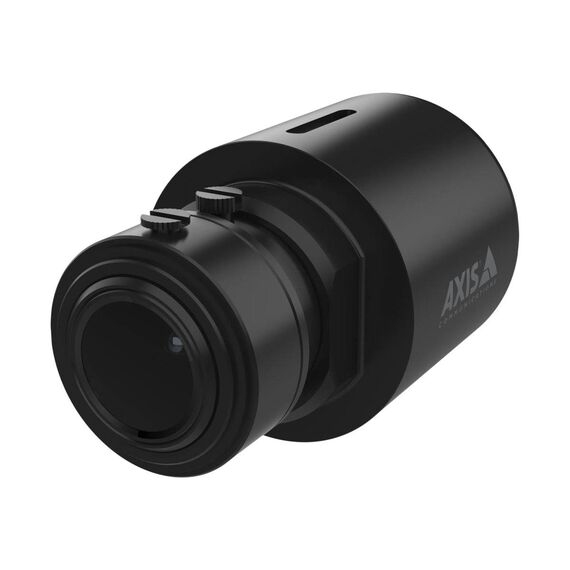

AXIS F2115-R Varifocal Sensor / Camera sensor unit / black, NCS S 9000-N / for AXIS F9104-B, F9111 Main Unit, F9114, F9114-B | 02639-001
Please sign in so that we can notify you about a reply
Product Features
- Multipurpose
Ideal for indoor installation, in ATMs, vending machines, buses, and emergency vehicles, this varifocal sensor uses cables from AXIS with SMA-FAKRA connectors to withstand vibrations and ensure a ruggedized installation. It can be installed practically anywhere - in tight spaces, behind glass, metal, or even plastic sheeting. - High-quality video usability
This varifocal sensor delivers high-quality video even in challenging and low-light conditions. With a 107°-56° horizontal field of view, it's perfect when you need to monitor a specific area of interest with great details for identification purposes. It supports HDTV 1080p at 60 fps or 720p at 30 fps on 4 channels. It also supports 720p at 180 fps with AXIS F9111 main unit. Forensic WDR provides clarity when there's both dark and light areas in the scene. - Flexible and discreet
AXIS F2115-R offers discreet installation with only the small sensor visible externally. Based on a divided network camera concept, this varifocal sensor connects to the main unit using a ruggedized SMA-FAKRA connector.
Special Features
- Only compatible with 2nd generation main units and cables
- Up to 60 fps at 1080p and up to 180 fps at 720p
- 107°-56° horizontal field of view
- 3.2 - 5.7 mm focal length
- Rugged sensor unit
Product Specification
| Product Type | Camera sensor unit |
| Product Material | Aluminium |
| Width | 2.98 cm |
| Depth | 5 cm |
| Height | 2.98 cm |
| Weight | 50 g |
| Colour | Black, NCS S 9000-N |
| Miscellaneous | Miscellaneous |
| Features | PVC free, 1/2.8" CMOS, BFR free, fixed IR-cut filter, 0.1 lux, 108° horizontal viewing, SMA connector, maximum resolution: 1920 x 1080, up to 60 fps at 1080p, up to 180 fps at 720p, varifocal |
| Compliant Standards | EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, VCCI Class A, EAC, IP50, RCM, AS/NZS CISPR 32 Class A, EN 55032 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, ICES-3(A)/NMB-3(A), UN ECE R118, IEC/EN 61373 Category 1 Class B, NEMA TS-2 (2.2.7-2.2.9), ECE-R10 Rev.6 (E approval), FCC Part 15 Subpart B:2020 Class A, KS C 9832 Class A, KS C 9835, IEC/EN 60529, IEC TR 60721-4-5 Class 5M3 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Compatibility Information | Compatibility Information |
| Designed For | AXIS F9104-B, F9111 Main Unit, F9114, F9114-B |
Features - AXIS - 02639-001
More Details
Product Code
CG33775
EAN Code
7331021080690
Manufacturer
AXIS
