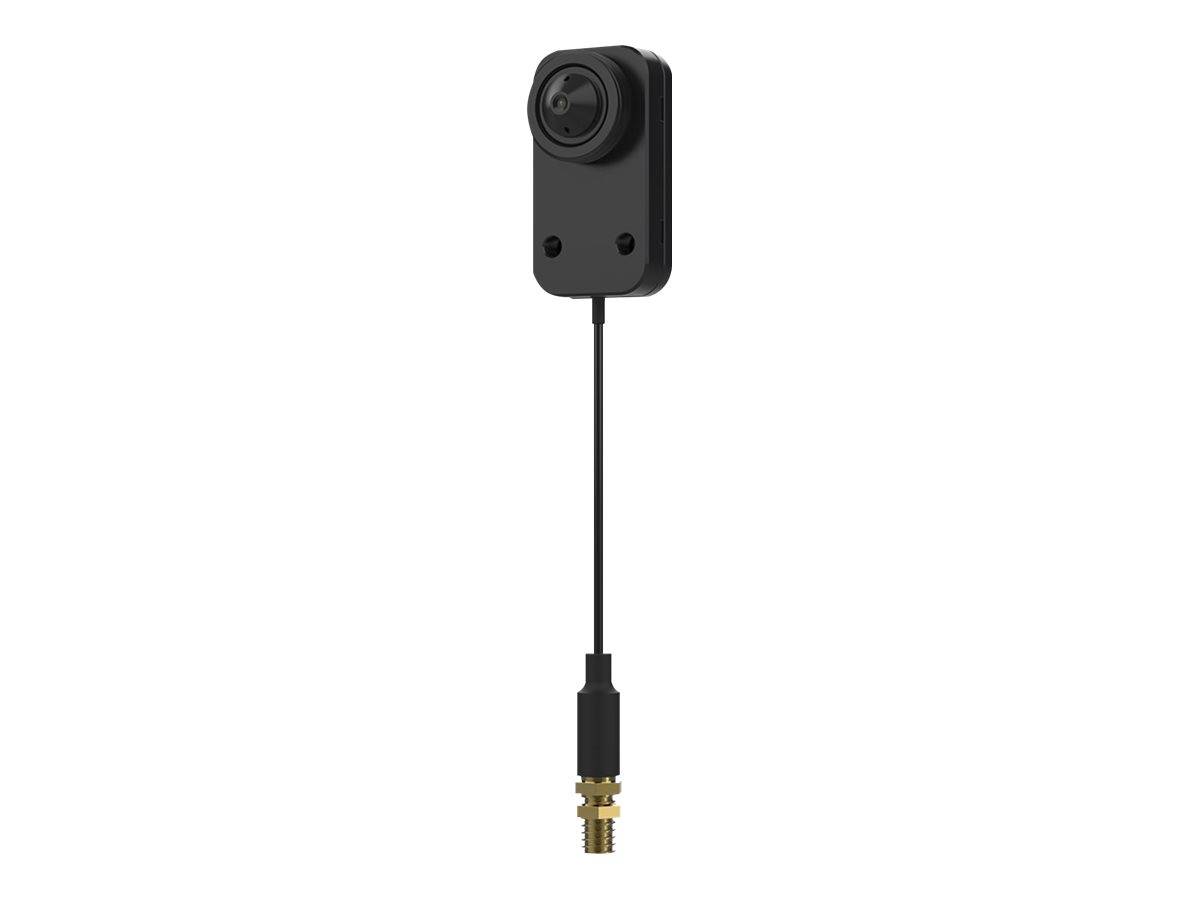

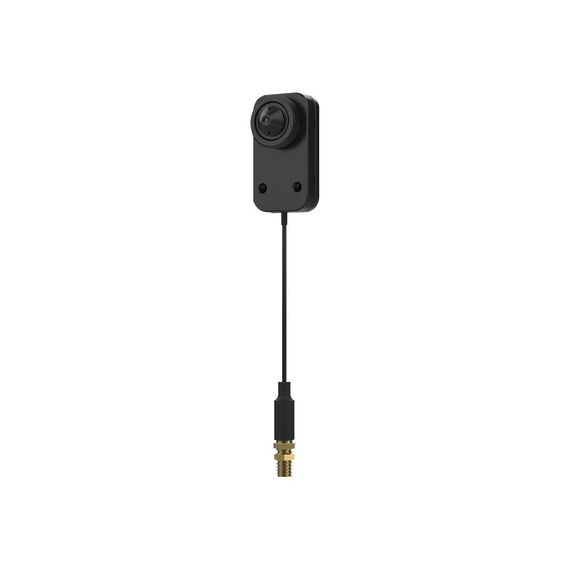

AXIS F7225-RE / Network surveillance camera / colour (Day&Night) / 1920 x 1080 / 720p, 1080p / fixed iris / fixed focal | 02363-001
Please sign in so that we can notify you about a reply
Product Features
- Extremely discreet
AXIS F7225-RE allows for extremely discreet surveillance where only the sensor is visible externally. Based on a divided network camera concept, it's designed for use with AXIS F91 main units to ensure maximum flexibility. And it offers easy installation - you can install it in tight places, behind metal, glass, or plastic sheets and more. - Cost-effective and flexible
Designed for both indoor and outdoor use, this IP66-/IP67-rated pinhole sensor can operate in temperatures from -40 to 55°C. It can be connected to the main unit using cables up to 30m. Plus, with one main unit and up to four sensors, it offers lower installation and configuration costs compared to traditional cameras and requires just one VMS license. And, it ensures a lower power budget and requires fewer switch ports. - High video usability
AXIS F7225-RE delivers high-quality video even in challenging light conditions. It supports four HDTV 1080p video streams at 30 fps or 720p video streams at up to 60 fps. When used with AXIS F91 main units, it delivers HDTV 1080p video streams at 60 fps or 720p video streams at up to 180 fps. In addition, when connected to an AXIS F91 main unit, it offers Forensic WDR for clarity when there's both dark and light areas in the scene. Furthermore, a 97° field of view allows for wide area coverage.
Special Features
- Extremely discreet design
- 97° horizontal field of view
- Forensic WDR
- IP66/IP67-rated
Product Specification
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 2.5 cm |
| Depth | 2 cm |
| Height | 4.5 cm |
| Weight | 26 g |
| Localisation | Argentina, Australia, China, Japan, India, Korea, Brazil, United Kingdom, United States, European Union |
| Camera | Camera |
| Type | Colour - Day&Night - fixed |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 720p, 1080p |
| Minimum Illumination | 0.3 lux - colour - F2.5 - 50 IRE |
| Video Capture | 1920 x 1080 @ 25/30 fps ¦ 1280 x 720 @ 50/60 fps |
| Features | Infrared-cut filter, Forensic WDR |
| Image Sensor | Image Sensor |
| Type | PS RGB CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | Fixed focal |
| Focal Length | 3.7 mm |
| Lens Iris | F/2.5 fixed iris |
| Horizontal Field of View (degree) | 58 - 97 |
| Vertical Field of View (degree) | 31 - 48 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | SMA |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting bracket |
| Compliant Standards | IEC 60529 IP66, IEC 60529 IP67, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IP67, IEC 60068-2-64, IP66, IEC 60068-2-1, EN 50121-4, IEC 62236-4, VCCI Class B, EN 50121-3-2, EN 50498, NFPA 130, EN 45545-2, EN 55032 Class B, NEMA250 Type 4X, BFR-free, IEC 60721-3-5 Class 5M3, EN 55035, IEC/EN/UL 62368-1, PVC-free, EN 50155:2017 Class OT2/ST2, UN ECE R118, IEC/EN 61373 Category 1 Class B, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9835, CFR free, KS C 9832 Class B, ECE R10 Rev.06 |
| Power | Power |
| Power Device | 0.9 Watt |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
Features - AXIS - 02363-001
More Details
Product Code
CG33772
EAN Code
7331021076419
Manufacturer
AXIS
