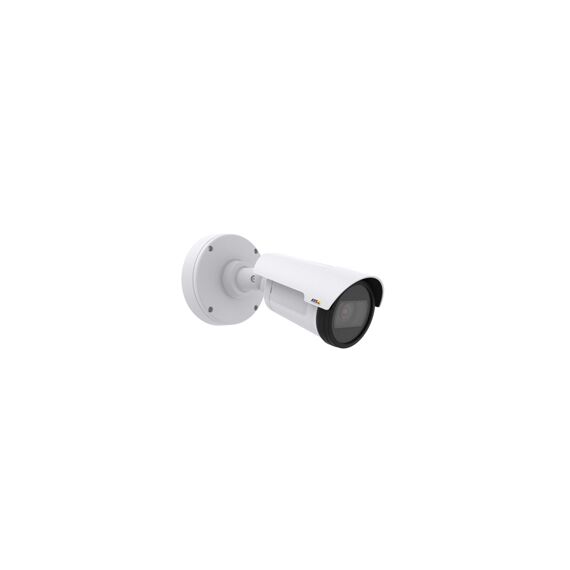

AXIS ip-camera AXIS P1435-LE (0777-001)

AXIS 0777-001 AXIS ip-camera AXIS P1435-LE (0777-001)

Compact and cost-effective HDTV surveillance for any light condition

With features such as Lightfinder and WDR – Forensic Capture, the bullet-style AXIS P1435-LE provides excellent image quality in HDTV 1080p resolution, even in complex light conditions. In addition, the camera supports Axis’ Corridor Format, pixel counter, remote zoom and focus, as well as P-Iris control. The day and night camera is ideal for 24/7 video surveillance, in exposed outdoor areas such as parking lots and service stations, and for general indoor surveillance purposes wherever a compact camera is needed.

Excellent image quality

AXIS P1435-LE with its varifocal, P-Iris lens provides excellent image quality at up to 60 frames per second. The P-Iris control provides optimal depth of field, resolution, image contrast and clarity.

Lightfinder and Wide Dynamic Range WDR


With Wide Dynamic Range – Forensic Capture, the camera provides perfectly balanced video quality in scenes with strong variations in light, while Axis’ Lightfinder technology enables outstanding image usability in poor light. The camera can seamlessly transition between handling WDR and low-light conditions.

Built-in IR-LEDs and OptimizedIR

AXIS P1435-LE offers OptimizedIR, Axis’ power-efficient LED technology that provides an adaptable angle of IR illumination. With OptimizedIR, the camera provides automatic illumination of a scene in complete darkness, in case of an event or when requested by a user. The improved IR LED illumination is perfect for discovering objects in a range of up to 30 meters 100 ft.

Edge storage and Zipstream

AXIS P1435-LE offers support for edge storage that makes it possible to record video directly to a storage such as a microSD/SDHC card, thereby creating a flexible and reliable video surveillance system. In addition, Axis’ Zipstream technology lowers bandwidth and storage requirements by an average of 50% without costly and complicated integration. Zipstream ensures that important details in the image get enough attention in the video stream while unnecessary data can be removed.

Ease of installation

AXIS P1435-LE has a compact, low weight casing and integrated bracket for wall or ceiling mount. To further facilitate installation, a wide range of mounting accessories are available. AXIS P1435-LE offers easy installation with remote zoom and focus for fine tuning of the picture from a computer. Power over Ethernet supplies power to the cameras through the network, eliminating the need for power cables and reduces installation costs.

I/O ports

The input/output ports can be used for simple notification to an alarm panel or control of a relay. The input is also ideal when using a PIR motion detector.

Feature list

Type:	IP
PTZ control Pan/Tilt/Zoom:	Y
Placement supported:	Outdoor
Auto-tracking:	Y
Wide Dynamic Range WDR:	Y
Day/night mode:	Y
Alarm input/output:	Y
Number of languages:	10
Languages support:	CHI SIMPL,DEU,ENG,ESP,FRE,ITA,JPN,KAZ,POR,RUS
Form factor:	Bullet
Colour of product:	White
Mounting type:	Wall/Ceiling
Housing material:	Polycarbonate,Polyester
International Protection IP code:	IP66
LED indicators:	Y
Maximum resolution:	1920 x 1080 pixels
Video compression formats:	H.264,M-JPEG,MPEG4
Supported graphics resolutions:	160 x 90,1920 x 1080 HD 1080
Supported video modes:	1080p
Megapixel:	60 MP
Full HD:	Y
Privacy masking:	Y
Text caption overlay:	Y
Viewing angle, horizontal:	95 °
Viewing angle, vertical:	51 °
White balance:	Auto
Camera shutter speed:	1/66500 - 2 s
Sensor type:	CMOS
Optical sensor size:	1/2.8 "
Progressive scan:	Y
Zoom capability:	Y
Optical zoom:	3.5 x
Focal length range f-f:	3 - 10.5 mm
Focus adjustment:	1.4
Auto focus:	Y
Video motion detection:	Y
IP address filtering:	Y
Security algorithms:	802.1x RADIUS,HTTPS,SSH,SSL/TLS
Password protection type:	User
HTTPS encryption:	Y
Motion detector:	Y
Alert notification type:	E-mail
Card reader integrated:	Y
Compatible memory cards:	MicroSD TransFlash,MicroSDHC,MicroSDXC
Built-in hard drive:	N
Flash memory:	256 MB
Internal memory:	512 MB
Night vision:	Y
Night vision distance:	30 m
LED type:	IR
Ethernet LAN:	Y
Ethernet interface type:	Fast
Cabling technology:	10/100Base-TX
Wi-Fi:	N
Networking standards:	IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Supported network protocols:	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP TM , SNMPv1/v2c/v3 MIB-II, DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
3G:	N
4G:	N
Quality of Service QoS support:	Y
Connectivity technology:	Wired
Ethernet LAN RJ-45 ports:	1
Interface:	RJ-45
Terminal block port:	Y
Width:	132 mm
Depth:	260 mm
Height:	132 mm
Weight:	900 g
Power over Ethernet PoE support:	Y
Power consumption typical:	4.6 W
Power consumption max:	11 W
Web-based management:	Y
Remotely operated:	Y
Certification:	EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 50121-4,IEC 62236-4, EN 55024, FCC Part 15 Subpart B Class B,ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B,KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,IEC/EN/UL 60950-22, EN 62471, IEC/EN 60529 IP66,NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-6, IEC 60068-2-27
Operating temperature T-T:	-30 - 60 °C
Storage temperature T-T:	-40 - 65 °C
Operating relative humidity H-H:	10 - 100 %
Windows operating systems supported:	Y
Mounting brackets included:	Y
Quick installation guide:	Y
Bundled software:	AXIS Camera Companion, AXIS Camera Station
USB connectivity:	N
Power source:	PoE
Iris:	Y
