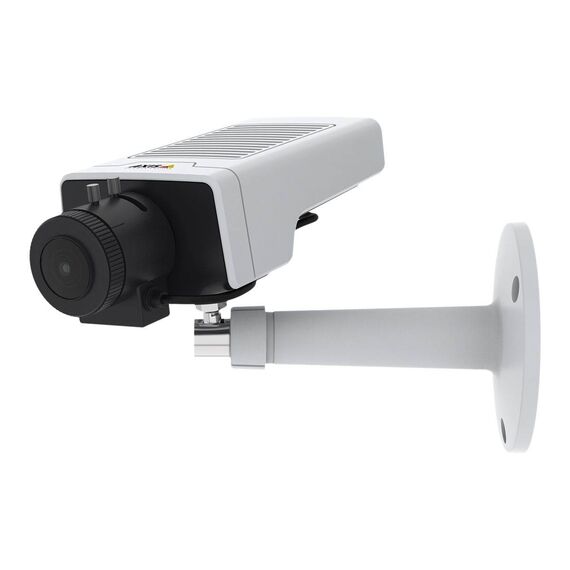

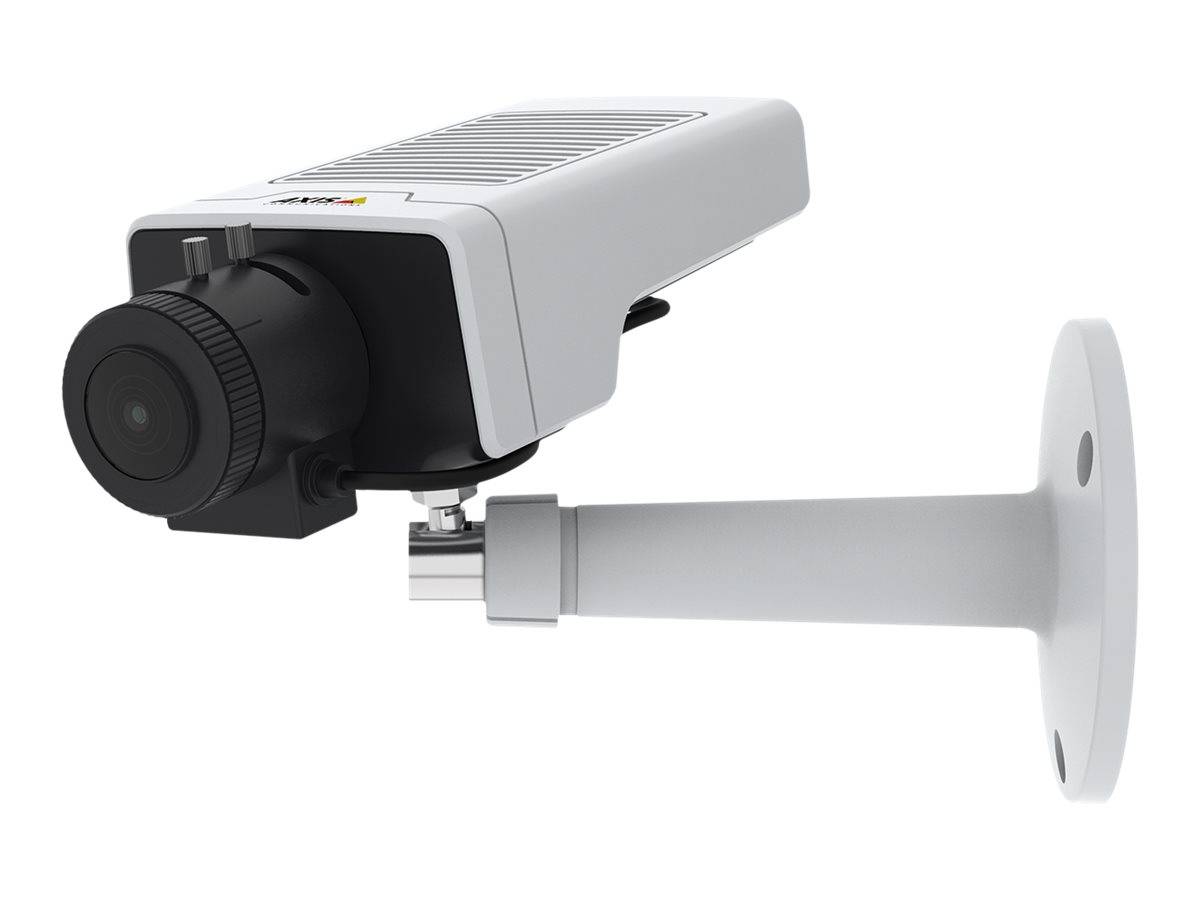

AXIS M1135 MK II / Network surveillance camera / box / colour (Day&Night) / 2 MP / 1920 x 1080 / 1080p / CS-mount / auto iris / vari-focal / audio / LAN 10/100 | 02483-001
Please sign in so that we can notify you about a reply
Product Features
- More bang for your buck
This affordable Axis M-line camera includes a built-in microphone and audio recording, letting you hear and register sound in a fixed area. Thanks to support for PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage. Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, it comes with AXIS object analytics preinstalled, so you can detect and classify humans and vehicles. - Great image quality even in low light
With 2 MP resolution at up to 30 fps, AXIS M1135 Mk II delivers superb video quality even in low light conditions. Featuring Axis lightfinder it offers images in true colors even in low light. And, with Axis forensic WDR you get clarity even when there's both dark and light areas in the scene. - Designed for deterrence
Designed to act as a deterrent, AXIS M1135 Mk II lets potential offenders know you're watching and helps prevent unwanted activities. This compact box camera provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis ceiling speaker.
Special Features
- Compact and flexible design
- Lightfinder and forensic WDR
- Built-in microphone for audio recording
- AXIS object analytics
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone, two-way audio via edge-to-edge technology |
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Box |
| Connectivity Technology | Wired |
| Width | 7 cm |
| Depth | 14.8 cm |
| Height | 4.6 cm |
| Weight | 205 g |
| Localisation | Argentina, Australia, China, Japan, Brazil, United Kingdom, United States, Europe |
| Camera | Camera |
| Type | Colour - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 2 sec - 1/33500 sec |
| Minimum Illumination | 0.15 lux - colour - F1.4 - 50 IRE ¦ 0.03 lux - B&W - F1.4 - 50 IRE ¦ 0.1 lux - colour - F1.4 - 30 IRE ¦ 0.02 lux - B&W - F1.4 - 30 IRE |
| Digital Video Capture Resolution | 1920 x 1080, 160 x 90 |
| Frame Rate (max) | 30 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Sharpness control, white balance, colour control, brightness control, contrast control, image mirror, infrared cut filter, Privacy Mask Function, NAS-Ready, Lightfinder technology, digital PTZ function, password protection, distortion correction function, IR Corrected lens, auto gain control, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, Pixel Counter Support, digest authentication, Vehicle Detection, Forensic WDR, IP address filtering, exposure zone, HTTPs encryption, human detection, simplex audio, signed firmware, secure boot, Corridor mode, ONVIF (Profile T) support, VAPIX support, compression, text overlay, 180° image rotation, 90° image rotation, 270° image rotation, user access log, brute force delay protection, Machine learning processing unit (MLPU), ONVIF (Profile M) support, Axis Edge Vault, Axis device ID, secure keystore, fine tuning of behavior at low light, aspect ratio correction |
| Image Sensor | Image Sensor |
| Type | 2 MP PS RGB CMOS 1/2.9" |
| Lens Construction | Lens Construction |
| Type | CS-mount - vari-focal |
| Optical Zoom | 3.5 x |
| Focal Length | 3 mm - 10.5 mm |
| Lens Iris | F/1.4 auto iris (DC) |
| Horizontal Field of View (degree) | 33 - 90 |
| Vertical Field of View (degree) | 19 - 49 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Digital input/output - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | AXIS T91A11 stand (white) |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EMC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EN 50581, RCM, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835 |
| Colour | Black, white, NCS S 1002-B, NCS S 9000-N |
| Power | Power |
| Power Requirements | DC 10 - 28 V / PoE Plus Class 3 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence, AXIS Video Motion Detection, AXIS Object Analytics |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
Features - AXIS - 02483-001
More Details
Product Code
CE80989
EAN Code
7331021078178
Manufacturer
AXIS
