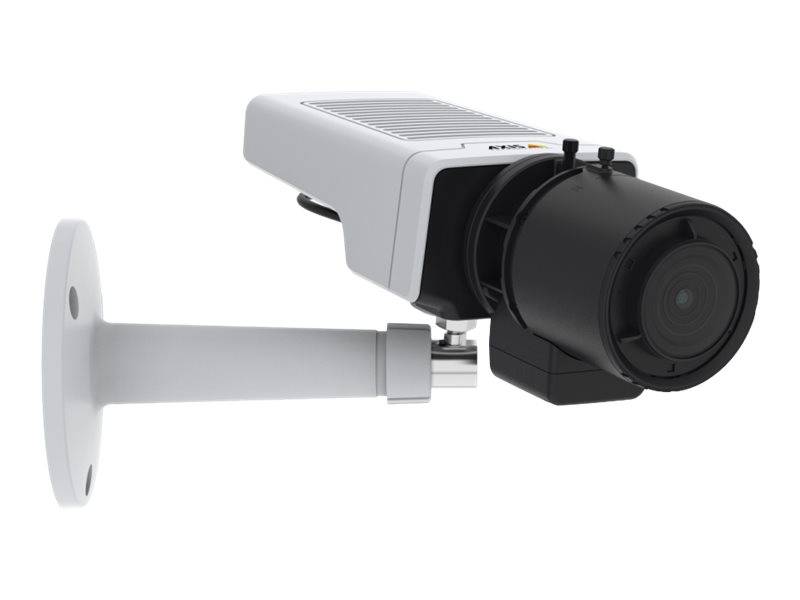

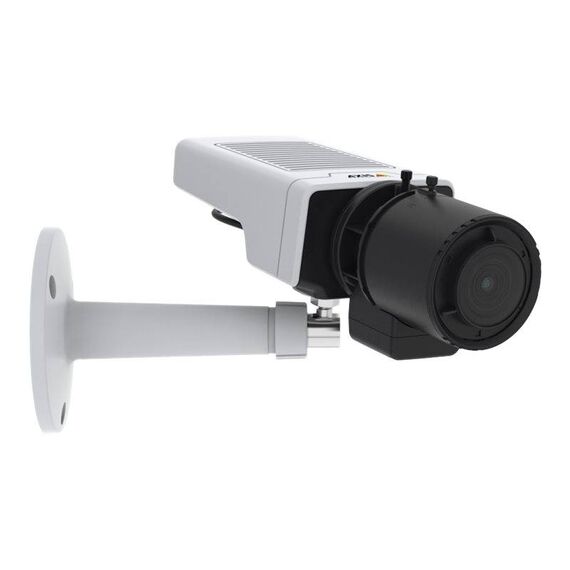

AXIS M1137 MK II / Network surveillance camera / box / outdoor / colour (Day&Night) / 5 MP / 2592 x 1944 / 1080p / CS-mount / auto iris / vari-focal / audio / LAN 10/100 | 02484-001
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- More bang for your buck
This affordable Axis M-line camera includes a built-in microphone and audio recording, letting you hear and register sound in a fixed area. Thanks to support for PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage. Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, it comes with AXIS object analytics preinstalled, so you can detect and classify humans and vehicles. - Great image quality even in low light
With 5 MP resolution at up to 30 fps, AXIS M1137 Mk II delivers superb video quality even in low light conditions. Featuring Axis lightfinder it offers images in true colors even in low light. And, with Axis forensic WDR you get clarity even when there's both dark and light areas in the scene. - Designed for deterrence
Designed to act as a deterrent, AXIS M1137 Mk II lets potential offenders know you're watching and helps prevent unwanted activities. This compact box camera provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis ceiling speaker.
Special Features
- Compact and flexible design
- Lightfinder and forensic WDR
- Built-in microphone for audio recording
- AXIS object analytics
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Box |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 6.4 cm |
| Depth | 7 cm |
| Height | 17.9 cm |
| Weight | 165 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, HEVC, H.265, MPEG-H Part 2 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 1/5 sec - 1/33500 sec |
| Minimum Illumination | 0.17 lux - colour - F1.4 - 50 IRE ¦ 0.03 lux - B&W - F1.4 - 50 IRE |
| Digital Video Capture Resolution | 160 x 120, 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| RAM | 1024 MB |
| Flash Memory | 512 MB |
| Features | Sharpness control, white balance, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Privacy Mask Function, NAS-Ready, notification picture to E-mail, active tampering alarm, digital PTZ function, password protection, Variable Bitrate (VBR), Audio Detection, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, digest authentication, Line Crossing Detection, Vehicle Detection, Forensic WDR, IP address filtering, exposure zone, HTTPs encryption, human detection, signed firmware, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), video aspect ratio conversion, TLS encryption protocol, text overlay, user access log, brute force delay protection, Machine learning processing unit (MLPU), ONVIF (Profile M) support, Axis Edge Vault |
| Image Sensor | Image Sensor |
| Type | 5 MP PS RGB CMOS 1/2.7" |
| Lens Construction | Lens Construction |
| Type | CS-mount - vari-focal |
| Optical Zoom | 4.6 x |
| Focal Length | 2.8 mm - 13 mm |
| Lens Iris | F/1.4 auto iris (DC) |
| Horizontal Field of View (degree) | 24 - 112 |
| Vertical Field of View (degree) | 19 - 82 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Stand |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EMC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EN 50581, NEMA TS-2, NMB-3 Class A, RCM, CAN ICES-3 Class A, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, CAN/CSA C22.2 No. 60950-22, NIST SP500-267, IEC/EN 62262 IK10, KS C 9832 Class A, KS C 9835 |
| Colour | White, NCS S 1002-B |
| Power | Power |
| Power Requirements | DC 10 - 28 V / PoE Class 3 |
| Power Device | 7.2 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 80% (non-condensing) |
Χαρακτηριστικά
Product Code
CE80988
EAN Code
7331021078215
Manufacturer
AXIS
