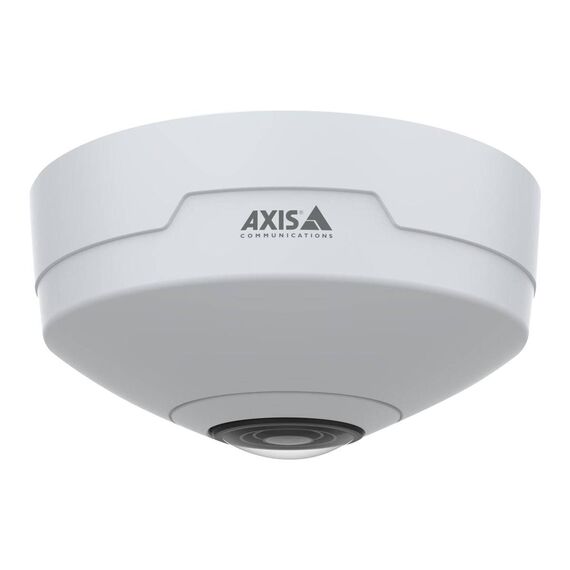

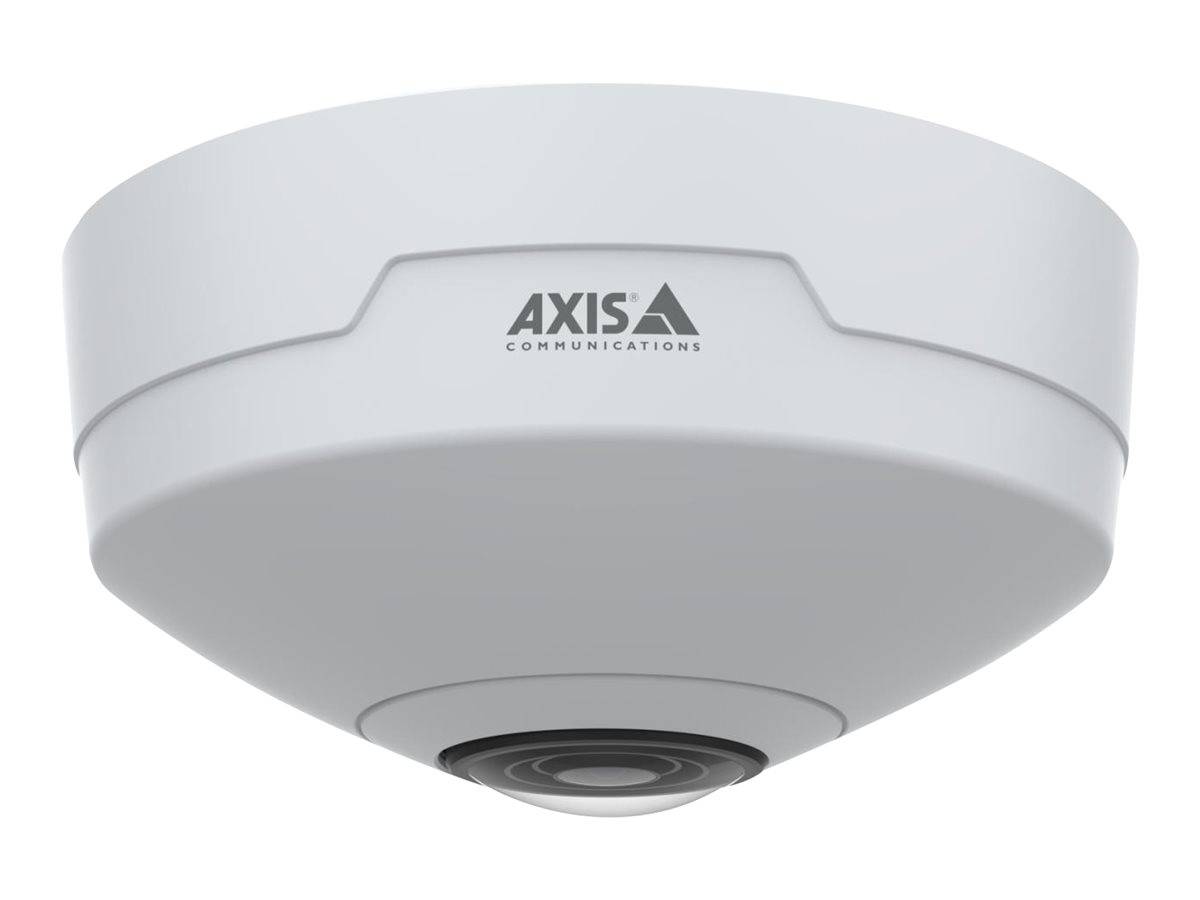

AXIS M4328-P / Network panoramic camera / fisheye / indoor / colour (Day&Night) / 12 MP / 2992 x 2992 / fixed iris / fixed focal / audio / wired / LAN 10/100 / MJPEG, H.265, H.264B, H.264H, H.264M / PoE Class 3 / TAA Compliant | 02637-001
Please sign in so that we can notify you about a reply
Product Features
- Great video performance
AXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12MP camera delivers 360° or 180° panoramic overviews. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furthermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality. - Deep learning on the edge
This indoor fisheye camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before - on the edge. Additionally, it delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it's possible to detect and classify moving objects in a scene - all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. - Great look and ease of installation
This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. It's delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview - no need to do it manually on the camera. Furthermore, Axis Zipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.
Special Features
- 180°/360° view
- 12MP with stereographic lens
- Support for customizable dewarped views
- Digital roll for easy installation
- Support for advanced analytics
Product Specification
| Device Type | Network panoramic camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Fisheye |
| Connectivity Technology | Wired |
| Width | 10.1 cm |
| Depth | 10.1 cm |
| Height | 5.1 cm |
| Weight | 300 g |
| Localisation | Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, European Union |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - indoor |
| Digital Video Format | MJPEG, H.265, H.264B, H.264H, H.264M |
| Max Digital Video Resolution | 2992 x 2992 |
| Motion Detection | Yes |
| Exposure Range | 1/2 sec - 1/8100 sec |
| Minimum Illumination | 0.19 lux - colour - F2.2 - 50 IRE ¦ 0.04 lux - B&W - F2.2 - 50 IRE |
| Digital Video Capture Resolution | 384 x 288, 2048 x 1536, 2560 x 1920, 3840 x 2160, 2992 x 2992, 2880 x 2880, 256 x 144, 3200 x 1600, 192 x 72, 3584 x 2688 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image mirror, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Privacy Mask Function, Lightfinder technology, digital PTZ function, password protection, IR Corrected lens, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, exposure zone, guard tour, signed firmware, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), day/night threshold, compression, polygon privacy mask, memory card encryption, brute force delay protection, ONVIF (Profile M) support, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, secure keystore, video streaming indicator, dynamic text, signed video, deep learning processing unit (DLPU), tone mapping, exposure mode, network speaker pairing, Spatio-temporal noise filtering, digital roll, level grid |
| Image Sensor | Image Sensor |
| Type | 12 MP RGB CMOS 1/2.3" |
| Lens Construction | Lens Construction |
| Type | Fixed focal |
| Focal Length | 1.2 mm |
| Lens Iris | F/2.2 fixed iris |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 182 |
| Vertical Field of View (degree) | 182 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, SIP, LLDP, Zeroconf, MQTT, CDP, Syslog, NTS |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Owner authentication key |
| TAA Compliant | Yes |
| Compliant Standards | CSA, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, X.509, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, VCCI Class A, RCM, RoHS 2011/65/EU, BIS, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, REACH 2006/1907, EN 55035, IEC/EN/UL 62368-1, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), UKCA, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL/cUL, KS C 9832 Class A, KS C 9835, CFR free, EN 63000:2018, IS 13252, IEEE 802.1ar |
| Colour | White, NCS S 1002-B |
| Power | Power |
| Power Requirements | PoE Class 3 |
| Software / System Requirements | Software / System Requirements |
| Software Included | AXIS Video Motion Detection, AXIS Object Analytics |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
Features - AXIS - 02637-001
More Details
Product Code
CH23735
EAN Code
7331021080669
Manufacturer
AXIS
