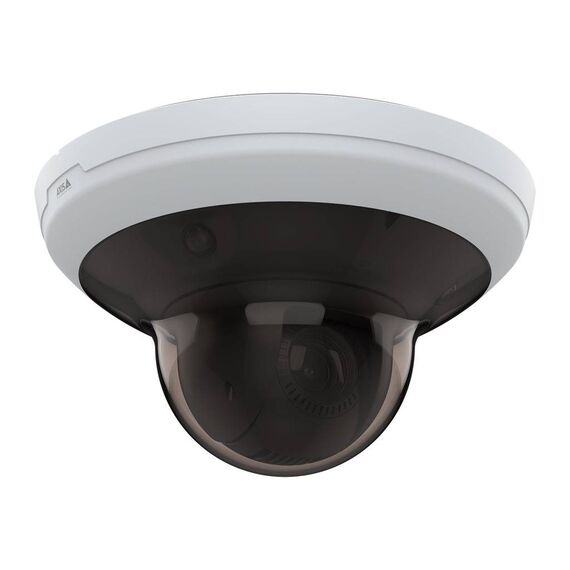

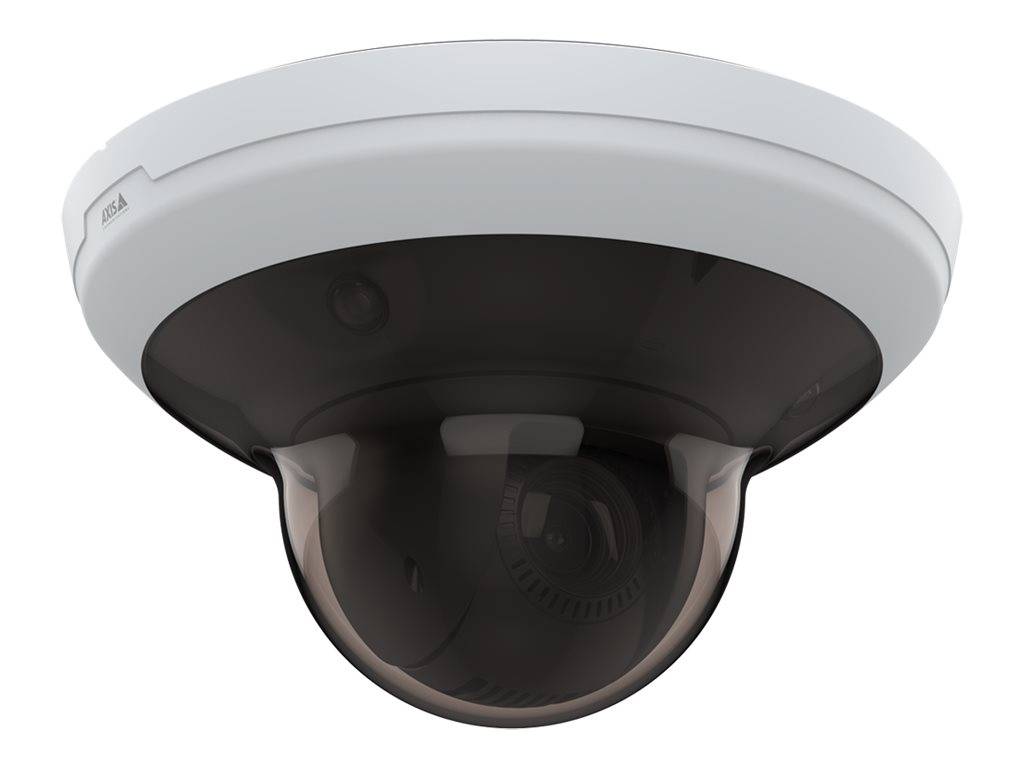

AXIS M5000-G / Network surveillance / panoramic camera / PTZ / dome / indoor / colour (Day&Night) / 2592 x 1944 (panoramic) / 1920 x 1080 (PTZ) / 1080p / audio / GbE | 02187-002
Please sign in so that we can notify you about a reply
Product Features
- Total situational awareness
Axis M5000-G offers total situational awareness of indoor areas. Featuring three 5 MP sensors and one PTZ camera with 10x optical zoom and HDTV 1080p, it lets you benefit from sweeping overviews and you can zoom in to get the details. With everything displayed on one monitor, you can move from overview to detailed views in a single click. And, with autofocus capabilities, you can quickly zoom in on areas of interest. Furthermore, it features indication lights to help deter antisocial and criminal behavior, ideal for retails stores and large indoor areas. - Smart functions
Axis M5000-G offers wireless I/O connectivity with Z-Wave plus devices. This means that the camera can communicate with up to six devices in a system setup. If, for example, a door or a window is opened, the device can automatically alert the camera to change its preset position. Plus, you don't need to manually turn on lights, heating, or air conditioning - you can use Z-Wave plus to automatically activate these devices. In retail applications, it lets you monitor temperatures in freezers so you can take action - before it's too late. And, because all information from Z-Wave is transferred to the VMS and displayed as overlays in the video stream, you'll always know what's happening. - Cost-efficient and easy to install
With Axis M5000-G, you get the benefits of four cameras, while installing just one. So, there's only one camera to install, one cable to run, one IP address to install. Thanks to edge storage you can record directly to an onboard memory card for easy installation and maintenance. Furthermore, Axis M5000-G PTZ is designed to blend in seamlessly with any environment.
Special Features
- 3x 5 MP sensors for situational awareness
- Total overview, zoomed-in details
- Covers indoor areas
- 10x optical zoom with HDTV 1080p
- Z-Wave for smart home devices
Product Specification
| Device Type | Network surveillance / panoramic camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 24.7 cm |
| Depth | 24.7 cm |
| Height | 13.8 cm |
| Weight | 1.95 kg |
| Localisation | United Kingdom, Europe |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt / zoom - indoor |
| Digital Video Format | MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 2592 x 1944 (panoramic) / 1920 x 1080 (PTZ) |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Digital Zoom | 12 |
| Exposure Range | 2 sec - 1/66500 (PTZ), 1/50000 (panoramic) sec |
| Minimum Illumination | 0.09 lux - color, PTZ - F1.6 - 30 IRE ¦ 0.01 lux - B&W, PTZ - F1.6 - 30 IRE ¦ 0.1 lux - color, PTZ - F1.6 - 50 IRE ¦ 0.01 lux - B&W, PTZ - F1.6 - 50 IRE ¦ 0.08 lux - colour, panoramic - F2.0 - 30 IRE ¦ 0.03 lux - B&W, panoramic - F2.0 - 30 IRE ¦ 0.4 lux - colour, panoramic - F2.0 - 50 IRE ¦ 0.03 lux - B&W, panoramic - F2.0 - 50 IRE |
| Digital Video Capture Resolution | 1920 x 1080, 2592 x 1944, 320 x 180 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Sharpness control, white balance, saturation control, brightness control, contrast control, NAS-Ready, full duplex audio, password protection, e-Flip, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, digest authentication, Forensic WDR, IP address filtering, exposure zone, guard tour, on-screen directional indicator, HTTPs encryption, signed firmware, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, max gain setting, Lightfinder 2.0 technology, day/night threshold, compression, text overlay, polygon privacy mask, memory card encryption, user access log, centralised certificate management, brute force delay protection, image freeze, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, secure keystore, video streaming indicator, control queue, signed video, Z-Wave overlay |
| Image Sensor | Image Sensor |
| Type | 3 x 5 MP PS RGB CMOS 1/2.8" ¦ 1 x PS RGB CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Lens System | 3 x fixed focal - 2.39 mm - f/2.0 ¦ 1 x vari-focal - 4.7 mm - 47 nm - automatic adjustment - f/1.6-3.0 - auto iris (P-Iris) |
| Optical Zoom | 10 x |
| Panning | Panning |
| Range (degree) | 360 |
| Tilting | Tilting |
| Range (degree) | 180 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, Z-Wave Plus v2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - terminal block ¦ Audio line out - terminal block |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Drill hole template, connector guard, terminal block connectors, Bayonet screws |
| Compliant Standards | EN 61000-6-1, RSS-210, MIC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, EAL 4, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 62311, VCCI Class A, BFR-free, EN 55032 Class A, EN 301 489-3, IEEE 802.3at, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEEE 802.1x, PVC-free, EN 300 220-2, NIST SP500-267, ICES-3(A)/NMB-3(A), FCC Part 15 Subpart C, IEC/EN 60529 IP51, EN 301489-1, CFR free |
| Power | Power |
| Power Requirements | DC 20 - 28 V / PoE Plus Class 4 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence, AXIS Video Motion Detection, AXIS Loitering Guard |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
Features - AXIS - 02187-002
More Details
Product Code
CE23976
EAN Code
7331021074361
Manufacturer
AXIS
