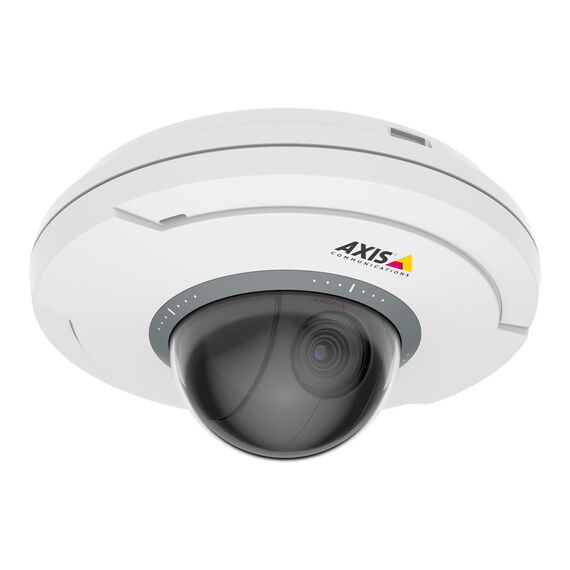

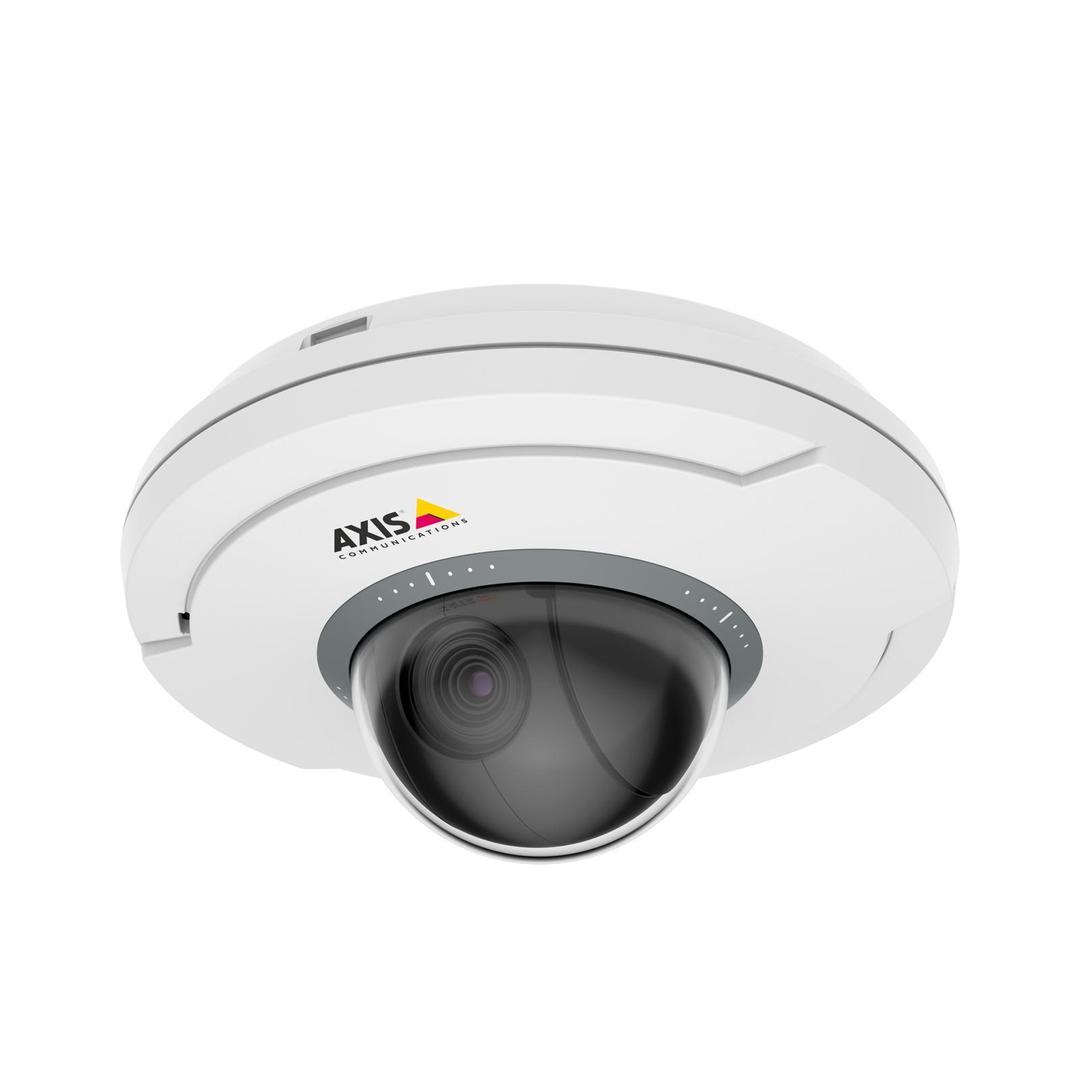

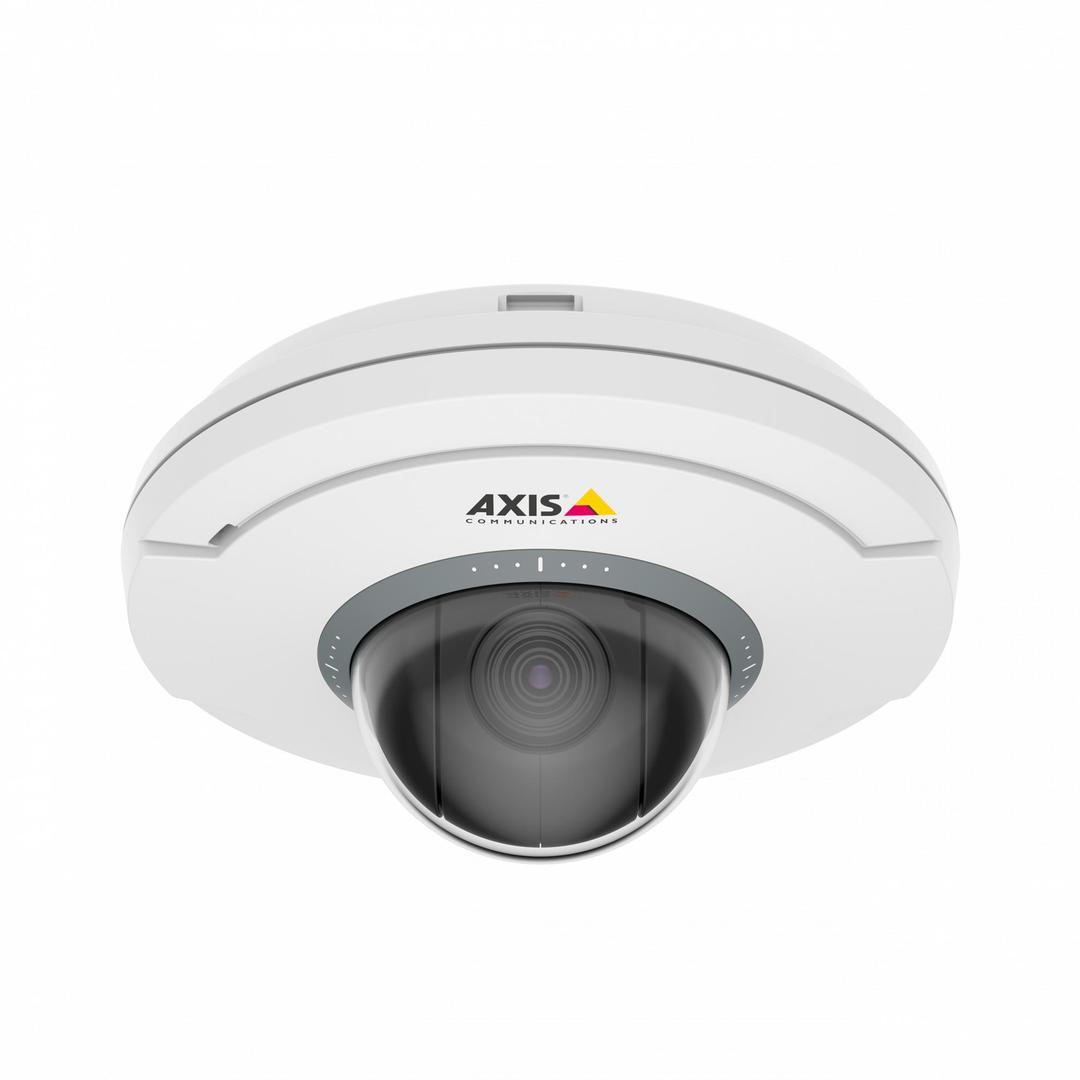

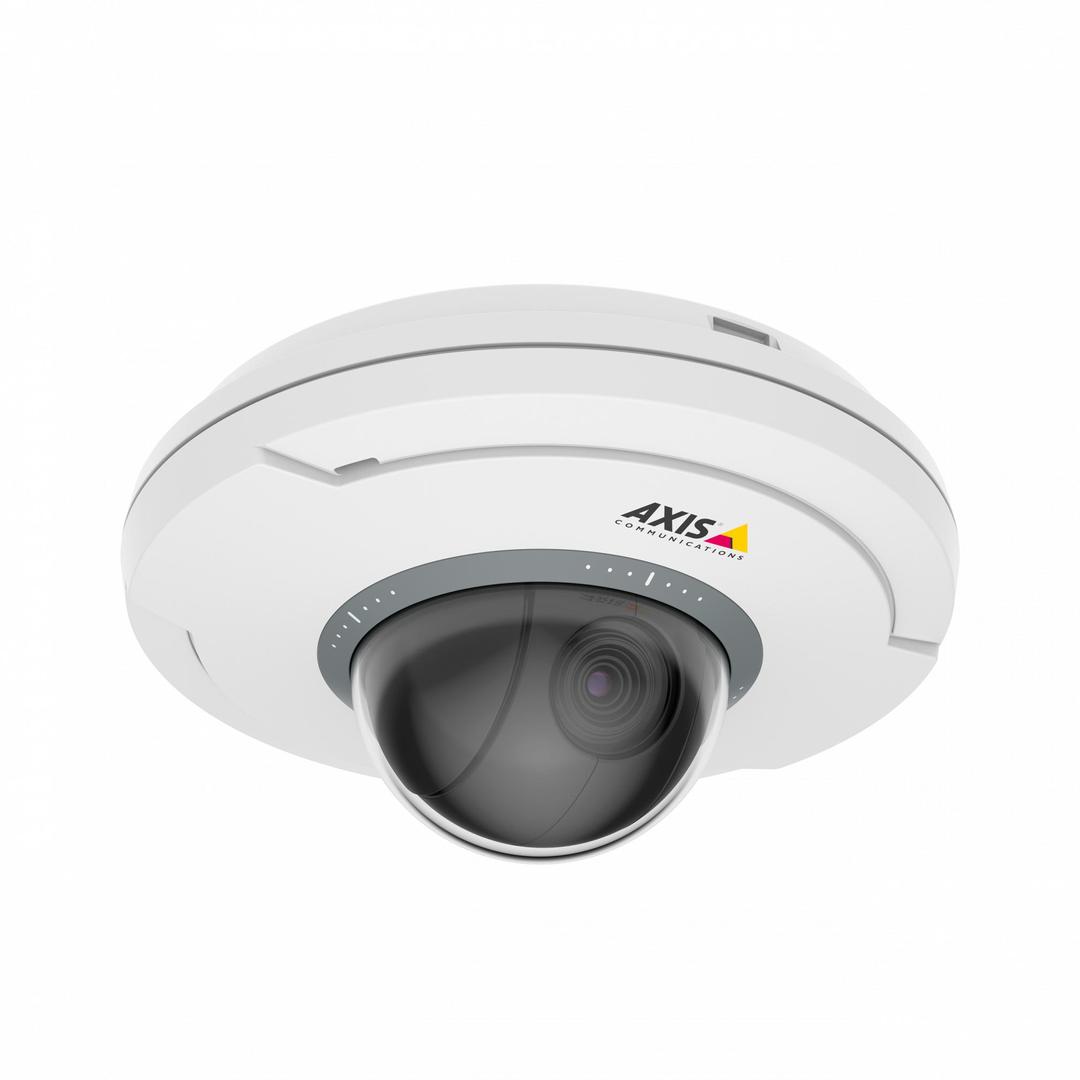

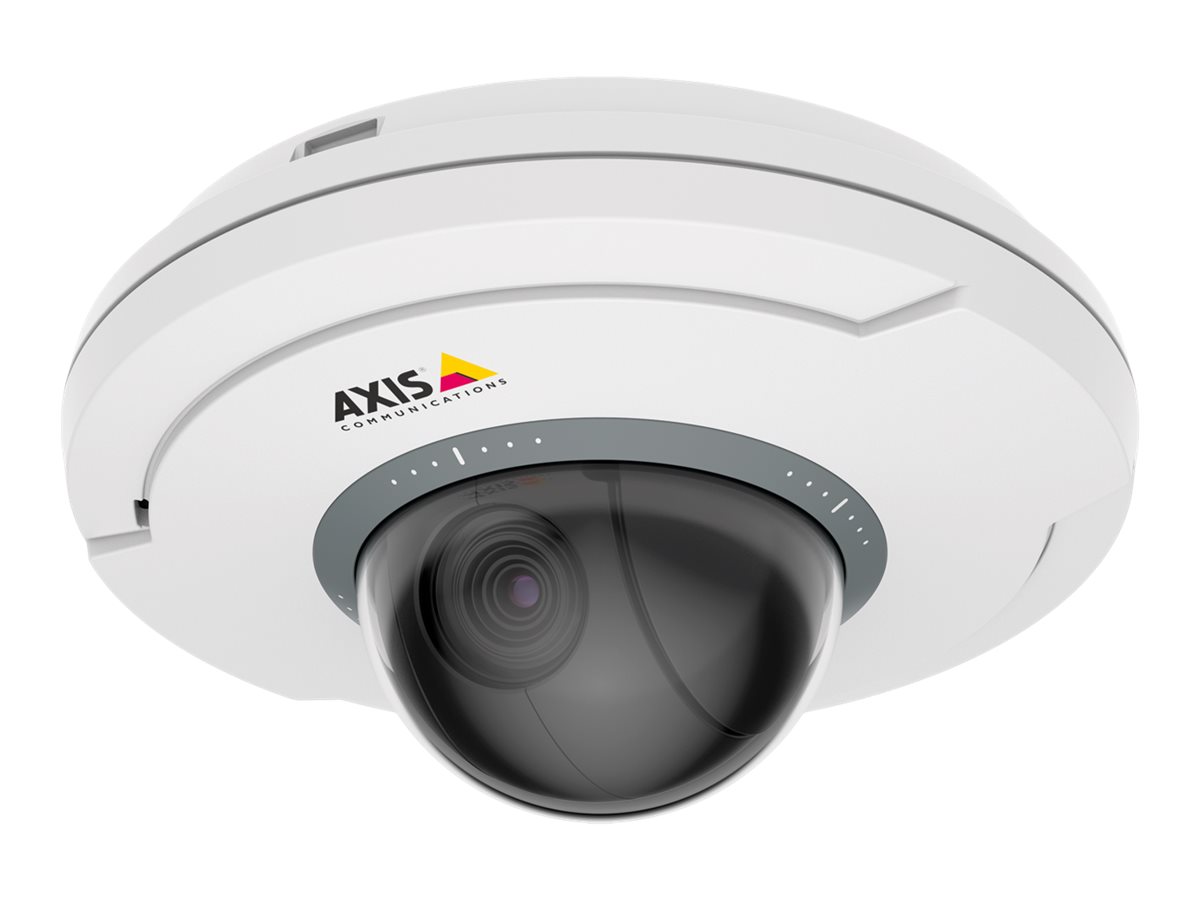

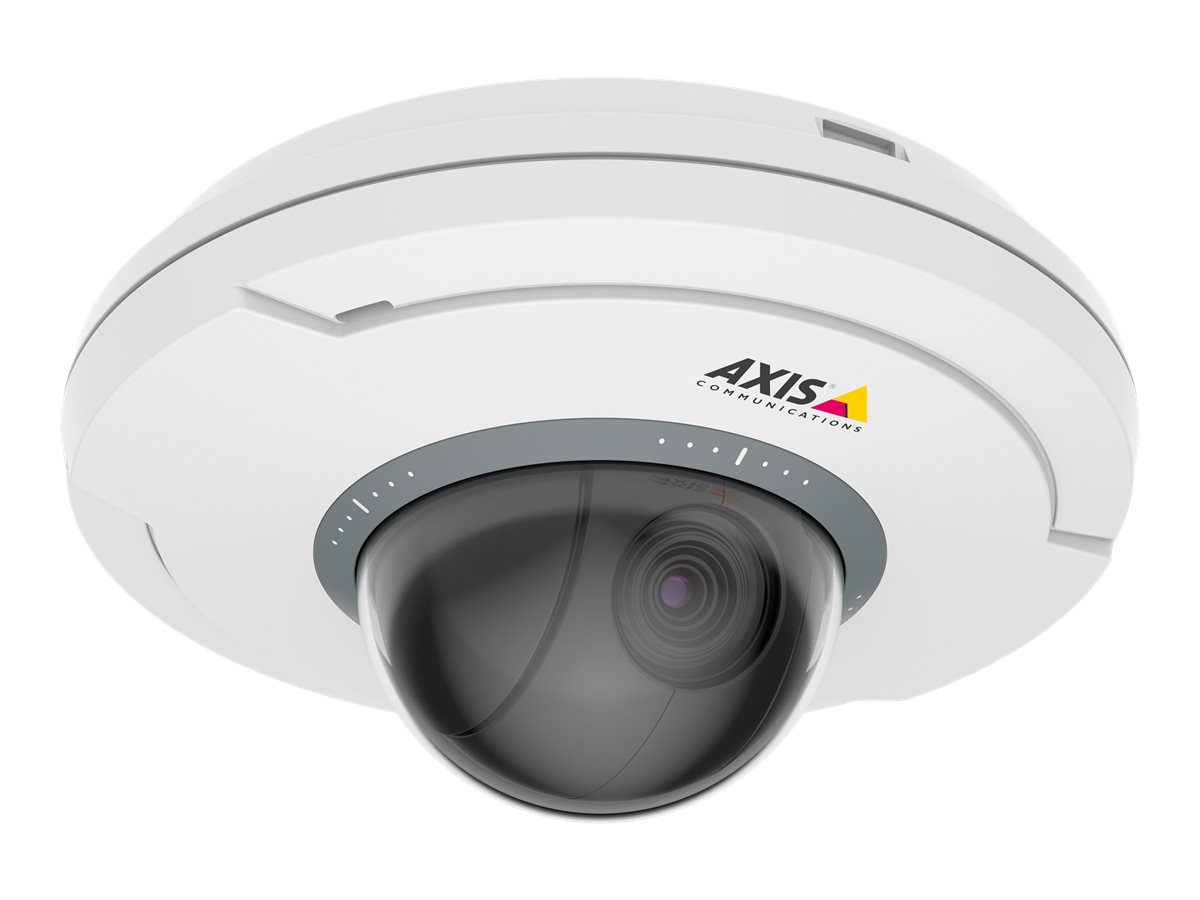

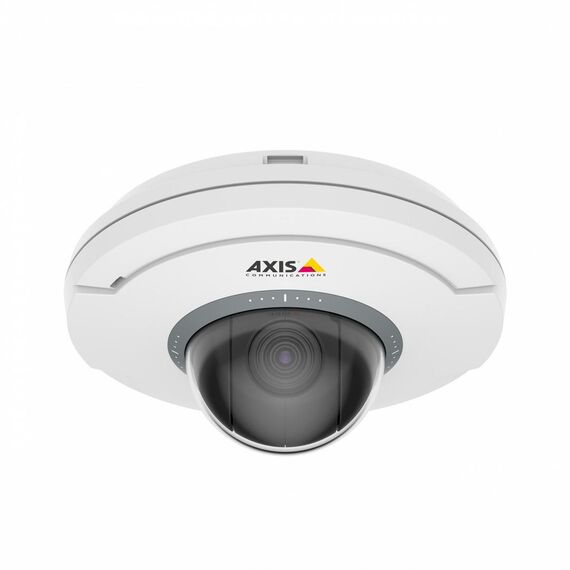

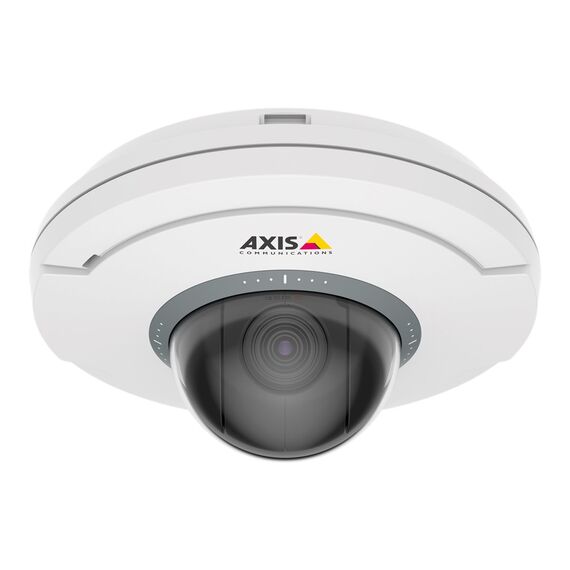

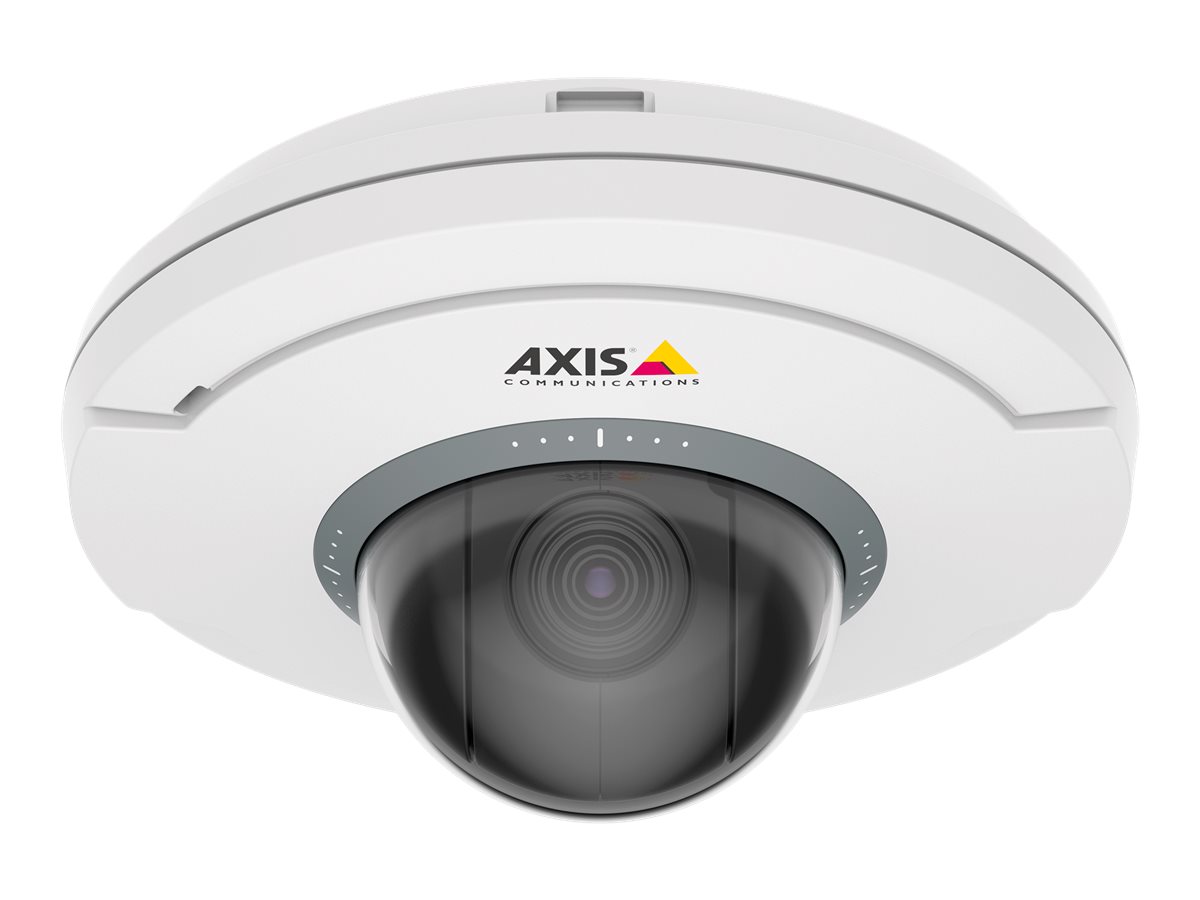

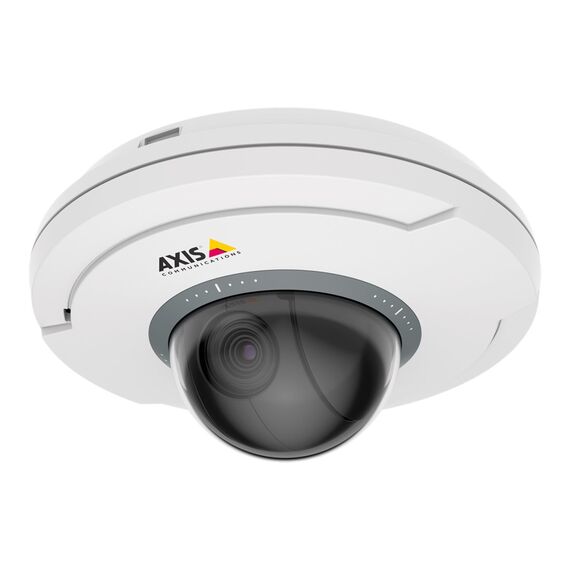

AXIS M5075 - Network surveillance camera - PTZ - dome - indoor - colour (Day&Night) - 2 MP - 1920 x 1080 - 1080p - motorized - audio - LAN 10/100 - H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 - PoE Class 3 | 02346-001
Please sign in so that we can notify you about a reply
Product Features
- Small size, small price
With a small dimension, this compact and discreet palm-sized PTZ camera blends discreetly into any environment. It comes at a price point that's nothing if not reasonable. Featuring a built-in microphone, it enables audio analytics such as scream and glass break detection. Thanks to Zipstream with H.264/H.265 it significantly reduces storage and bandwidth without compromising image quality. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system. - See it all - and see it clearly
AXIS M5075 delivers sharp, detailed video in HDTV 1080p/2 MP resolution with great image usability. Thanks to PTZ functionality with 5x optical zoom and 12x digital zoom you can benefit from sweeping overviews and zoom in to get the details. Plus, autofocus ensures detailed, sharp images - every time. With Wide Dynamic Range (WDR) technology, it preserves important forensic detail when there's both dark and light areas in the same scene. Furthermore, constant angle focusing ensures the field of view doesn't change even when the focus changes. - Built-in analytics
This Plug & Play functionality is a cost-effective way to gain insight for more efficient and effective security. It includes built-in analytics that transforms the camera into a business tool to help you make smart decisions about operations and resource allocation. For instance, it includes audio volume detection which uses the built-in microphone to trigger an event. Scream detection triggers an event when the microphone detects a scream in the camera's proximity. Furthermore, AXIS video motion detection triggers an event when movement is detected in a predefined area.
Special Fetures
- Small size, small price
- See it all - and see it clearly
- Built-in analytics
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone, one-way audio capability |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 13 cm |
| Depth | 13 cm |
| Height | 6.3 cm |
| Weight | 380 g |
| Localisation | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Portuguese, Polish, Russian, Spanish, Japanese, Korean / Argentina, Australia, China, Korea, Brazil |
| Camera | |
| Type | Colour - Day&Night - pan / tilt / zoom - indoor |
| Digital Video Format | H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Digital Zoom | 12 |
| Exposure Range | 2 sec - 1/17000 sec |
| Minimum Illumination | 0.1 lux - colour - F1.4 - 30 IRE |
| Digital Video Capture Resolution | 320 x 180 |
| Frame Rate (max) | 60 frames per second |
| Supported Image Formats | JPEG (Motion photos) |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Wide Dynamic Range (WDR), 256 preset positions, Removed Object Detection, password protection, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, scream detection, plastic housing, digest authentication, IP address filtering, HTTPs encryption, signed firmware, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), user access log, centralised certificate management, brute force delay protection, day shift, night shift, Multi-Bitrate (MBR) |
| Image Sensor | |
| Type | 2 MP RGB CMOS 1/2.8" |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 5 x |
| Focal Length | 2.2 mm - 11 mm |
| Lens Iris | F/1.4-2.5 |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 14 - 71 |
| Vertical Field of View (degree) | 8 - 40 |
| Panning | |
| Range (degree) | -179 to +179 |
| Speed (degree/sec) | Up to 100 |
| Tilting | |
| Range (degree) | 90 |
| Speed (degree/sec) | Up to 100 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Compliant Standards | EN 61000-6-1, FCC Part 15 B Class A, VCCI Class A, IS13252, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, IEC/EN 60529 IP51, CFR free |
| Colour | White |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 4.2 Watt |
| Software / System Requirements | |
| Software Included | AXIS Camera Station, Windows decoder 1-user licence, AXIS Companion, AXIS Video Motion Detection |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Relative Humidity (operating) | 5 - 95% RH (non-condensing) |
Features - AXIS - 02346-001
More Details
Product Code
CG87583
EAN Code
7331021076181
Manufacturer
AXIS
