AXIS P12 Series P1275 MK II - Network surveillance camera - dome - indoor - colour - 1920 x 1080 - 1080p - M12 mount - fixed iris - vari-focal - audio - LAN 10/100 - MJPEG, AVC, HEVC, H.265, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 - PoE Plus
Please sign in so that we can notify you about a reply
Product Features
- Versatile connectivity
With interfaces for LAN and a sensor unit, this camera offers versatile connectivity options, ensuring seamless integration into existing networks. - High-quality imaging
Equipped with a vari-focal lens and capable of capturing high-definition video at 1920 x 1080 resolution, the camera delivers clear and detailed images, making it ideal for a wide range of surveillance needs. - Robust environmental adaptability
Designed to operate in a wide range of temperatures from -20°C to 45°C and withstand humidity levels of 10 - 85% RH (non-condensing), this camera is built for reliability in various environmental conditions. - Advanced security features
Featuring TLS 1.2 and TLS 1.3 encryption algorithms, along with a suite of security features like secure boot, password protection, and signed firmware, this camera ensures the safety and integrity of your surveillance data. - Efficient operation
With a power consumption of just 3.4 watts and support for PoE Plus Class 2, the camera is designed for energy-efficient operation without compromising on performance.
Special Fetures
- High-definition video capture at 1920 x 1080 resolution
- Supports a wide range of network protocols including HTTPS, SNMP, and DHCP
- Features Forensic WDR and Zipstream technology for enhanced image quality
- Modular design with replaceable lens for flexible installation options
- Built to comply with a comprehensive list of standards and certifications ensuring reliability and safety
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: audio through portcast technology |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Localisation | Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Camera | |
| Type | Colour - fixed - indoor |
| Digital Video Format | MJPEG, AVC, HEVC, H.265, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 1/5 sec - 1/16500 sec |
| Minimum Illumination | 0.2 lux - colour - F2.0 - 50 IRE |
| Digital Video Capture Resolution | 1024 x 768, 1920 x 1080, 640 x 360, 480 x 360, 640 x 400, 1024 x 640 |
| Frame Rate (max) | 30 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Password protection, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, digest authentication, Forensic WDR, signed firmware, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), polygon privacy mask, brute force delay protection, ONVIF (Profile M) support, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, secure keystore, dynamic text, signed video, deep learning processing unit (DLPU), replaceable lens, level grid, scene metadata, modular |
| Image Sensor | |
| Type | CMOS |
| Lens Construction | |
| Type | M12 mount - vari-focal |
| Optical Zoom | 2.1 x |
| Focal Length | 2.8 mm - 6 mm |
| Lens Iris | F/2.0 fixed iris |
| Min Focus Distance | 0.1 m |
| Horizontal Field of View (degree) | 53 - 99 |
| Vertical Field of View (degree) | 30 - 53 |
| Panning | |
| Range (degree) | 360 |
| Tilting | |
| Range (degree) | 0 to 90 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DNS, FTP, HTTP, NTP, SMTP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS, RTSPS, UDP, TCP, ICMPv4, ICMPv6, HTTP/2, DNSv6, DHCPv4, DHCPv6 |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ Sensor unit - RJ-12 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
| Miscellaneous | |

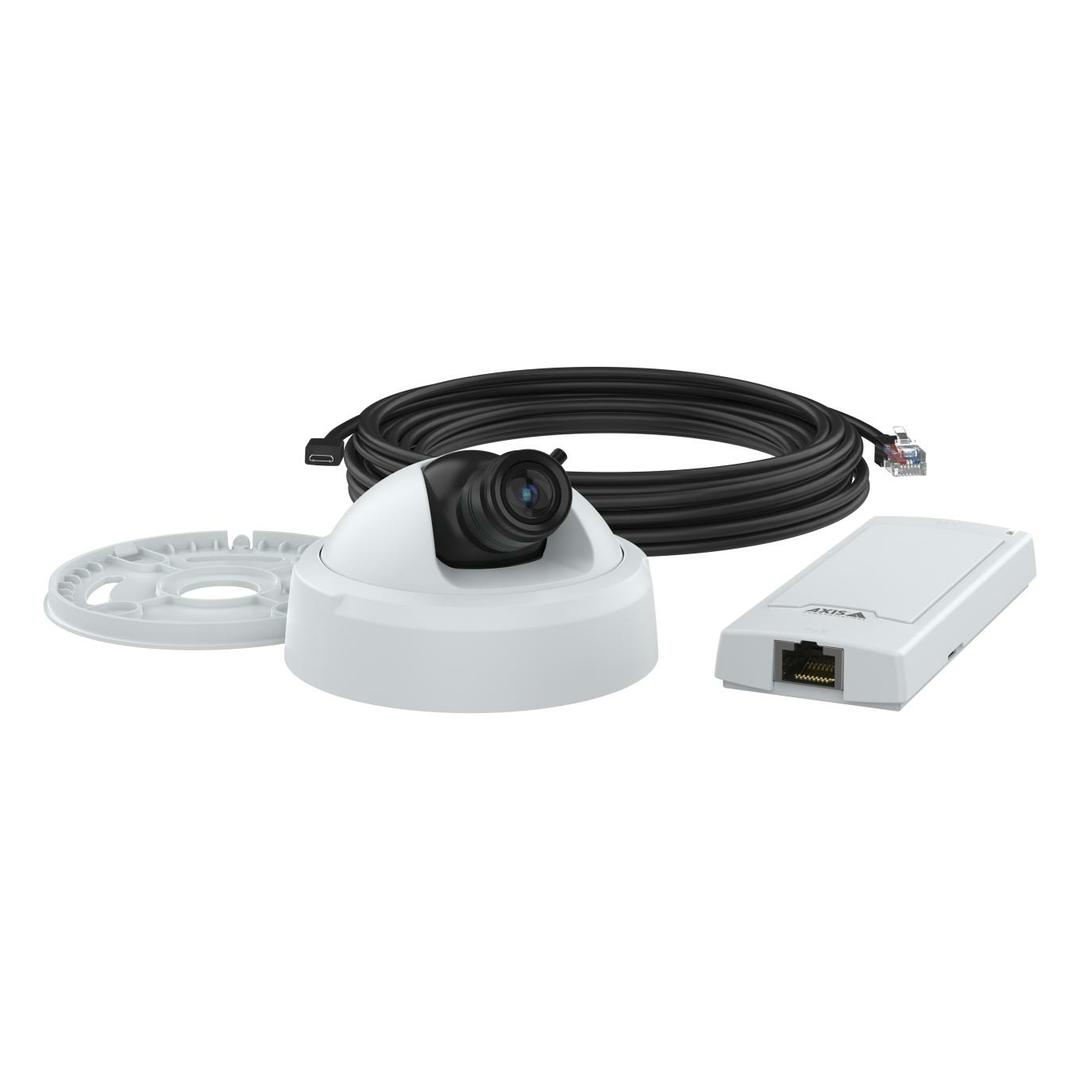

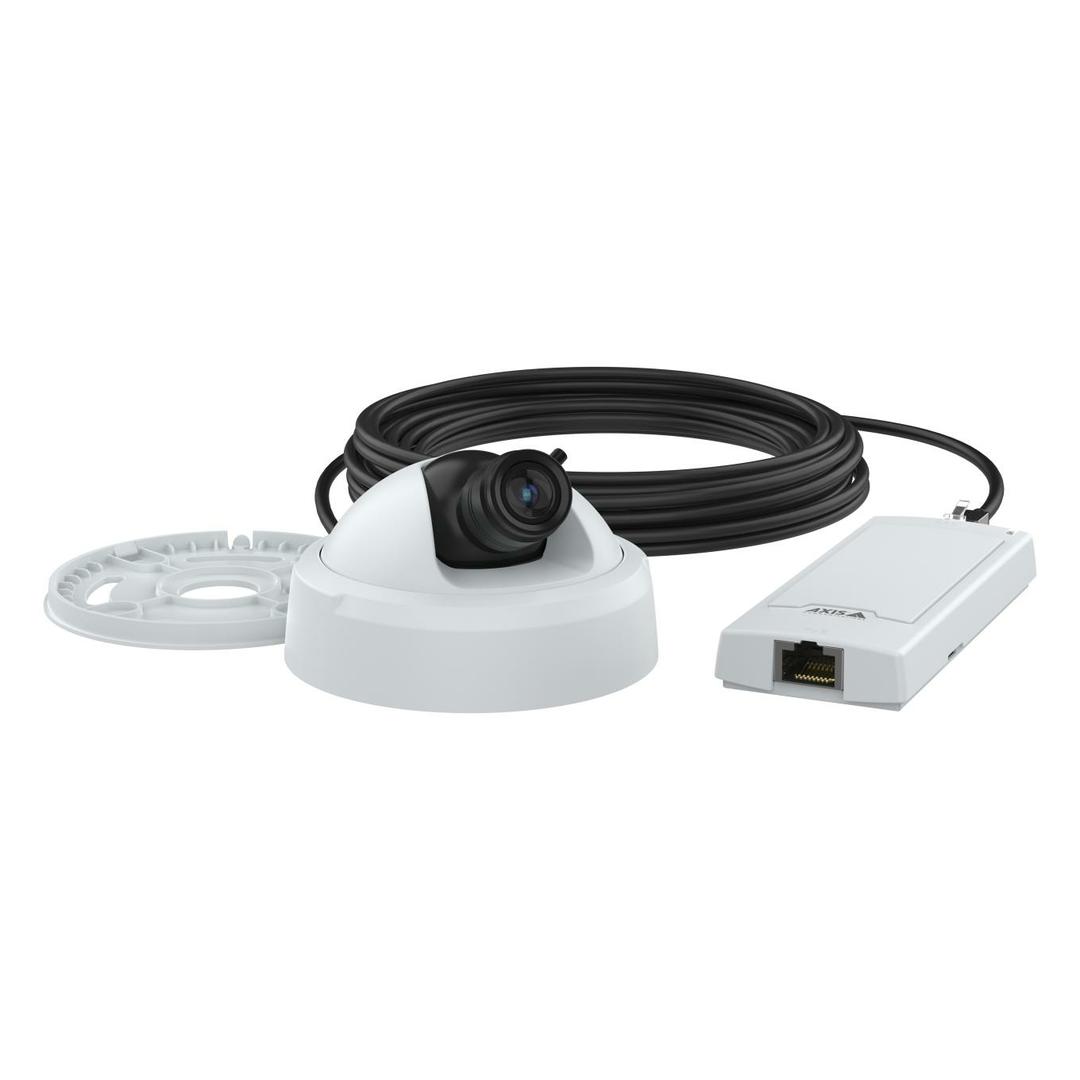

| Included Accessories | Mounting bracket, owner authentication key |
| Cables Included | 1 x sensor cable - external - 8 m |
| TAA Compliant | Yes |
| Compliant Standards | UL, cUL, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, VCCI Class A, RCM, AS/NZS CISPR 32 Class A, EN 55032 Class A, CISPR 32 Class A, IEEE 802.3af, IEEE 802.3at, REACH 2006/1907, EN 55035, CISPR 35, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 60529 IP3X, EN/IEC 63000:2018, RoHS 2011/65/EU Amendment 2015/863, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, ETSI EN 303 645, IEEE 802.1ar, IEEE 802.1ae, IEC/EN/UL 62368-1 Third Edition |
| Colour | White, NCS S 1002-B |
| Power | |
| Power Requirements | PoE Plus Class 2 |
| Power Device | 3.4 Watt |
| Software / System Requirements | |
| Software Included | AXIS Video Motion Detection, AXIS Object Analytics, AXIS Live Privacy Shield |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 45 °C |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
Features - AXIS - 02859-001
More Details
Product Code
07:452890
EAN Code
7331021085459
Manufacturer
AXIS
