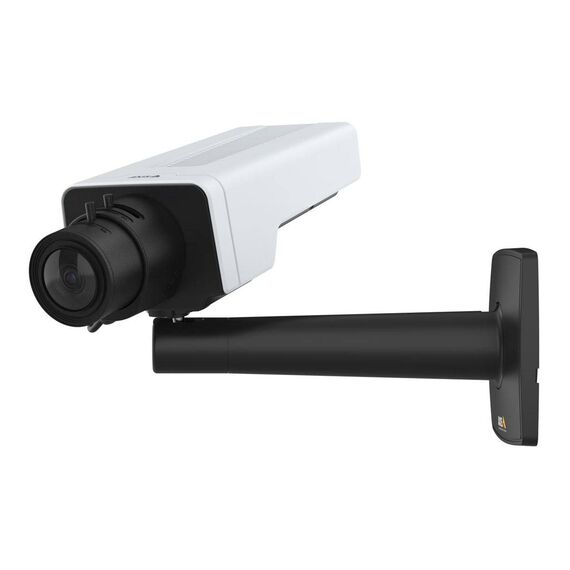

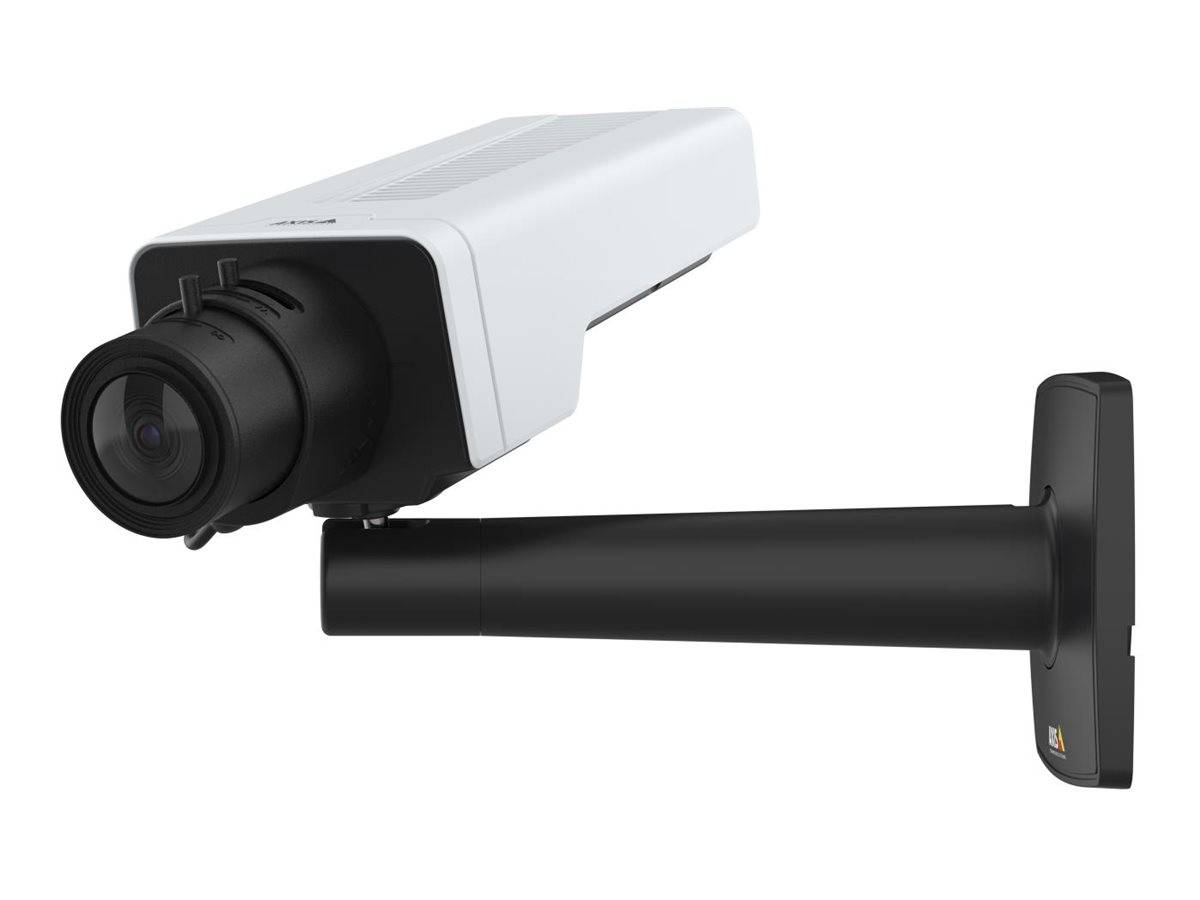

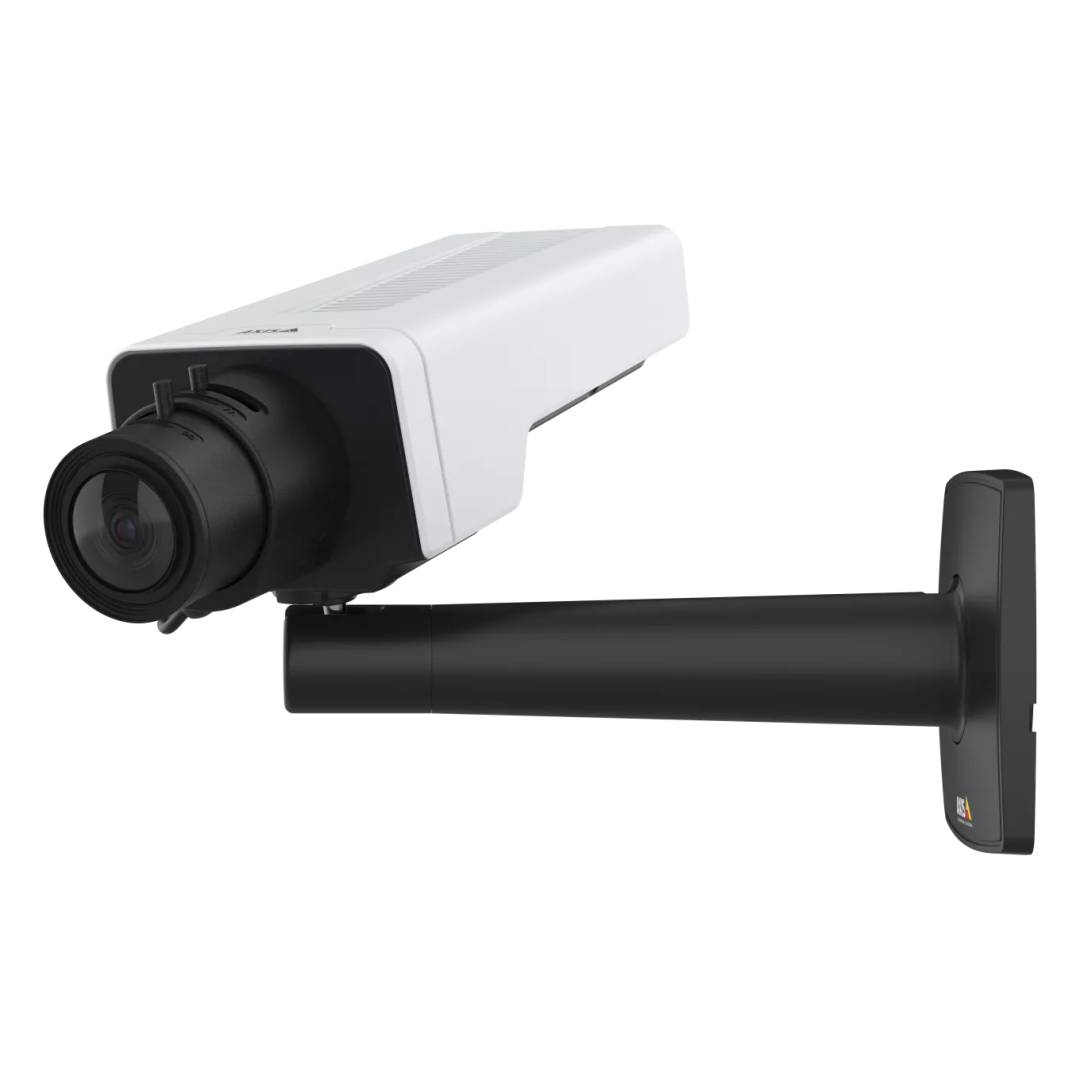

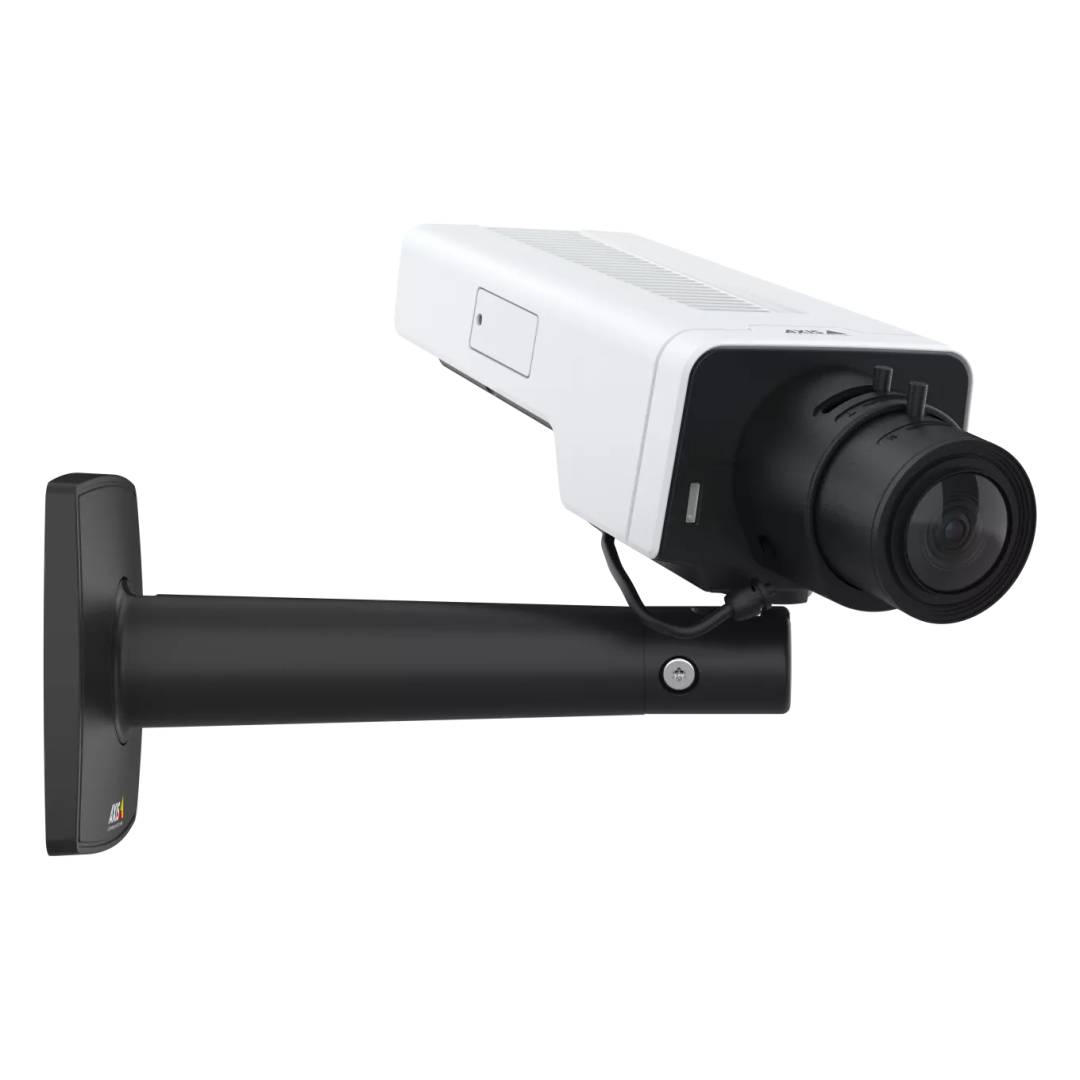

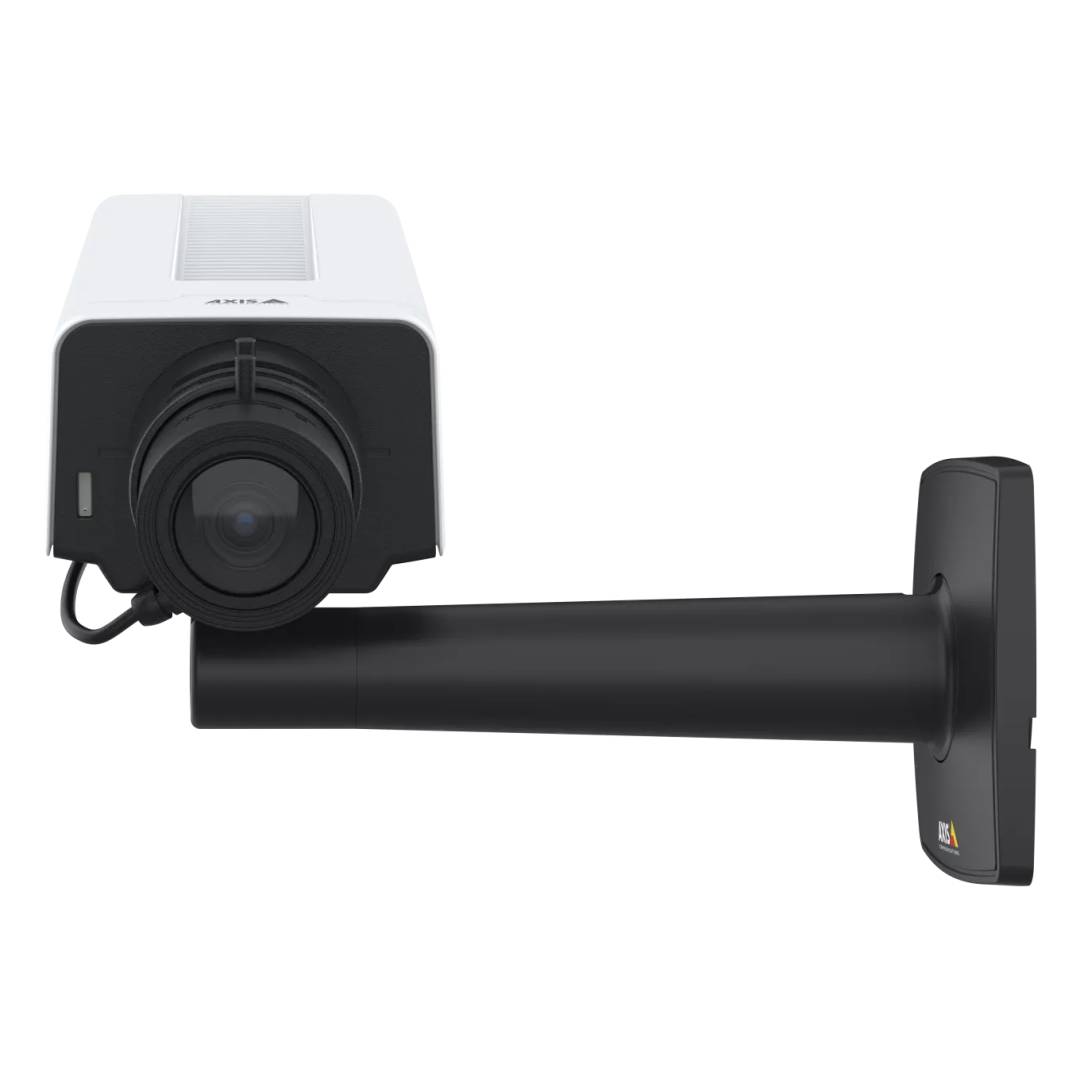

AXIS P13 Series P1388 / Network surveillance camera / box / indoor / colour (Day&Night) / 8 MP / 3840 x 2160 / 4K / CS-mount / auto iris / vari-focal / audio / GbE / MJPEG, AVC, HEVC, H.265, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part | 02737-001
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Box |
| Connectivity Technology | Wired |
| Width | 8 cm |
| Depth | 21.3 cm |
| Height | 6.3 cm |
| Weight | 470 g |
| Localisation | Argentina, Australia, China, Japan, India, Korea, Brazil, United Kingdom, United States, Europe |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - indoor |
| Digital Video Format | MJPEG, AVC, HEVC, H.265, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K |
| Exposure Range | 2 sec - 1/66500 sec |
| Minimum Illumination | 0.13 lux - colour, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.03 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.3 lux - colour, Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.06 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE |
| Video Capture | 3840 x 2160, WDR off @ 50/60 fps ¦ 3840 x 2160, WDR on @ 25/30 fps |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Image mirror, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Privacy Mask Function, digital PTZ function, IR Corrected lens, Variable Bitrate (VBR), Audio Detection, Defog, auto gain control, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, electronic image stabilisation, guard tour, on-screen directional indicator, i-CS lens, Remote Back Focus, signed firmware, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, low latency mode, brute force delay protection, ONVIF (Profile M) support, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, secure keystore, video streaming indicator, dynamic text, control queue, signed video, deep learning processing unit (DLPU), network speaker pairing, day/night shift level, target aperture, leveling assistant, microphone pairing |
| Image Sensor | Image Sensor |
| Type | 8 MP PS RGB CMOS 1/1.8" |
| Lens Construction | Lens Construction |
| Type | CS-mount - vari-focal |
| Optical Zoom | 2.6 x |
| Focal Length | 3.9 mm - 10 mm |
| Lens Iris | F/1.5 auto iris (P-Iris) |
| Horizontal Field of View (degree) | 46 - 122 |
| Vertical Field of View (degree) | 26 - 64 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DNS, FTP, HTTP, NTP, SMTP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS, RTSPS, UDP, TCP, ICMPv4, ICMPv6, HTTP/2, DNSv6, DHCPv4, DHCPv6 |
| Control Interface | RS-485, RS-422 |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ 2 x serial RS-485/RS-422 - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Stand, terminal block connectors, owner authentication key |
| Compliant Standards | UL, VCCI, cUL, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, EN 50121-4, VCCI Class A, EAC, RCM, RoHS 2011/65/EU, BFR-free, EN 55032 Class A, CISPR 32 Class A, IEEE 802.3af, IEEE 802.3at, REACH 2006/1907, EN 55035, CISPR 35, FIPS 140, IEEE 802.1x, PVC-free, NIST SP500-267, UKCA, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, ETSI EN 303 645, CFR free, EN 63000:2018, IS 13252, IEEE 802.1ar, IEC/EN/UL 62368-1 Third Edition |
| Colour | Black, white, NCS S 1002-B, NCS S 9000-N |
| Power | Power |
| Power Requirements | DC 10 - 28 V / PoE Plus Class 3 |
| Software / System Requirements | Software / System Requirements |
| Software Included | AXIS Video Motion Detection, AXIS Object Analytics, AXIS Live Privacy Shield |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
Features - AXIS - 02737-001
More Details
Product Code
CK10609
EAN Code
7331021082700
Manufacturer
AXIS
