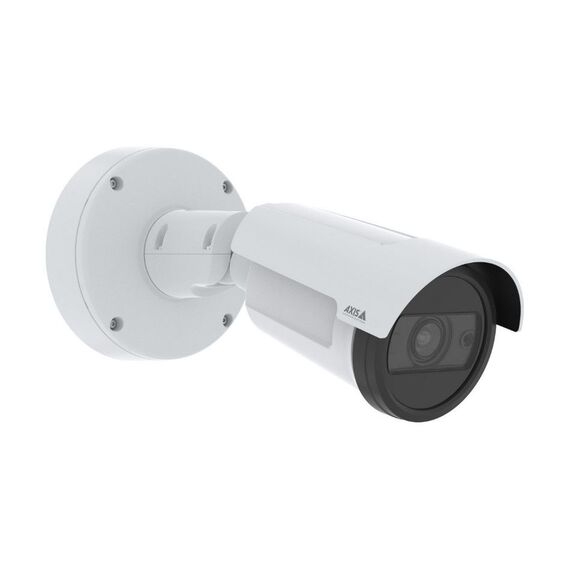

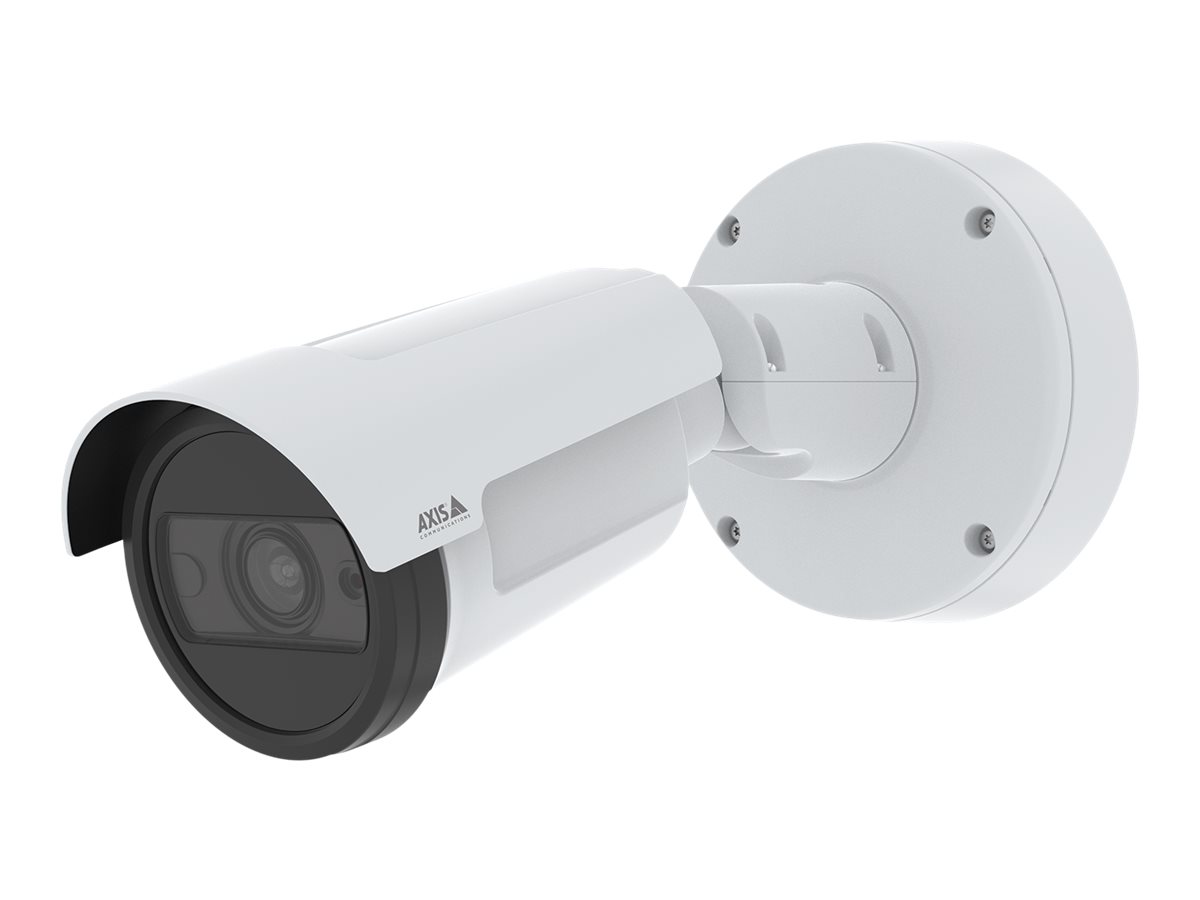

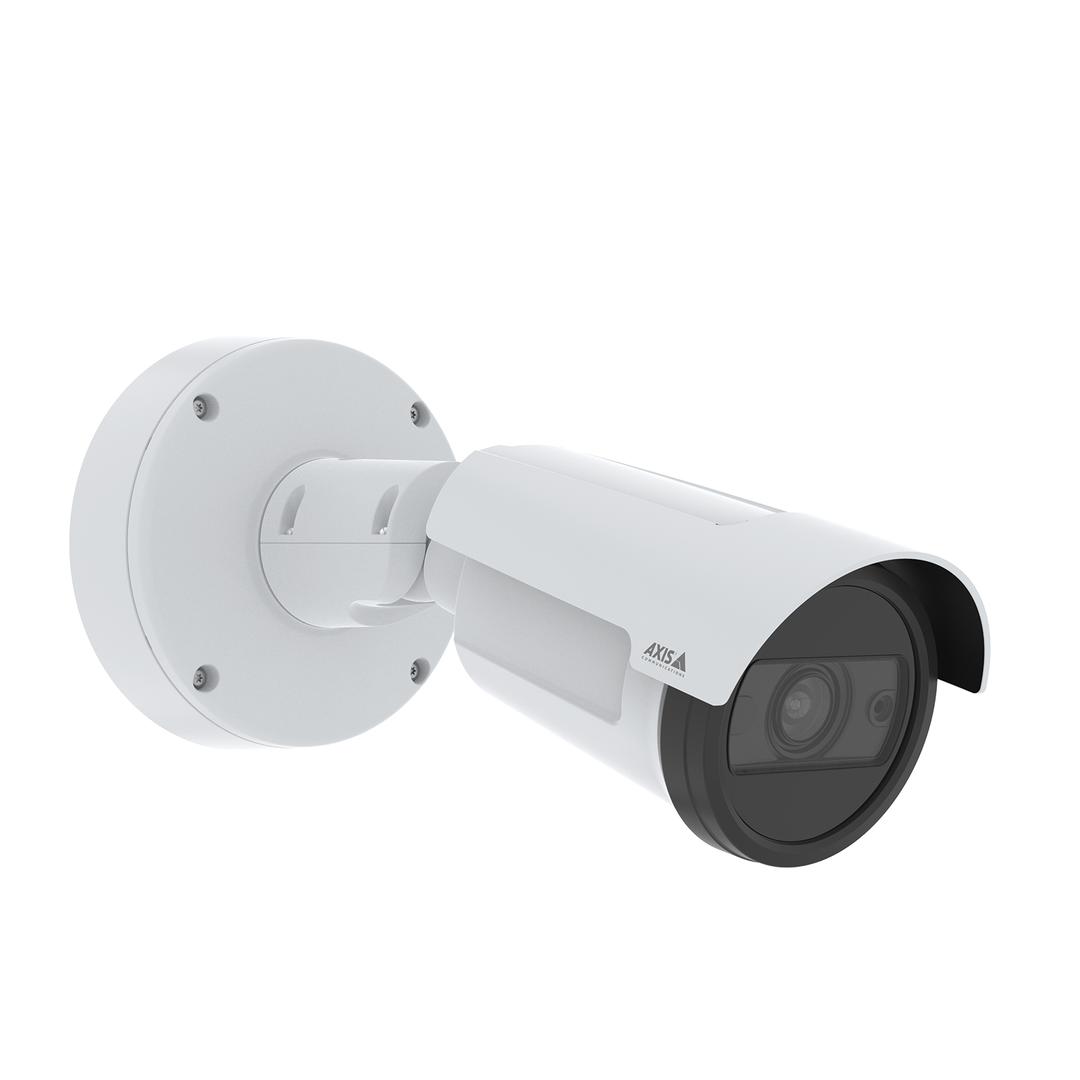

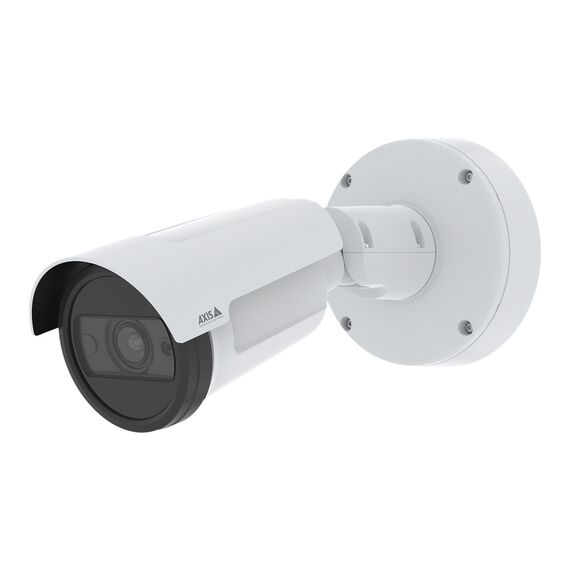

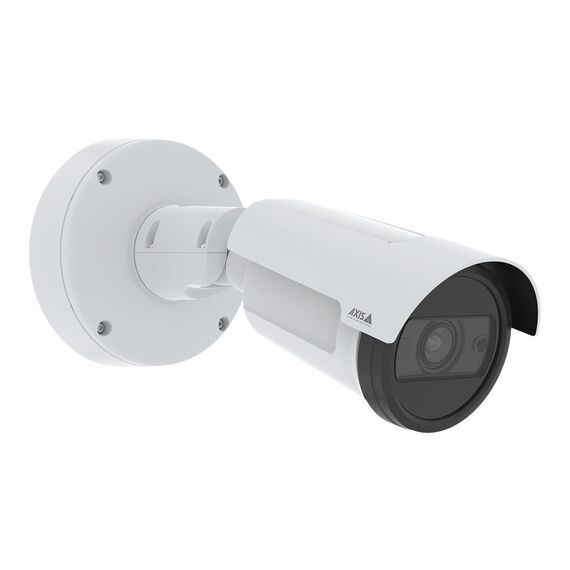

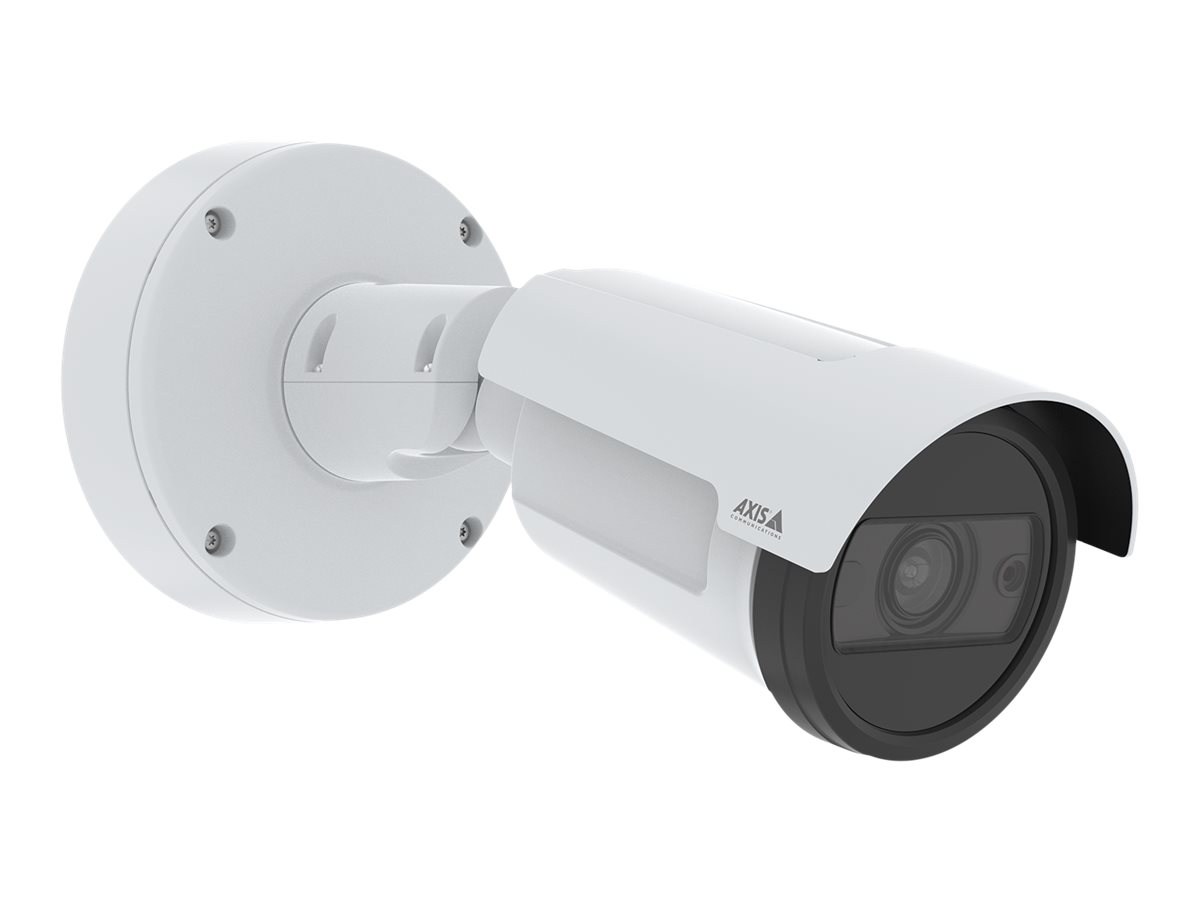

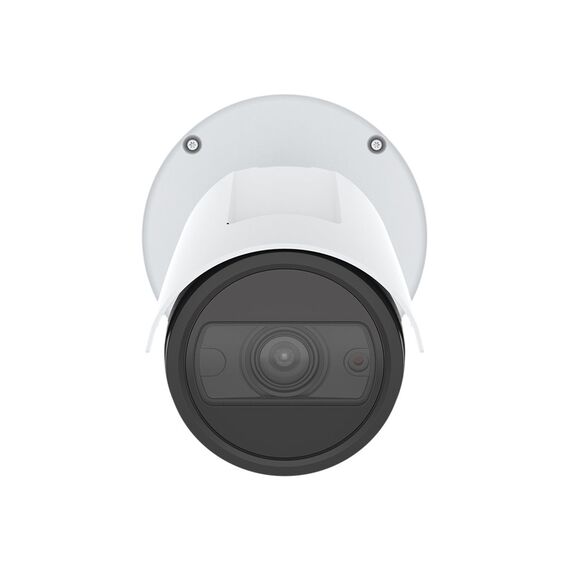

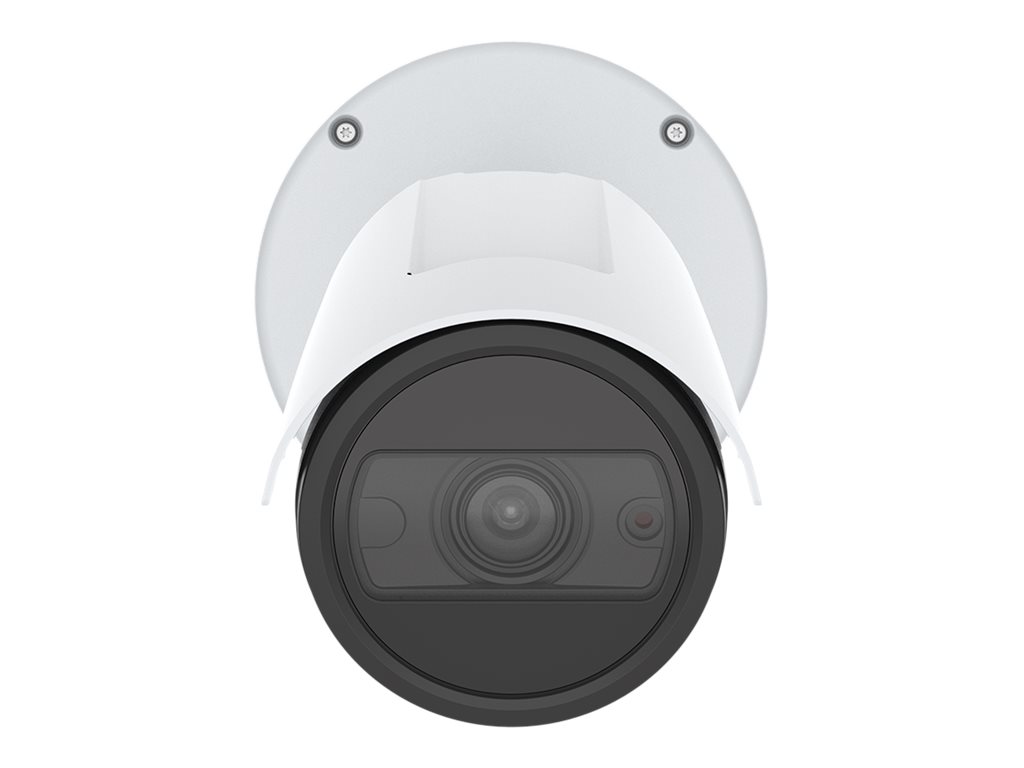

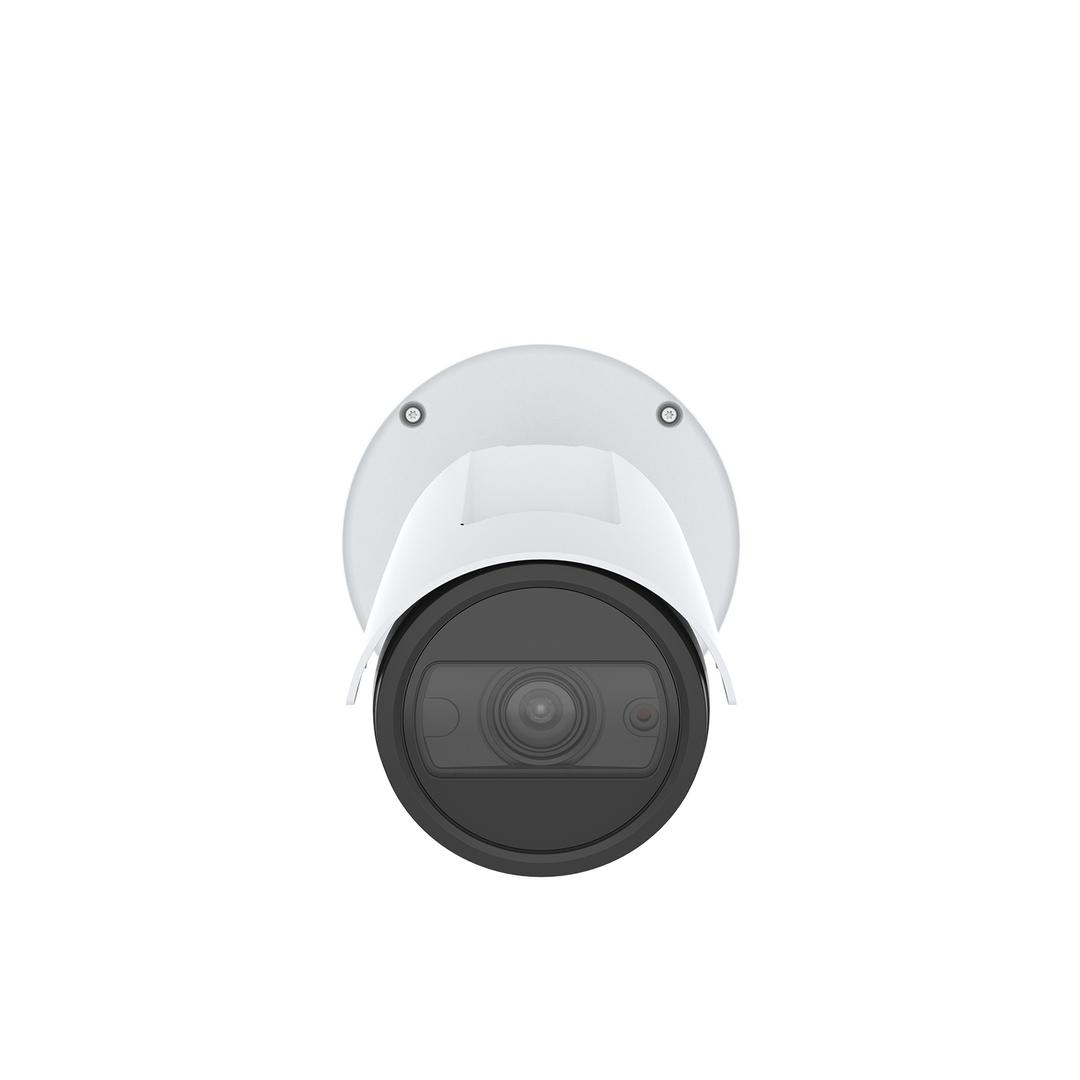

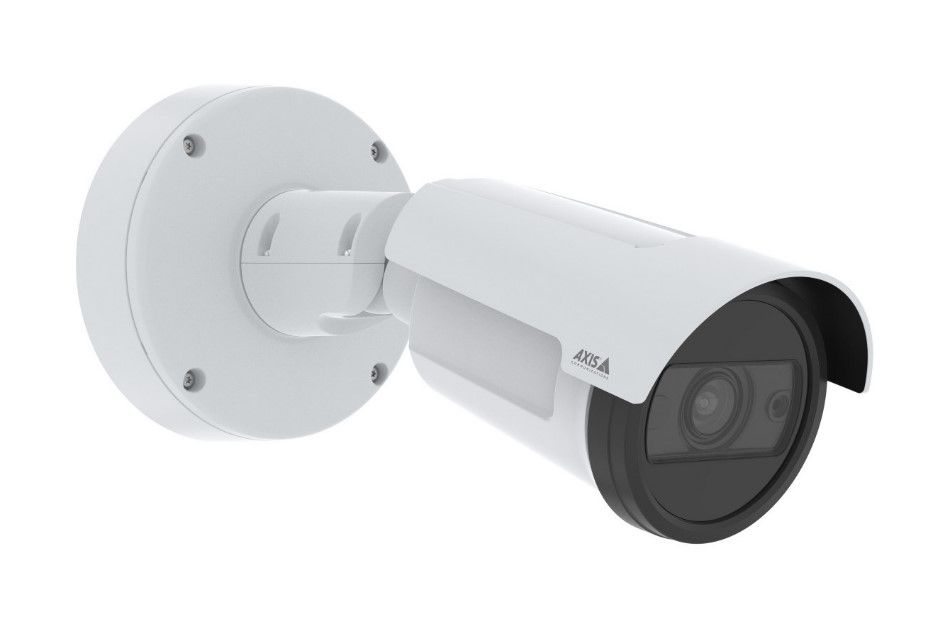

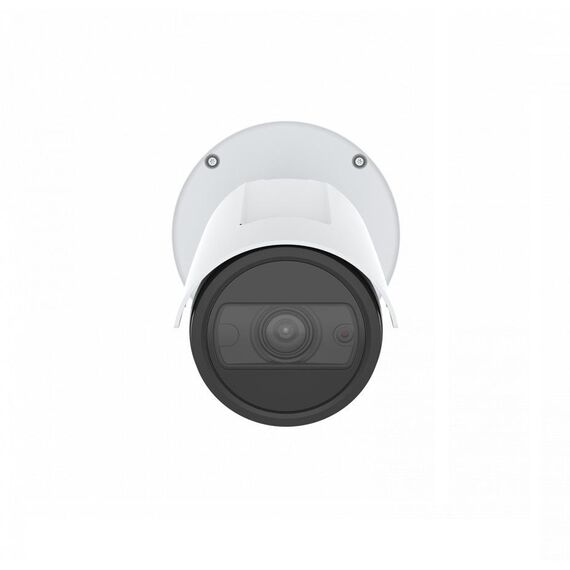

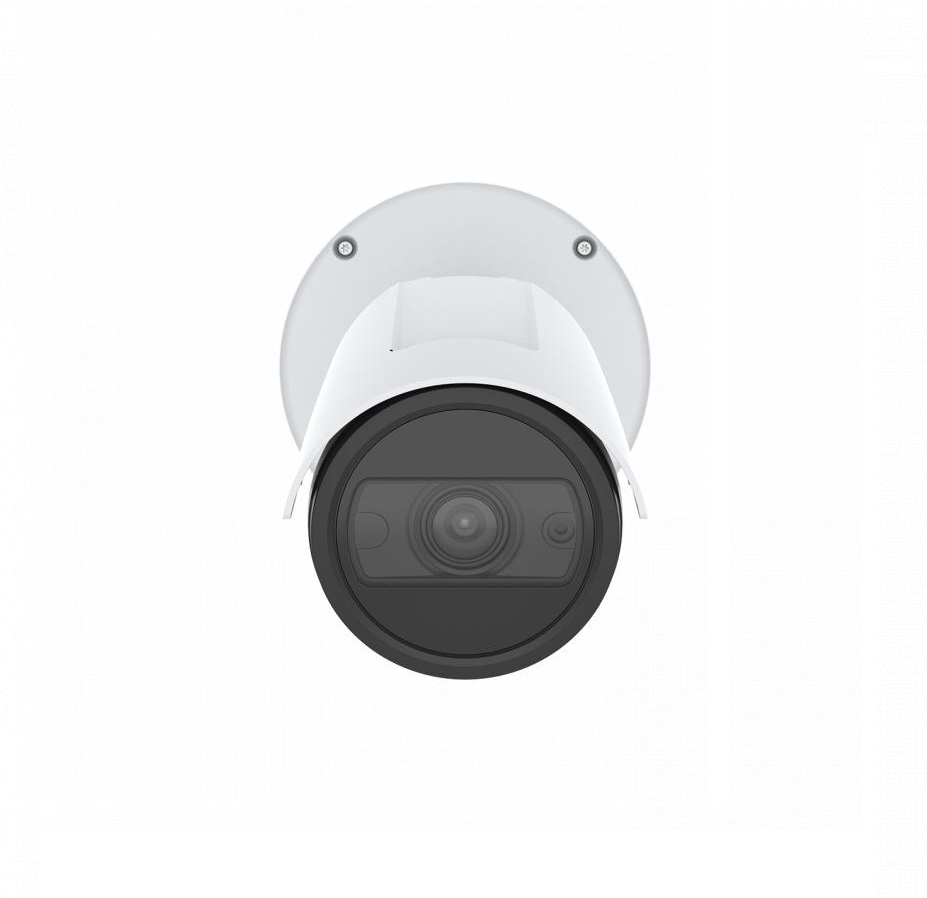

AXIS P1468-LE - Network surveillance camera - outdoor - dustproof / waterproof / vandal-proof - colour (Day&Night) - 3840 x 2160 - 3840/30p - auto iris - vari-focal - audio - GbE - MJPEG, H.264, H.265, MPEG-4 AVC | 02342-001
Please sign in so that we can notify you about a reply
Product Features
- Excellent image quality day or night
This fully featured camera delivers excellent image quality regardless of the light conditions. It offers outstanding 4K resolution at a frame rate of up to 60 fps. Thanks to lightfinder 2.0 and forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. OptimizedIR enables surveillance in total darkness without the need for extra lighting. And motion-adaptive exposure reduces the motion blur from approaching or nearby objects. Furthermore, zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. - Feature-packed
Based on ARTPEC-8, the advanced Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Thanks to Axis object analytics, it offers detection and classification of humans, vehicles, and types of vehicles - all tailored to your specific needs. With edge-to-edge technology, it can be connected to an Axis network speaker enabling two-way audio. Furthermore, it can be powered with DC power and PoE. And, even if there's a power outage, redundant DC power ensures a reliable power supply to safeguard your data. - Axis has got you secured
Axis P1468-LE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. Axis edge vault protects your Axis device ID and simplifies authorization of Axis products on your network. Furthermore, this robust, outdoor-ready camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts, and can withstand winds up to 50 m/s.
Special Fetures
- Lightfinder 2.0, forensic WDR, OptimizedIR
- Analytics with deep learning
- Audio and I/O connectivity
- Built-in cybersecurity features
- Impact and weather resistant
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Width | 13.2 cm |
| Depth | 28 cm |
| Height | 13.2 cm |
| Weight | 1.2 kg |
| Camera | |
| Type | Colour - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
| Digital Video Format | MJPEG, H.264, H.265, MPEG-4 AVC |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 3840/30p |
| Exposure Range | 2 sec - 1/66500 sec |
| Minimum Illumination | 0.07 lux - colour - F1.6 - 50 IRE ¦ 0.01 lux - B&W - F1.6 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 40 m |
| Video Capture | 3840 x 2160 @ 30 fps ¦ 160 x 90 @ 30 fps |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Sharpness control, digital image rotation, white balance, progressive scanning, saturation control, brightness control, contrast control, image mirror, AXIS Video Hosting System (AVHS), Privacy Mask Function, Lightfinder technology, digital PTZ function, password protection, IR Corrected lens, OptimizedIR, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, infrared-cut filter, Forensic WDR, IP address filtering |
| Image Sensor | |
| Type | CMOS 1/1.2" |
| Lens Construction | |
| Type | Vari-focal |
| Optical Zoom | 2.08 x |
| Focal Length | 6.2 mm - 12.9 mm |
| Lens Iris | F/1.6 auto iris (P-Iris) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 49 - 108 |
| Vertical Field of View (degree) | 27 - 58 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Included Accessories | Mounting bracket, connector kit, drill hole template, weathershield |
| Compliant Standards | EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, EN 61000-3, NEMA TS-2, IEC 62471, EN 55032 Class A, IEC/EN/UL 60950-22, ISO 21207 method B, RCM Class A, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP67, FCC Part 15 Subpart B |
| Colour | White |
| Power | |
| Power Device | 12.95 Watt |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user licence |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 10 - 100% |
