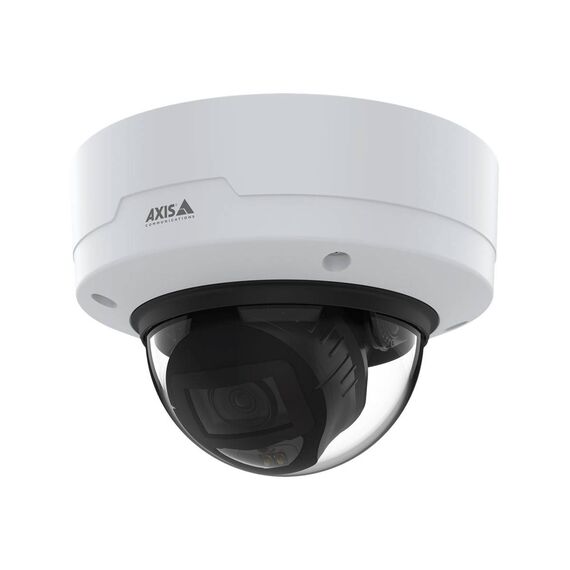

AXIS P3267-LV / Network surveillance camera / dome / indoor / vandal-proof / colour (Day&Night) / 5 MP / 2592 x 1944 / manual iris / vari-focal / audio / LAN 10/100 / H.264, H.265 / PoE Class 3 | 02329-001
Please sign in so that we can notify you about a reply
Product Features
- Excellent image quality
AXIS P3267-LV delivers outstanding image quality and forensic details in 5 MP at up to 60 fps. Including a varifocal 9 mm lens for wide-area surveillance, it offers a field of view of 104-40 degrees. Thanks to lightfinder 2.0 and forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And, with OptimizedIR, you'll enjoy sharp and clear footage in complete darkness up to without the need for extra lighting. Furthermore, Axis zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. - Deep learning analytics on the edge
Based on ARTPEC-8, the advanced Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Thanks to AXIS object analytics, it offers detection and classification of humans, vehicles, and types of vehicles - all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. - Versatile and high performance
This easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and auto focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this powerful dome camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system.
Special Features
- Excellent image quality in 5 MP
- Lightfinder 2.0, forensic WDR, and OptimizedIR
- Analytics with deep learning
- Audio and I/O connectivity
- Built-in cybersecurity features
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 14.9 cm |
| Depth | 14.9 cm |
| Height | 10.7 cm |
| Weight | 800 g |
| Localisation | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Portuguese, Polish, Russian, Spanish, Japanese, Korean / Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - indoor - vandal-proof |
| Digital Video Format | H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/33500 sec |
| Minimum Illumination | 0.13 lux - colour - F1.3 - 50 IRE ¦ 0 lux - IR - F1.3 |
| Infrared LEDs | Yes |
| Infrared Distance | 40 m |
| Digital Video Capture Resolution | 160 x 90 |
| Frame Rate (max) | 30 frames per second |
| Supported Image Formats | JPEG (Motion photos) |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Multi-streaming, digital PTZ function, Variable Bitrate (VBR), OptimizedIR, Zipstream technology, remote focus, Forensic WDR, HTTPs encryption, signed firmware, secure boot, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, polycarbonate housing, defogging, day shift, night shift, remote zoom, Axis Edge Vault, Multi-Bitrate (MBR) |
| Image Sensor | Image Sensor |
| Type | 5 MP CMOS 1/2.7" |
| Lens Construction | Lens Construction |
| Type | Vari-focal |
| Optical Zoom | 2.7 x |
| Focal Length | 3 mm - 8 mm |
| Lens Iris | F/1.3 manual iris |
| Min Focus Distance | 1 m |
| Horizontal Field of View (degree) | 40 - 104 |
| Vertical Field of View (degree) | 29 - 74 |
| Panning | Panning |
| Range (degree) | -190 to +190 |
| Tilting | Tilting |
| Range (degree) | -10 to +80 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, SIP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Digital input/output - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cable gaskets, drill hole template, connector guard, Resitorx TR20 screw bit, terminal block connectors |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, IS13252, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, BFR-free, IEC/EN 62471, EN 55032, IEEE 802.3af, IEEE 802.3at, EN 55035, IEC/EN/UL 62368-1, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP52, CAN/CSA C22.2 No. 62368-1 Third Edition, CFR free |
| Colour | White |
| Power | Power |
| Power Requirements | PoE Class 3 |
| Power Device | 6.4 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | AXIS Camera Station, Windows decoder 1-user licence, AXIS Companion, AXIS Video Motion Detection, AXIS Object Analytics |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
Features - AXIS - 02329-001
More Details
Product Code
CE23981
EAN Code
7331021075955
Manufacturer
AXIS
