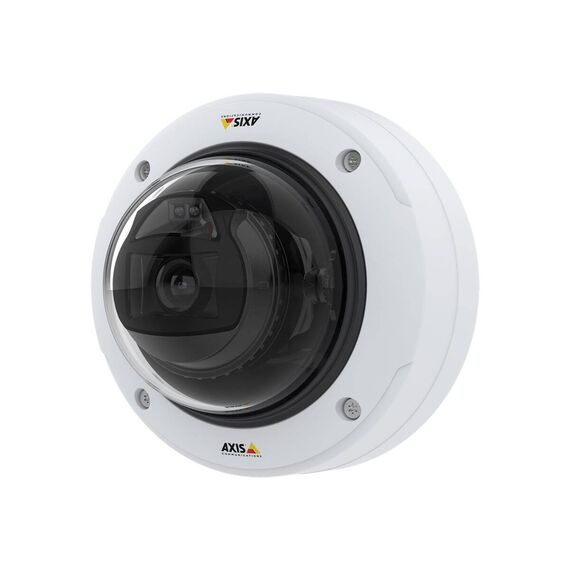

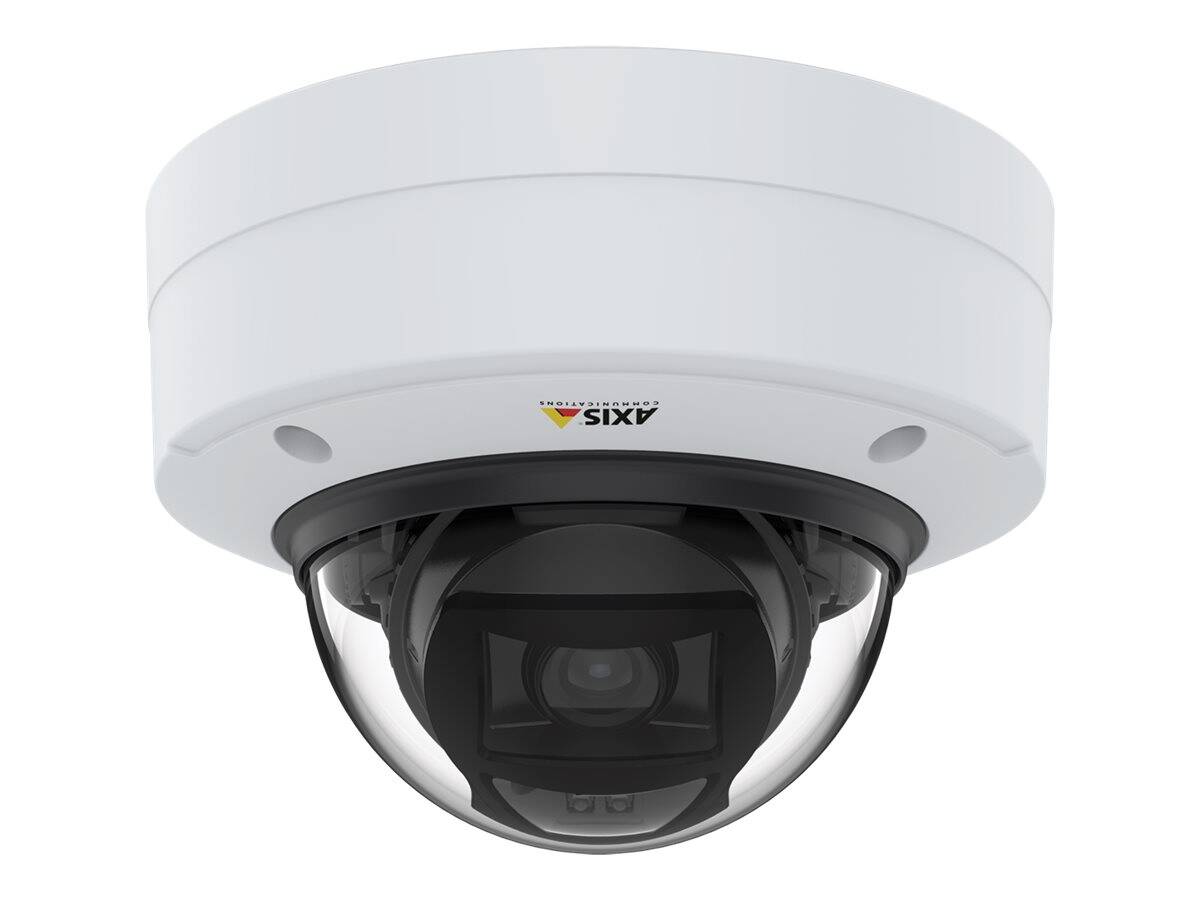

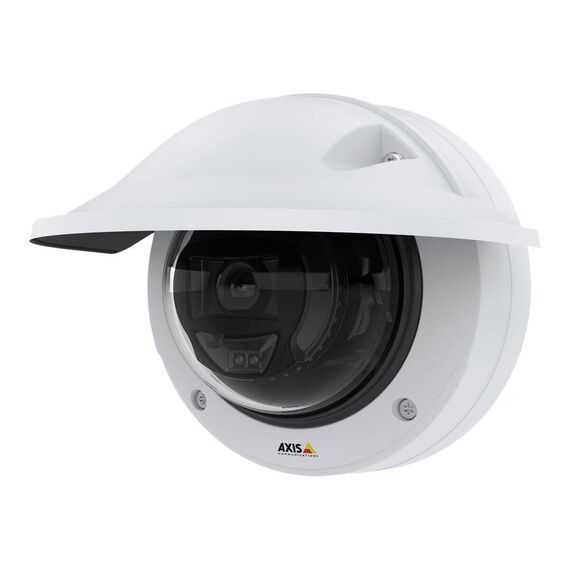

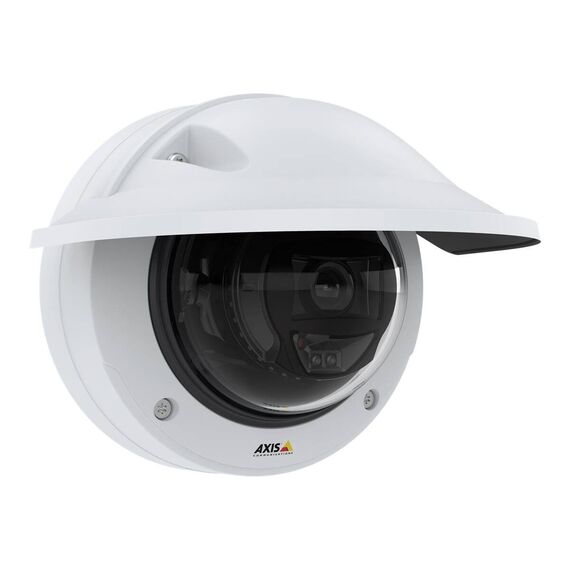

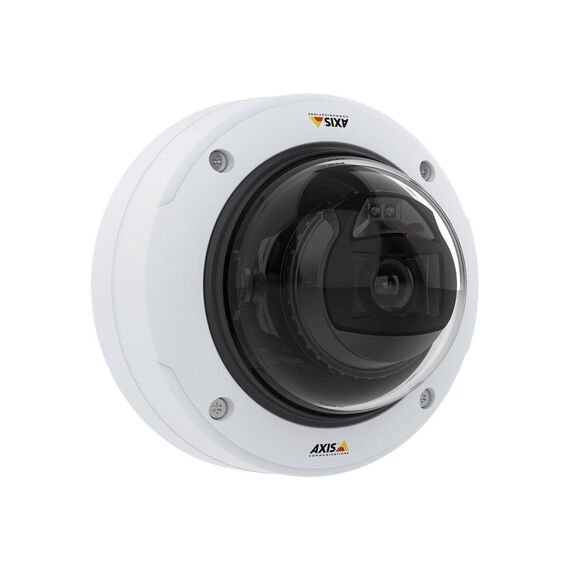

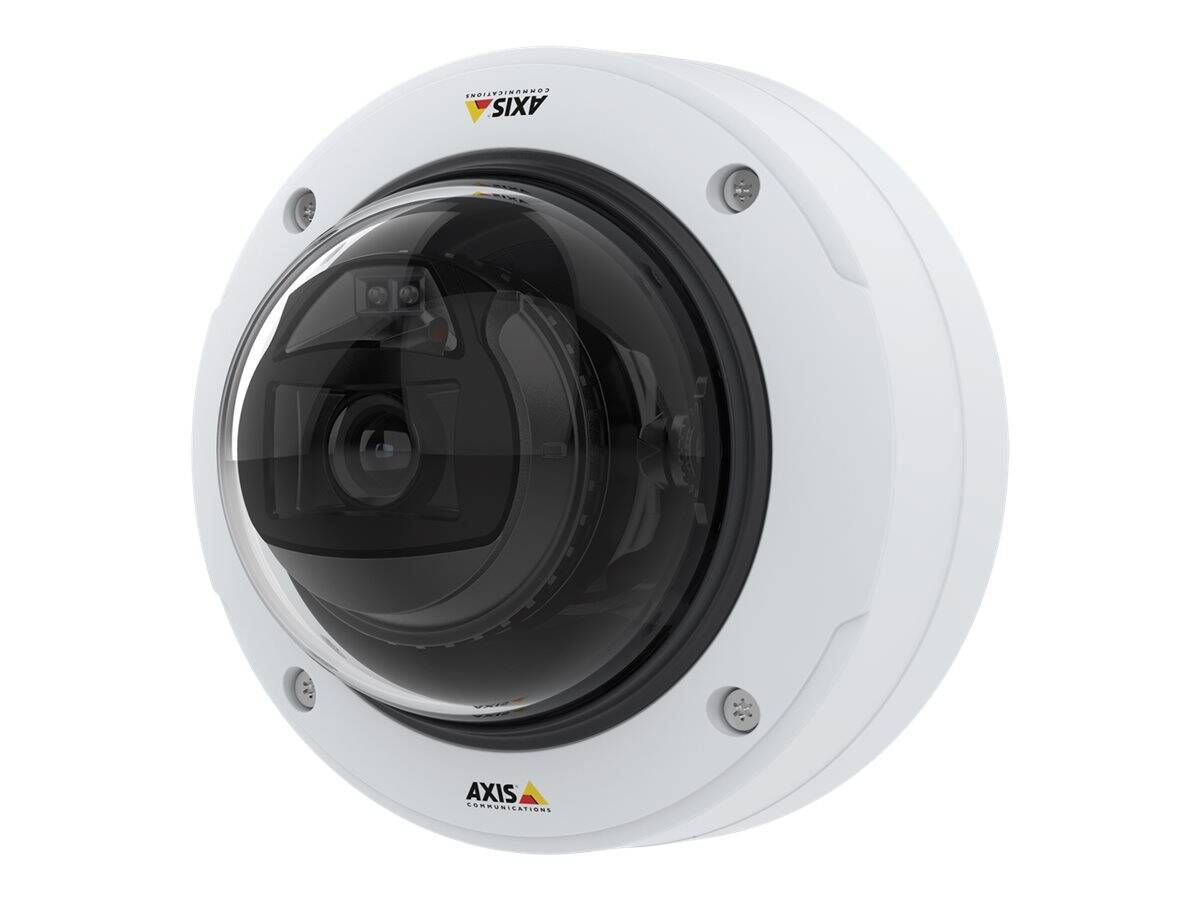

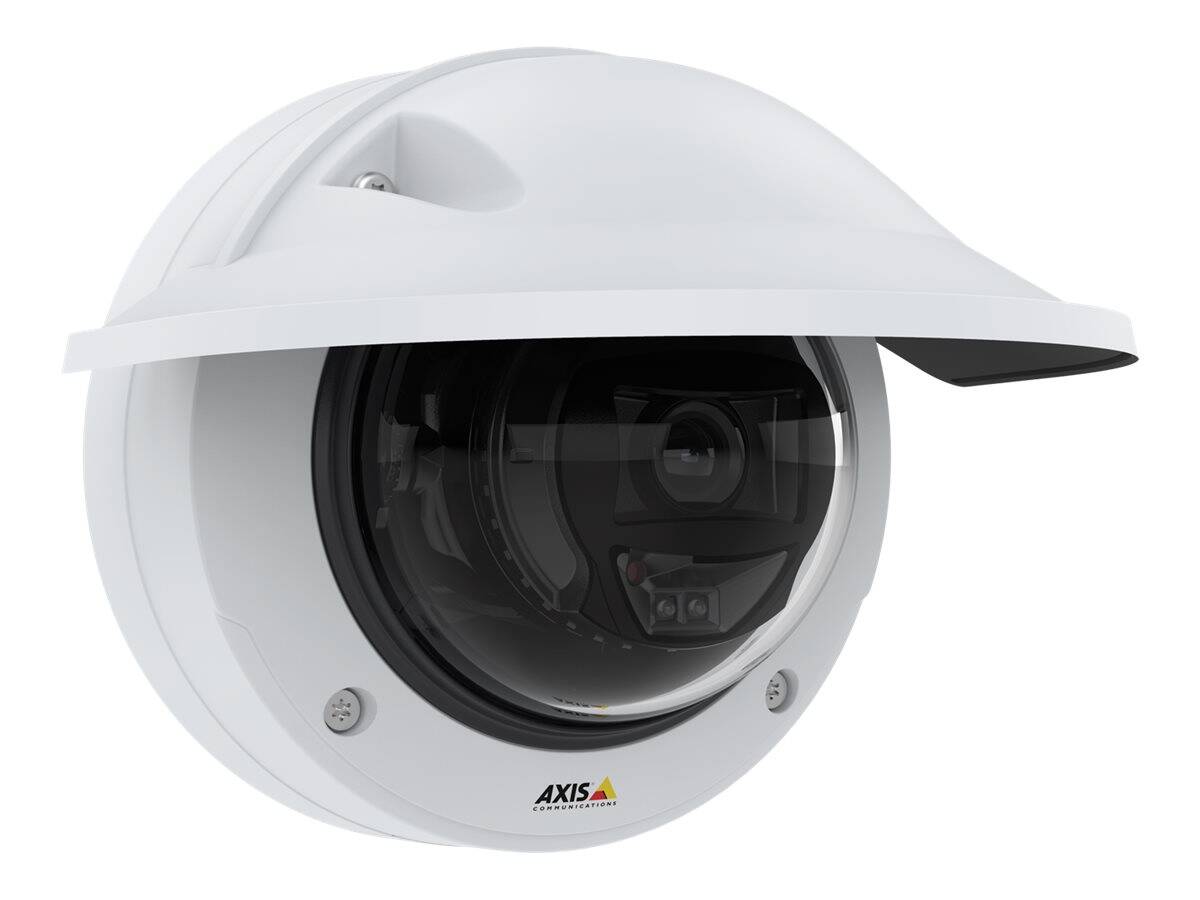

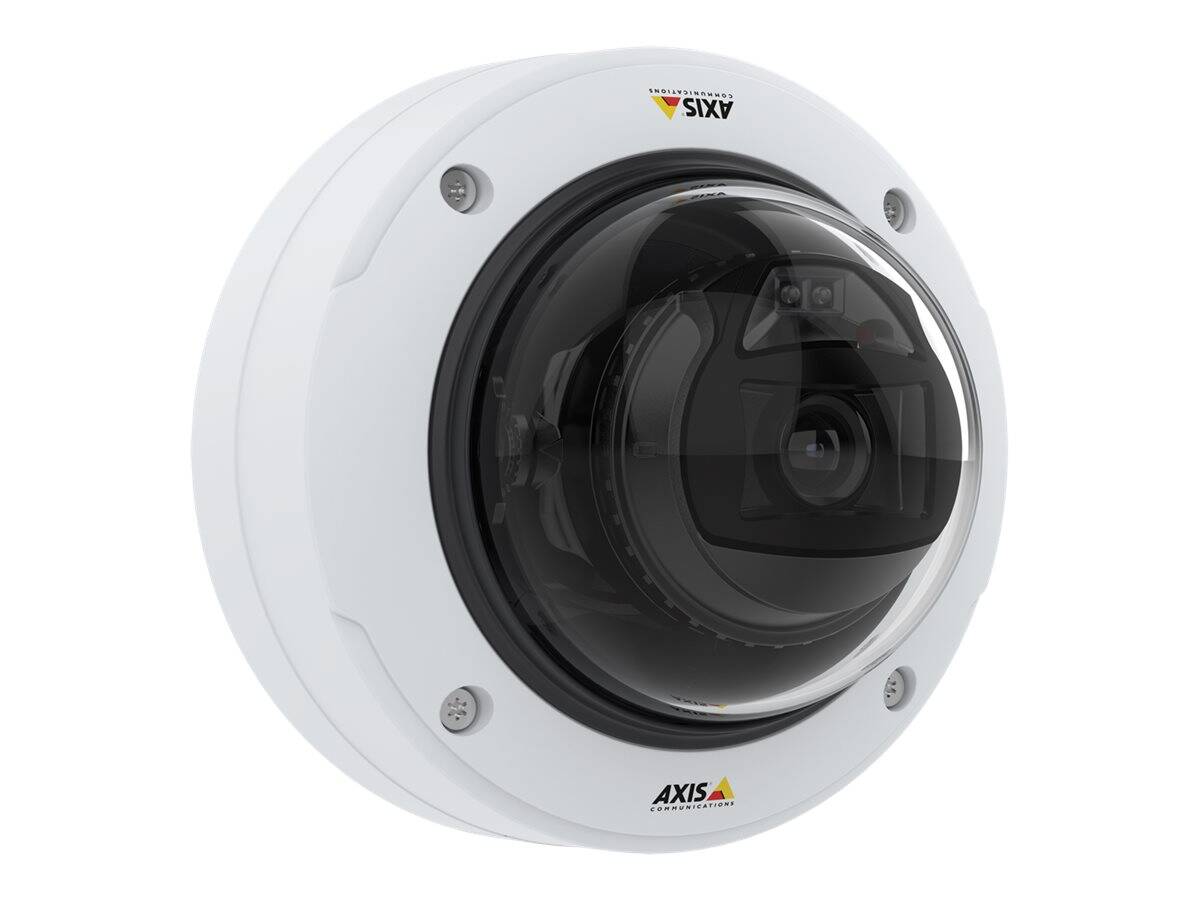

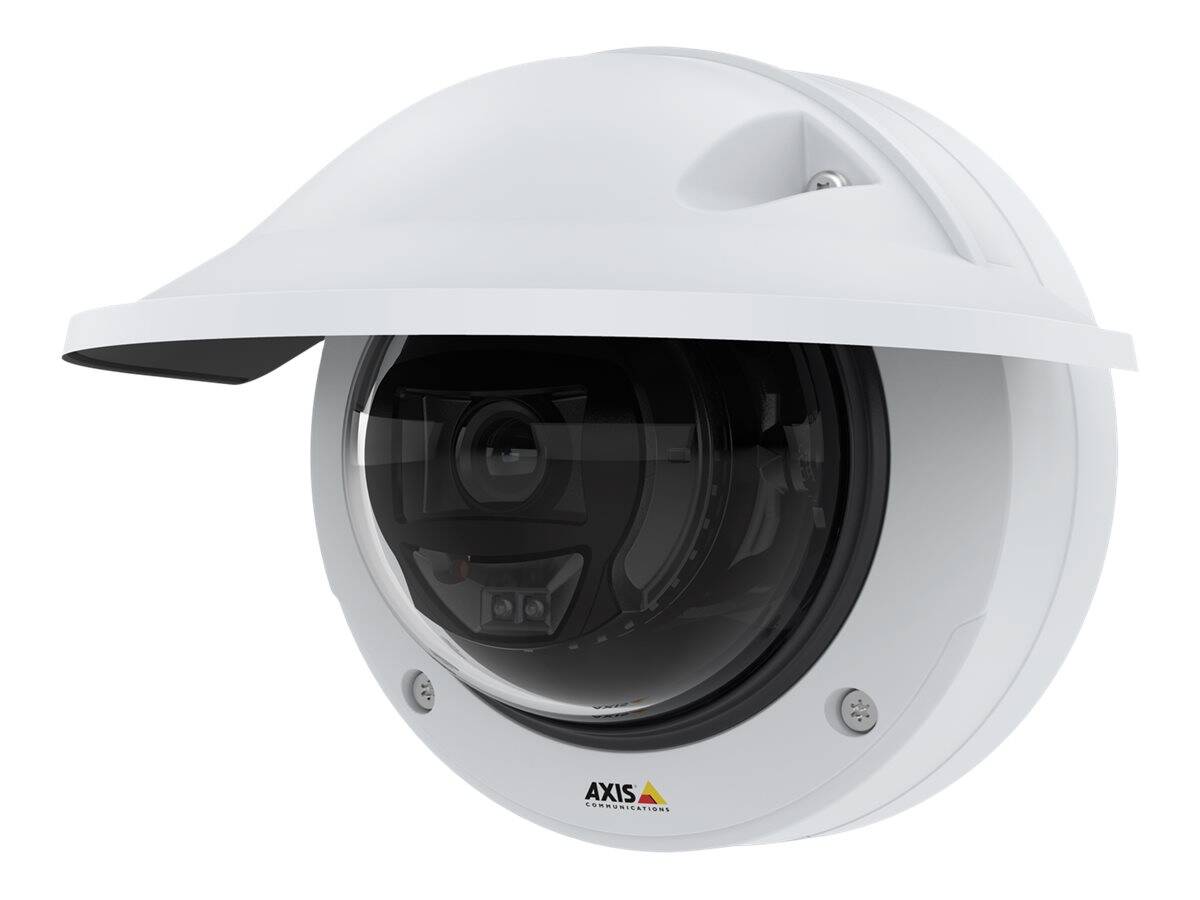

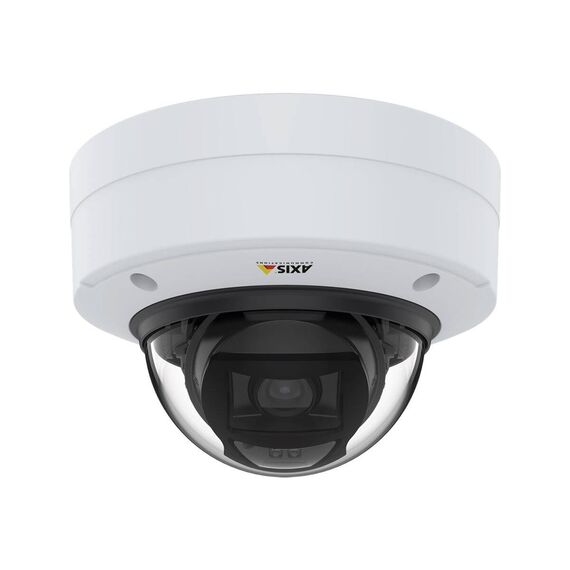

AXIS P3268-LVE - Network surveillance camera - dome - outdoor - dustproof / waterproof / vandal-proof - colour (Day&Night) - 8 MP - 3840 x 2160 - vari-focal - audio - LAN 10/100 - H.264, HEVC, H.265, MPEG-4 AVC, MPEG-4 Part 10, MPEG-H Part 2 - PoE Class 3
Please sign in so that we can notify you about a reply
Product Features
- Excellent image quality
AXIS P3268-LVE delivers outstanding image quality and forensic details in brilliant 4K at up to 60 fps. Thanks to lightfinder 2.0 and forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And, with OptimizedIR, you'll enjoy sharp and clear footage in complete darkness without the need for extra lighting. Furthermore, Axis zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. - Deep learning analytics on the edge
Based on ARTPEC-8, the advanced Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Thanks to Axis object analytics, it offers detection and classification of humans, vehicles, and types of vehicles - all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. - Versatile and high performance
This easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and auto focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this robust, IK10-rated outdoor-ready camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system.
Special Fetures
- Excellent image quality in brilliant 4K
- Lightfinder 2.0, forensic WDR, and OptimizedIR
- Analytics with deep learning
- Audio and I/O connectivity
- Built-in cybersecurity features
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Dome |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 14.9 cm |
| Depth | 14.9 cm |
| Height | 10.7 cm |
| Weight | 900 g |
| Localisation | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Portuguese, Polish, Russian, Spanish, Japanese, Korean / Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Camera | |
| Type | Colour - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
| Digital Video Format | H.264, HEVC, H.265, MPEG-4 AVC, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/8500 sec |
| Minimum Illumination | 0.14 lux - colour - F1.5 - 50 IRE ¦ 0 lux - IR - F1.5 - 50 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 40 m |
| Digital Video Capture Resolution | 160 x 90 |
| Frame Rate (max) | 30 frames per second |
| Supported Image Formats | JPEG (Motion photos) |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Digital PTZ function, password protection, IR Corrected lens, Variable Bitrate (VBR), Zipstream technology, remote focus, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, signed firmware, secure boot, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, polycarbonate housing, defogging, user access log, centralised certificate management, brute force delay protection, day shift, night shift, remote zoom, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, secure keystore |
| Image Sensor | |
| Type | 8 MP RGB CMOS 1/1.8" |
| Lens Construction | |
| Type | Vari-focal |
| Optical Zoom | 2 x |
| Focal Length | 4.3 mm - 8.6 mm |
| Lens Iris | F/1.5 (P-Iris) |
| Min Focus Distance | 50 cm |
| Horizontal Field of View (degree) | 53 - 100 |
| Vertical Field of View (degree) | 30 - 54 |
| Panning | |
| Range (degree) | -190 to +190 |
| Tilting | |
| Range (degree) | -10 to +80 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, SIP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Digital input/output - terminal block ¦ Audio line in - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Included Accessories | Cable gaskets, drill hole template, Resistorx T20 tool L-key, weathershield, connector guard, terminal block connectors |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, NEMA Type 4X, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, IS13252, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, BFR-free, EN 55032 Class A, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, CAN/CSA C22.2 No. 62368-1 Third Edition, CFR free |
| Colour | White |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 5.5 Watt |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user licence, AXIS Video Motion Detection, AXIS Object Analytics |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
Features - AXIS - 02332-001
More Details
Product Code
CE23984
EAN Code
7331021075986
Manufacturer
AXIS
