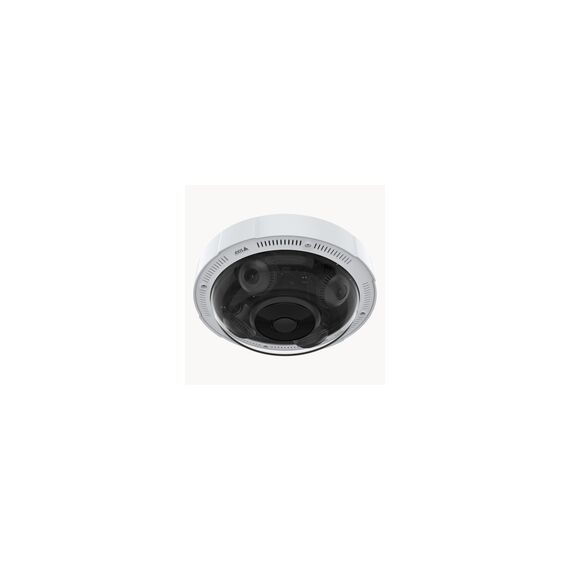

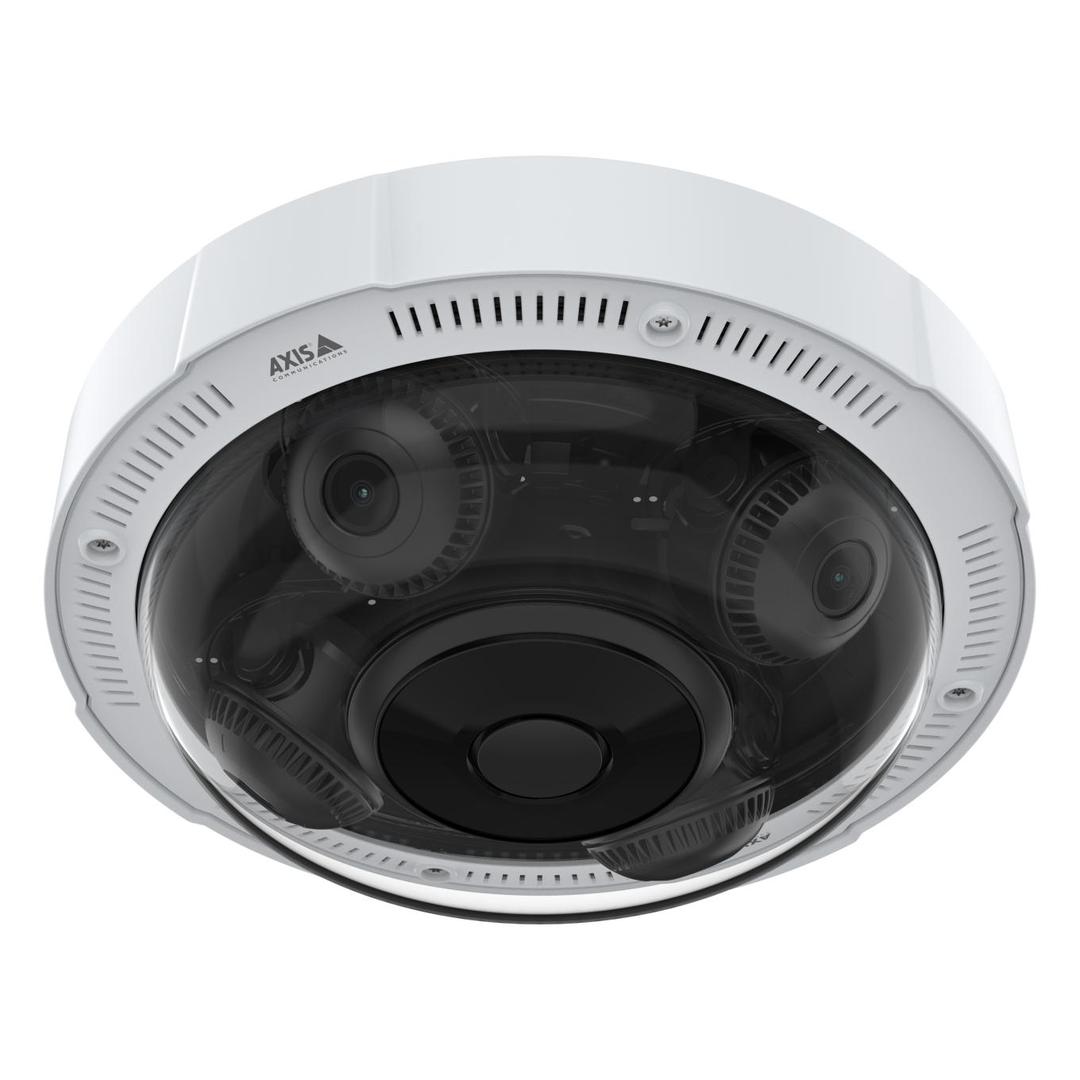

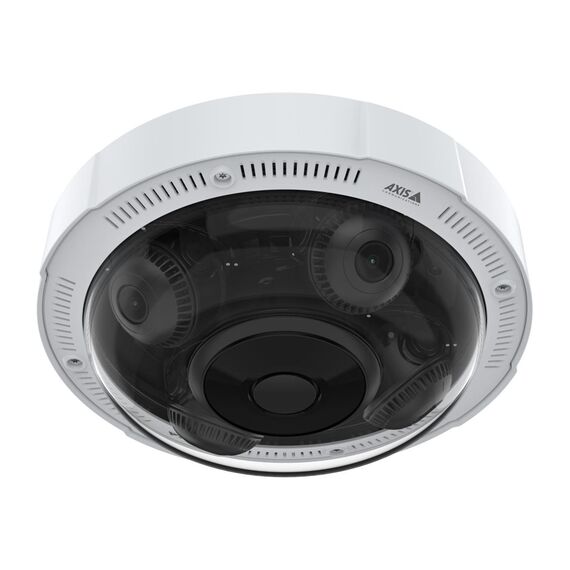

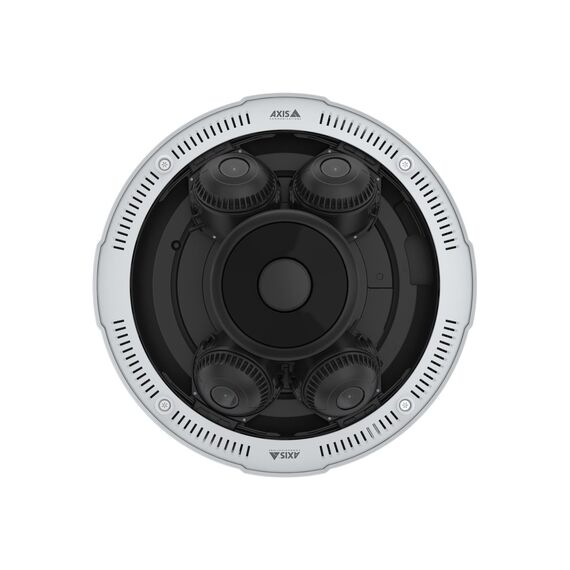

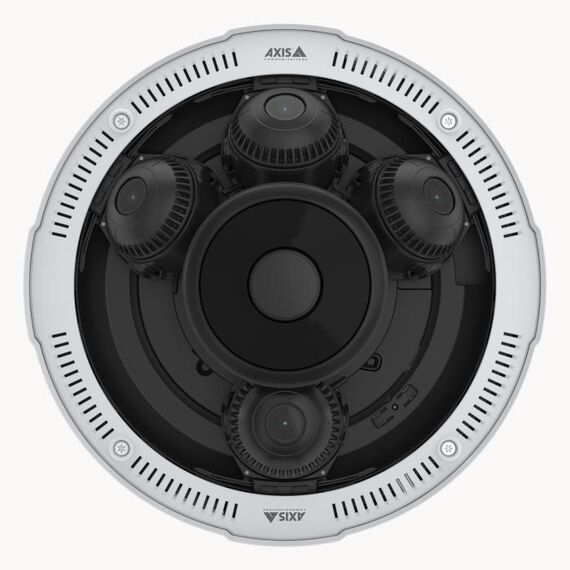

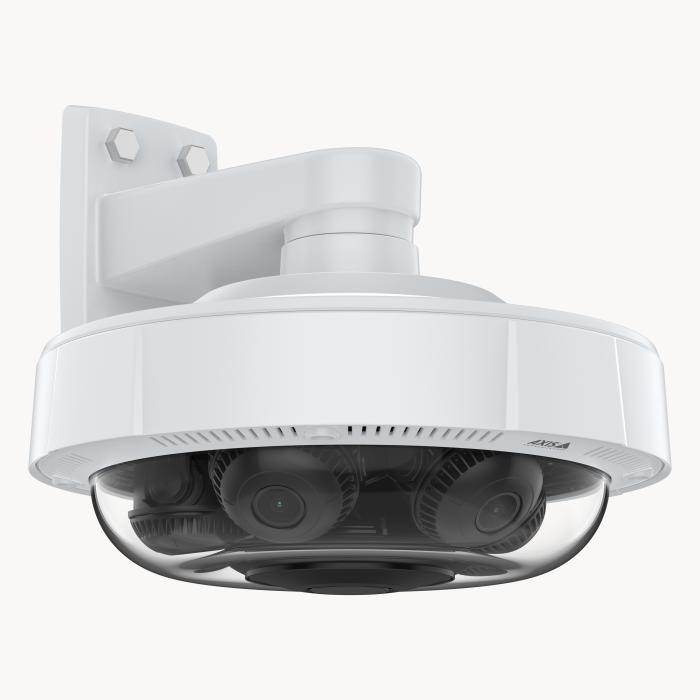

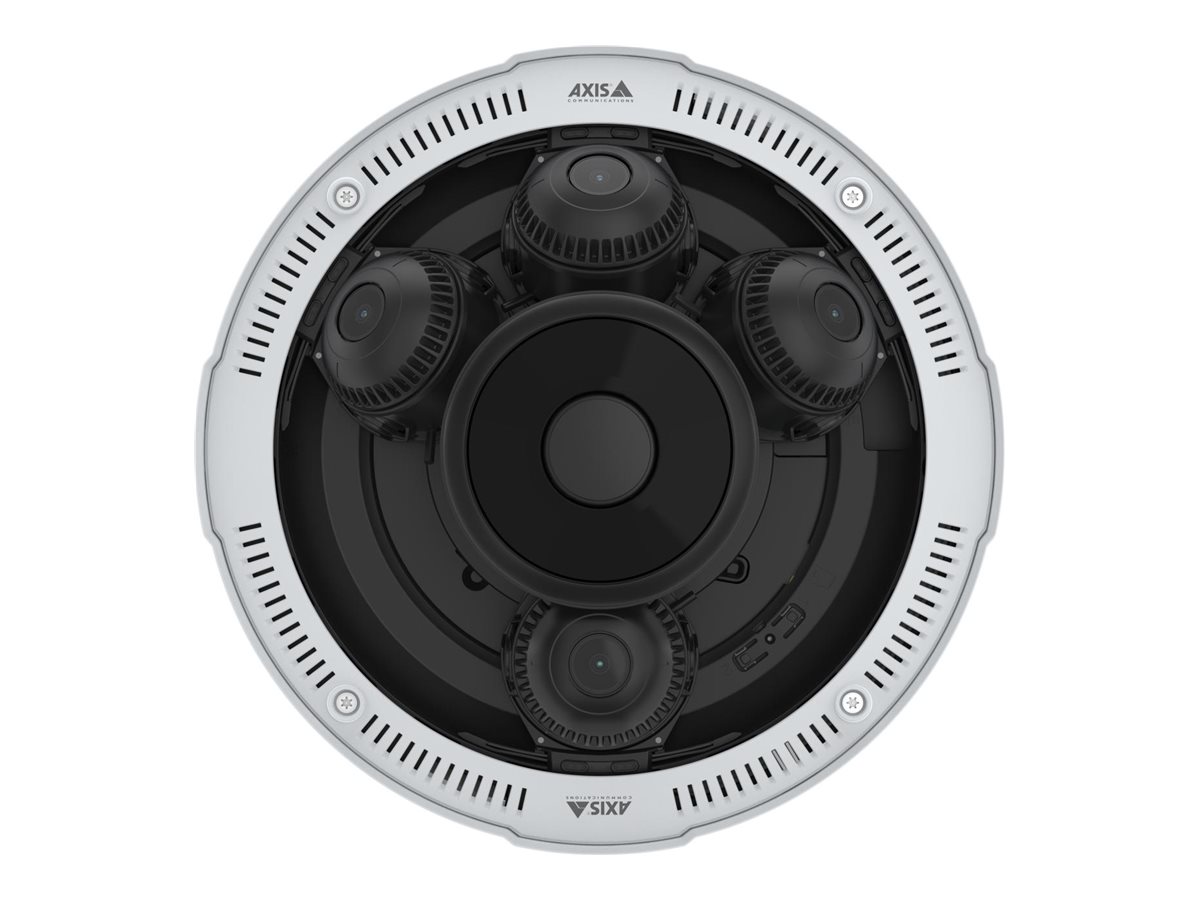

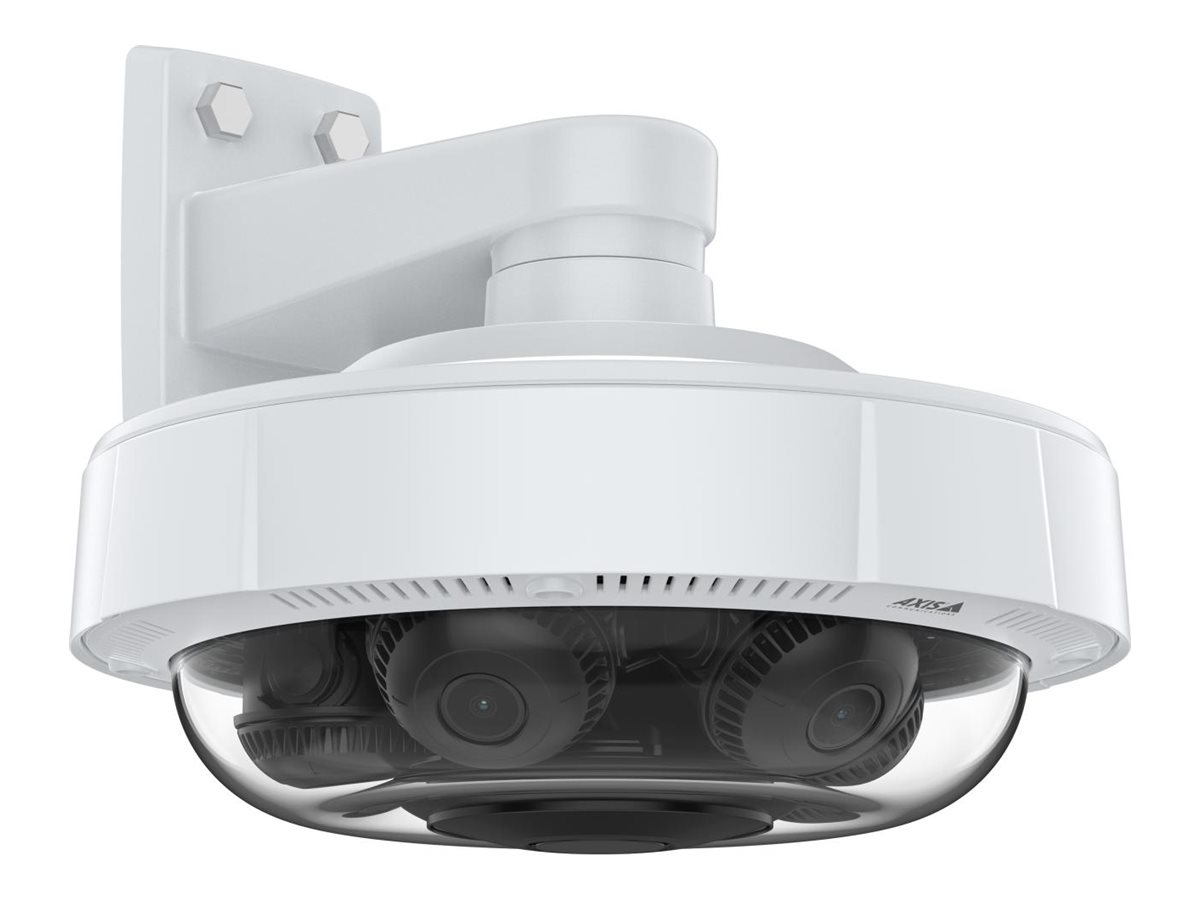

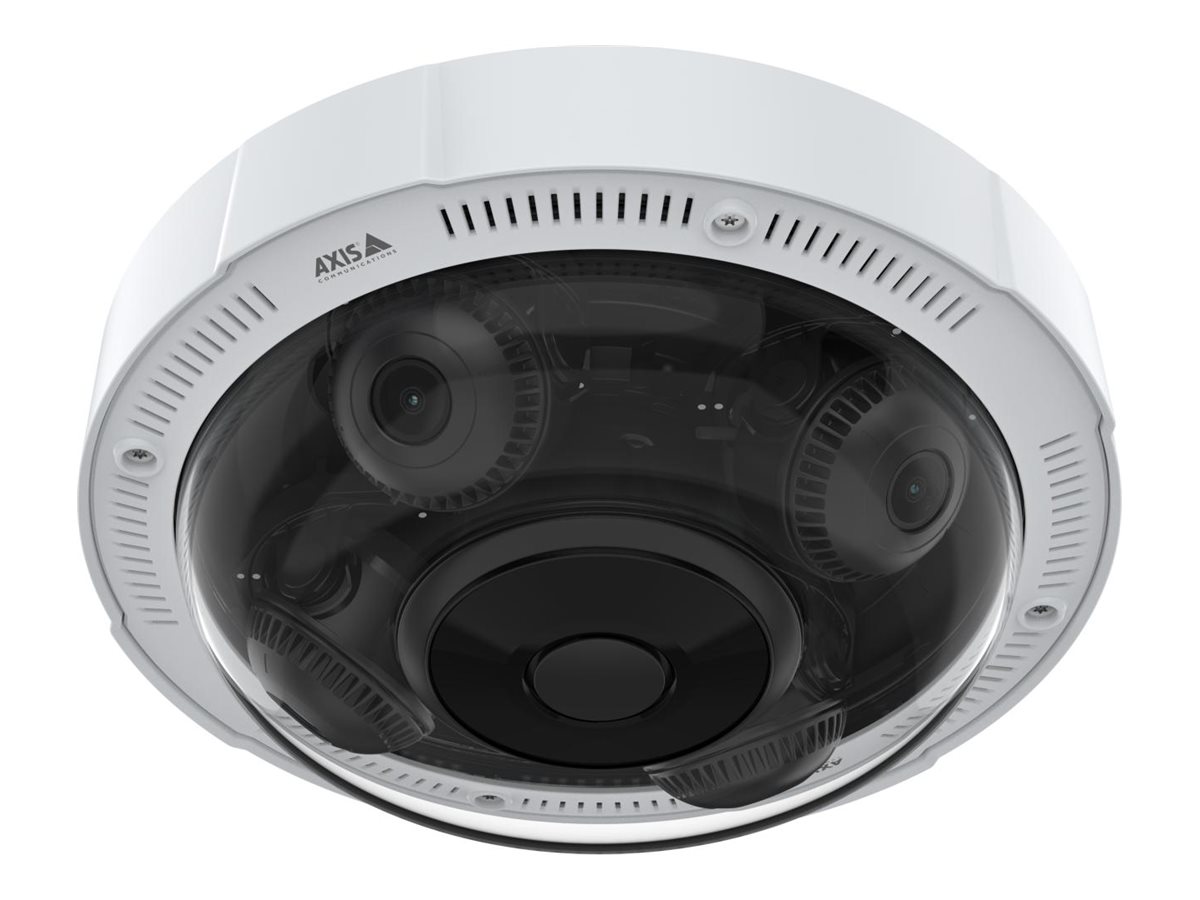

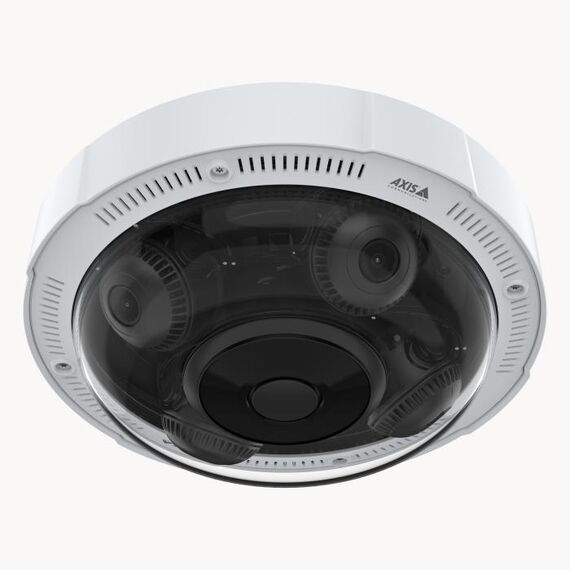

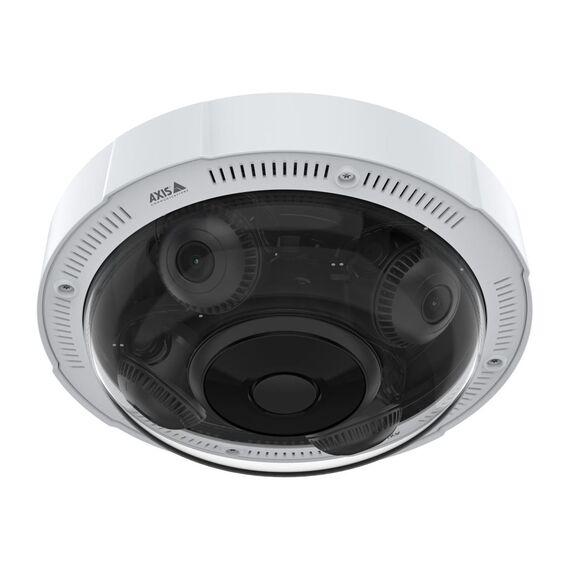

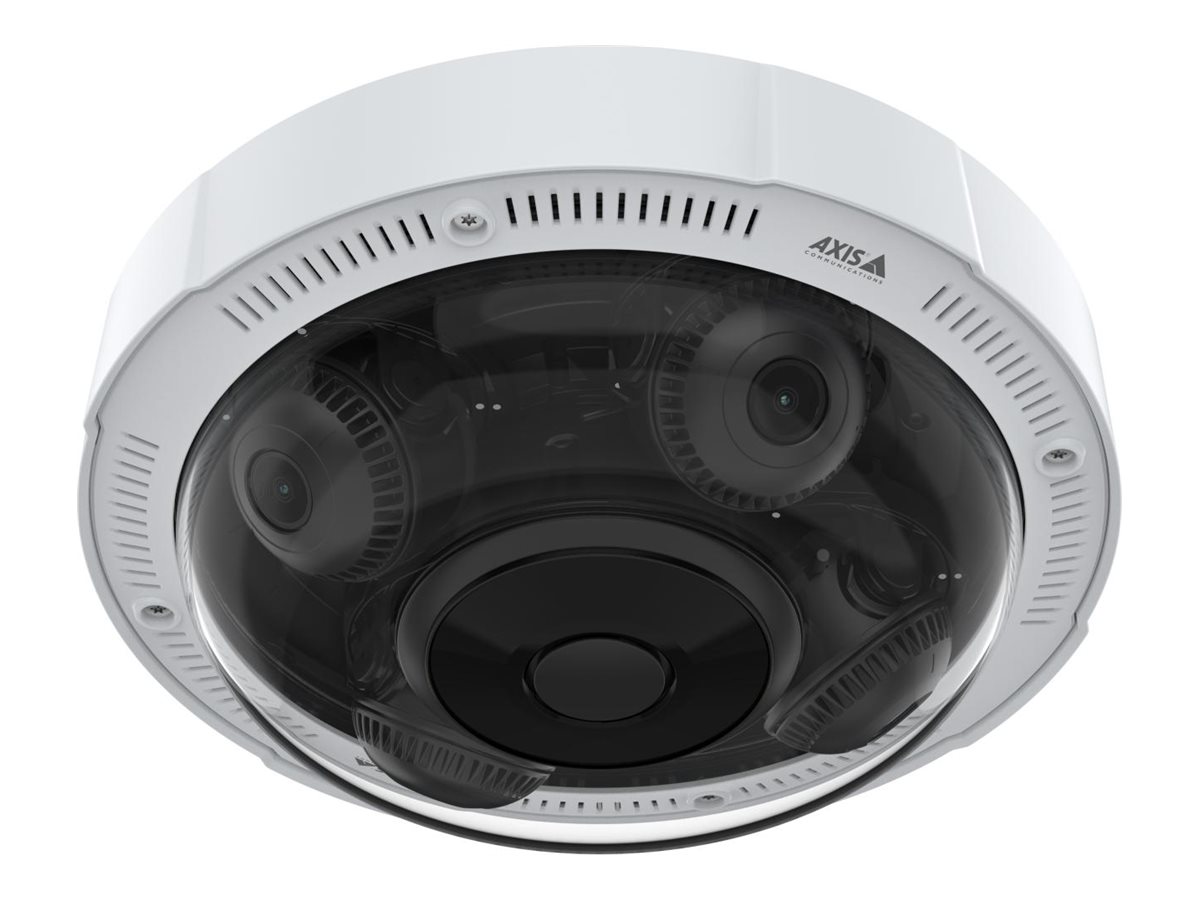

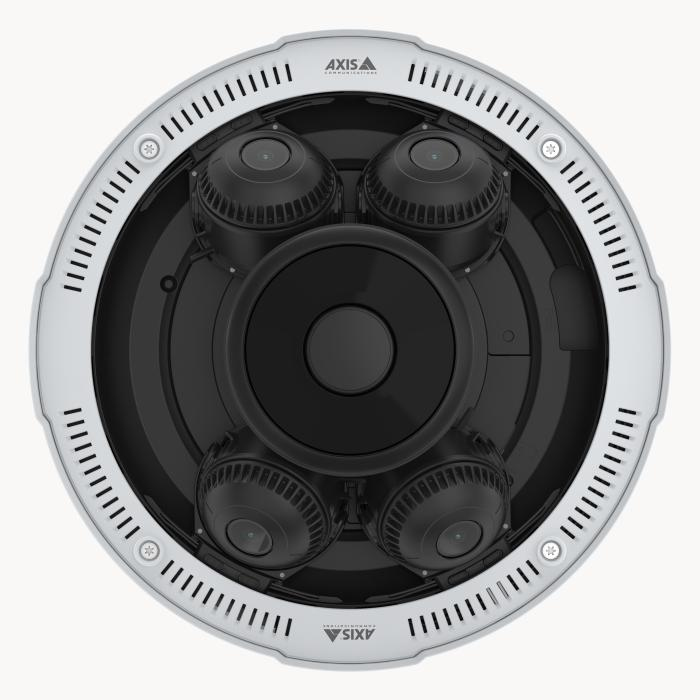

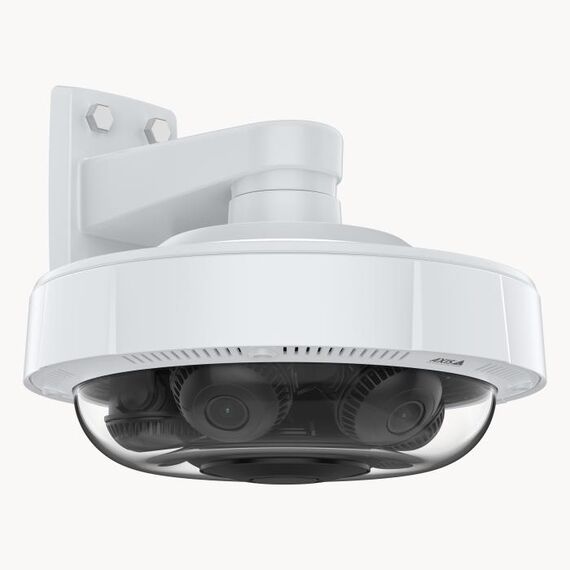

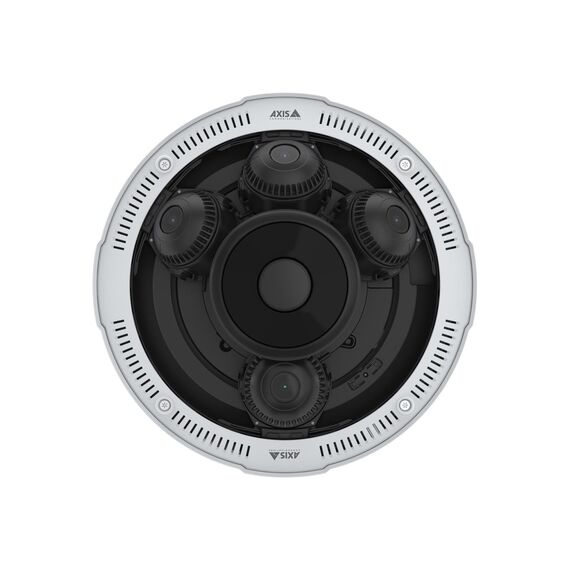

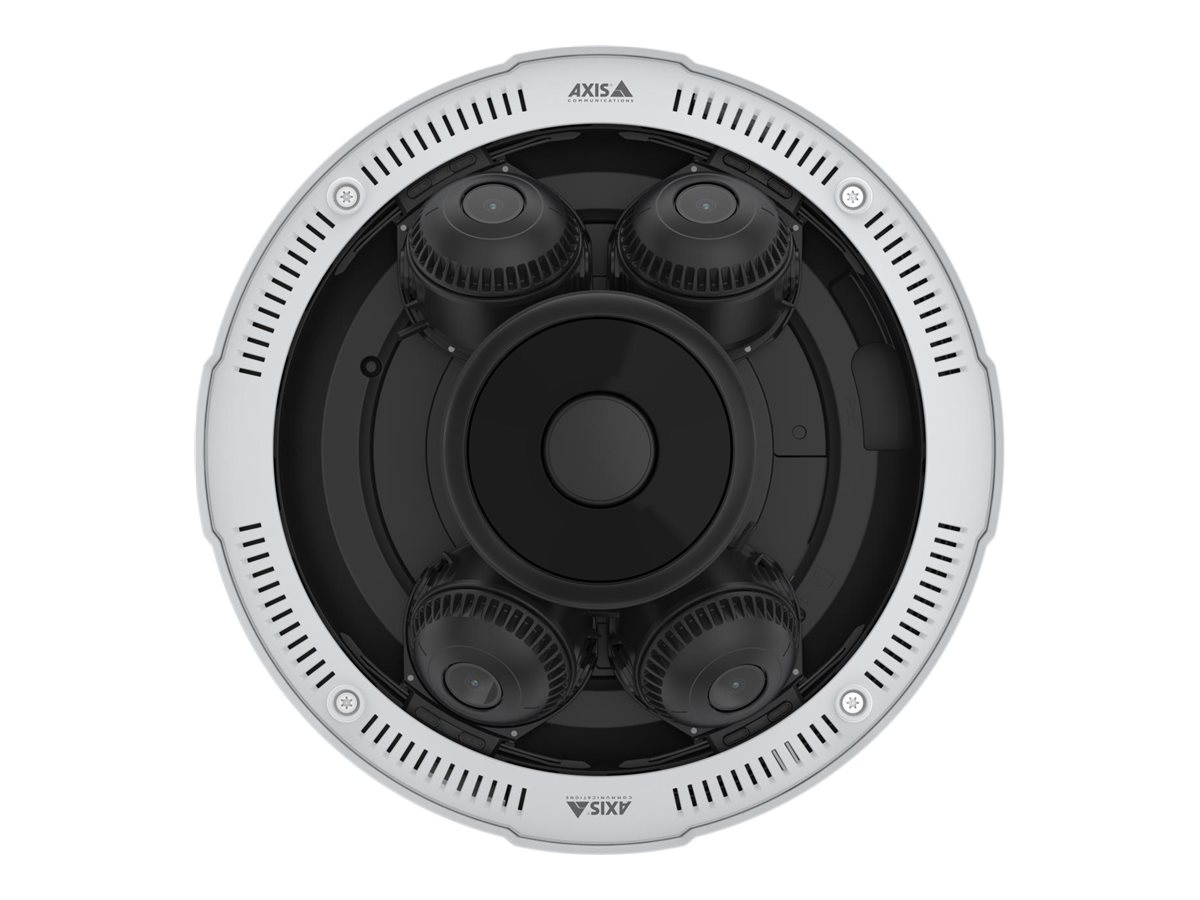

AXIS P37 Series P3738-PLE - Network panoramic camera - dome - outdoor - vandal / weatherproof - colour (Day&Night) - 4x2MP - 3840 x 2160 - fixed iris - vari-focal - audio - GbE - MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 - PoE Plus
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network panoramic camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 25.5 cm |
| Depth | 25.5 cm |
| Height | 9.2 cm |
| Weight | 2 kg |
| Localisation | Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, European Union |
| Camera | |
| Type | Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/16000 sec |
| Minimum Illumination | 0.19 lux - colour - F1.9 - 50 IRE ¦ 0 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 15 m |
| Digital Video Capture Resolution | 3840 x 2160, 320 x 180 |
| Frame Rate (max) | 15 frames per second |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Features | Sharpness control, white balance, saturation control, brightness control, contrast control, image mirror, Privacy Mask Function, NAS-Ready, full duplex audio, Lightfinder technology, IR Corrected lens, Variable Bitrate (VBR), OptimizedIR, Zipstream technology, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, plastic housing, infrared-cut filter, CorridorView, Forensic WDR, exposure zone, 3D digital noise reduction (DNR), half duplex audio, aluminium housing, secure boot, TPM 2.0 module, ONVIF (Profile T) support, Adaptive Bitrate (ABR), 2D digital noise reduction (DNR), day/night threshold, compression, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, low latency mode, ONVIF (Profile M) support, remote zoom, Multi-Bitrate (MBR), secure keystore, video streaming indicator, signed video, deep learning processing unit (DLPU), dynamic text overlay, tone mapping, exposure mode, barrel distortion correction, polycarbonate bubble |
| Image Sensor | |
| Type | 4x2MP PS RGB CMOS 4 x 1/2.8" |
| Lens Construction | |
| Type | Vari-focal |
| Optical Zoom | 2.5 x |
| Focal Length | 3.2 mm - 8.1 mm |
| Lens Iris | F/1.9-3.2 fixed iris |
| Min Focus Distance | 50 cm |
| Horizontal Field of View (degree) | 40 - 108 |
| Vertical Field of View (degree) | 23 - 55 |
| Diagonal Field of View (degree) | 46 - 131 |
| Panning | |
| Range (degree) | -90 to +90 |
| Tilting | |
| Range (degree) | 25 to 95 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS, RTSPS, MDNS, ICMPv4, ICMPv6, DNSv6, DHCPv4, DHCPv6 |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | FIPS 140-2 Level 2, TLS 1.2, 256-bit AES-XTS, TLS 1.3, EAP-TLS |
| Miscellaneous | |
| Included Accessories | Cable gaskets, connector guard |
| TAA Compliant | Yes |
| Compliant Standards | CSA, UL, VCCI, cUL, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, Common Criteria EAL4+, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, EN 50121-4, IEC 62236-4, VCCI Class A, EAC, RCM, RoHS 2011/65/EU, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, IEC/EN 62471, ISO 21207 method B, EAL 6+, CISPR 32 Class A, IEEE 802.3at, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, JEDEC, IEEE 802.1x, PVC-free, NIST SP500-267, MIL-STD-810H, ECA, ICES-3(A)/NMB-3(A), IEC/EN 60529 IP67, NEMA TS-2 (2.2.7-2.2.9), UKCA, IEC/EN 62262 IK09, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, ETSI EN 303 645, CFR free, EN 63000:2018, VDMA 24364, IS 13252, IEEE 802.1ar, REACH 1907/2006/CE, NEMA 250 Type 4X, AS/NZS 62368.1:2022 |
| Colour | White, NCS S 1002-B |
| Power | |
| Power Requirements | PoE Plus Class 4 |
| Software / System Requirements | |
| Software Included | AXIS Video Motion Detection, AXIS Object Analytics |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 100% (non-condensing) |
Features - AXIS - 02635-001
More Details
Product Code
CJ41073
EAN Code
7331021080645
Manufacturer
AXIS
