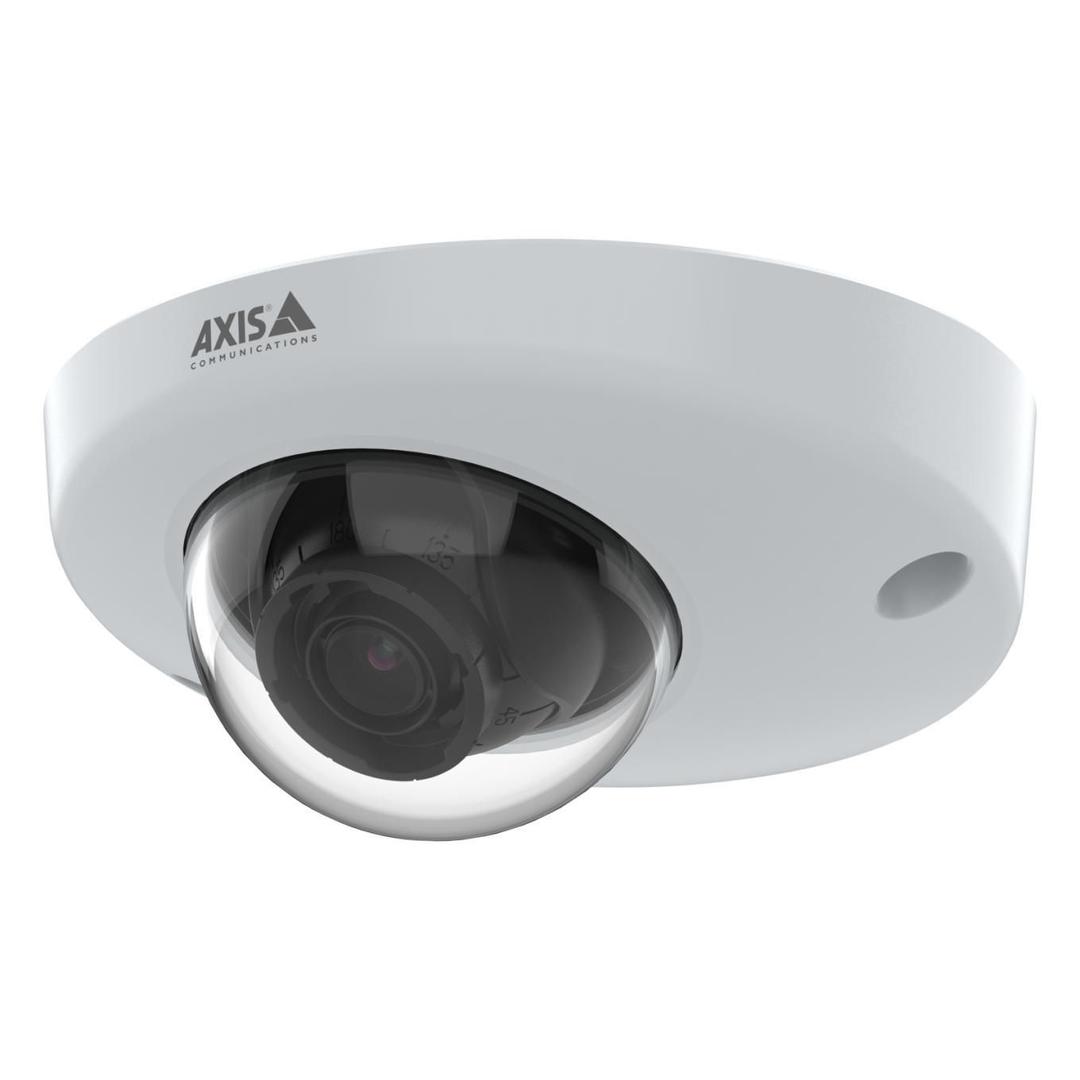

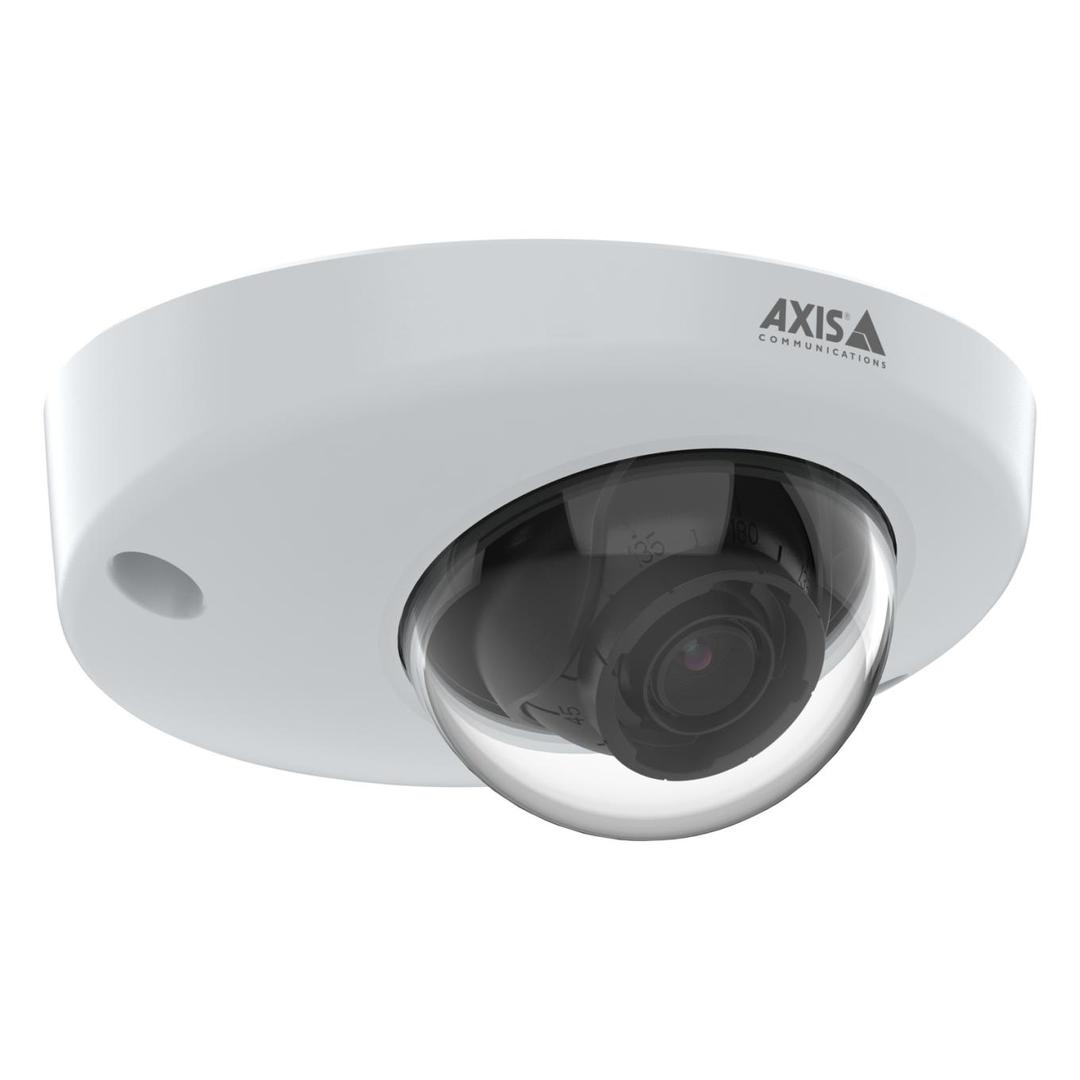

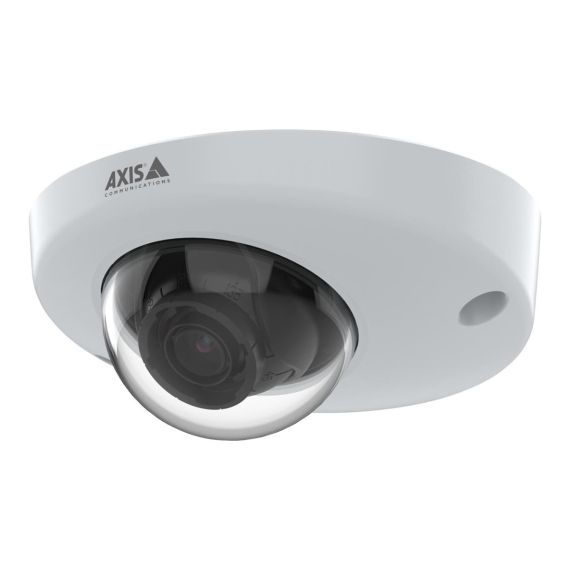

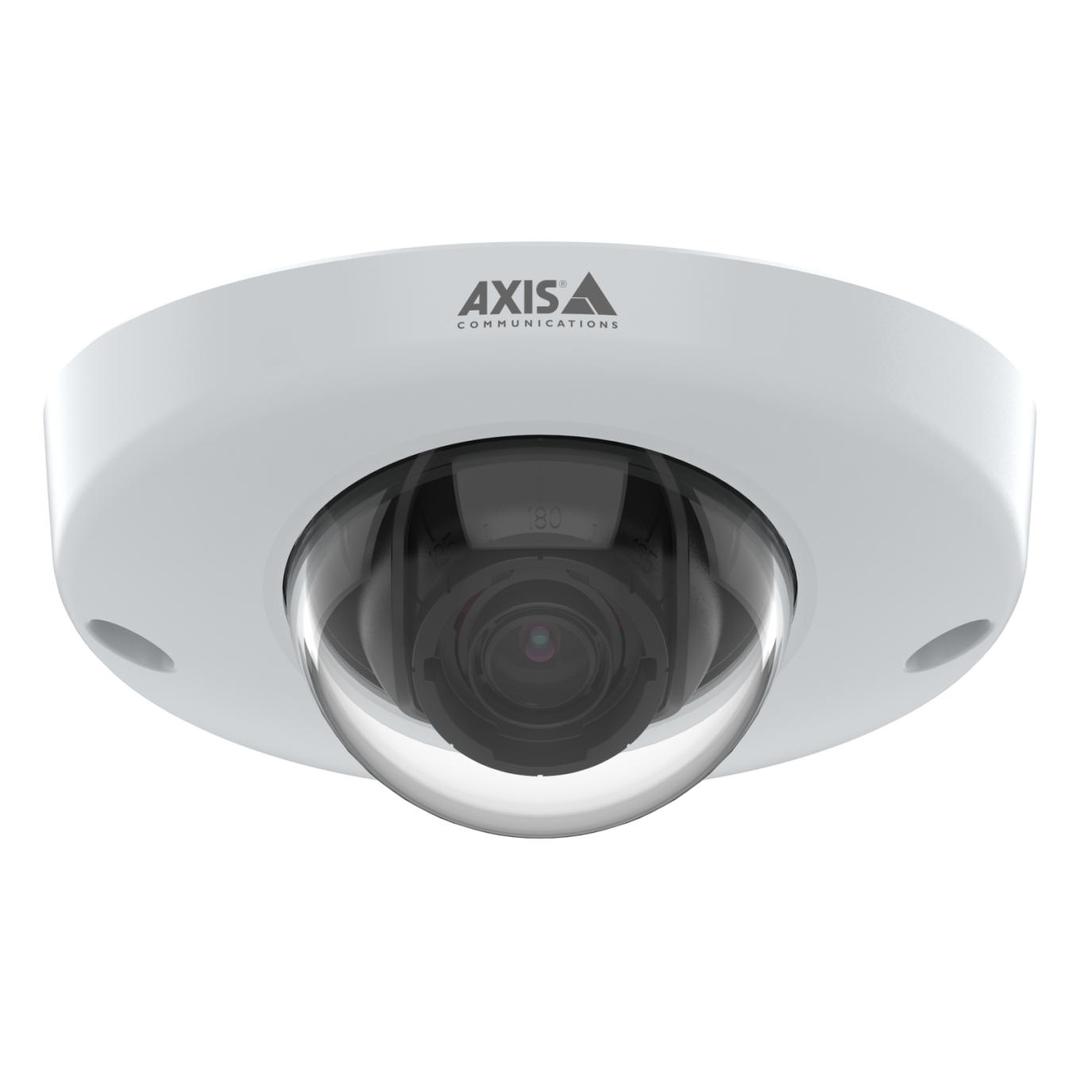

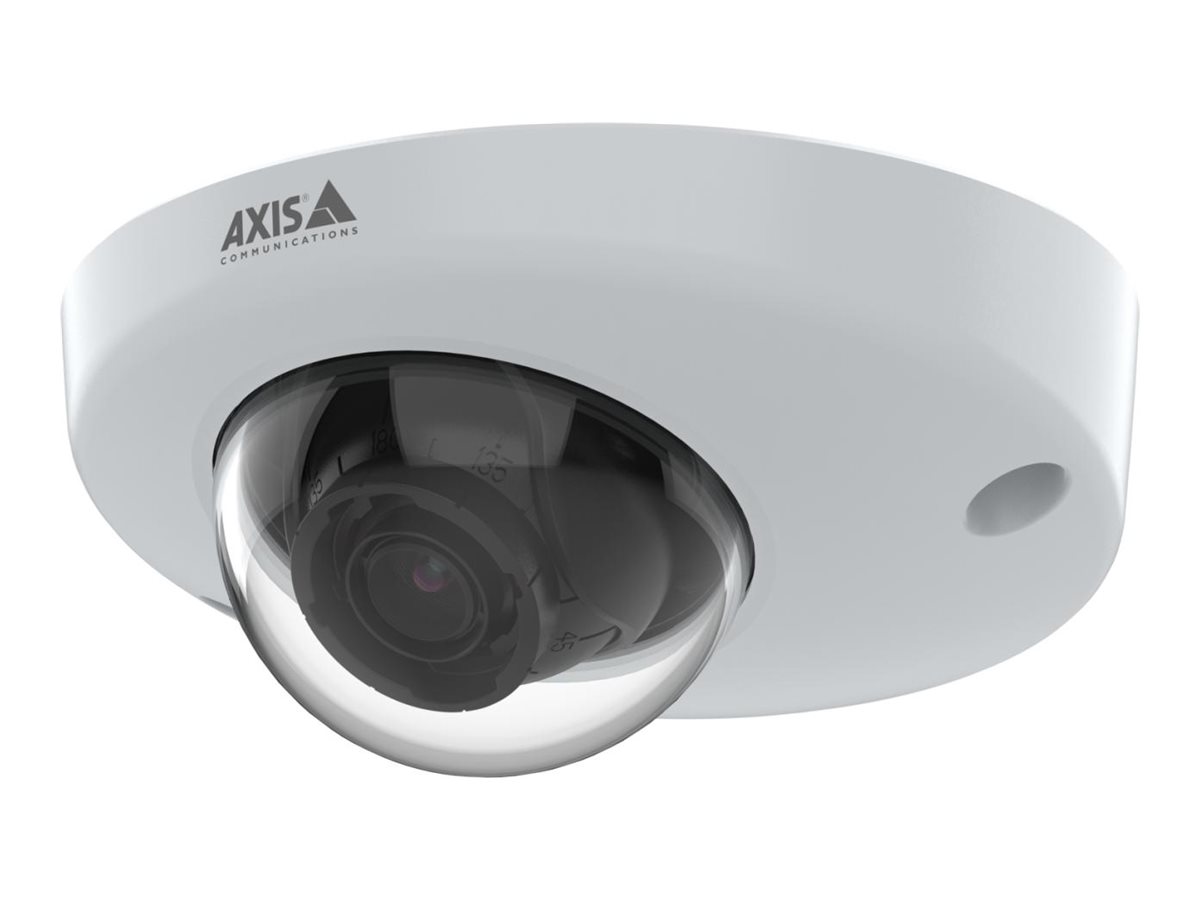

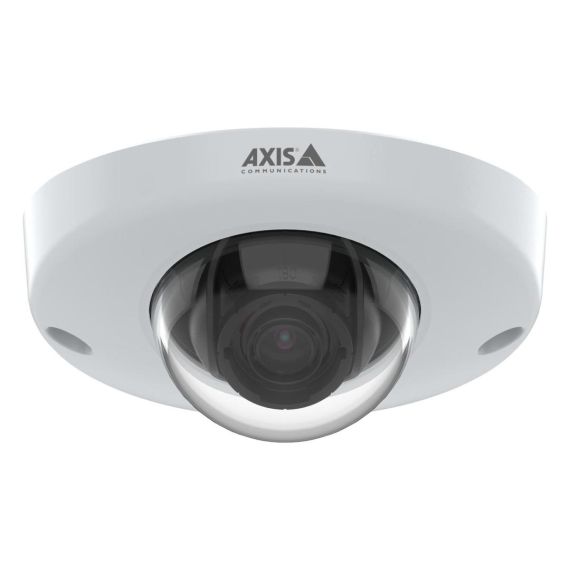

AXIS P39 Series P3905-R Mk III M12 - Network surveillance camera - dome - colour - 2 MP - 1920 x 1080 - M12 mount - fixed iris - fixed focal - H.264B, H.264M, H.264H, H.265, MJPEG - PoE Plus - TAA Compliant | 02671-001
02671-001
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 11 cm |
| Depth | 11 cm |
| Height | 5 cm |
| Weight | 241 g |
| Localisation | United States, United Kingdom, Korea, Japan, India, Europe, China, Brazil, Australia, Argentina |
| Camera | |
| Type | Colour - fixed |
| Digital Video Format | H.264B, H.264M, H.264H, H.265, MJPEG |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/19000 sec |
| Minimum Illumination | 0.04 lux - colour - F2.0 - 30 IRE <br /> 0.13 lux - colour - F2.0 - 50 IRE |
| Digital Video Capture Resolution | 1920 x 1080, 640 x 360, 1280 x 800, 640 x 400, 1280 x 960, 320 x 240 |
| Frame Rate (max) | 45 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | 16:9 aspect ratio, 16:10 aspect ratio, 4:3 aspect ratio, 4 video streams, Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), video streaming indicator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction Technology, dynamic text overlay, polygon privacy mask, image mirror, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, Lightfinder technology, digital PTZ function, guard tour, control queue, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, Network Time Security (NTS), -175° / +175° rotation, aluminium housing |
| Image Sensor | |
| Type | 2 MP PS RGB CMOS 1/2.9" |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 3.6 mm |
| Lens Iris | F/2.0 fixed iris |
| Min Focus Distance | 0.3 m |
| Horizontal Field of View (degree) | 88 |
| Vertical Field of View (degree) | 47 |
| Panning | |
| Range (degree) | -30 to +30 |
| Tilting | |
| Range (degree) | 15 to 90 |
| Interfaces | |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SOCKS, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Expansion / Connectivity | |
| Ports | LAN/power - M12 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
| Miscellaneous | |
| Included Accessories | Lens tool |
| TAA Compliant | Yes |
| Compliant Standards | KC, RCM, UL/cUL, UKCA, WEEE, NDAA, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 Rev.06, EN 50498, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC/EN/UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IS 13252, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC 60068-2-14, NIST SP500-267, ETSI EN 303 645, IEEE 802.1x, IEEE 802.1ae, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at, PVC-free, BFR-free, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907 |
| Power | |
| Power Requirements | PoE Plus |
| Power Device | 2.2 Watt |
| Software / System Requirements | |
| Software Included | AXIS Video Motion Detection, Windows decoder 1-user licence |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
