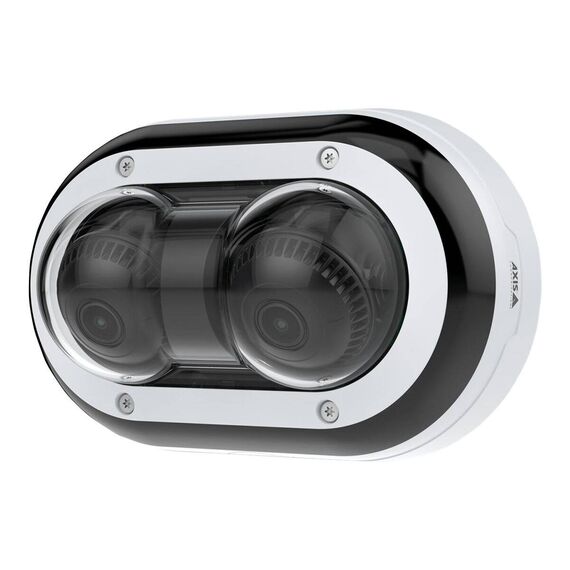

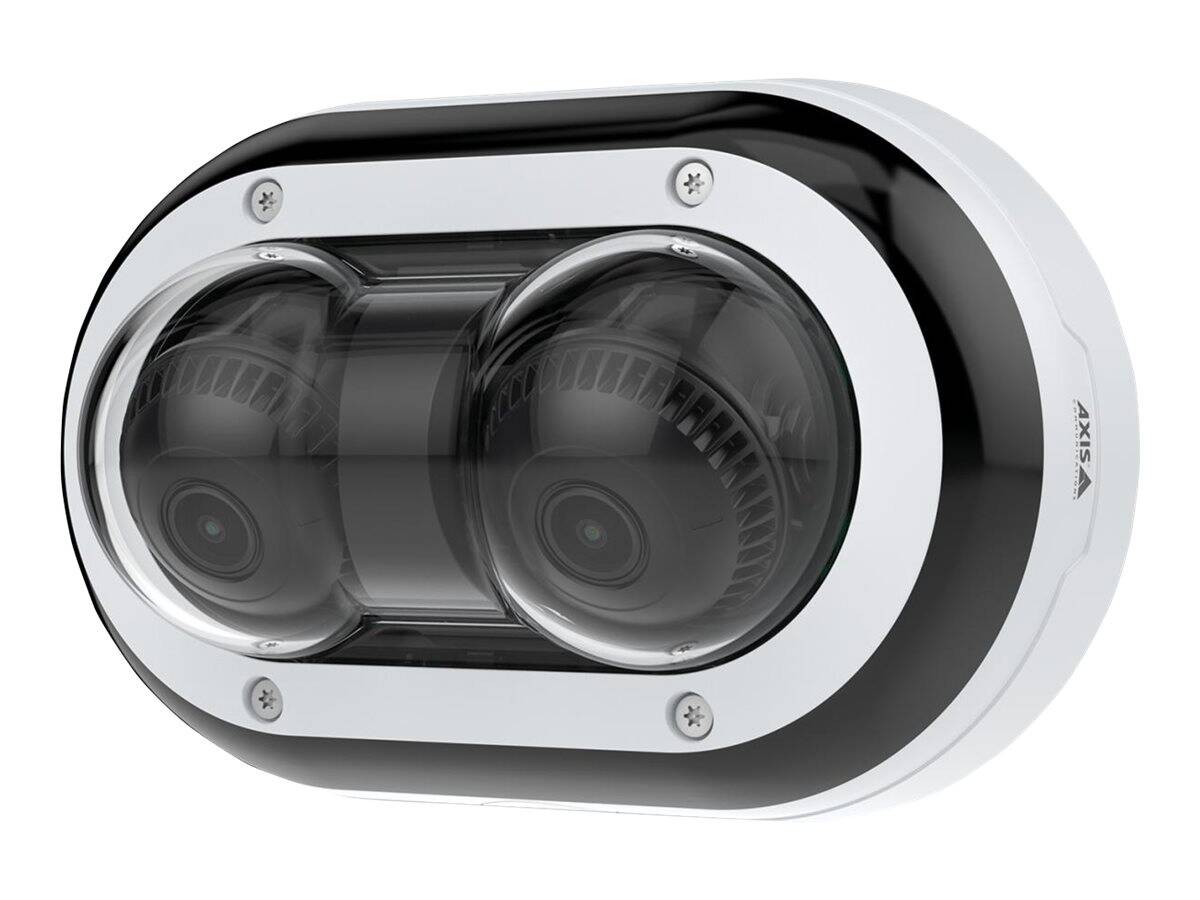

AXIS P4705-PLVE - Network panoramic camera - dome - outdoor - vandal / weatherproof - colour (Day&Night) - 2 x 2 MP - 1920 x 1080 - fixed iris - vari-focal - audio - GbE - MJPEG, H.264, H.265 - PoE Class 4 | 02415-001
Product Features
- See it all - 24/7
AXIS P4705-PLVE includes 360° IR illumination with individually controllable LEDs so you'll enjoy clear images even in low light or complete darkness as well as undistorted colors during the day. Featuring AXIS Lightfinder you get color images recorded in near darkness. And Forensic WDR ensures clarity when there's both dark and light areas in the scene. It offers two 2MP channels and a frame rate of 30 fps letting you capture both wide angle and zoomed-in, detailed views. And, thanks to 2.5x zoom it delivers wide views and you can zoom in for all the details. Furthermore, audio input allows you to listen in to transactions or incidents. - Brilliant design
This compact, multidirectional camera is perfect when you need to see in two directions simultaneously. It offers flexible positioning of both varifocal camera heads and each head can be controlled individually so you can monitor scenes in two directions in wide or zoomed-in views. The camera's sensors can also be twisted, allowing two camera heads to be positioned closer together. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously. - Deep learning on the edge
Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS object analytics, AXIS P4705-PLVE can detect and classify humans, vehicles, and types of vehicles - all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. - Cost-efficient installation
With two camera heads in one camera, AXIS P4705-PLVE offers cost-effective installation. That's because there's only one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It offers edge storage for added storage capability and reliability. And, thanks to remote zoom and focus capabilities it eliminates the need for hands-on fine tuning and ensures fast and accurate installation. Furthermore, Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
Special Fetures
- 2 x 2MP, multidirectional camera, with one IP address
- Support for analytics with deep learning on both sensors
- 360° IR illumination
- 2.5x zoom
- Axis Lightfinder and Forensic WDR
Product Specification
Device Type | Network panoramic camera |
Audio Support | Yes: two-way audio capability, built-in microphone |
Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
Form Factor | Dome |
Connectivity Technology | Wired |
Width | 13.3 cm |
Depth | 20.8 cm |
Height | 8.8 cm |
Weight | 975 g |
Localisation | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Portuguese, Polish, Russian, Spanish, Japanese, Korean |
Camera | |
Type | Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
Digital Video Format | MJPEG, H.264, H.265 |
Max Digital Video Resolution | 1920 x 1080 |
Motion Detection | Yes |
Exposure Range | 1.5 sec - 1/20000 sec |
Minimum Illumination | 0.1 lux - colour - F1.9 - 50 IRE ¦ 0 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR |
Infrared LEDs | Yes |
Infrared Distance | 15 m |
Digital Video Capture Resolution | 1920 x 1080, 640 x 360 |
Frame Rate (max) | 60 frames per second |
RAM | 2 GB |
Flash Memory | 8 GB |
Features | Sharpness control, white balance, progressive scanning, saturation control, brightness control, Power over Ethernet, contrast control, e-mail alerts, image mirror, NAS-Ready, Lightfinder technology, password protection, IR Corrected lens, Variable Bitrate (VBR), Audio Detection, auto gain control, Zipstream technology, Access Control, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, plastic housing, Pixel Counter Support, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, HTTPs encryption, programmable exposure zones, aluminium housing, signed firmware, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), 360° field of view, day/night threshold, compression, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, user access log, centralised certificate management, brute force delay protection, Trusted Platform Module (TPM), ONVIF (Profile M) support, remote zoom, Multi-Bitrate (MBR), secure keystore, deep learning processing unit (DLPU), dynamic text overlay, tone mapping, exposure mode, network speaker pairing, -170° / +170° rotation |
Image Sensor | |
Type | 2 x 2 MP PS RGB CMOS 1/1.8" |
Lens Construction | |
Type | Vari-focal |
Optical Zoom | 2.5 x |
Focal Length | 3.3 mm - 8.1 mm |
Lens Iris | F/1.9-3.2 fixed iris |
Min Focus Distance | 50 cm |
Horizontal Field of View (degree) | 39 - 107 |
Vertical Field of View (degree) | 22 - 55 |
Diagonal Field of View (degree) | 45 - 131 |
Panning | |
Range (degree) | -110 to +110 |
Tilting | |
Range (degree) | -75 to +75 |
Interfaces | |
Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS |
Expansion / Connectivity | |
Ports | LAN - RJ-45 ¦ Microphone - 3.5 mm jack |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | |
Included Accessories | Mounting bracket, connector kit, weathershield, connector guard |
Compliant Standards | EN 61000-6-1, EN 61000-6-2, FIPS 140-2, IEC 60068-2-27, IEC 60068-2-6, EAL 4, AES-256, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, CISPR 32 Class A, IEEE 802.3at, CAN/CSA-C22.2 No. 62368-1, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, NIST SP500-267, MIL-STD-810H, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP67, NEMA TS-2 (2.2.7-2.2.9), KS C 9832 Class A, KS C 9835, CFR free, CAN/CSA-C22.2 No. 60950-22, VDMA 24364 |
Colour | White, NCS S 1002-B |
Power | |
Power Requirements | PoE Class 4 |
Power Device | 7.9 Watt |
Software / System Requirements | |
Software Included | AXIS Camera Station, Windows decoder 1-user licence, AXIS Companion, AXIS Video Motion Detection, AXIS Device Manager |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Min Operating Temperature | -30 °C |
Max Operating Temperature | 50 °C |
Relative Humidity (operating) | 10 - 100% RH (condensing) |
Features - AXIS - 02415-001
