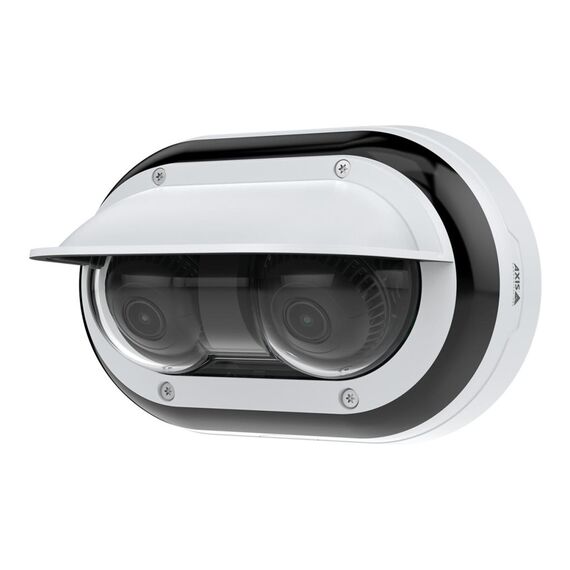

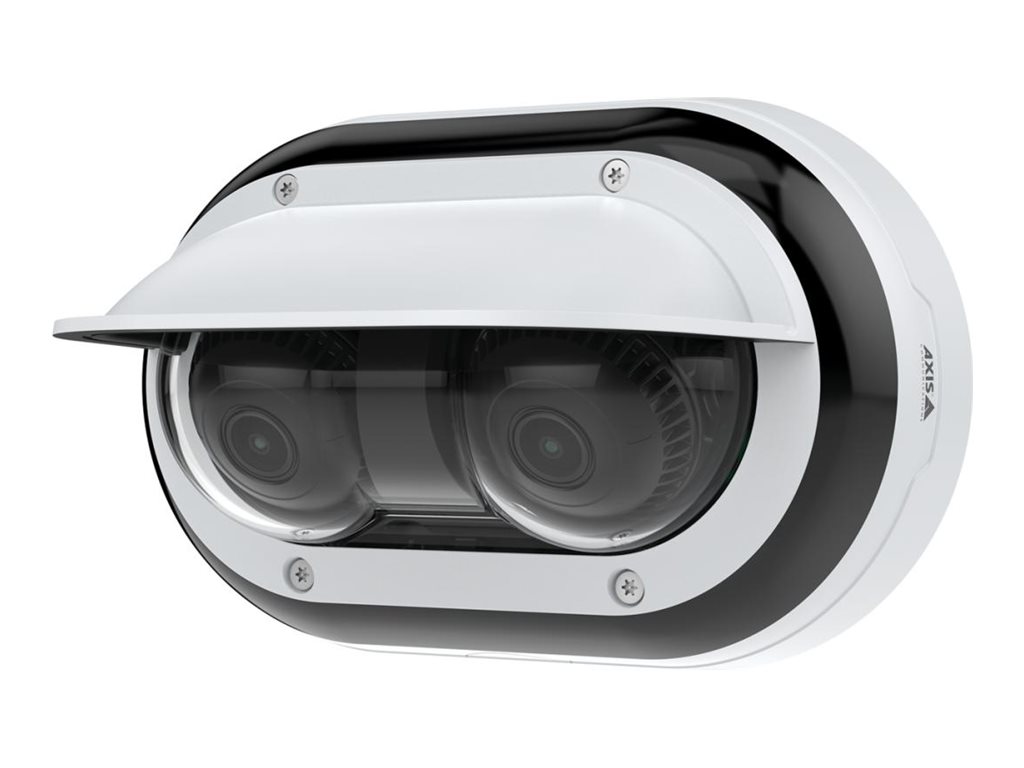

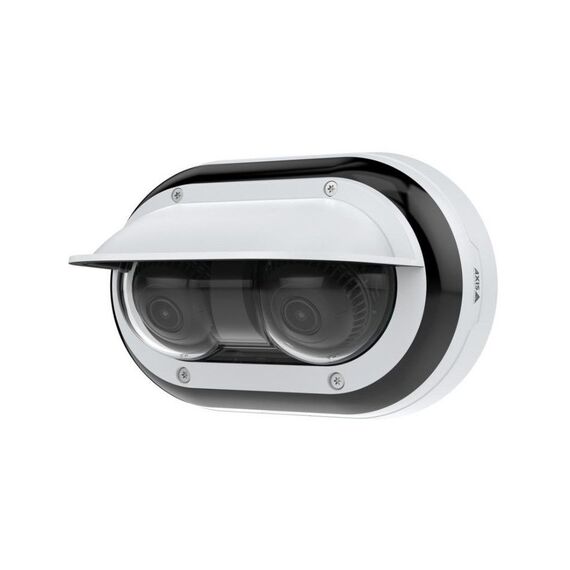

AXIS P4708-PLVE - Network panoramic camera - dome - outdoor - vandal / weatherproof - colour (Day&Night) - 2 x 8 MP - 3840 x 2160 - fixed iris - vari-focal - audio - GbE - MJPEG, H.265, H.264B, H.264H, H.264M - PoE Plus Class 4 - TAA Compliant | 02944
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network panoramic camera |
| Audio Support | Yes: two-way audio via edge-to-edge technology, speaker pairing |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 20.8 cm |
| Depth | 12.7 cm |
| Height | 13.3 cm |
| Weight | 975 g |
| Localisation | Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Camera | |
| Type | Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.265, H.264B, H.264H, H.264M |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/16000 sec |
| Minimum Illumination | 0.19 lux - colour - F1.9 - 50 IRE ¦ 0 lux - B&W - F1.9 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 15 m |
| Digital Video Capture Resolution | 640 x 360, 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Features | 2D Noise Reduction Technology, 3D Noise Reduction Technology, Lightfinder technology, active tampering alarm, IR Corrected lens, Variable Bitrate (VBR), Audio Detection, OptimizedIR, Zipstream technology, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, infrared-cut filter, digest authentication, Forensic WDR, signed firmware, ONVIF (Profile T) support, Adaptive Bitrate (ABR), polygon privacy mask, low latency mode, brute force delay protection, ONVIF (Profile M) support, remote zoom, Axis Edge Vault, Multi-Bitrate (MBR), video streaming indicator, dynamic text, deep learning processing unit (DLPU), -170° / +170° rotation, voice enhancement, level grid, spectrum visualizer |
| Image Sensor | |
| Type | 2 x 8 MP PS RGB CMOS 1/2.8" |
| Lens Construction | |
| Type | Vari-focal |
| Optical Zoom | 2.5 x |
| Focal Length | 3.2 mm - 8.1 mm |
| Lens Iris | F/1.9-3.2 fixed iris |
| Min Focus Distance | 0.5 m |
| Horizontal Field of View (degree) | 40 - 108 |
| Vertical Field of View (degree) | 23 - 55 |
| Diagonal Field of View (degree) | 46 - 131 |
| Panning | |
| Range (degree) | -110 to +110 |
| Tilting | |
| Range (degree) | -75 to +75 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DNS, FTP, HTTP, NTP, SMTP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS, RTSPS, UDP, TCP, ICMPv4, ICMPv6, HTTP/2, DNSv6, DHCPv4, DHCPv6 |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | TLS |
| Miscellaneous | |
| Included Accessories | Connector kit, cable gaskets, weathershield, connector guard |
| TAA Compliant | Yes |
| Compliant Standards | CSA, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, EN 50121-4, IEC 62236-4, VCCI Class A, EAC, RCM, RoHS 2011/65/EU, BFR-free, EN 55032 Class A, IEC/EN 62471, CISPR 32 Class A, IEEE 802.3at, REACH 2006/1907, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, FIPS 140, IEEE 802.1x, PVC-free, NIST SP500-267, MIL-STD-810H, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP67, UKCA, UL/cUL, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, ETSI EN 303 645, CFR free, EN 63000:2018, IEEE 802.1ar, IEEE 802.1ae, NEMA 250 Type 4X |
| Colour | White, NCS S 1002-B |
| Power | |
| Power Requirements | PoE Plus Class 4 |
| Power Device | 10.2 Watt |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user licence, AXIS Video Motion Detection, AXIS Object Analytics |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
Features - AXIS - 02944-001
More Details
Product Code
CK76173
EAN Code
7331021086647
Manufacturer
AXIS
