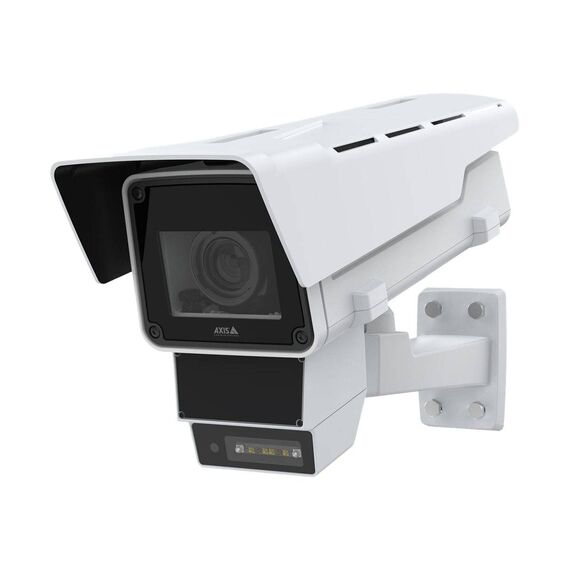

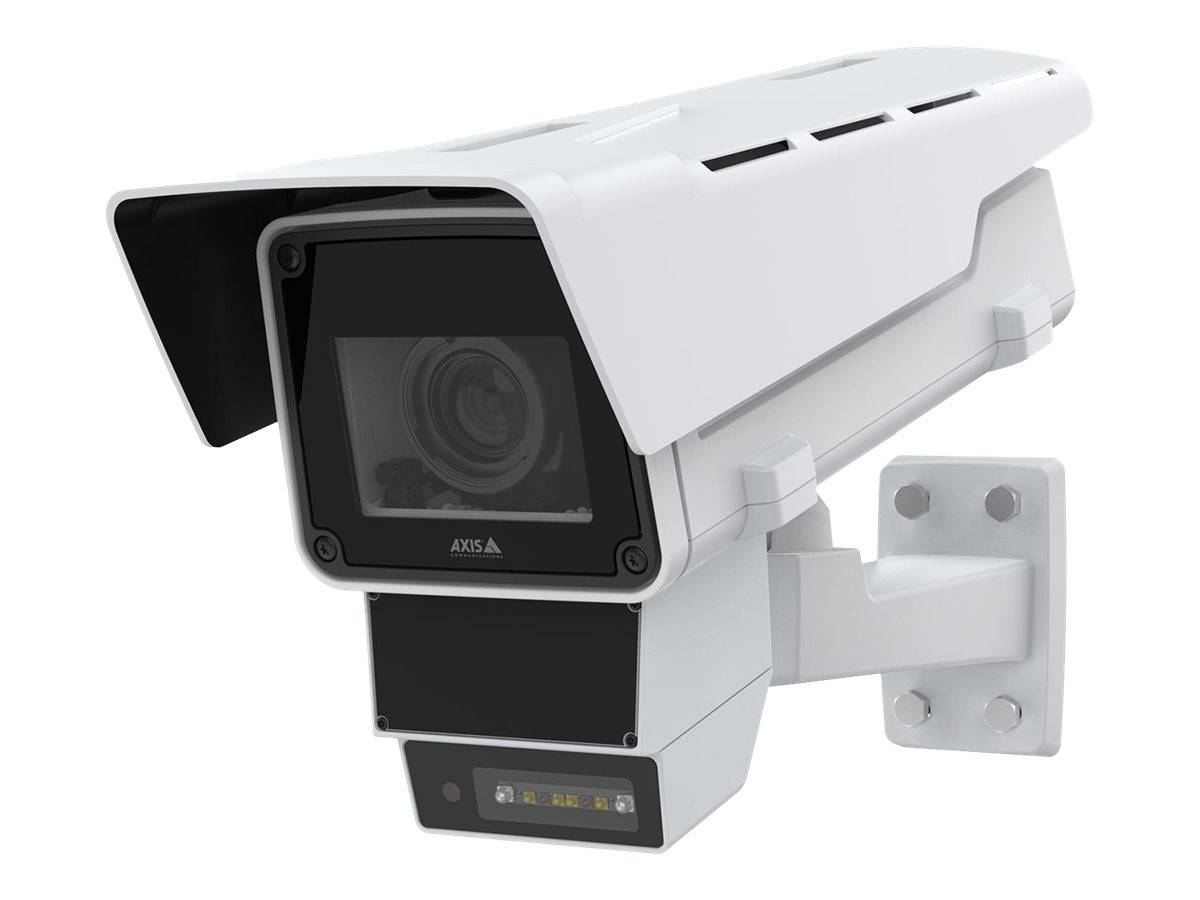

AXIS Q1656-DLE / Network surveillance camera / box / outdoor / weather resistant / impact resistant / colour (Day&Night) / 4 MP / 2688 x 1512 / i-CS-mount / vari-focal / audio / GbE | 02420-001
Please sign in so that we can notify you about a reply
Product Features
- The best of two powerful technologies
This innovative device brings video and radar analytics together in AXIS Object Analytics to deliver next-level detection and visualization. Video analytics provide precise localization and object classification powered by deep learning. Radar analytics add distance and speed measurement, and classification based on deep learning, and the radar signature and movement characteristics of objects. The result is improved scene intelligence combined with the forensic value of video. By default, the intelligent fusion system handles notifications in the most advantageous way depending on what best suits the circumstances. Or, if you prefer, you can choose between minimizing false notifications or never missing a thing. - Double the devices, double the benefits
AXIS Q1656-DLE Radar-Video Fusion Camera also joins two premium devices. You get a superior Q-line camera with excellent image usability combined with a fully integrated radar - an Axis first. The radar detects objects over wide areas with little or no light. And it visualizes the speed and distance of moving objects directly in the application view. Plus, you can use the radar separately to guide a standalone PTZ camera. AXIS Q1656-DLE is robust and weather-resistant and has built-in cybersecurity features that safeguard your system. - Lower costs all the way
Not only do you benefit from double the technology, double the devices, you also have just one device to install, one cable drop, one IP address, and one video management software (VMS) license. Which means lower installation and lifetime costs. You'll save energy because radar "sees" in the dark. So, you can choose to set triggers to activate flood lights, IR, or facade lights only when you want deterrence, visual verification, or forensic detail. You'll also save on storage because you can choose to trigger recording only in certain situations. And the low false-notification rate lets security personnel act only on real threats. They'll be able to handle more cameras and you'll save time and money.
Special Features
- Two powerful technologies in one device
- Increased scene intelligence
- Reliable detection 24/7
- Built-in cybersecurity features
- Premium Axis Q-line camera functionality
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Box |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 15.9 cm |
| Depth | 40.4 cm |
| Height | 23.4 cm |
| Weight | 5 kg |
| Localisation | Australia, United Kingdom, United States, European Union |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor - weather resistant / impact resistant |
| Digital Video Format | MJPEG, AVC, HEVC, H.265, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 2688 x 1512 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/47500 sec |
| Minimum Illumination | 0.05 lux - colour, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.01 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0 lux - IR ¦ 0.1 lux - colour, Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.02 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 38 m |
| Video Capture | 2688 x 1512, WDR off @ 60 fps ¦ 2688 x 1512 @ 30 fps |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | White balance, saturation control, brightness control, contrast control, heater, built-in LED illuminator, full duplex audio, password protection, IR Corrected lens, Variable Bitrate (VBR), OptimizedIR, auto gain control, Zipstream technology, Access Control, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, cross line detection, image overlay, Pixel Counter Support, infrared-cut filter, digest authentication, Vehicle Detection, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone, HTTPs encryption, Remote Back Focus, Person Detection, signed firmware, secure boot, Audio Noise Reduction, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, Lightfinder 2.0 technology, day/night threshold, defogging, compression, polygon privacy mask, low latency mode, memory card encryption, user access log, centralised certificate management, brute force delay protection, object classification, ONVIF (Profile M) support, remote zoom, Axis Edge Vault, AXIS Object Analytics, Multi-Bitrate (MBR), Axis device ID, secure keystore, video streaming indicator, dynamic text, signed video, deep learning processing unit (DLPU), speed detection, tone mapping, exposure mode, Frequency Modulated Continuous Wave (FMCW) radar sensor |
| Image Sensor | Image Sensor |
| Type | 4 MP PS RGB CMOS 1/1.8" |
| Lens Construction | Lens Construction |
| Type | I-CS-mount - vari-focal |
| Optical Zoom | 2.5 x |
| Focal Length | 3.9 mm - 10 mm |
| Lens Iris | F/1.5 (P-Iris) |
| Focus Adjustment | Automatic |
| Min Focus Distance | 0.5 m |
| Horizontal Field of View (degree) | 44 - 96 |
| Vertical Field of View (degree) | 26 - 63 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, USGv6, MQTT, Syslog, NTS, RTSPS |
| Control Interface | RS-485, RS-422 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line out - 3.5 mm jack ¦ Audio line-in/microphone - 3.5 mm jack ¦ Serial RS-485/RS-422 - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Sunshield, Resistorx T20 tool, connector kit, AXIS T94Q01A Wall Mount |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, FIPS 140-2 Level 2, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, EAL 4+, X.509, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 62311, EN 50121-4, IEC 62236-4, VCCI Class A, IEC 62471, TLS v1.2, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, IEC/EN/UL 60950-22, ISO 21207 method B, EN 301 489-3, IEEE 802.3at, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, IEC/EN 62262 IK08, NIST SP500-267, ICES-3(A)/NMB-3(A), NEMA TS-2 (2.2.7-2.2.9), FCC Part 15 Subpart C, TLS v1.3, IK08, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, EN 301489-1, CFR free, IEEE 802.1ar, EN 305 550 |
| Colour | White, NCS S 1002-B |
| Power | Power |
| Power Requirements | DC 10 - 28 V / PoE Plus Class 4 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence, AXIS Video Motion Detection, AXIS Object Analytics, AXIS Speed Monitor |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
Features - AXIS - 02420-001
More Details
Product Code
07:448973
EAN Code
7331021077027
Manufacturer
AXIS
