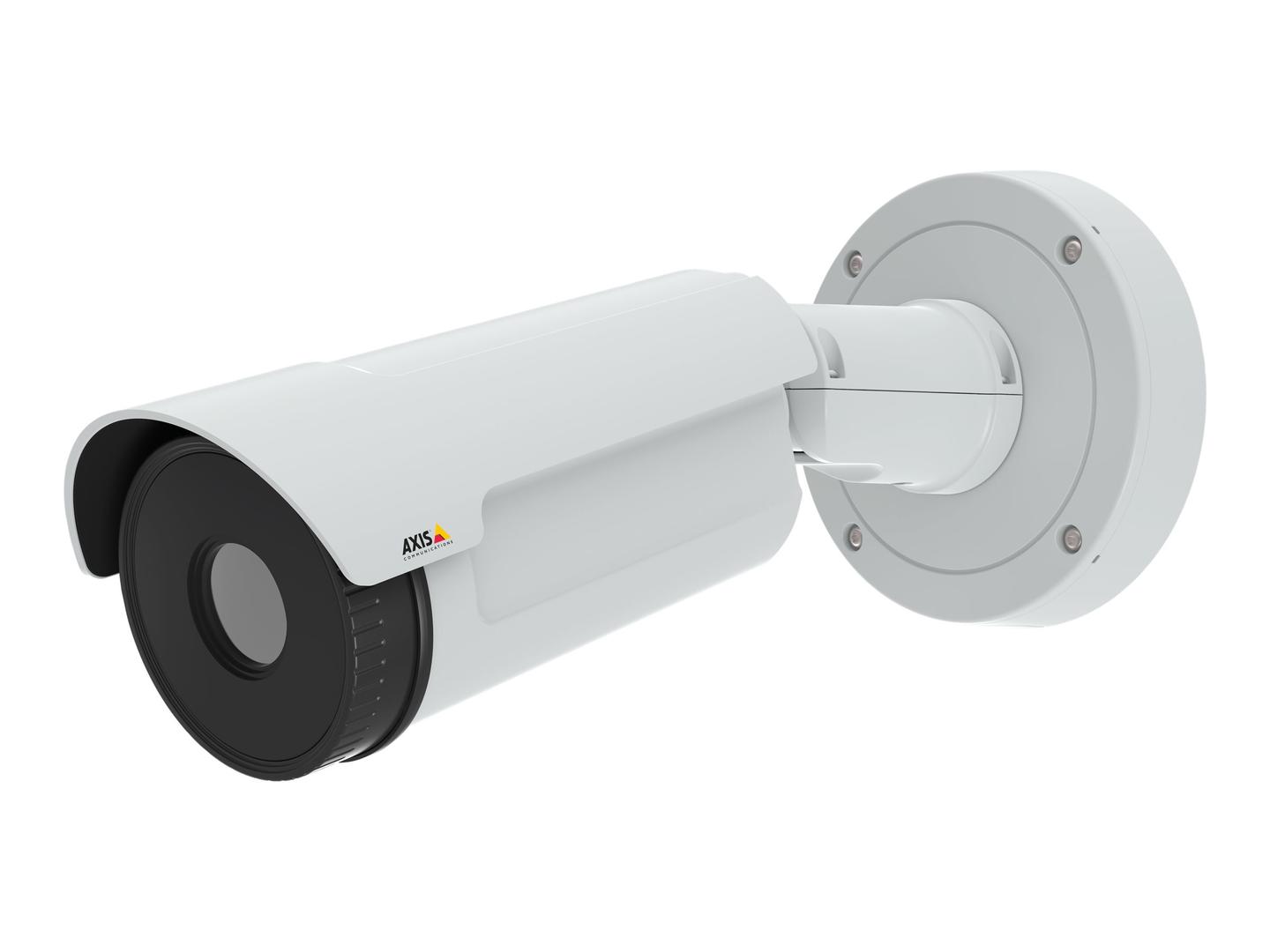

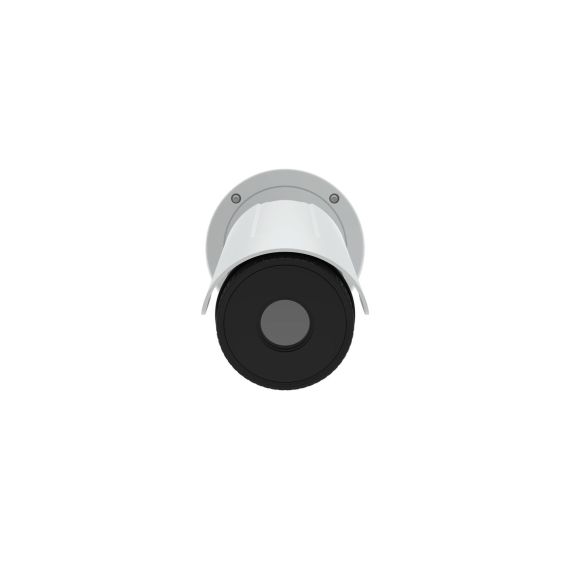

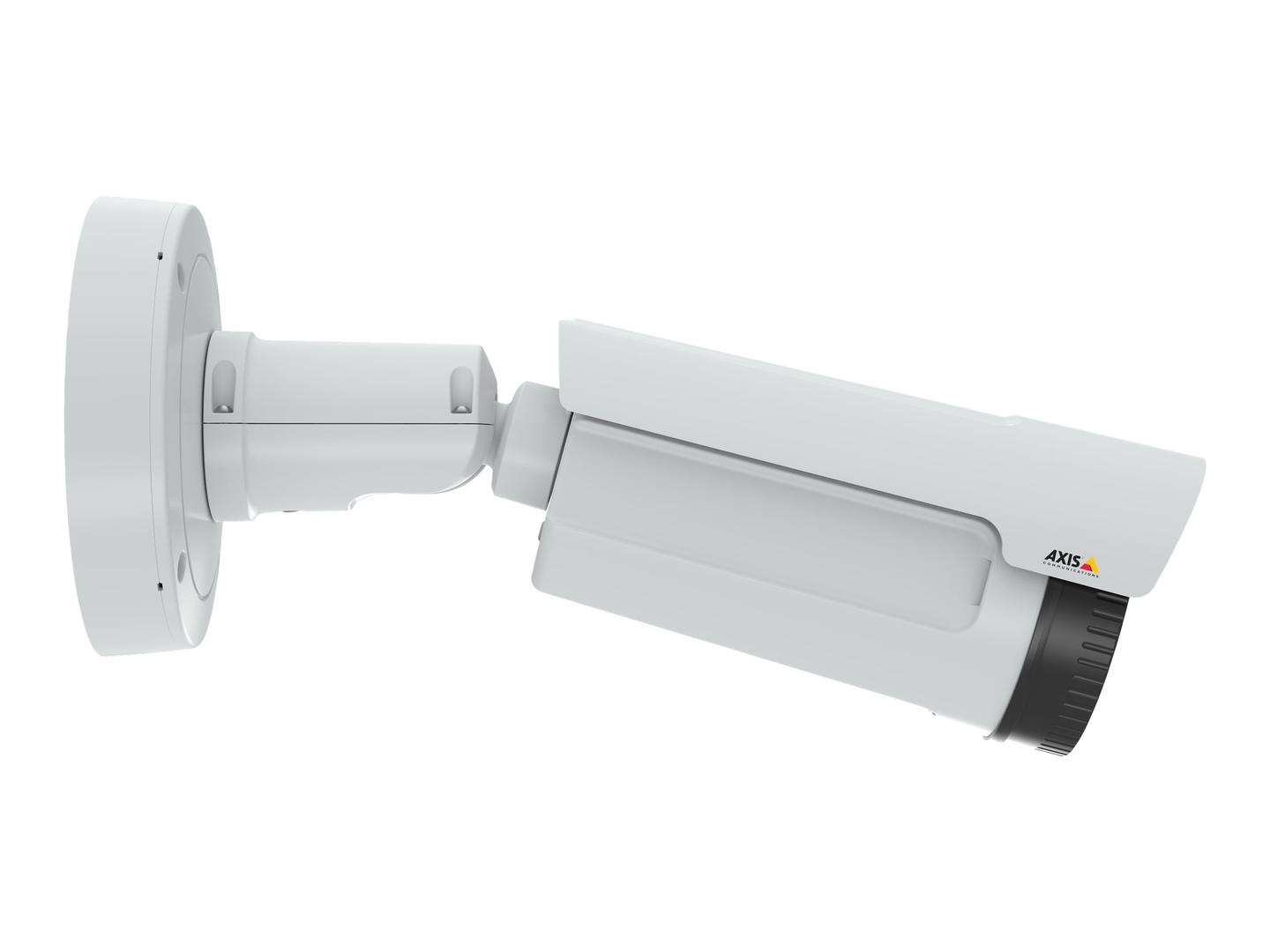

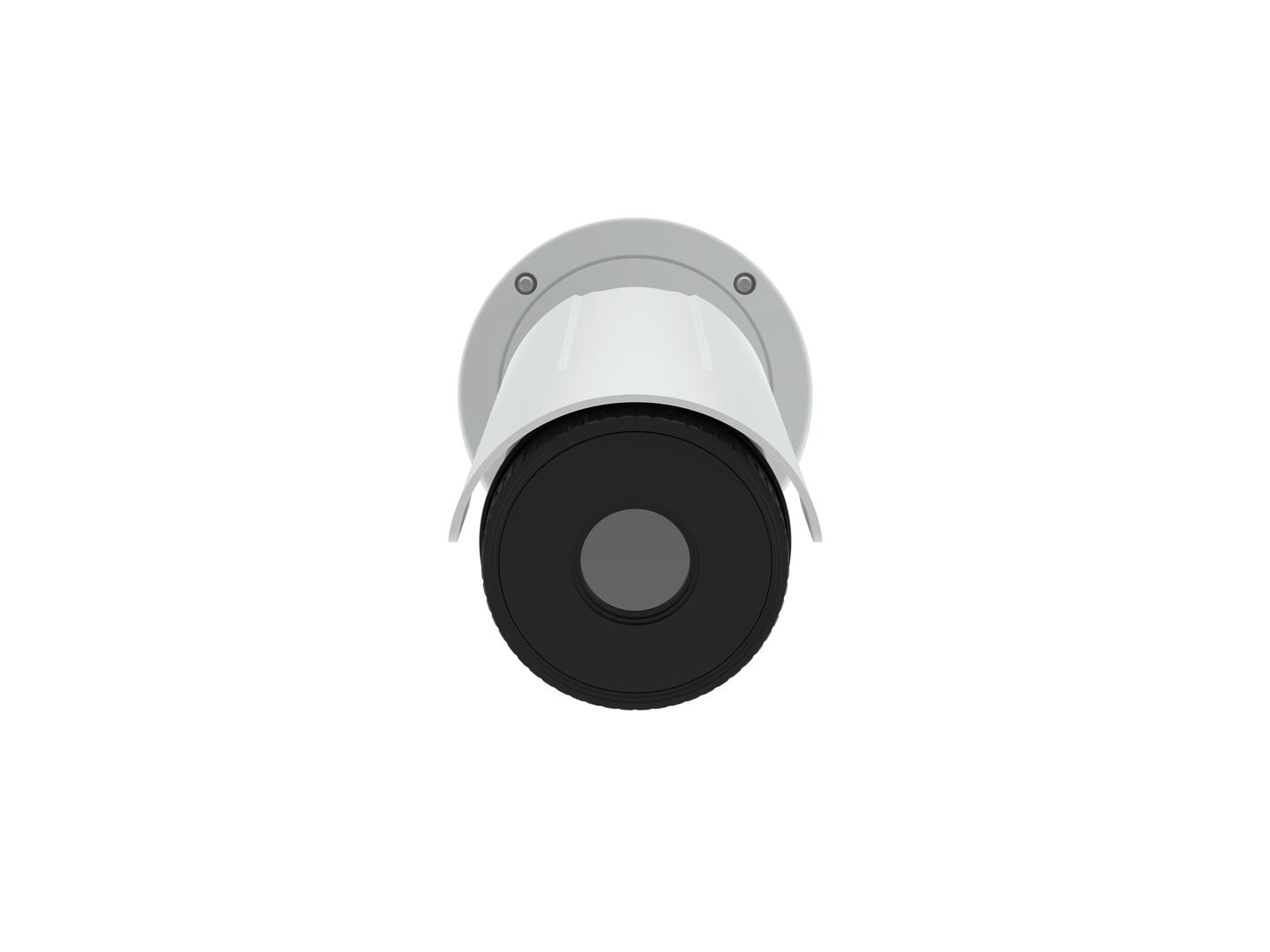

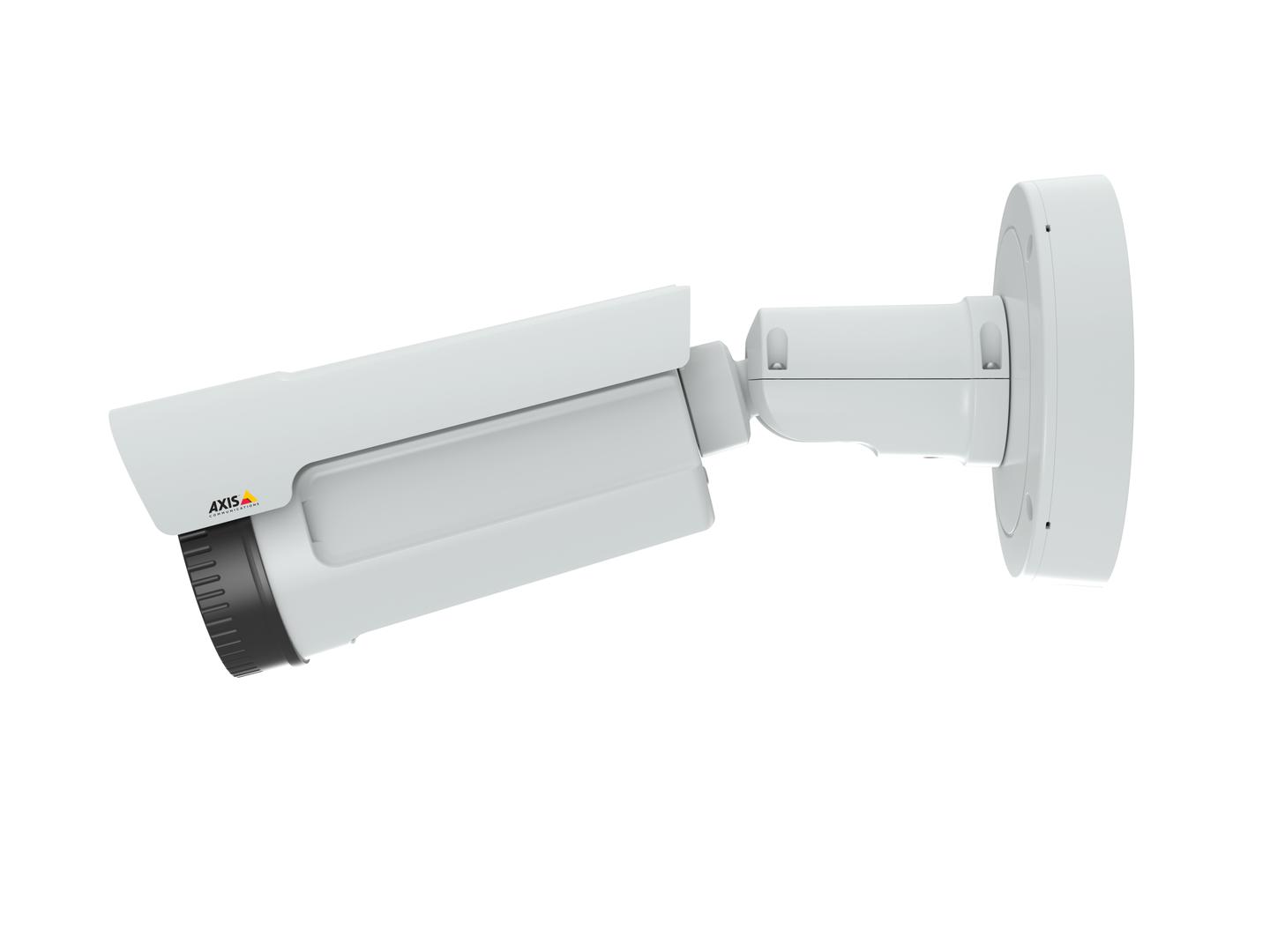

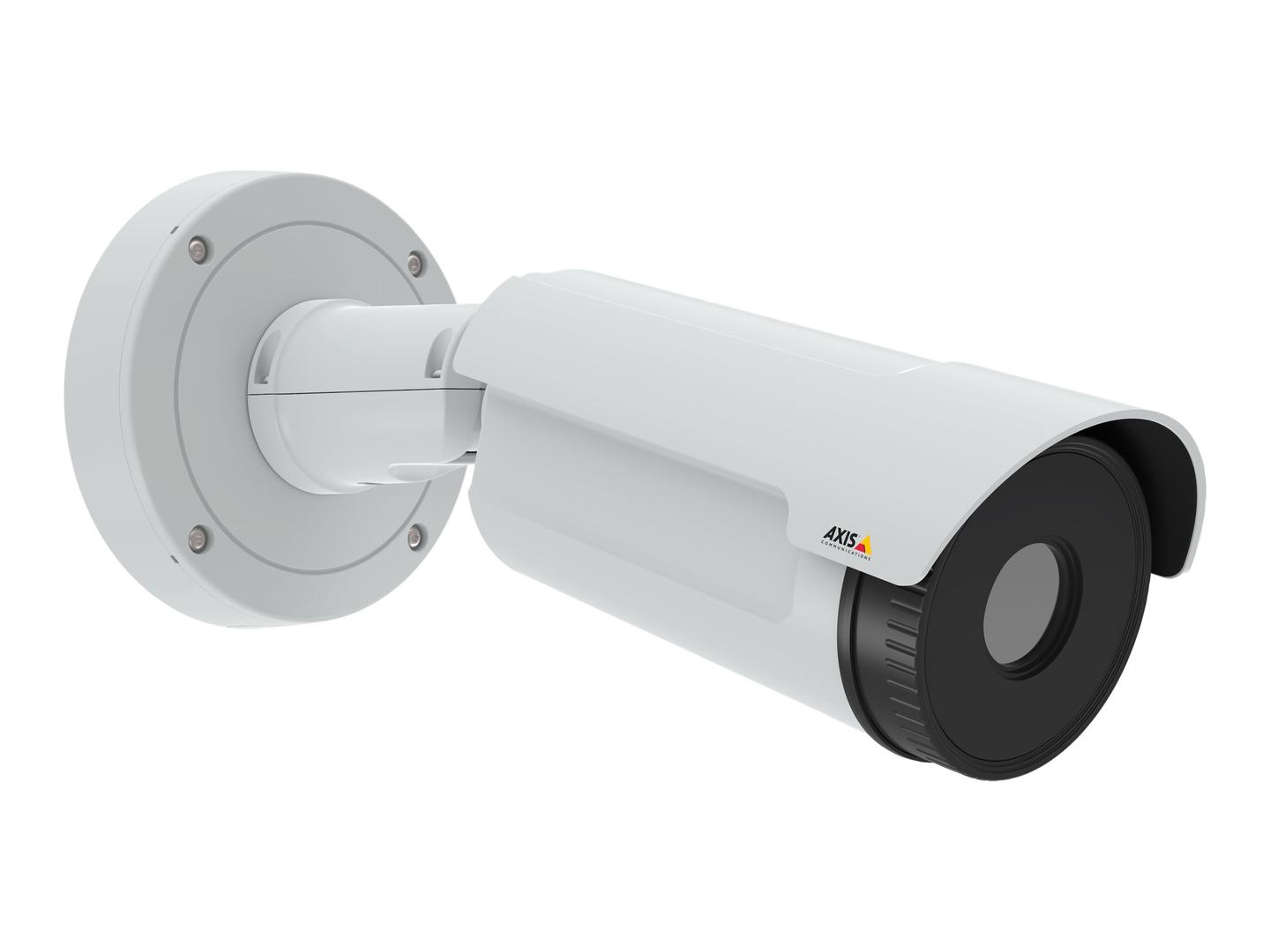

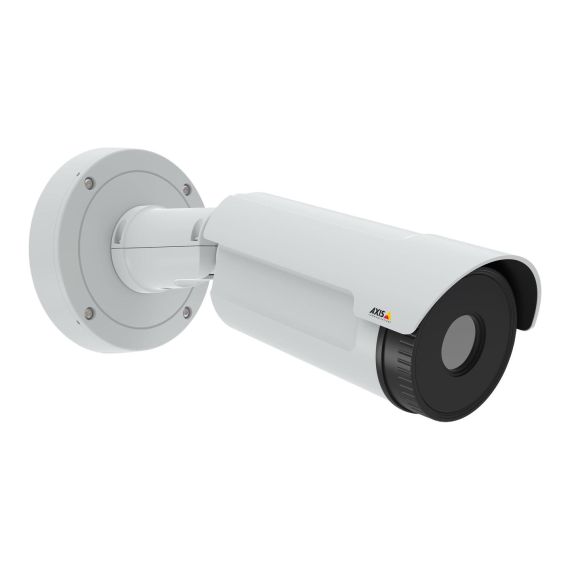

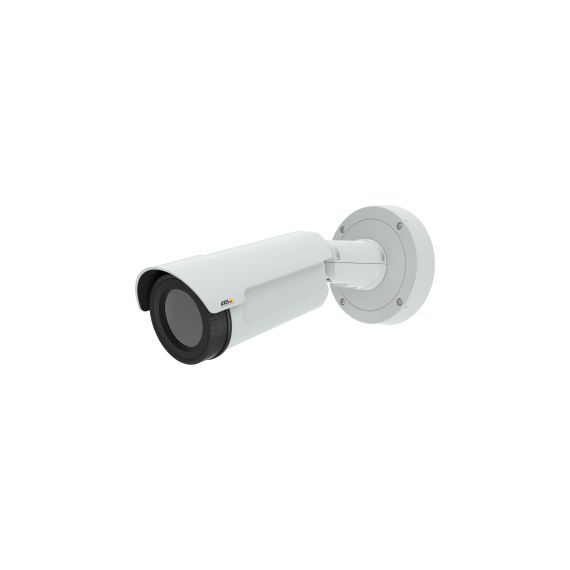

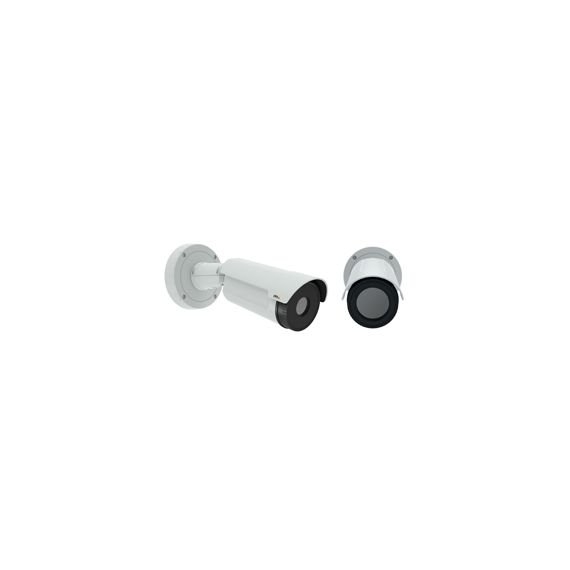

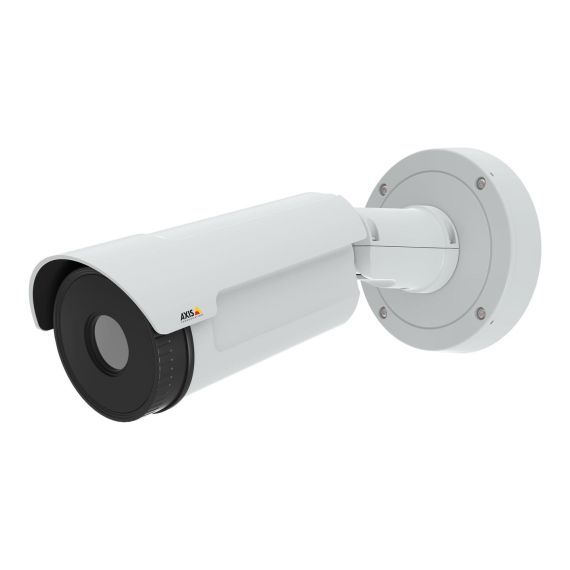

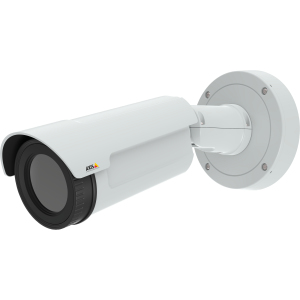

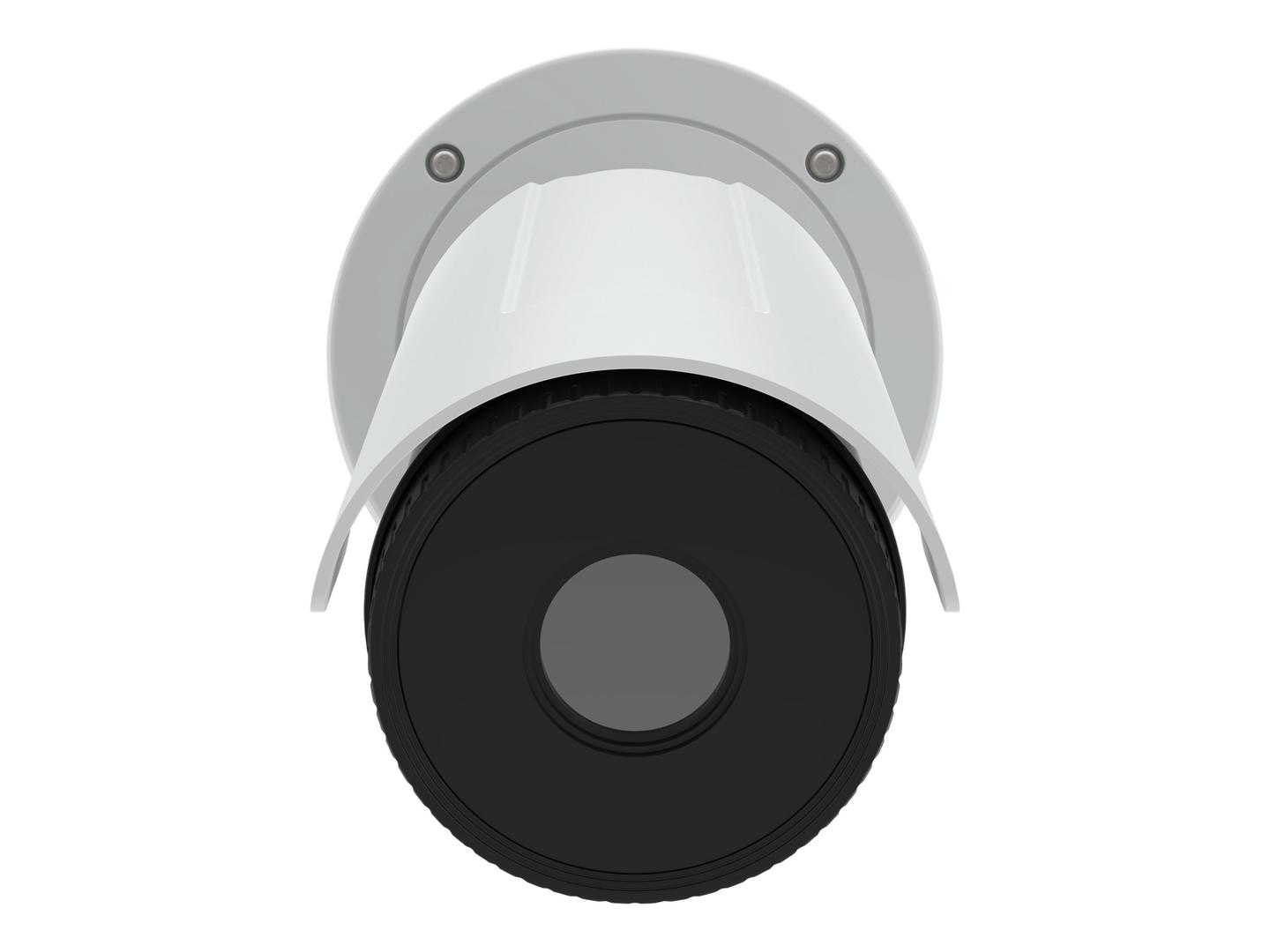

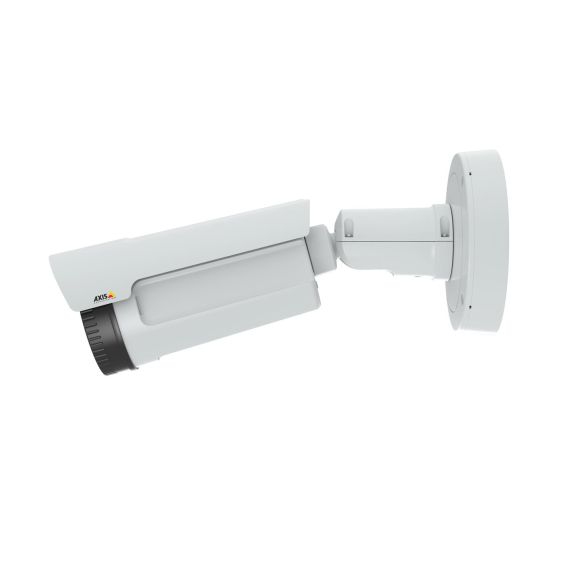

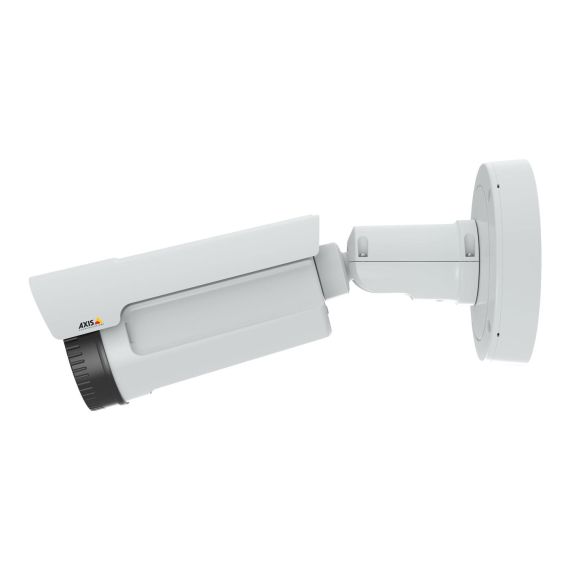

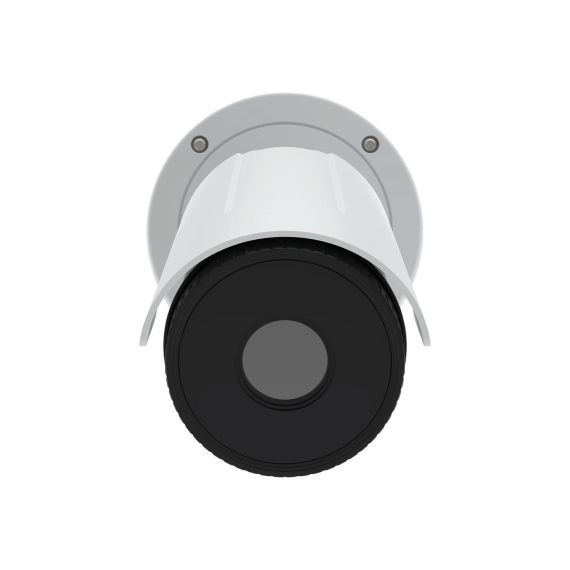

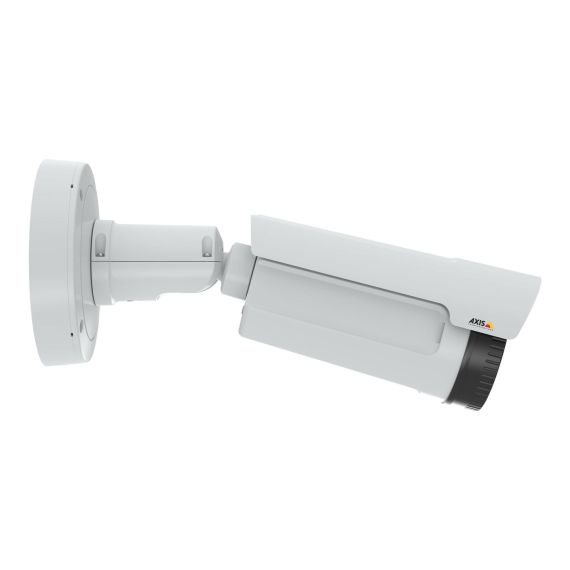

AXIS Q1942-E (60mm 30 fps) - Thermal network camera - outdoor - weatherproof - colour - 640 x 480 - fixed focal - audio - LAN 10/100 - MJPEG, H.264, MPEG-4 AVC - DC 8 - 28 V / AC 20 - 24 V / PoE | 0922-001
Please sign in so that we can notify you about a reply
Special Fetures
- VGA resolution
- High performance for video analytics
- Reliable detection and fast verification
- Electronic Image Stabilization
- Axis' Zipstream technology
Product Specification
| Device Type | Thermal network camera |
| Audio Support | Yes: two-way audio capability |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 34.4 cm |
| Depth | 14.6 cm |
| Height | 14.6 cm |
| Weight | 2.2 kg |
| Camera | |
| Type | Colour - fixed - outdoor - weatherproof |
| Digital Video Format | MJPEG, H.264, MPEG-4 AVC |
| Max Digital Video Resolution | 640 x 480 |
| Motion Detection | Yes |
| Video Capture | 640 x 480 @ 30 fps |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Features | Sharpness control, digital image rotation, brightness control, contrast control, image mirror, heater, ONVIF support, Privacy Mask Function, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, password protection, Variable Bitrate (VBR), Zipstream technology |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 60 mm |
| Lens Iris | F/1.25 |
| Horizontal Field of View (degree) | 10 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 <br /> Audio line in <br /> Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Included Accessories | Wall mount bracket, ceiling mount bracket |
| Compliant Standards | CISPR 22 Class A, EN55024, EN55022 Class A, IEC 60529 IP66, IEC 60529 IP67, EN 61000-6-1, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-52, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, RCM, IEC 60950-22, EN 60950-22, UL 60950-22, IEC 60721-3-4, KN32, KN35 |
| Colour | White |
| Power | |
| Power Requirements | DC 8 - 28 V / AC 20 - 24 V / PoE |
| Power Device | 4.8 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 10 - 100% |
Features - AXIS - 0922-001
More Details
Product Code
B092544
EAN Code
7331021052390
Manufacturer
AXIS
