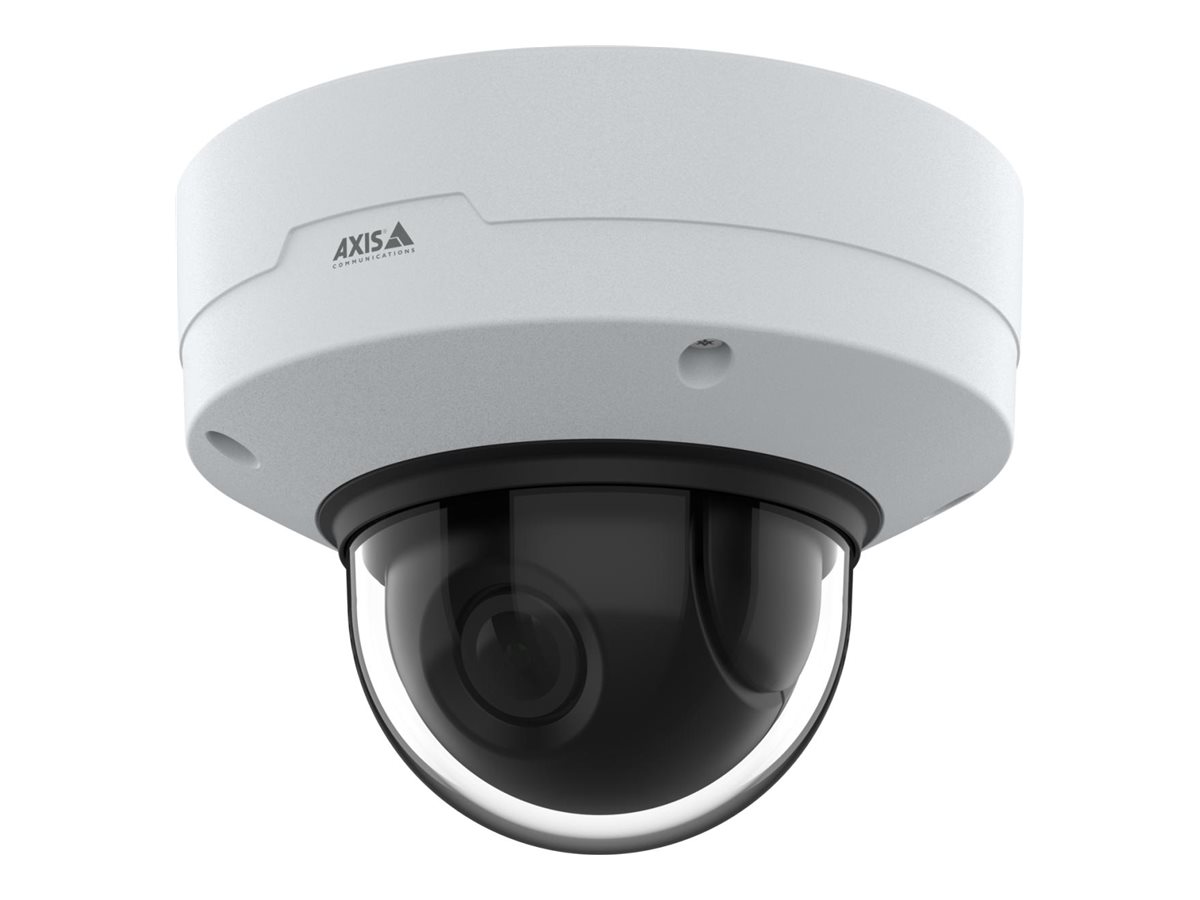

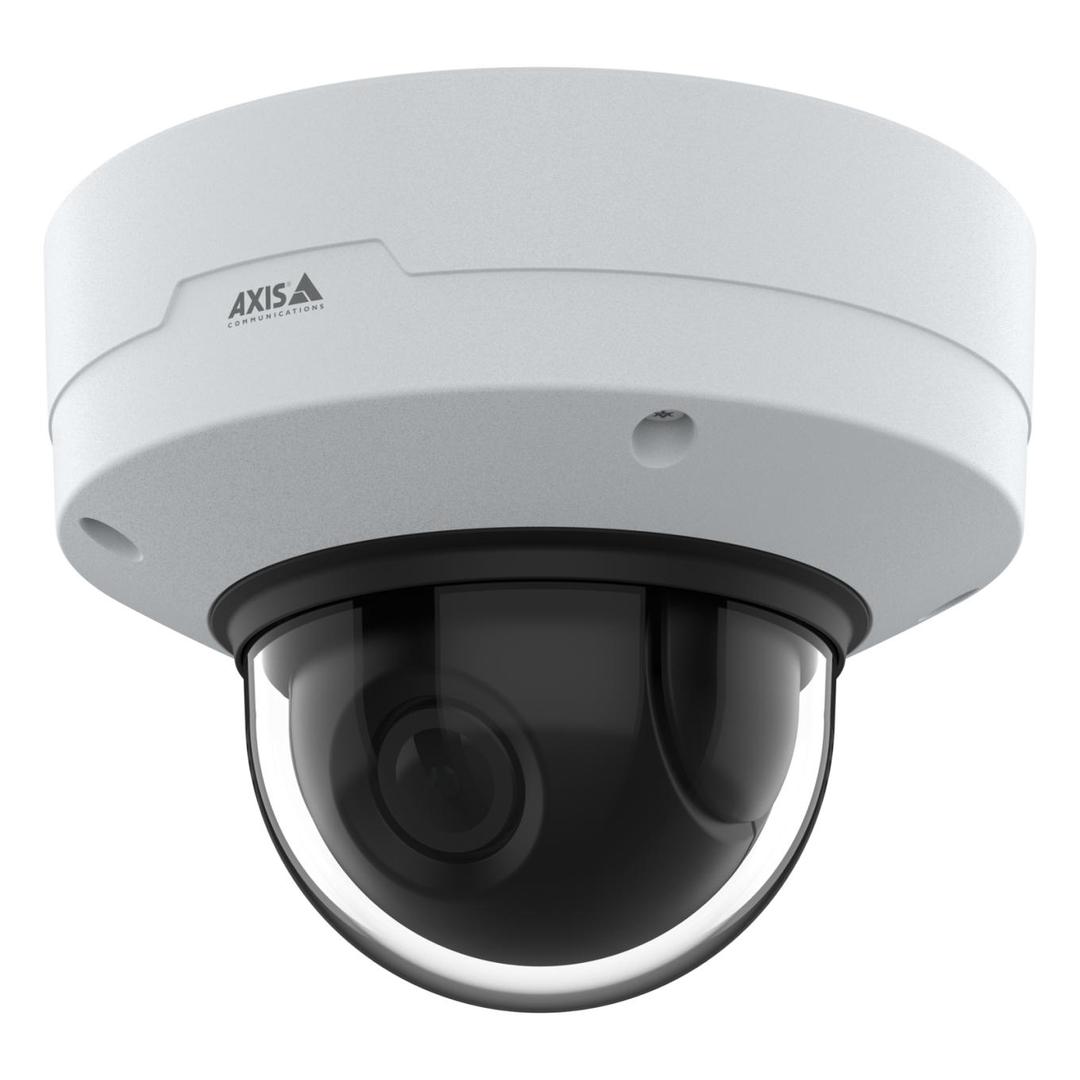

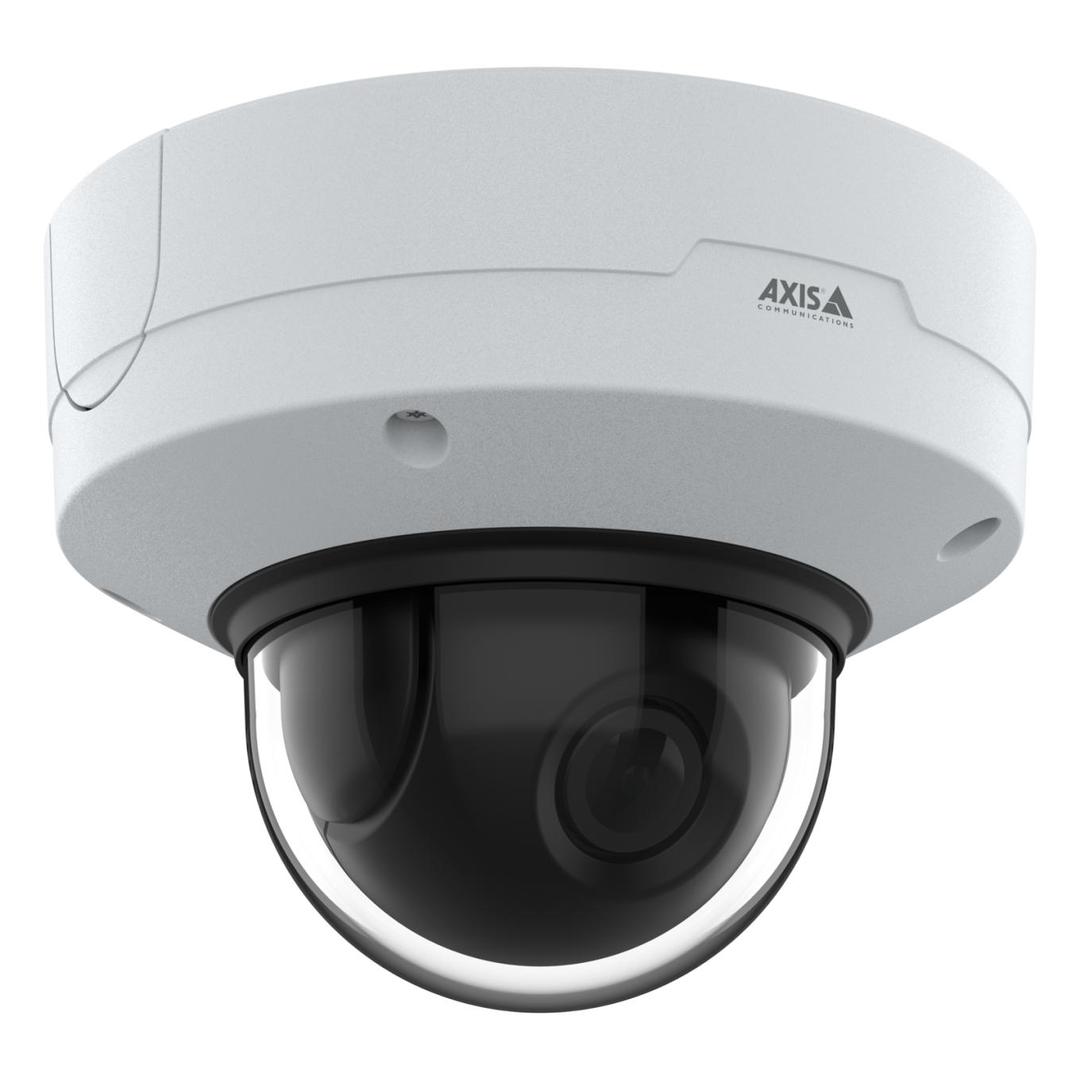

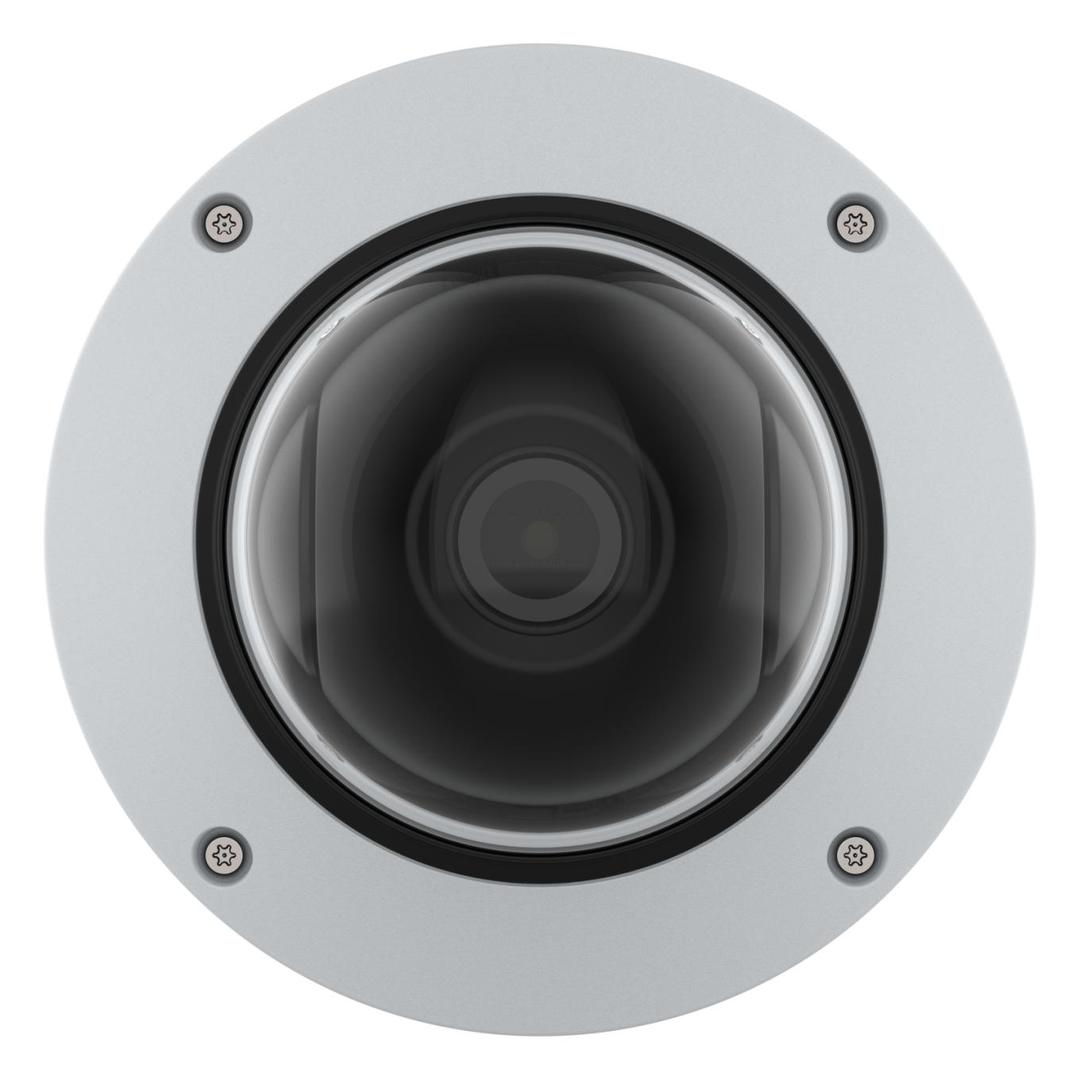

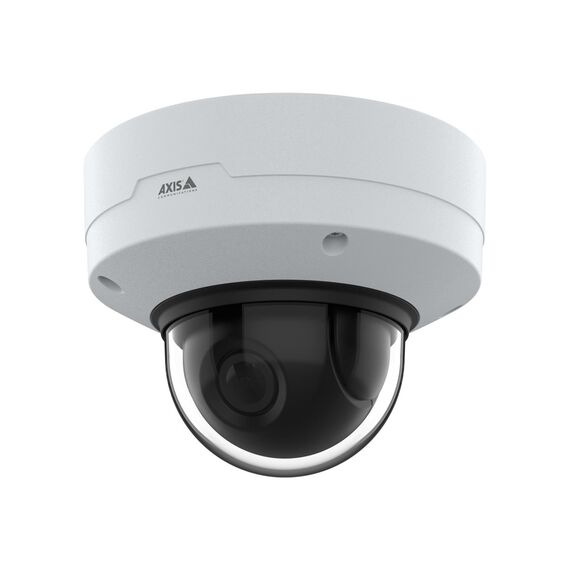

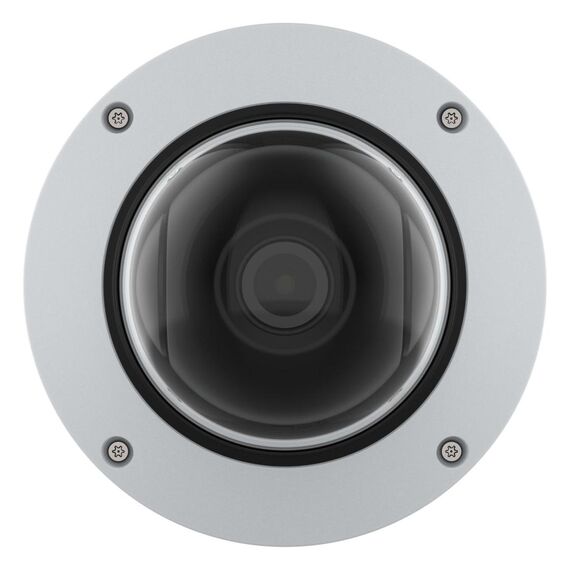

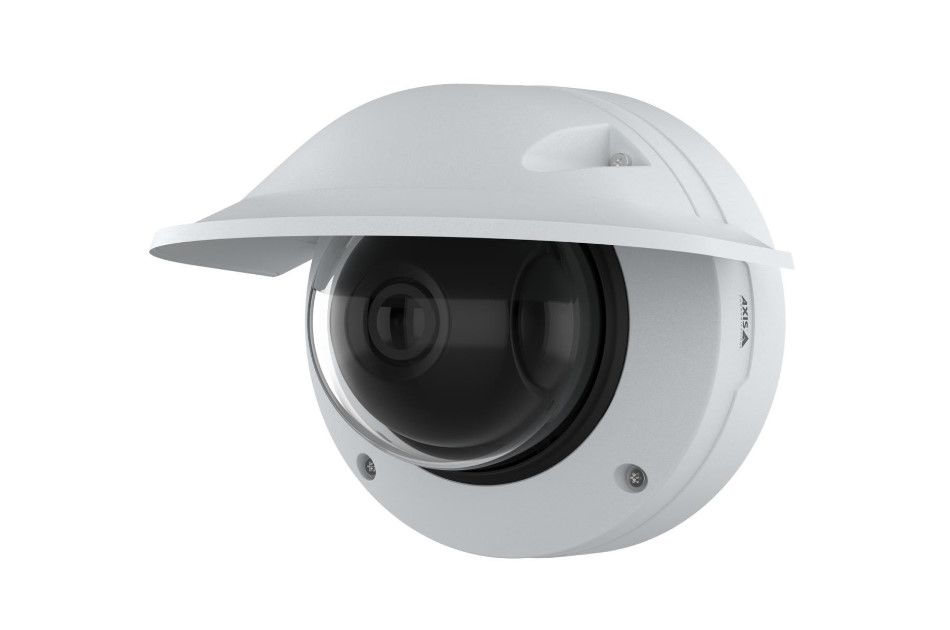

AXIS Q3626-VE - Network surveillance camera - dome - outdoor - vandal / weatherproof - colour (Day&Night) - 4 MP - 2688 x 1512 - M25 mount - vari-focal - audio - wired - GbE - MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 - DC 10 - 28
Please sign in so that we can notify you about a reply
Product Features
- Remotely adjust the field of view
This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes - without the need to dispatch a technician ensuring less disruption and downtime. - Outstanding image quality
AXIS Q3626-VE offers outstanding image quality and forensic details in 4 MP resolution - even in low light. Plus, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before - on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects. - Robust and ready for tough environments
This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system. For instance, Axis edge vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.
Special Fetures
- Outstanding image quality in 4aMP
- Remote adjustment of the camera angle
- Analytics with deep learning
- Electronic image stabilization
- Axis edge vault
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 18.4 cm |
| Depth | 18.4 cm |
| Height | 14.1 cm |
| Weight | 2.1 kg |
| Localisation | Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, Europe |
| Camera | |
| Type | Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 2688 x 1512 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/91000 sec |
| Minimum Illumination | 0.06 lux - colour - F1.5 - 50 IRE ¦ B&W |
| Digital Video Capture Resolution | 160 x 120, 2016 x 1512, 2688 x 1512, 1280 x 800, 160 x 90, 160 x 100 |
| Frame Rate (max) | 60 frames per second |
| RAM | 2048 MB |
| Flash Memory | 8194 MB |
| Features | Sharpness control, white balance, saturation control, brightness control, contrast control, image mirror, heater, ONVIF support, 2D Noise Reduction Technology, 3D Noise Reduction Technology, NAS-Ready, Video Motion Detection Technology, active tampering alarm, digital PTZ function, IR Corrected lens, Variable Bitrate (VBR), Audio Detection, Zipstream technology, remote focus, image overlay, infrared-cut filter, Line Crossing Detection, CorridorView, Vehicle Detection, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone, human detection, bit rate control, aluminium housing, Adaptive Bitrate (ABR), auto AGC, Lightfinder 2.0 technology, day/night threshold, defogging, compression, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, low latency mode, crossing counter, remote zoom, object stops in area detection, AXIS Object Analytics, Multi-Bitrate (MBR), video streaming indicator, deep learning processing unit (DLPU), dynamic text overlay, tone mapping, exposure mode, barrel distortion correction, network speaker pairing, target aperture, polycarbonate bubble, occupancy counting |
| Image Sensor | |
| Type | 4 MP PS RGB CMOS 1/1.8" |
| Lens Construction | |
| Type | M25 mount - vari-focal |
| Optical Zoom | 2 x |
| Focal Length | 4.3 mm - 8.6 mm |
| Lens Iris | F/1.5-2.4 |
| Focus Adjustment | Automatic |
| Min Focus Distance | 50 cm |
| Horizontal Field of View (degree) | 52 - 103 |
| Vertical Field of View (degree) | 30 - 56 |
| Panning | |
| Range (degree) | -190 to +190 |
| Tilting | |
| Range (degree) | -8 to +75 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS, RTSPS, HSTS |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Digital input/output - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | TLS, PEAP, FIPS 140-2, PKI, EAP-TLS, MSCHAPv2 |
| Miscellaneous | |

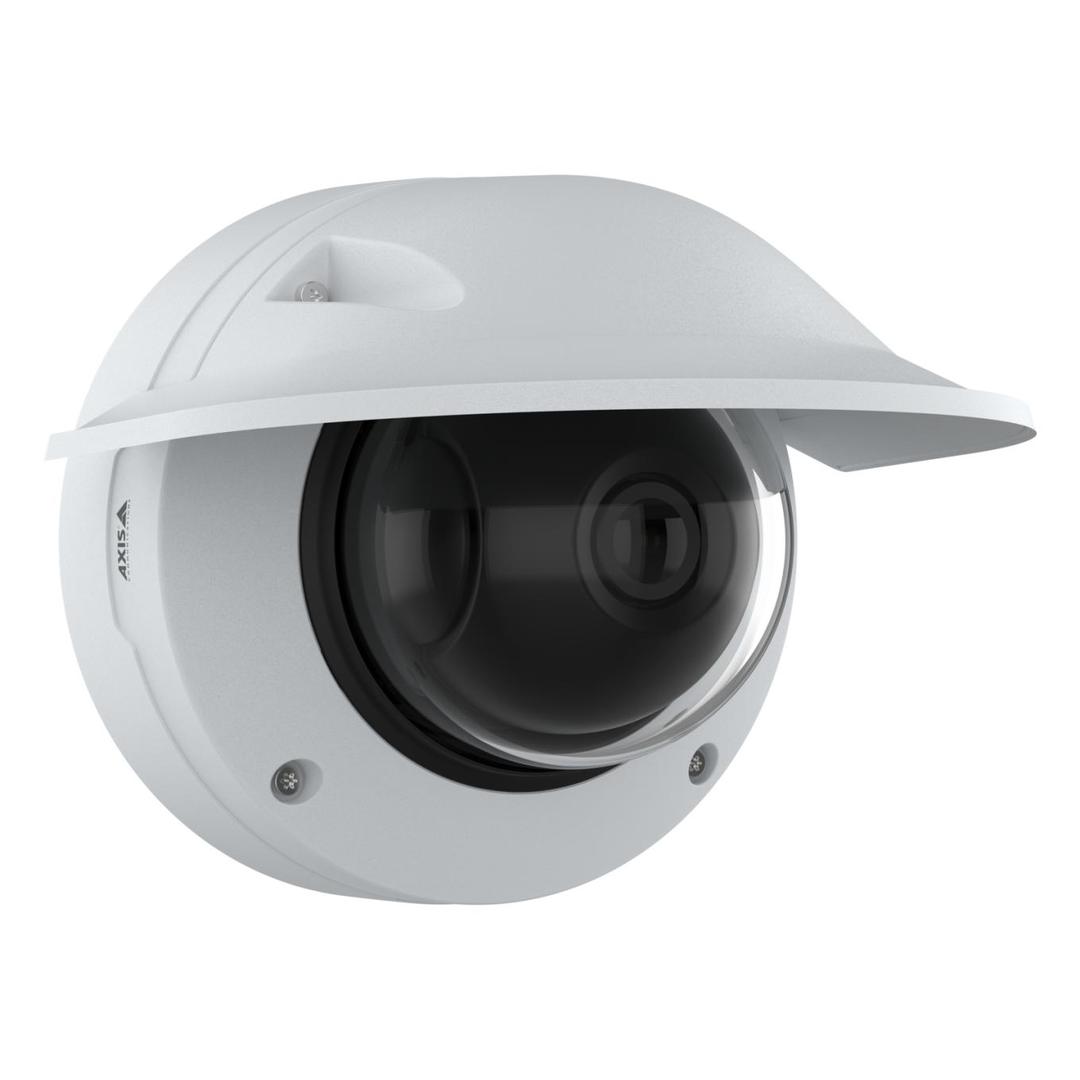

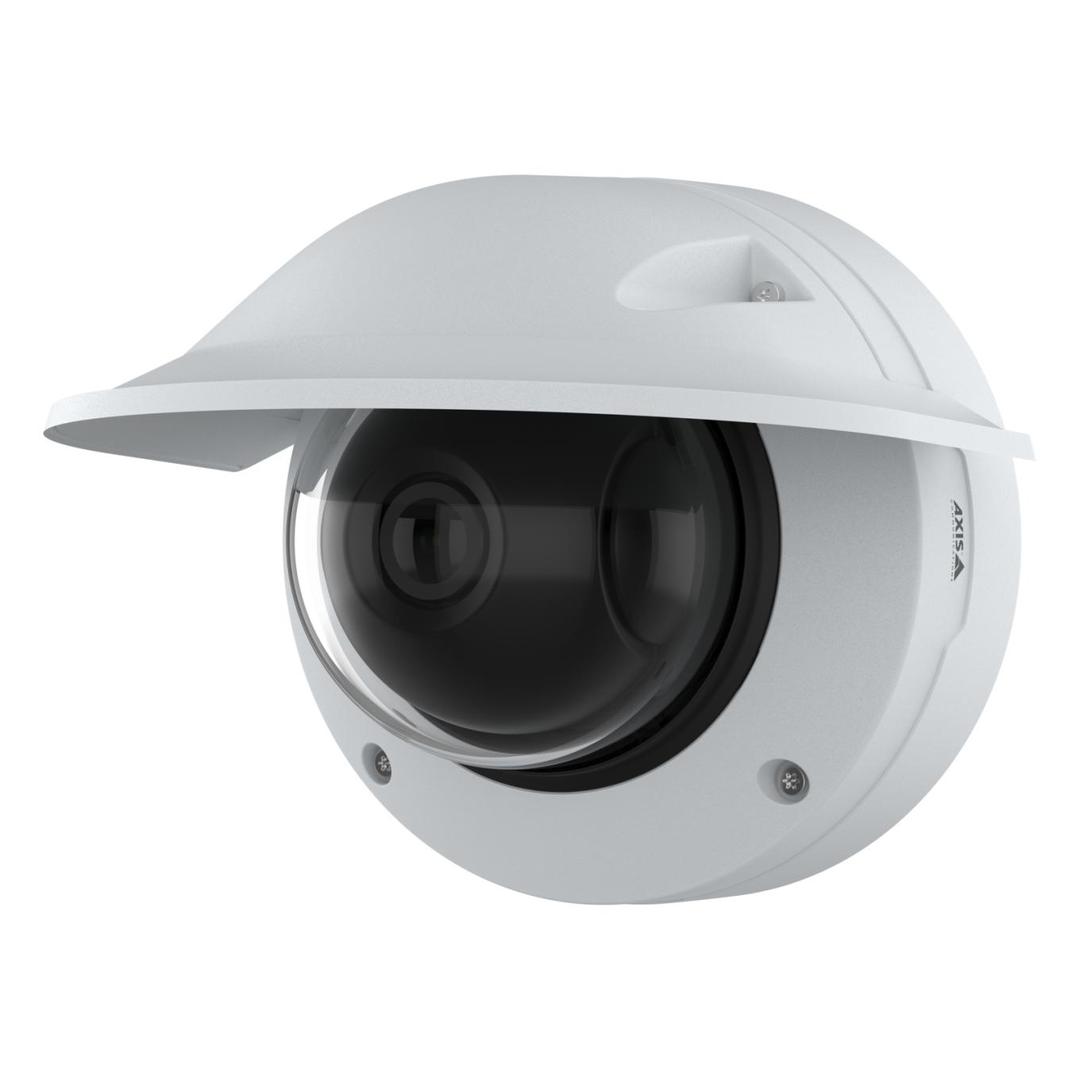

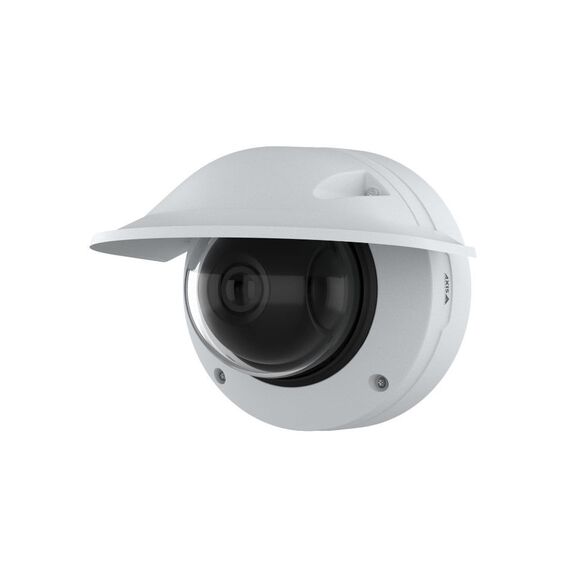

| Included Accessories | Mounting bracket, weathershield, connector guard, cable gasket, Resitorx TR20 screw bit, conduit adapter, terminal block connectors, owner authentication key |
| TAA Compliant | Yes |
| Compliant Standards | CSA, VCCI, EN 61000-6-1, FIPS 140-2 Level 2, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, X.509, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, TLS v1.2, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, ISO 21207 method B, ISO 20653, CISPR 32 Class A, IEEE 802.3at, EN 55035, CISPR 35, IEC/EN 60529 IP66, JEDEC, IEEE 802.1x, PVC-free, IP6K9K, NIST SP500-267, ECA, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, NEMA TS-2 (2.2.7-2.2.9), UKCA, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, UL/cUL, TLS v1.3, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, CFR free, ROHS Directive 2011/65/EU, IS 13252, IEEE 802.1ar, REACH 1907/2006/CE |
| Colour | White, NCS S 1002-B |
| Power | |
| Power Requirements | DC 10 - 28 V / PoE Plus Class 4 |
| Power Device | 7 Watt |
| Software / System Requirements | |
| Software Included | AXIS Device Manager, AXIS Live Privacy Shield, AXIS Site Designer |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -50 °C |
| Max Operating Temperature | 55 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
Features - AXIS - 02616-001
More Details
Product Code
07:453866
EAN Code
7331021080133
