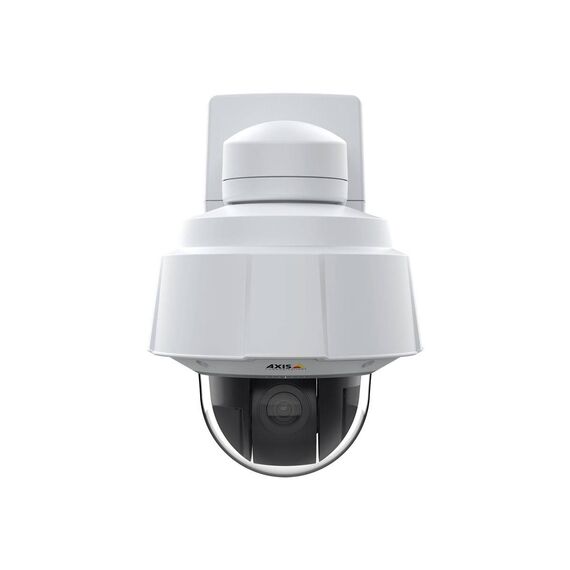

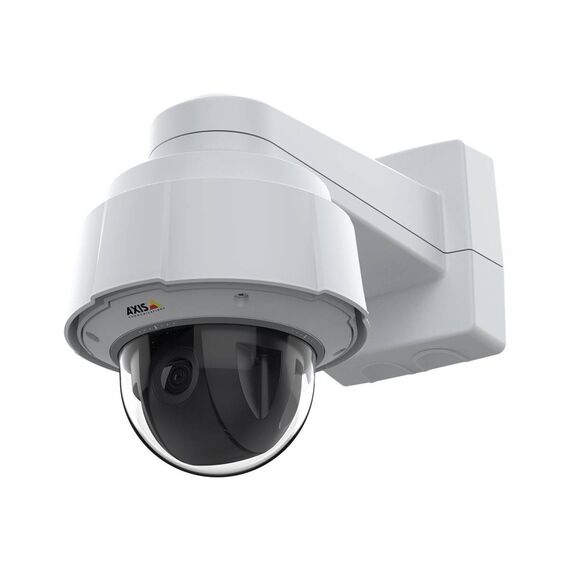

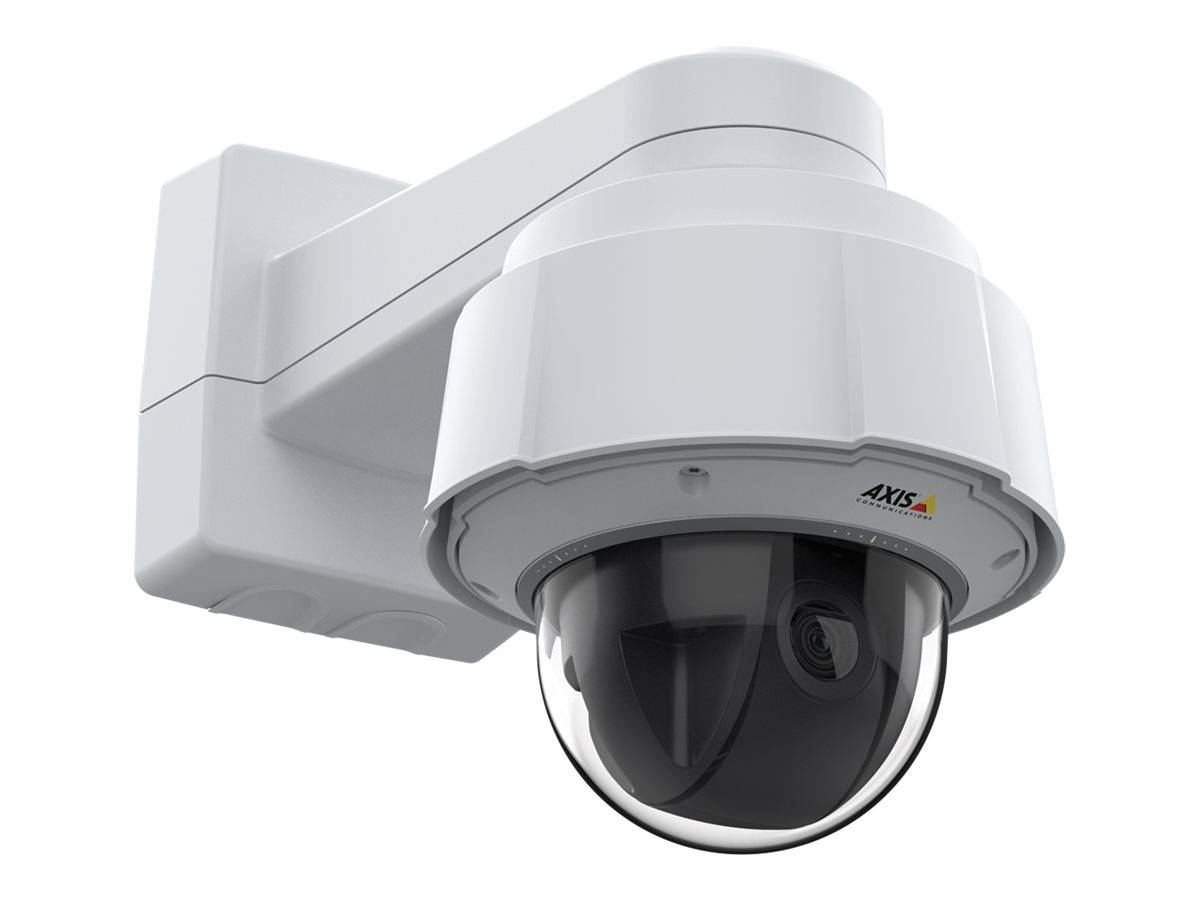

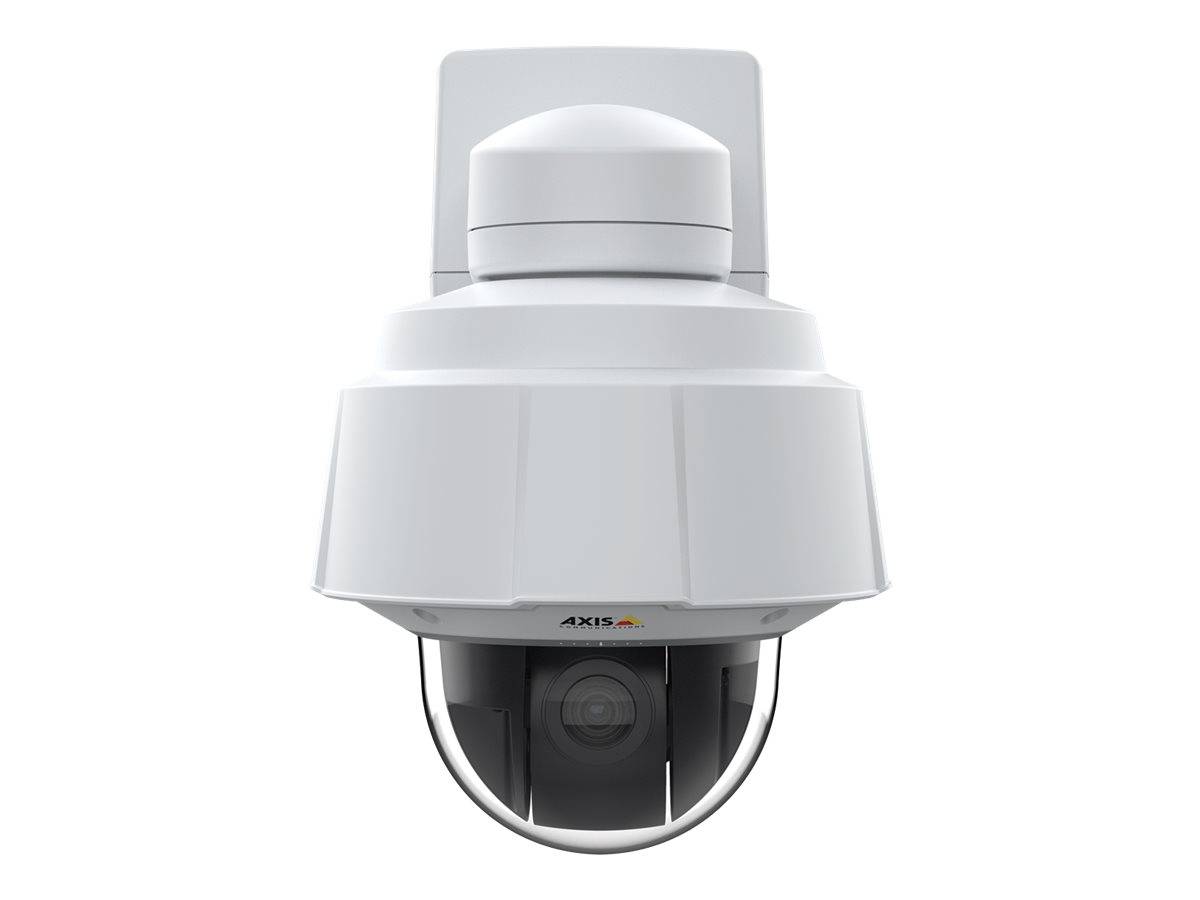

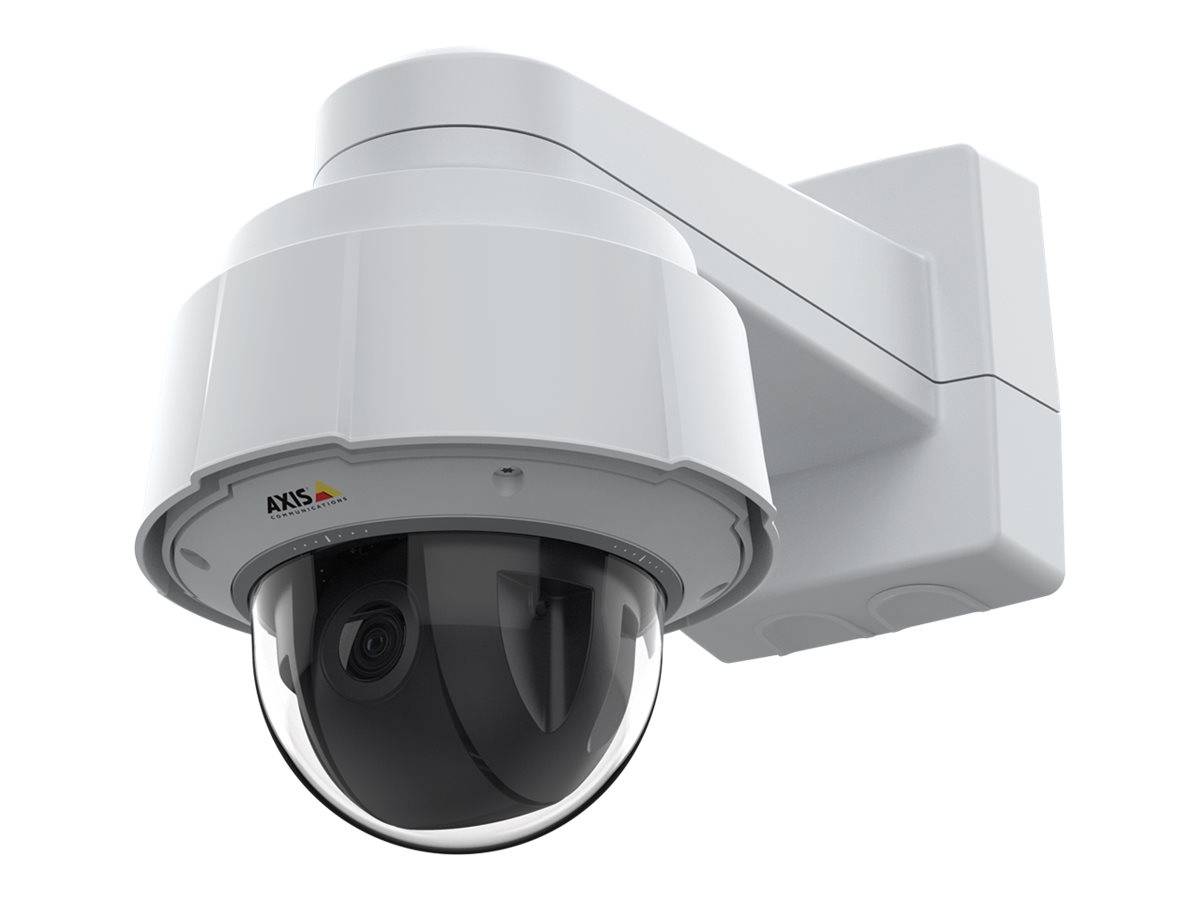

AXIS Q60 Series Q6078-E 50 Hz / Network surveillance camera / PTZ / dome / outdoor / dustproof / weatherproof / vandal-proof / colour (Day&Night) / 8 MP / 3840 x 2160 / 2160p, 4K / motorized / GbE / MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 / Hi | 02147-002
Please sign in so that we can notify you about a reply
Product Features
- Great overviews and superior detail
Based on a powerful Axis chipset, AXIS Q6078-E offers UHD 4K resolution and 20x optical zoom for outstanding video quality. Ideal for wide-area coverage, it delivers great overviews, and you can zoom in for detailed views with the clearest, sharpest colors. Featuring Axis Zipstream technology with support for H.264 and H.265 it preserves all the important forensic details while significantly reducing bandwidth and storage requirements. - Whenever, wherever it's needed
This outdoor, vandal-resistant camera is IP66, NEMA 4X, and IK10-rated to protect against dust, rain, snow, and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. Additionally, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Furthermore, AXIS Q6078-E features AXIS Object Analytics allowing you to detect and classify humans and vehicles, all tailored to your specific needs. - Designed with cybersecurity in mind
AXIS Q6078-E is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
Special Features
- UHD 4K with 20x optical zoom
- Outstanding images with great details
- Zipstream with support for H.264/H.265
- AXIS Object Analytics
- Built-in cybersecurity features
Product Specification
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 23.2 cm |
| Depth | 23.2 cm |
| Height | 27.1 cm |
| Weight | 3.75 kg |
| Localisation | United Kingdom, Europe |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt / zoom - outdoor - dustproof / weatherproof / vandal-proof |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 2160p, 4K |
| Digital Zoom | 12 |
| Exposure Range | 1 sec - 1/10000 sec |
| Minimum Illumination | 0.2 lux - colour - F2.0 - 30 IRE ¦ 0.002 lux - B&W - F2.0 - 30 IRE |
| Video Capture | 3840 x 2160 @ 25 fps |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), sharpness control, digital image rotation, digital image freeze, white balance, colour control, progressive scanning, brightness control, Wide Dynamic Range (WDR), Privacy Mask Function, Arctic Temperature Control, 256 preset positions, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, notification picture to E-mail, notification picture to FTP, password protection, e-Flip, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Line Crossing Detection, Vehicle Detection, IP address filtering, tour recording, guard tour, human detection, auto tracking 2.0, multiple stream encoding, object enter area detection, aluminium housing, signed firmware, secure boot, TPM 2.0 module, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, compression, text overlay, polygon privacy mask, Machine learning processing unit (MLPU) |
| Image Sensor | Image Sensor |
| Type | 8 MP PS CMOS 1/2.5" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 (P-Iris) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 4.2 - 68.3 |
| Vertical Field of View (degree) | 2.34 - 42.1 |
| Panning | Panning |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 450 |
| Tilting | Tilting |
| Range (degree) | 220 |
| Speed (degree/sec) | Up to 450 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, NTCIP, USGv6, MQTT |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Sunshield, AXIS High PoE Midspan (1 port), IP66-rated RJ45 connector kit |
| Compliant Standards | UL, VCCI, cUL, EN 61000-3-2, GS, EN 61000-3-3, CB, EN 61000-6-1, FIPS 140-2 Level 2, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, EN 60950-1, KCC, IEC 60068-2-27, IEC 60068-2-6, UL-AR, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, ISO 4892-2, IEC 62262 IK10, IEC 60068-2-60, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267, IEC/EN 60529 IP67 |
| Colour | Clear lower dome |
| Power | Power |
| Power Requirements | High PoE |
| Power Device | Power injector - external AC 100-240 V 51 Watt |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -50 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 100% RH |
Features - AXIS - 02147-002
More Details
Product Code
07:451943
EAN Code
7331021073678
Manufacturer
AXIS
