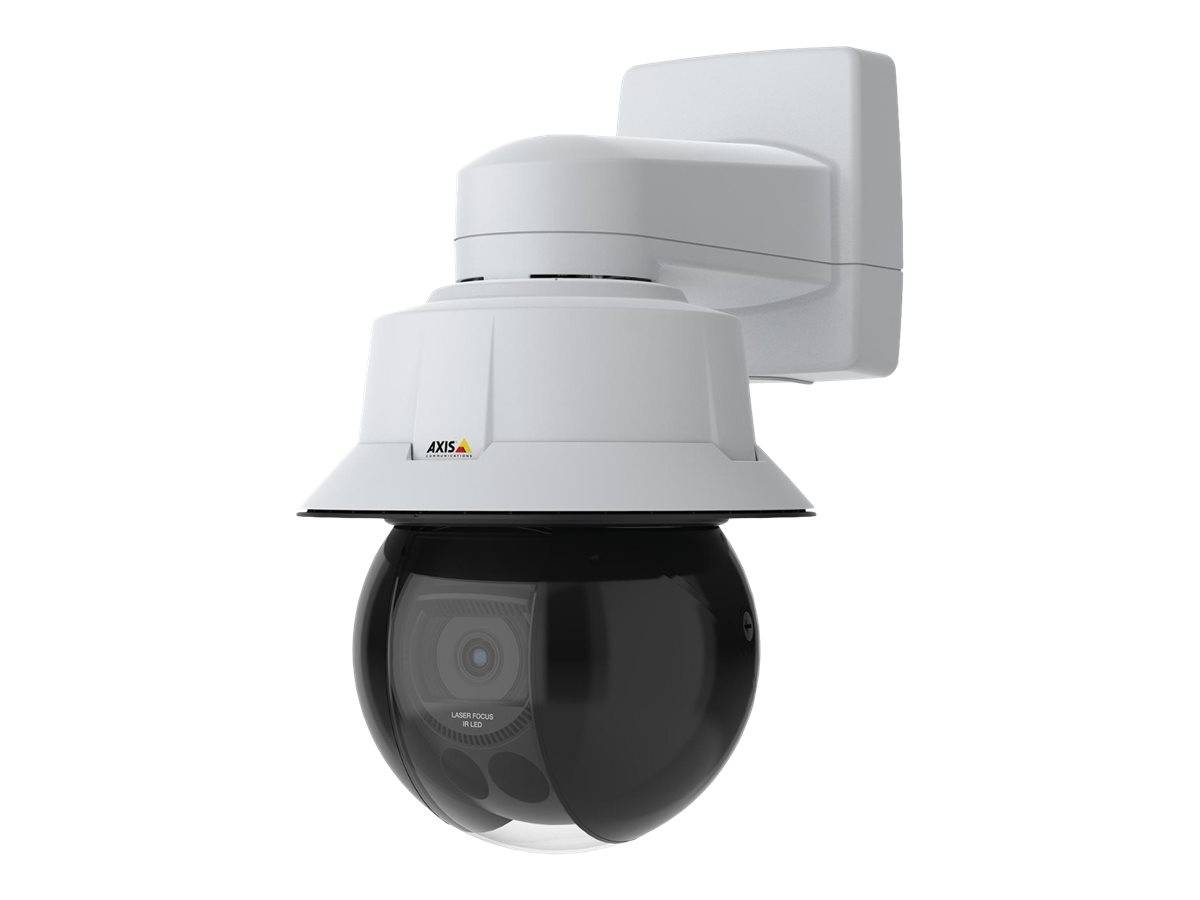

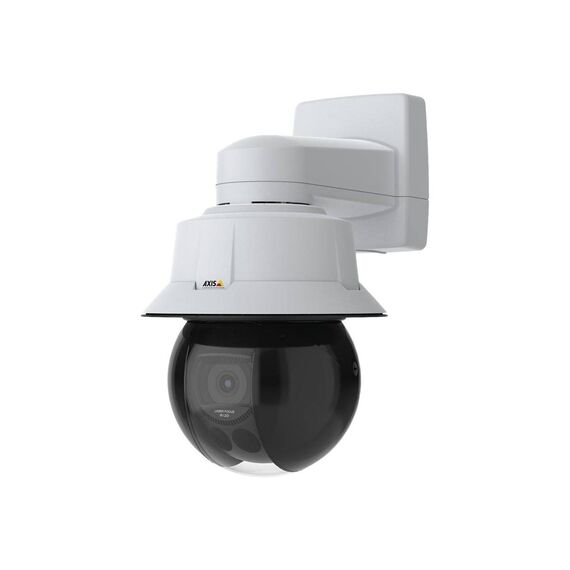

AXIS Q6318-LE 50 Hz / Network surveillance camera / PTZ / outdoor / vandal / weatherproof / colour (Day&Night) / 3840 x 2160 / 4K / auto iris / motorized / GbE / MJPEG, H.265, H.264B, H.264H, H.264M / High PoE Class 6 | 02446-002
Please sign in so that we can notify you about a reply
Product Features
- Super surveillance- day and night
AXIS Q6318-LE offers superior 4K UHD resolution for great detail. It features a 1/2" sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. And, with IR Illumination and D/N functionality, it's perfect for surveillance in pitch darkness. Featuring 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6318-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus for precise focus - every time. Furthermore, Zipstream with H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. - Built-in advanced analytics
This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. With AXIS Object Analytics, you can detect and classify humans and vehicles tailored to your surveillance needs. Autotracking 2 with click and track functionality allows for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Furthermore, privacy masking is ideal in areas where privacy must be kept. For instance, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. - Cost-effective and secure
This IP66-rated, vandal-resistant camera is protected against the ingress of dust and high-pressure water jets from any direction. Plus, shock detection sends an alarm when the camera's been hit. It can withstand extreme temperatures ranging from -50°C to 74°C (-58°F to 165°F) according to NEMA TS2. Additionally, the camera has two temperature zones for saving energy, especially useful when using solar panels or batteries to power the camera. Simply choose between two different temperature ranges for more cost-effective operations. Furthermore, it supports fiber connection and PoE, and includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.
Special Features
- 1/2" sensor with 31x optical zoom
- IR illumination, D/N functionality
- Laser focus for precise focus
- AXIS Object Analytics, Autotracking 2
- TPM, FIPS 140-2 level 2 certified
Product Specification
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 19.2 cm |
| Depth | 19.2 cm |
| Height | 26.1 cm |
| Weight | 4.8 kg |
| Localisation | European Union |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.265, H.264B, H.264H, H.264M |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K |
| Digital Zoom | 12 |
| Exposure Range | 1/5 sec - 1/8500 sec |
| Minimum Illumination | 0.11 lux - colour - F1.36 - 30 IRE ¦ 0.001 lux - B&W - F1.36 - 30 IRE ¦ 0 lux - IR ¦ 0.25 lux - colour - F1.36 - 50 IRE ¦ 0.009 lux - B&W - F1.36 - 50 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 200 m |
| Digital Video Capture Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Advanced Gatekeeper, Privacy Mask Function, Electronic Image Stabilizer (EIS), password protection, Variable Bitrate (VBR), OptimizedIR, 300 preset positions, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, Sharpdome technology, laser focus, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, tour recording, guard tour, on-screen directional indicator, adjustable zoom speed, aluminium housing, signed firmware, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, autotracking 2, Nadir flip, low latency mode, memory card encryption, user access log, centralised certificate management, brute force delay protection, Machine learning processing unit (MLPU), Trusted Platform Module (TPM), ONVIF (Profile M) support, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, secure keystore, video streaming indicator, control queue, signed video, quick-zoom, speed dry, set new pan 0°, orientation aid PTZ |
| Image Sensor | Image Sensor |
| Type | PS CMOS 1/2" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 31 x |
| Focal Length | 6.91 mm - 214.64 mm |
| Lens Iris | F/1.36-4.6 auto iris (P-Iris) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2.3 - 58.5 |
| Vertical Field of View (degree) | 1.4 - 34.9 |
| Panning | Panning |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 550 |
| Tilting | Tilting |
| Range (degree) | -90 to +20 |
| Speed (degree/sec) | Up to 500 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, NTCIP, Zeroconf, USGv6, MQTT, Syslog, NTS, RTSPS |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Template, IP66-rated RJ45 connector kit, paint paper |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, FIPS 140-2 Level 2, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, EAL 4+, AES-256, X.509, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, EAC, IEC 60825-1 Class 1, TLS v1.2, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN 62471, ISO 21207 method B, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP67, NEMA TS-2 (2.2.7-2.2.9), TLS v1.3, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, IS 13252, IEEE 802.1ar |
| Colour | White, NCS S 1002-B |
| Power | Power |
| Power Requirements | High PoE Class 6 |
| Power Device | Power injector - external AC 100-240 V 17 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence, AXIS Fence Guard, AXIS Video Motion Detection, AXIS Loitering Guard, AXIS Motion Guard, AXIS Object Analytics, AXIS OSDI Zones |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
Features - AXIS - 02446-002
More Details
Product Code
CF73566
EAN Code
7331021077379
Manufacturer
AXIS
