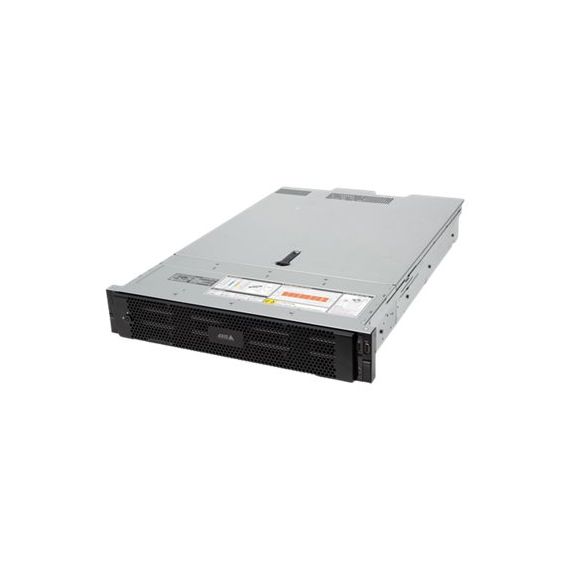

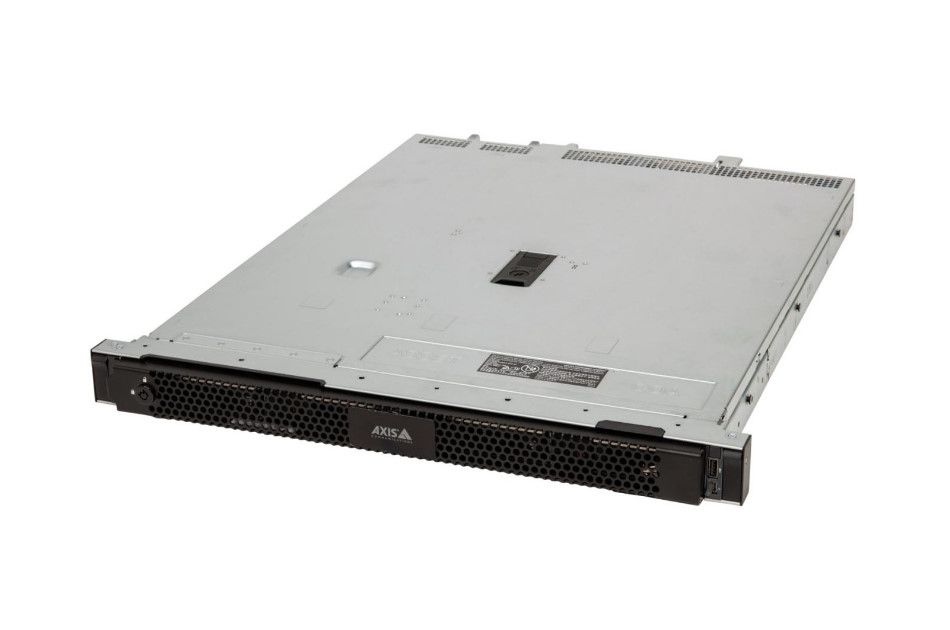

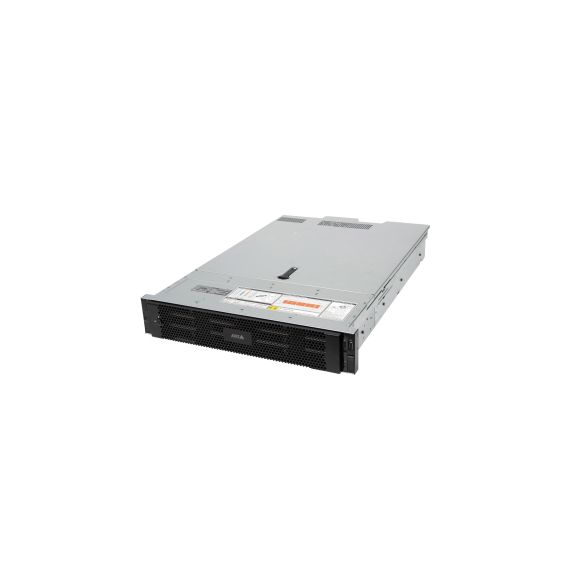

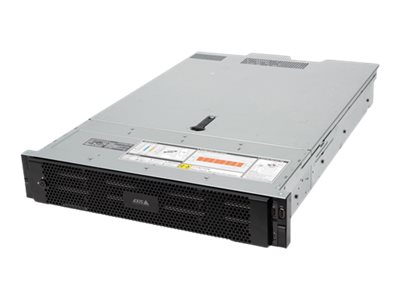

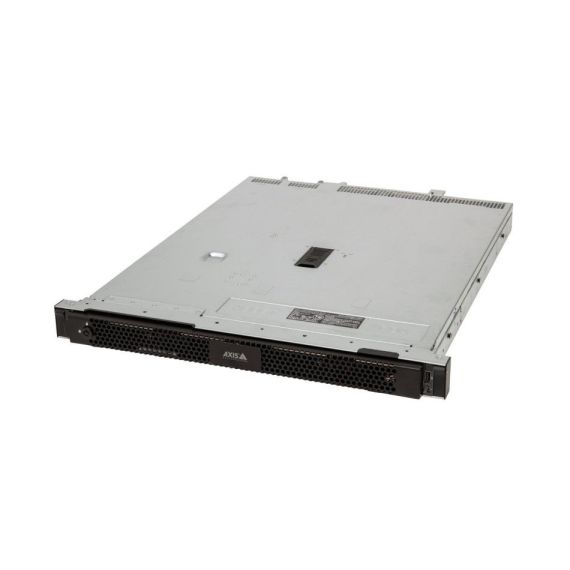

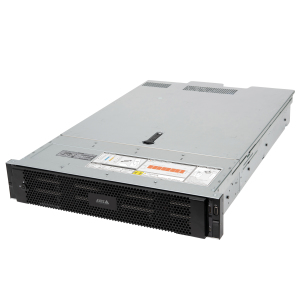

AXIS Camera Station S1232 - Server - rack-mountable - 1U - 1 x Xeon up to - RAM 16 GB - hot-swap - HDD 4 x 8 TB - Gigabit Ethernet - Win 10 IoT Enterprise 2021 LTSC - monitor: none - TAA Compliant | 02538-001
Please sign in so that we can notify you about a reply
Product Features
- Top class performance and reliability
Featuring powerful components, this high-performance recording server offers support for powerful applications and features. Thanks to a RAID controller with high cache memory, it minimizes the risk of recording gaps, downtime, and data loss. This secure device complies with government policies and uses a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. And, if the system crashes, built-in operating system recovery stored on the device ensures data can be quickly recovered. - Flexible, scalable solution
AXIS S1232 is ideal for demanding applications. With great scalability, it's easy to expand your system as it grows without the need for additional hardware. - Quality and ease-of-use
This reliable recording server comes preloaded with AXIS Camera Station licenses and pre-configured software, so there's no need to spend time selecting, configuring, and testing hardware. With an intuitive installation wizard and AXIS Recorder Toolbox, AXIS S1232 eliminates installation problems to help ensure every customer installation is trouble-free.
Special Fetures
- Scalable and powerful solution
- Top class performance and reliability
- Flexible, scalable solution
- Quality and ease-of-use
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 4 |
| Localisation | Region: Argentina, Australia, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Processor / Chipset | |
| CPU | Intel Xeon E |
| CPU Qty | 1 |
| RAM | |
| Installed Size | 16 GB |
| Configuration Features | 2 x 8 GB |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 4 x 8 TB |
| Features | RAID 5 - factory configured, Enterprise |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | 64 validated video channels |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 2.0 (1 in front) <br /> 1 x USB 2.0 (1 rear) <br /> 1 x USB 3.2 (1 rear) <br /> 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) <br /> 1 x VGA (1 rear) <br /> 1 x serial (1 rear) <br /> 1 x (1 front) (iDRAC Direct port) <br /> 1 x (1 rear) (iDRAC dedicated port) |
| Miscellaneous | |
| Included Accessories | Static rails |
| Cables Included | Power cable (C13-C14) (2 pcs.) |
| Compliant Standards | BSMI, EN 61000-3-2, EN 61000-3-3, ICES-003 Class A, FCC Part 2, FCC Part 15 A, FIPS 140-2 Level 1, EN 62311, NOM-019-SCFI-1998, AS/NZS CISPR 32 Class A, EN 55032 Class A, EN 55035, IEC/EN/UL 62368-1, NDAA, VCCI 32-1, KS C 9832 Class A, KS C 9835 |
| TAA Compliant | Yes |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 600 Watt |
| Power Consumption Operational | 158 Watt |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 2021 LTSC |
| Software | AXIS Camera Station (32 channels licence) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight | |
| Width | 59.9 cm |
| Depth | 48.2 cm |
| Height | 4.3 cm |
| Weight | 12.9 kg |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 80% (non-condensing) |
