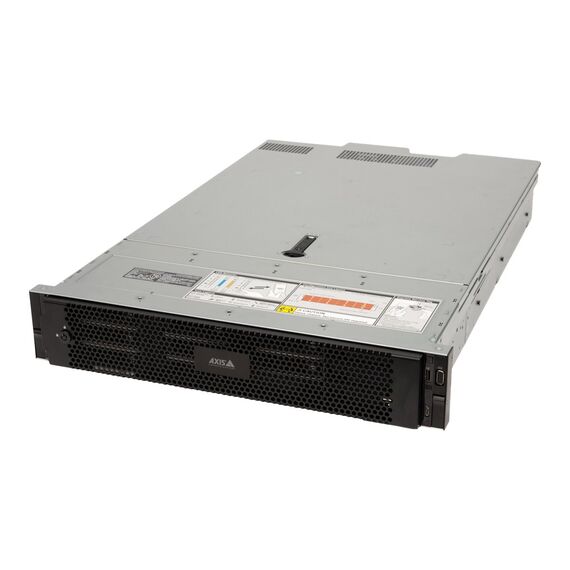

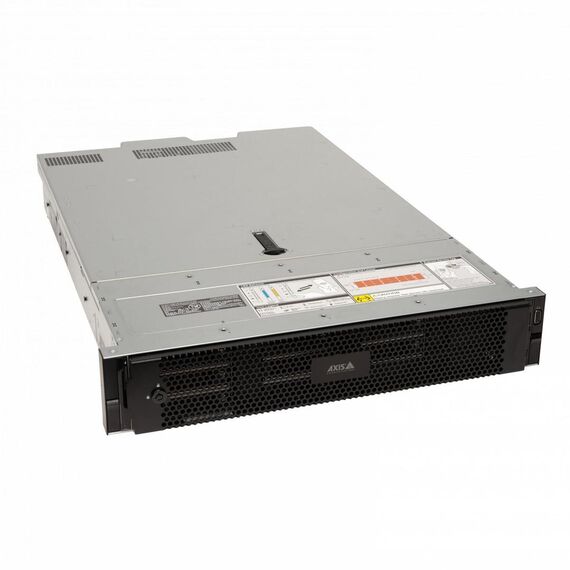

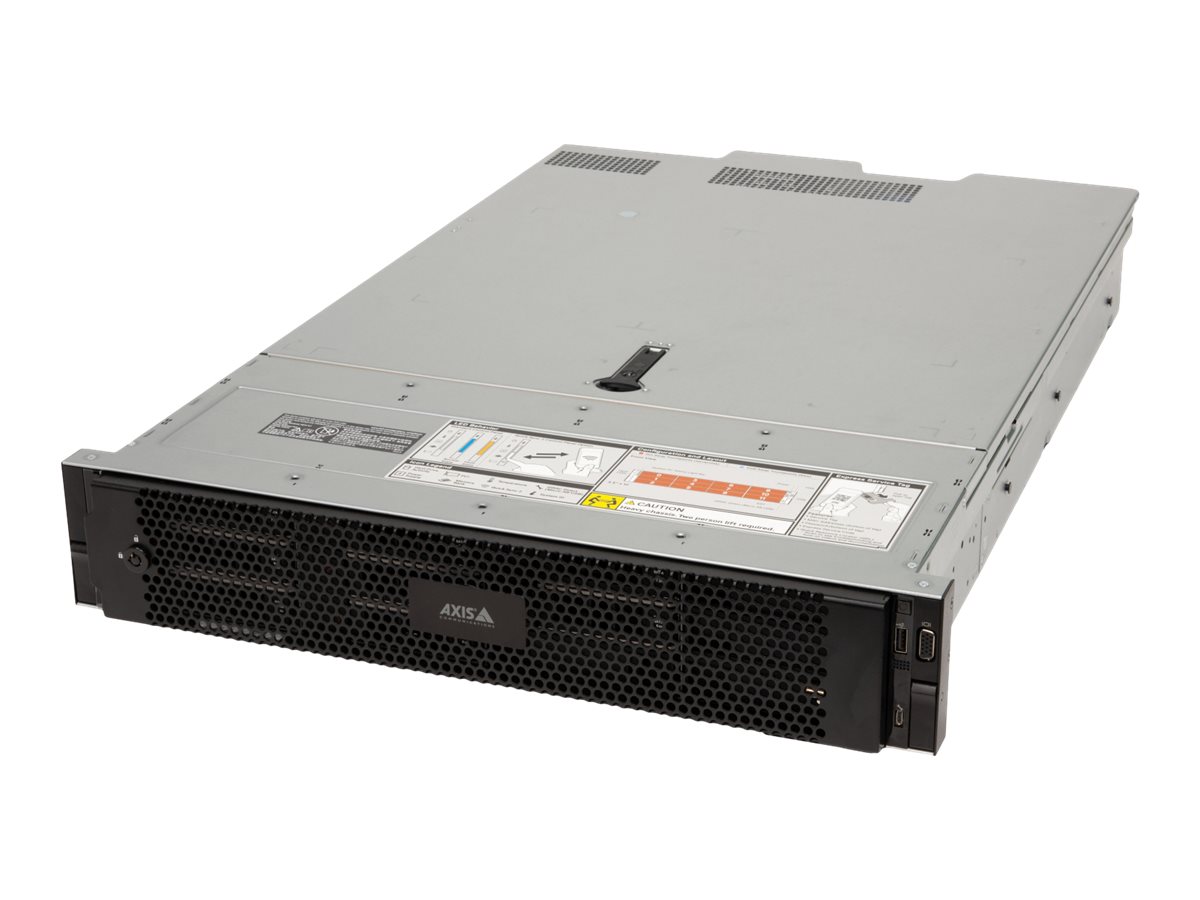

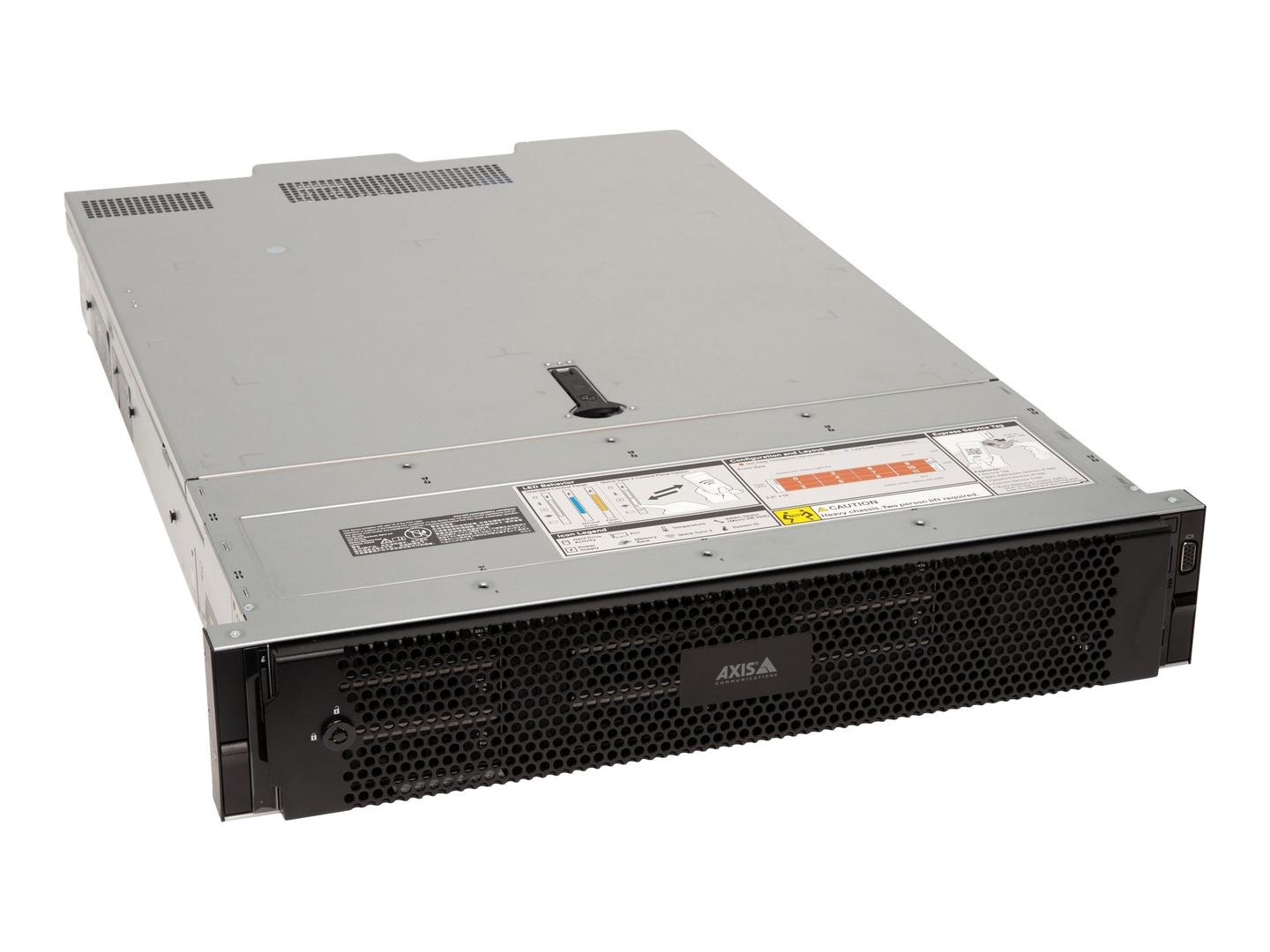

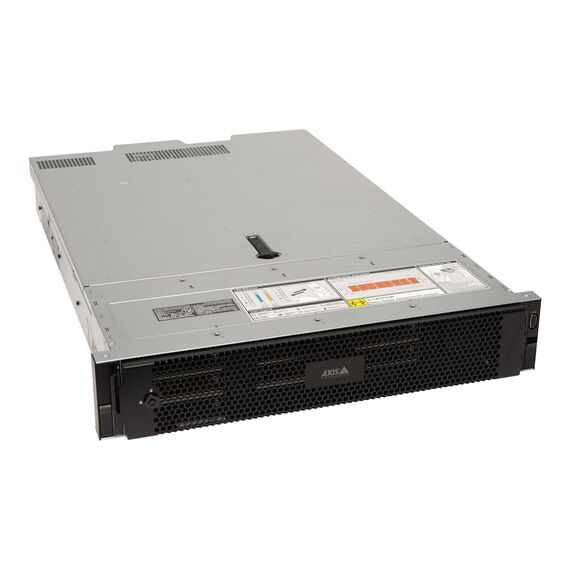

AXIS Camera Station S1264 Recorder - Server - rack-mountable - 2U - 1 x Xeon Silver up to - RAM 16 GB - hot-swap - HDD 6 x 4 TB, SSD 240 GB - Gigabit Ethernet - Win 10 IoT Enterprise 2021 LTSC - monitor: none | 02539-001
Please sign in so that we can notify you about a reply
Product Features
- Top class performance and reliability
Featuring powerful components, this high-performance recording server offers support for powerful applications and features. Thanks to a RAID controller with high cache memory, it minimizes the risk of recording gaps, downtime, and data loss. This secure device complies with government policies and uses a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. And, if the system crashes, built-in operating system recovery stored on the device ensures data can be quickly recovered. - Flexible, scalable solution
AXIS S1264 is ideal for demanding applications. With great scalability, it's easy to expand your system as it grows without the need for additional hardware.
Special Fetures
- Top class performance and reliability
- Flexible, scalable solution
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 12 |
| Localisation | Region: Argentina, Australia, Japan, India, Korea, Brazil, United Kingdom, United States, Europe |
| Processor / Chipset | |
| CPU | Intel Xeon Silver |
| CPU Qty | 1 |
| RAM | |
| Installed Size | 16 GB |
| Configuration Features | 2 x 8 GB |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 6 x 4 TB |
| Features | RAID 5 - factory configured, Enterprise Class |
| Hard Drive (2nd) | |
| Type | SSD |
| Capacity | 1 x 240 GB |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | 80 validated video channels |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 2.0 (1 front, 1 rear) <br /> 2 x VGA (1 front, 1 rear) <br /> 1 x management (1 in front) (iDRAC Direct port) <br /> 1 x USB 3.0 (1 rear) <br /> 1 x management (1 rear) (iDRAC dedicated port) <br /> 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) |
| Miscellaneous | |
| Included Accessories | ReadyRails sliding rails |
| Compliant Standards | BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, FIPS 140-2 Level 2, EMC, ICES-003 Class A, EN 62311, NOM-019-SCFI-1998, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 60950-1, EN 55035, IEC/EN/UL 62368-1, NDAA, KS C 9832 Class A, KS C 9835 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 800 Watt |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 2021 LTSC |
| Software | AXIS Camera Station (64 channels licence) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight | |
| Width | 48.2 cm |
| Depth | 72.162 cm |
| Height | 8.7 cm |
| Weight | 20.8 kg |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
Features - AXIS - 02539-001
CPU Type
- Intel Xeon
Capacity
240GB
More Details
Product Code
CE93901
EAN Code
7331021079229
Manufacturer
AXIS
