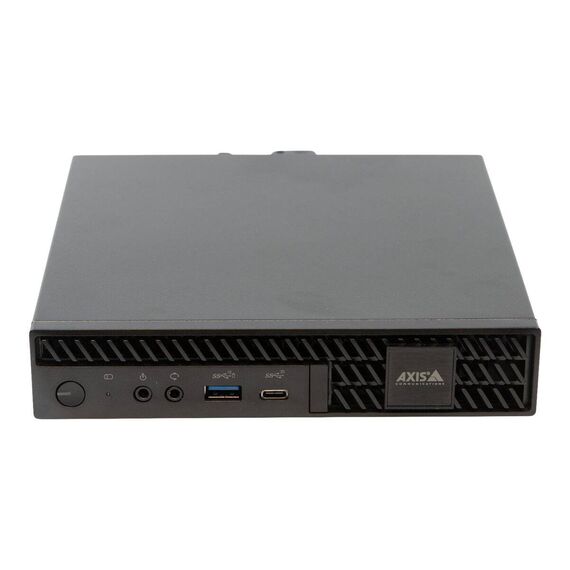

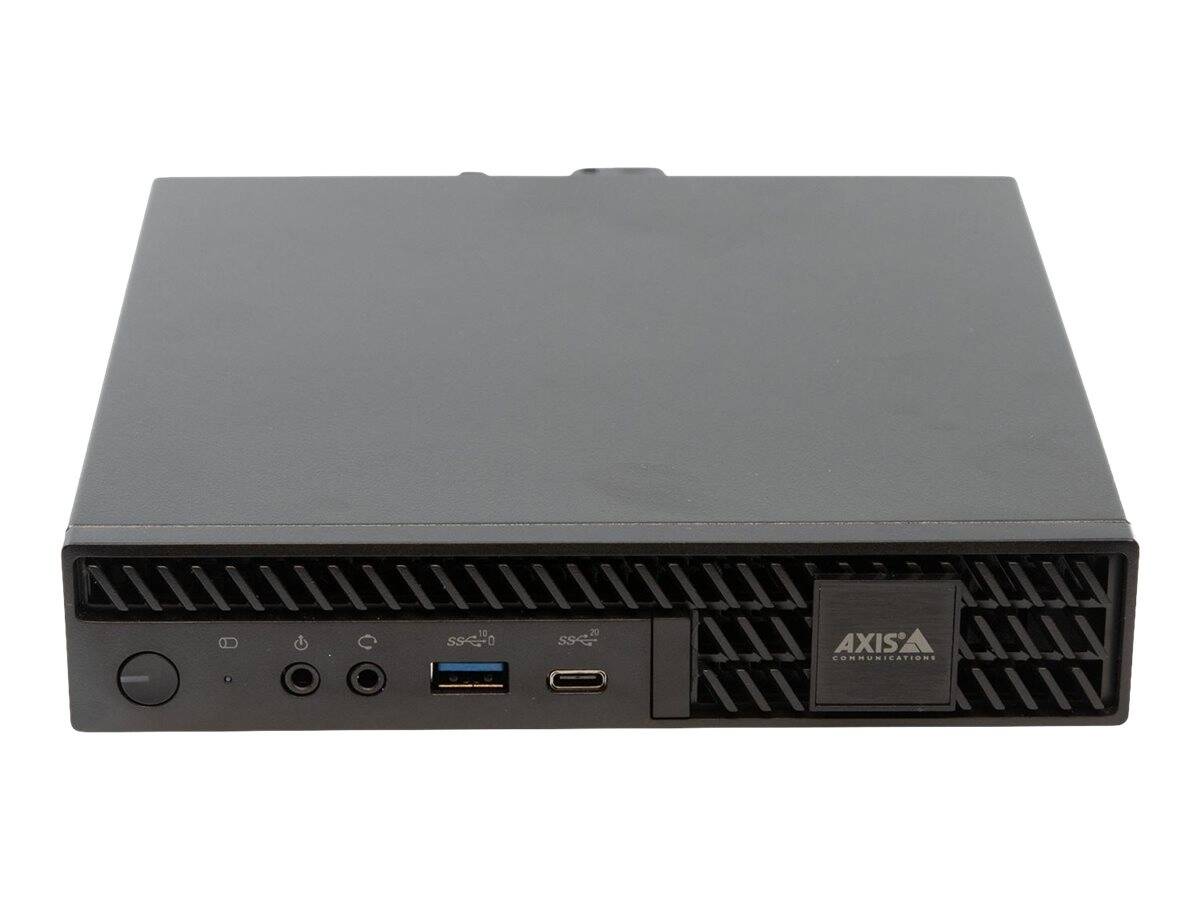

AXIS Camera Station S9301 / Standalone / - RAM 8 GB / SSD 256 GB / UHD Graphics / Win 10 IoT Enterprise 2021 LTSC / monitor: none / TAA Compliant | 02693-002
Please sign in so that we can notify you about a reply
Product Features
- Flexible solution
Perfectly matching the Axis portfolio, this compact and flexible workstation can be used either as a client when connected to the server, or as a server when used in combination with AXIS S30 Recorder series. It supports up to two 4K resolution monitors for optimal overview. - Ease of installation
With a micro form factor, this compact, plug-and-play workstation is ideal wherever space is limited. Designed for quick installation, it comes preloaded with AXIS Camera Station client software to enable quick connection to the server. Furthermore, the integrated AXIS Recorder Toolbox features an intuitive installation wizard, making it easy to set up hostname, network settings, and date and time setting. - Reliable surveillance system
AXIS S9301 has been extensively tested and validated with a wide range of Axis products including audio, video, and Axis recorders. This ensures it provides an affordable, end-to-end solution with high reliability.
Special Features
- Scalable and powerful solution
- Supports up to two 4K monitors
Product Specification
| Type | Workstation |
| Product Form Factor | Standalone |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localisation | Region: Europe |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel |
| RAM | RAM |
| Installed Size | 8 GB |
| Configuration Features | 2 x 4 GB |
| Hard Drive | Hard Drive |
| Type | SSD |
| Capacity | 1 x 256 GB |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | DisplayPort |
| Networking | Networking |
| Data Link Protocol | Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB 3.2 (1 front) ¦ 1 x USB-C 3.2 Gen 2x2 (1 front) ¦ 1 x audio line-out/line-in (1 in front) ¦ 1 x audio connector (1 front) ¦ 1 x LAN (1 rear) ¦ 4 x USB 3.2 (4 rear) ¦ 2 x DisplayPort 1.4a (2 rear) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, EMC, FCC Part 2, EN 62311, NOM-019-SCFI-1998, FCC Part 15 Class B, EN 55032 Class B, AS/NZS CISPR 32 Class B, EN 55035, IEC/EN/UL 62368-1, VCCI 32-1, KS C 9835, KS C 9832 Class B |
| TAA Compliant | Yes |
| Power | Power |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 90 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | Windows 10 IoT Enterprise 2021 LTSC |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - Next Business Day Onsite Support - 5 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 18.2 cm |
| Depth | 17.8 cm |
| Height | 3.6 cm |
| Weight | 1.1 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
Features - AXIS - 02693-002
Capacity
256GB
More Details
Product Code
CF92248
EAN Code
7331021081772
Manufacturer
AXIS
