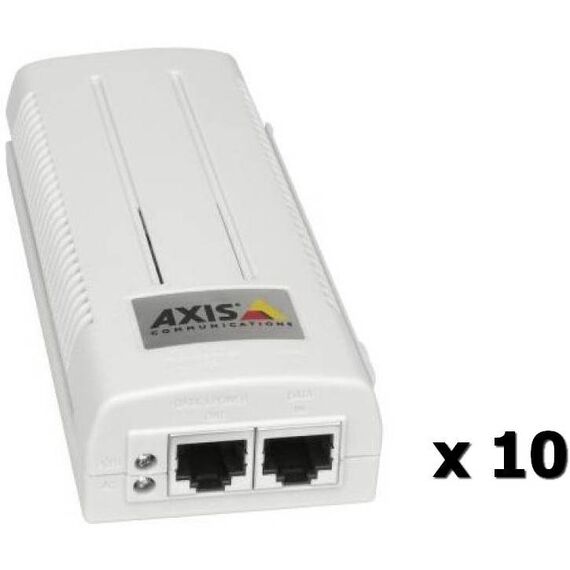

AXIS T8120 Midspan 15 W 1-port / PoE injector / AC 100-240 V / 15 Watt (pack of 10) / for AXIS M1011, M1011-W, M1013, M1014, M1031-W | 5026-222
AXIS T8120 Midspan 15 W 1-port / PoE injector / AC 100-240 V / 15 Watt (pack of 10) / for AXIS M1011, M1011-W, M1013, M1014, M1031-W | 5026-222
Description
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling.With the use of Axis PoE products, Axis network cameras and video encoders can receive both data and power over a single Ethernet cable. Network video products can thus be installed in areas where traditional power cabling and outlets are unavailable or difficult to install.
AXIS T8120 Midspan 15 W 1-port / PoE injector | 5026-222
Special Features
- Reduced installation costs
- IEEE 802.3af compliance
- Easier and faster installations
- No need for power outlets
- Axis PoE midspans and PoE splitters
Product features
- Easier and faster installations
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. - No need for power outlets
With the use of Axis PoE products, Axis network cameras and video encoders can receive both data and power over a single Ethernet cable. Network video products can thus be installed in areas where traditional power cabling and outlets are unavailable or difficult to install. - Axis PoE midspans and PoE splitters
Axis PoE midspans provide power over Ethernet cables to network video products with built-in Power over Ethernet support. For network video products without built-in PoE support, a PoE splitter must be used to separate power and data coming over the network cable. Axis PoE midspans and PoE splitters are IEEE 802.3af compliant, which ensures compatibility with all Axis products that have built-in support for Power over Ethernet.
Product Specification
Packaged Quantity | 10 (specifications are for single item) |
Device Type | PoE injector - external |
Input Voltage | AC 100-240 V |
Frequency Required | 50 - 60 Hz |
Power Output Connectors Details | 1 x RJ-45 |
Output Voltage | 48 V |
Power Capacity | 15 Watt |
Interfaces | 1 x Gigabit LAN - RJ-45 |
Compliant Standards | UL, TUV, cUL, EN55022 Class B, FCC Part 15 B |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Width | 6 cm |
Depth | 14.5 cm |
Height | 3.1 cm |
Weight | 450 g |
Designed For | AXIS M1011 Network Camera, M1011-W Network Camera, M1013 Network Camera, M1014 Network Camera, M1031-W Network Camera |
