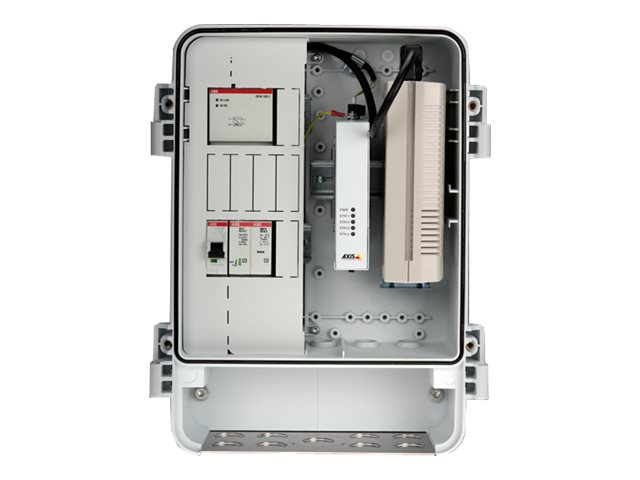

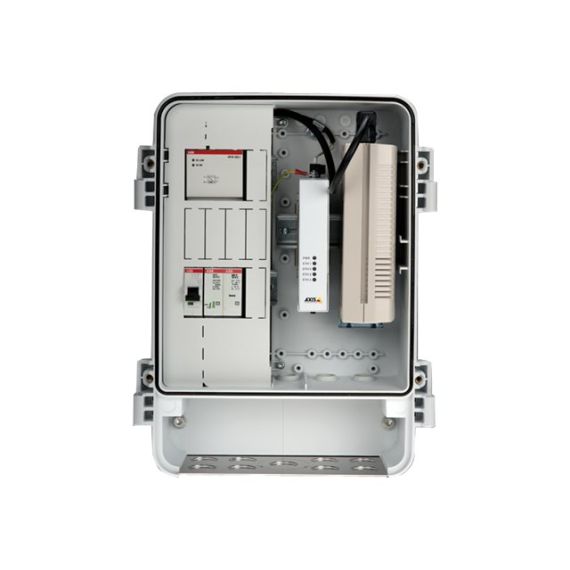

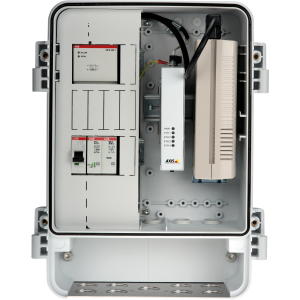

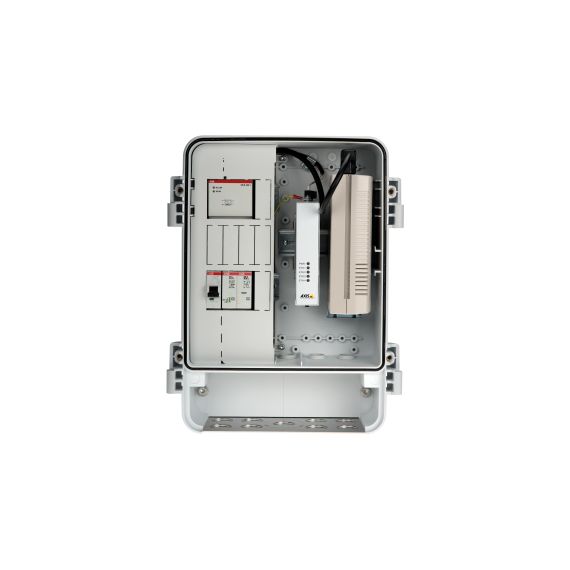

AXIS T98A18-VE Media Converter Cabinet A - Fibre media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-X, 100Base-X - 2 ports - RJ-45 / SFP (mini-GBIC) - for AXIS Q6318-LE 50 Hz | 5505-431
Please sign in so that we can notify you about a reply
Product Features
- Robust design
Built to withstand harsh environments, the AXIS T98A18-VE Media Converter Cabinet A is designed with durability in mind. It meets a wide range of compliance standards including IEC 60529 IP66 and IEC 62262 IK10, ensuring protection against dust, water, and impacts. - Versatile connectivity
This media converter cabinet offers a variety of connectivity options with two RJ-45 Ethernet 10Base-T/100Base-TX ports and two SFP Ethernet 100Base-X/1000Base-X ports. It supports Ethernet, Fast Ethernet, and Gigabit Ethernet, making it a flexible solution for different network needs. - Optimal performance in any climate
Designed to operate in a wide range of temperatures from -40°C to 65°C, the AXIS T98A18-VE Media Converter Cabinet A ensures reliable performance in extreme weather conditions, from freezing cold to sweltering heat.
Special Fetures

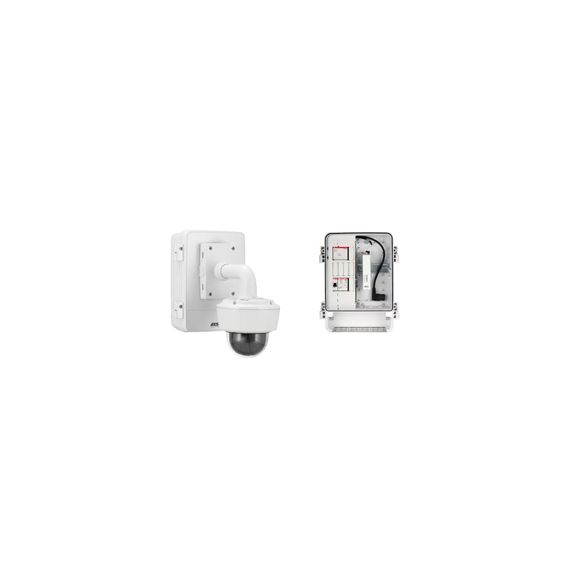

- Custom designed for PTZ dome cameras with pendant kit
- Pre-configured
- Ease of installation
- Protect your installation
Product Specification
| Device Type | Fibre media converter |
| Form Factor | DIN rail mountable |
| Colour | White |
| Networking | |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-X, 100Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 10Base-T/100Base-TX - RJ-45 <br /> 2 x Ethernet 100Base-X/1000Base-X - SFP |
| Miscellaneous | |
| Included Accessories | AXIS T91A03 DIN Rail Clip A |
| Mounting Kit | Included |
| Compliant Standards | C-Tick, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, IEC 60529 IP66, EN 61000-6-1, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, IEC 60068-2-27, IEC 60068-2-6, REACH, AS/NZS, IEC 62262 IK10, EN 50121-4, IEC 62236-4, UL 50, EN 50581, IEC 60950-22, EN 60950-22, UL 60950-22, UL 50E |
| Power | |
| Voltage Required | AC 230V |
| Dimensions & Weight | |
| Width | 28.2 cm |
| Depth | 13.1 cm |
| Height | 36.1 cm |
| Weight | 4.4 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 65 °C |
| Humidity Range Operating | 10 - 100% |
| Compatibility Information | |
| Designed For | AXIS Q6318-LE 50 Hz |
Features - AXIS - 5505-431
More Details
Product Code
B091843
EAN Code
7331021004573
Manufacturer
AXIS
