AXIS TQ1809-LE Housing T92G / Camera housing / wall mountable / indoor, outdoor / white / for AXIS P1375, P1377, P1378, Q1615, Q1615-LE, Q1645, Q1647, Q1715 | 02322-001
02322-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- For rough environments - day or night

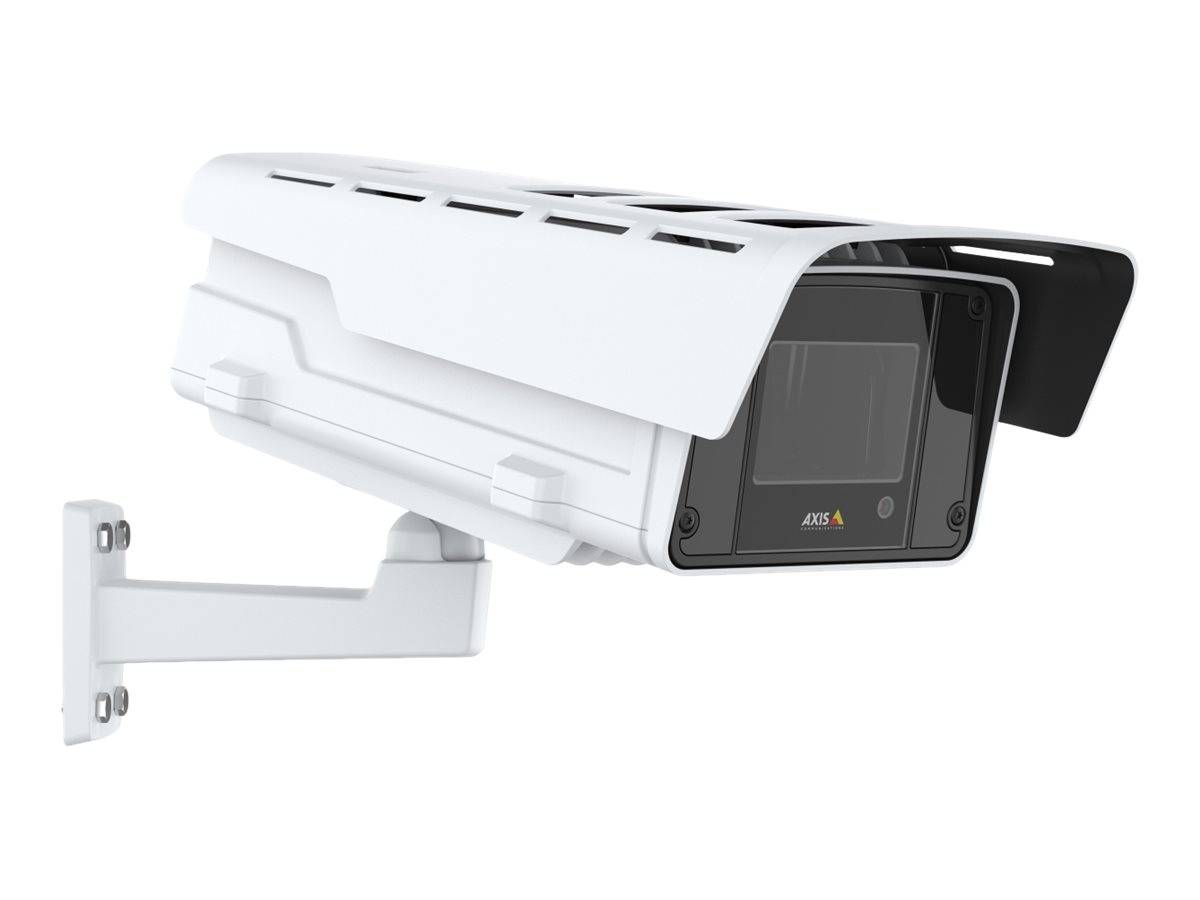

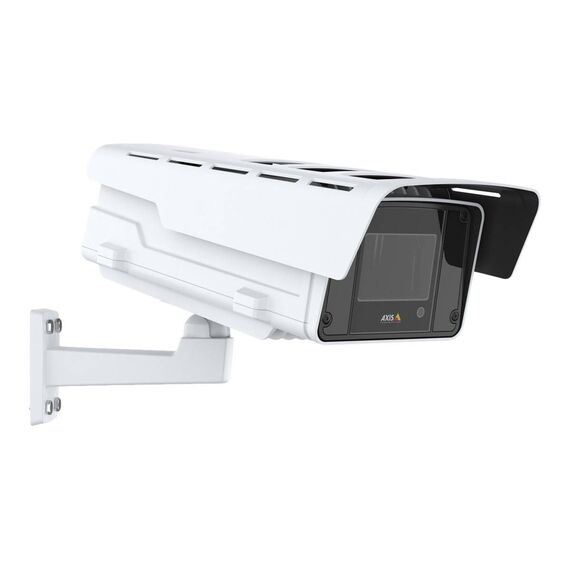

AXIS TQ1809-LE housing T92G is a robust aluminum housing designed to handle harsh environments. With IP66 and IP67 ratings the housing is protected against ingress of dust and high pressure water jets from any direction as well as effects of immersion in water. Furthermore, the housing is protected against impacts and vandal acts with IK10 rating. With powerful IR illumination, AXIS TQ1809-LE Housing T92G is optimized for surveillance in pitch darkness. - Spacious design with efficient heat handling
The housing is suitable for fixed cameras in indoor and outdoor installation and with a spacious design, it can fit cameras with larger CS-mount lenses and connecting accessories. With efficient heating and cooling solutions, the housing enables cameras to operate in both extremely warm and cold environments. Furthermore, the housing delivers optimal conditions for sensitive components and cameras with more processing power. AXIS TQ1809-LE Housing T92G enables simple, one cable installation with Power over Ethernet.
Special Features
- Robust and weather resistant with OptimizedIR
- Built-in IR illumination
- Active cooling and heating
- P66, IP67 and IK10 rating
- PoE connectivity
Product Specification
| Product Type | Camera housing |
| Package Content | Wall mount, screwdriver, connector guard, sunshield, drill template, connector kit |
| Placing / Mounting | Wall mountable |
| Indoor / Outdoor | Indoor, outdoor |
| Product Material | Aluminium |
| Weight | 5.4 kg |
| Colour | White |
| Miscellaneous | Miscellaneous |
| Mounting Kit | Included |
| Features | Vandal-resistant, impact-resistant, weather-resistant, IP66 protection, IP67 protection, PoE function, IK10 impact rating, NEMA 4x protection, built-in IR illumination, active cooling, active heating, dust protection, water protection |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Compatibility Information | Compatibility Information |
| Designed For | AXIS P1375 Network Camera, P1377, P1378 Network Camera, Q1615 Mk III, Q1615-LE Mk III, Q1645, Q1647, Q1715 |
