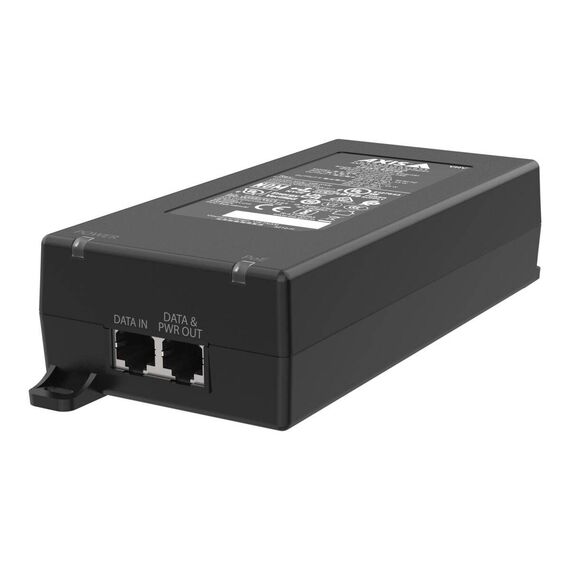

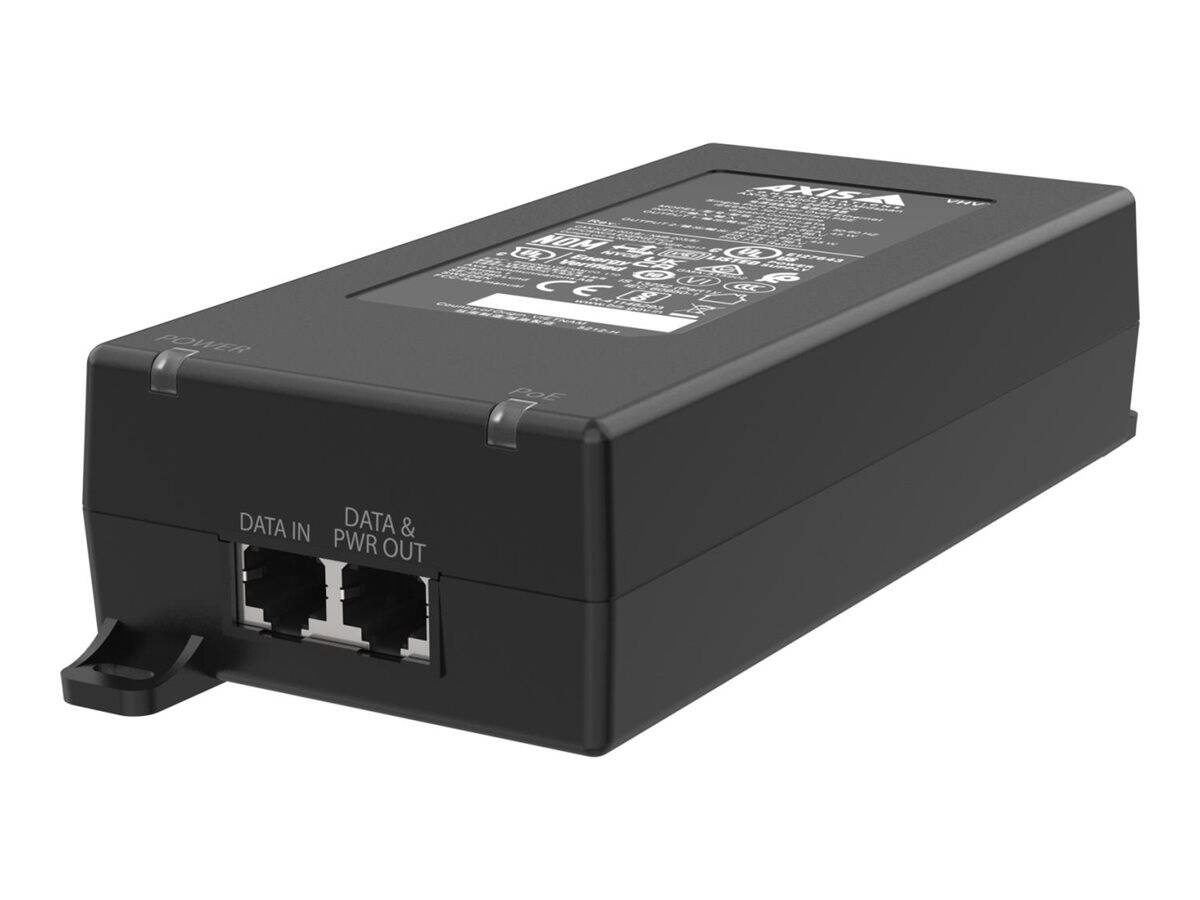

AXIS TU8004 - PoE injector (DIN rail mountable / external) - midspan - AC 100-240 V - 90 Watt - output connectors: 1 - black - for Axis C1410 | 02783-001
Please sign in so that we can notify you about a reply
Product Features
- Robust environmental adaptability
Designed to operate seamlessly across a wide range of temperatures from -20 °C to 65 °C and humidity levels from 10 - 90% RH (non-condensing), ensuring reliable performance in diverse environmental conditions. - Comprehensive compliance
Meets a broad spectrum of standards, including AS/NZS CISPR 32 Class B, FCC Part 15 Subpart B Class B, and multiple EN and IEC standards, highlighting its commitment to quality, safety, and environmental responsibility. - Enhanced connectivity
Features a Gigabit Ethernet interface with an RJ-45 connector, supporting high-speed data transfer and efficient power distribution to connected devices. - Efficient power delivery
Equipped with PoE capabilities compliant with IEEE 802.3af, 802.3at, and 802.3bt standards, delivering up to 90 W of power to ensure that your devices are always powered and operational. - Flexible installation options
The device's form factor allows for both DIN rail mountable and external wall-mountable setups, complemented by LED indicators for real-time status monitoring, offering versatile installation solutions tailored to your needs.
Special Fetures
- Operates in a wide temperature range from -20 °C to 65 °C
- Supports humidity levels from 10 - 90% RH for reliable performance in diverse conditions
- Complies with a broad spectrum of standards for safety and environmental responsibility
- Features Gigabit Ethernet interface for high-speed data and power distribution
- Delivers up to 90 W of power, compliant with IEEE 802.3af/at/bt standards
Product Specification
| Device Type | PoE injector - DIN rail mountable / external |
| Power Over Ethernet (PoE) | PoE (IEEE 802.3af) |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | DC 57 V |
| Power Capacity | 90 Watt |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Features | LED indicators, wall mountable |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, CCC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, halogen-free, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class B, RCM, EN 55032 Class B, AS/NZS CISPR 32 Class B, EN 55035, IEC/EN/UL 62368-1, PVC-free, FCC Part 15 Subpart B Class B, IS 13252 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 65 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 16.6 cm |
| Depth | 8 cm |
| Height | 4.4 cm |
| Weight | 500 g |
| Compatibility Information | |
| Designed For | Axis C1410 |
Features - AXIS - 02783-001
More Details
Product Code
CK23328
EAN Code
7331021085367
Manufacturer
AXIS
