AXIS V5925 - Network surveillance camera - PTZ - colour - 1920 x 1080 - 1080p - audio - SDI, HDMI - LAN 10/100 - MPEG-4, MJPEG, H.264 - DC 11 - 13 V | 01965-002
Please sign in so that we can notify you about a reply
Product Features
- Professional results made simple
AXIS V5925 provides excellent image quality in HDTV 1080p at 60 fps and 30x optical zoom for all the details. It offers stage mode and sports mode, providing better PTZ control for the operator in different scenarios. Featuring professional balanced XLR inputs with 48V phantom power, it can be used with studio-grade microphones and 3,5 mm input/output for flexibility. Additionally, the powerful chipset allows for analytics to run directly on the camera. - Great compatibility
This highly versatile PTZ camera includes both HDMI and 3G-SDI outputs, allowing you to connect to most professional video switchers. With a VISCA RS-232 based control system, the camera can easily be integrated with your existing AV installations. And, VISCA over IP allows for remote control of multiple cameras via a LAN connection. Furthermore, for simple or mobile installations, the included 3-month Camstreamer trial license lets you live stream to streaming platforms such as YouTube and Facebook Live directly from the camera over an IP network. You can also use any major video management software or just connect it via a web browser. - Lower bandwidth and enhanced security
AXIS V5925 features Axis Zipstream technology with H.264 and H.265 to preserve all the important details while significantly reducing bandwidth and storage requirements. It's packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.
Special Fetures
- HDTV 1080p at 60 fps and 30x zoom
- Studio-grade audio with XLR inputs
- VISCA and VISCA over IP support
- Camstreamer 3-month trial included
- 3G-SDI and HDMI outputs
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 13.6 cm |
| Depth | 13.6 cm |
| Height | 18 cm |
| Weight | 1.5 kg |
| Localisation | Europe |
| Camera | |
| Type | Colour - pan / tilt / zoom |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080p |
| Digital Zoom | 12 |
| Exposure Range | 1 sec - 1/10000 sec |
| Minimum Illumination | 1 lux - colour - F1.4 - 30 IRE ¦ 0.03 lux - B&W - F1.4 - 30 IRE |
| Frame Rate (max) | 60 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, colour control, progressive scanning, brightness control, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, 256 preset positions, Electronic Image Stabilizer (EIS), text stamp, notification picture to E-mail, ONVIF V2.2 (Profile S) support, password protection, Defog, noise reduction, Forensic Capture (120 dB), microphone 48 V phantom power support |
| Image Sensor | |
| Type | RGB CMOS 1/2.8" |
| Lens Construction | |
| Optical Zoom | 30 x |
| Focal Length | 4.4 mm - 132 mm |
| Lens Iris | F/1.4-4.6 (P-Iris) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2.3 - 62 |
| Vertical Field of View (degree) | 1.3 - 37 |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 100 |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 90 |
| Interfaces | |
| Video | SDI, HDMI |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | |

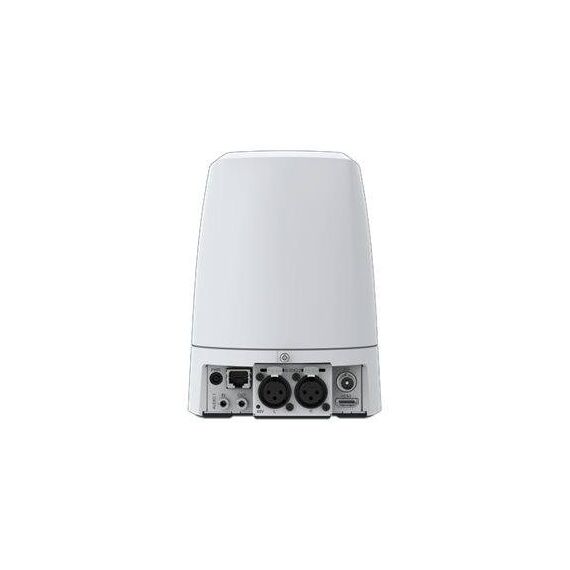

| Ports | LAN - RJ-45 ¦ Audio line-in/microphone - 3.5 mm stereo jack ¦ Audio line out - 3.5 mm stereo jack ¦ Peripheral - terminal block ¦ SDI - BNC ¦ Audio line-in/microphone - 3 pin XLR x 2 ¦ HDMI ¦ Serial RS-232 (Visca) |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | |
| Included Accessories | Mounting kit, I/O connector |
| Compliant Standards | C-Tick, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI Class A, EN 50581, KN24, KN22 Class A, EN 55022 Class A |
| Colour | White |
| Power | |
| Power Requirements | DC 11 - 13 V |
| Power Device | Power adapter - external DC 12 V 25 Watt |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user licence |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
Features - AXIS - 01965-002
More Details
Product Code
CA09078
EAN Code
7331021070974
Manufacturer
AXIS
