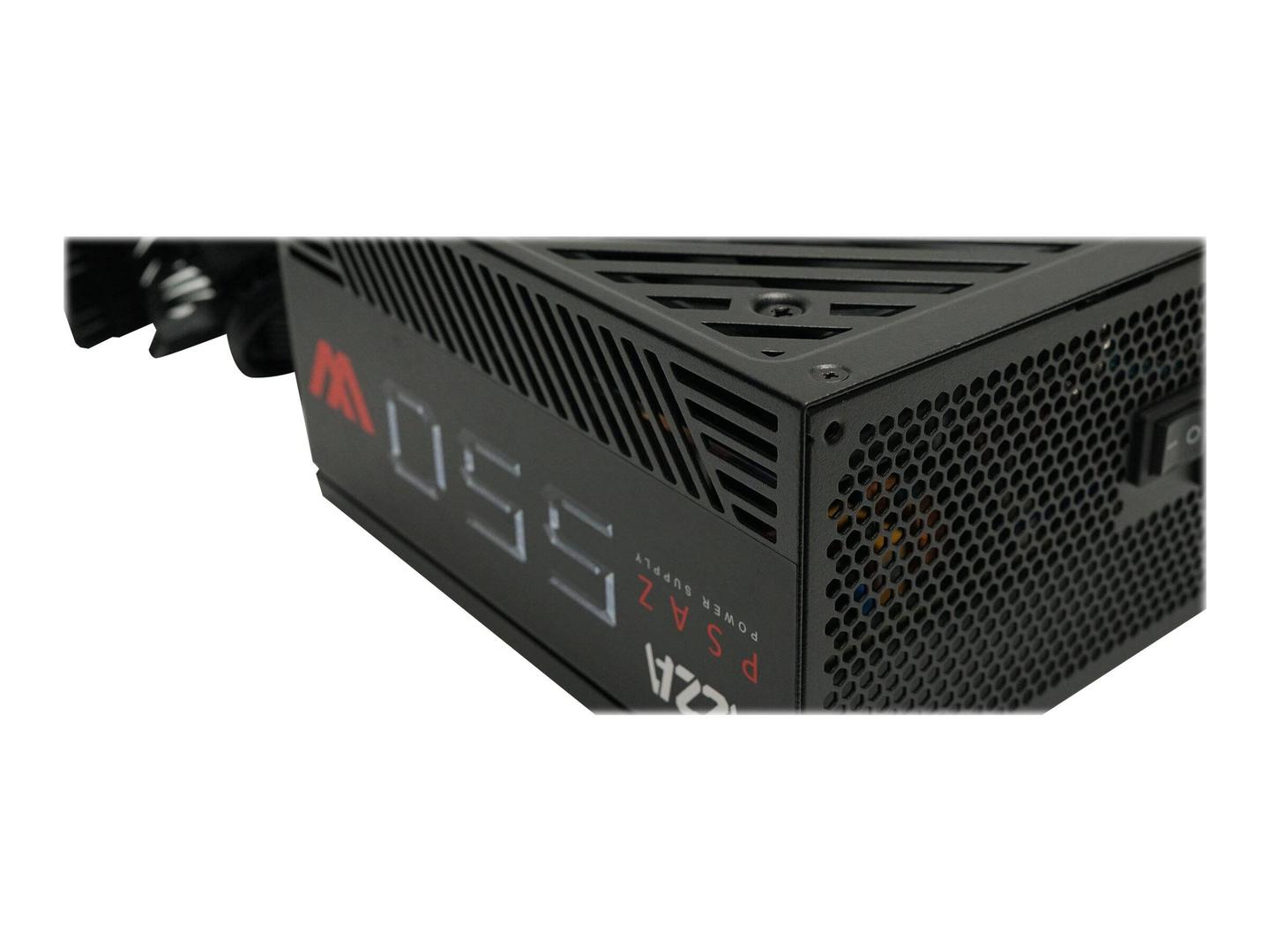

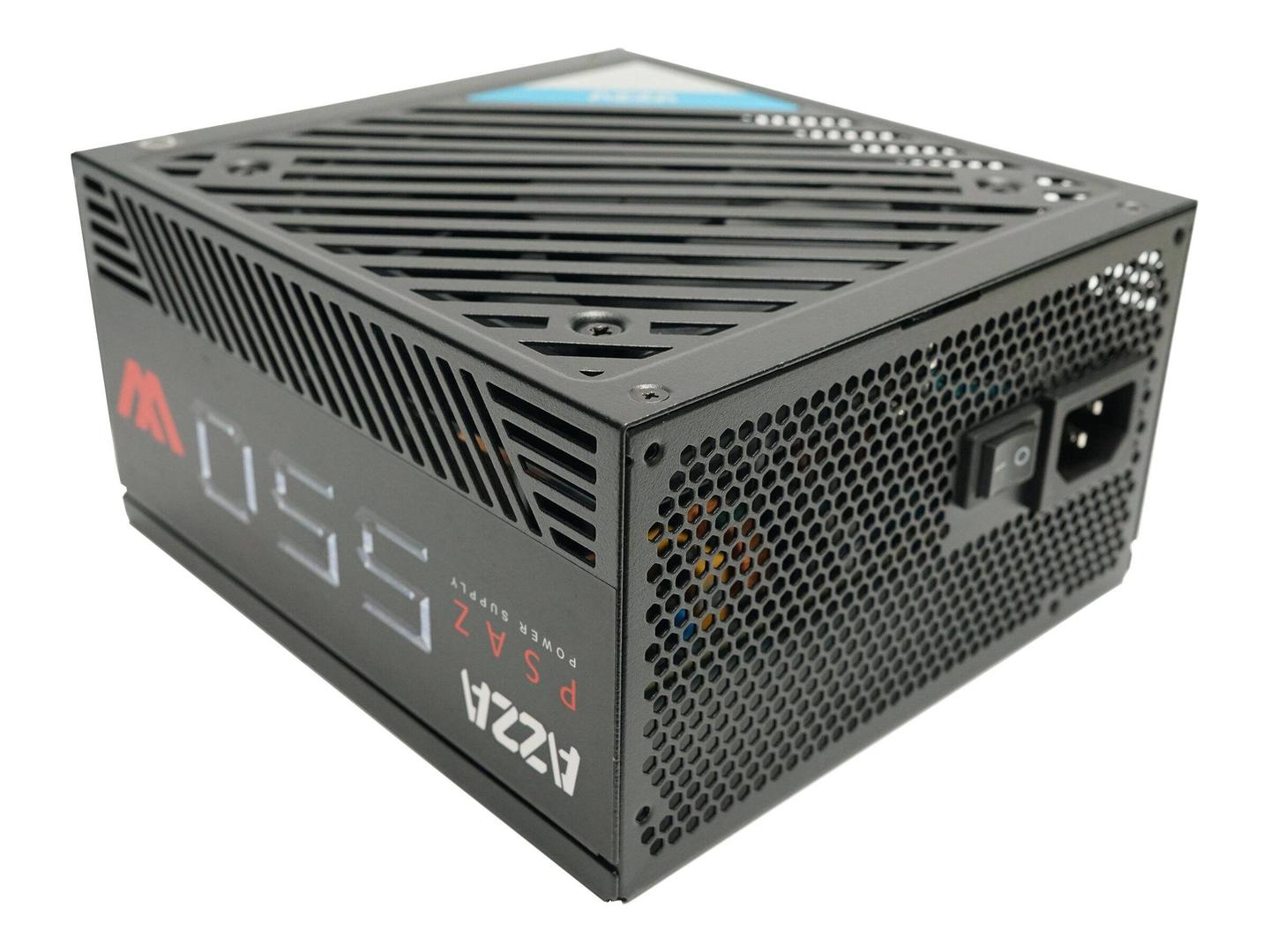

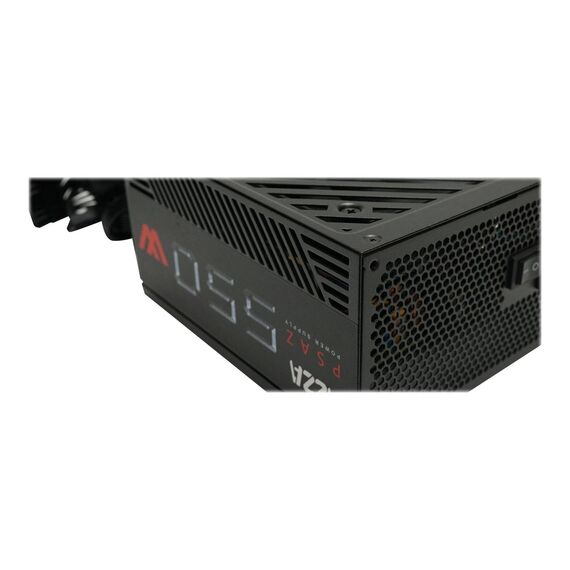

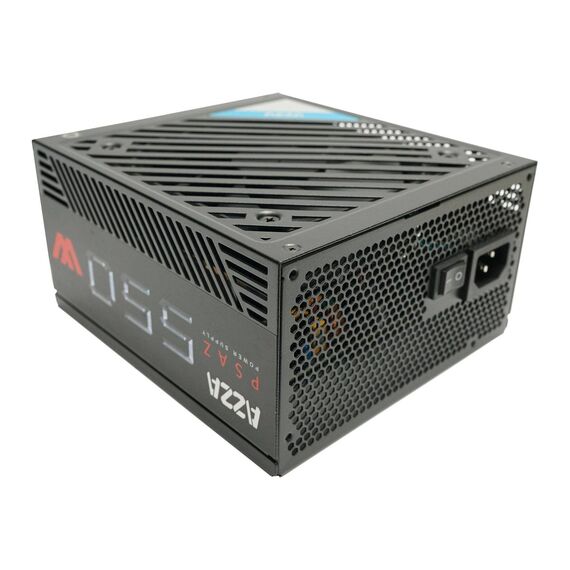

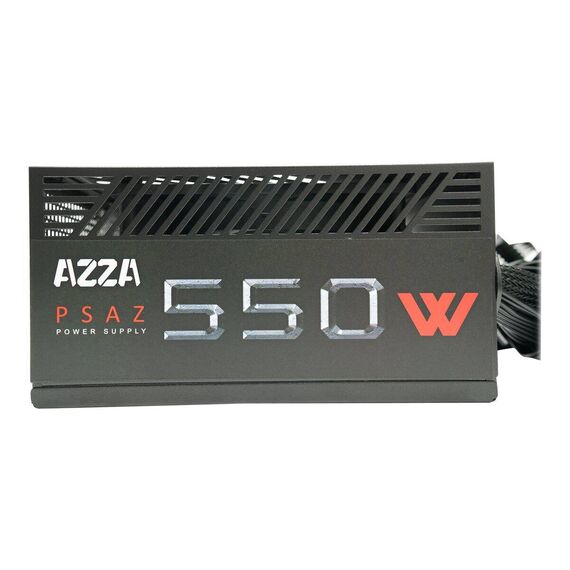

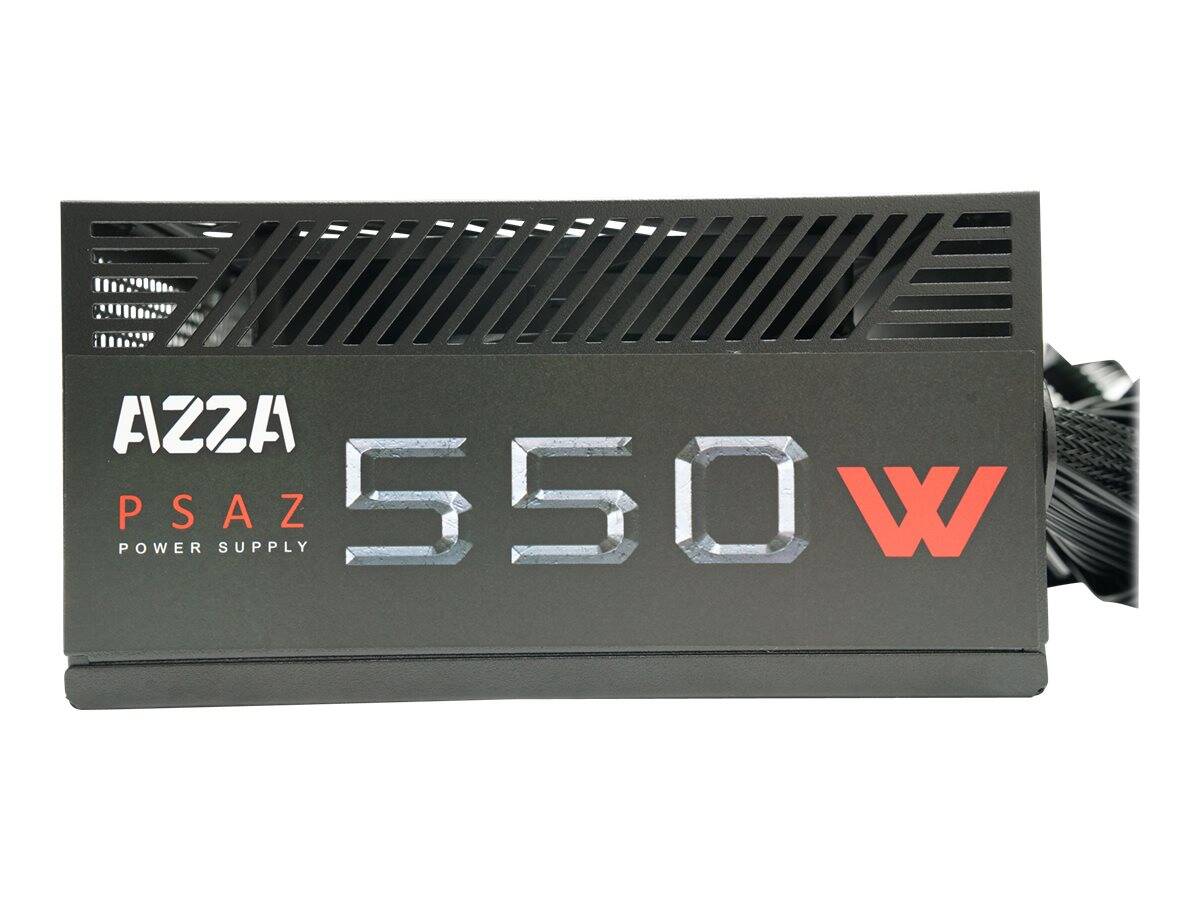

AZZA - Power supply (internal) - ATX12V / EPS12V - 80 PLUS Bronze - AC 100-240/200-240 V - 550 Watt - black | PSAZ 550W
Please sign in so that we can notify you about a reply
Special Fetures
- 80PLUS Bronze certified
- High-quality components
- Universal AC input
- Quiet operation across a wide range of loads
- Durable flat cables gives you neat and tidy spaces
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 100-240/200-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | DC +3.3, DC +5, DC ±12 V |
| Power Capacity | 550 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 41 A ¦ -12V - 0.4 A ¦ +5VSB - 2.5 A |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | |

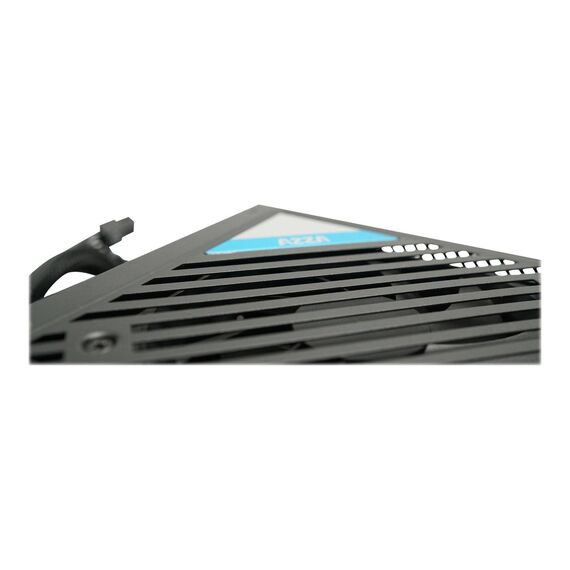

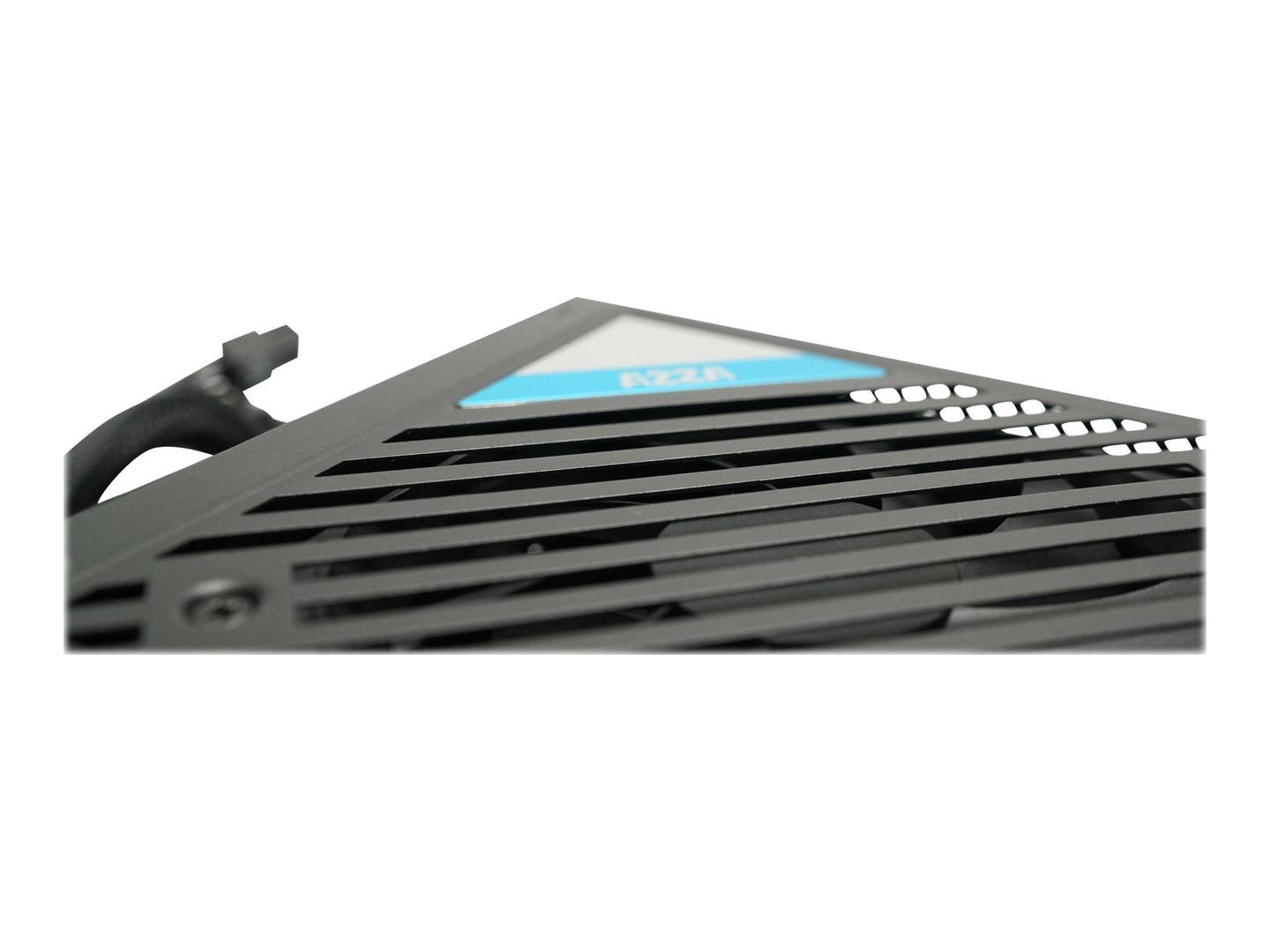

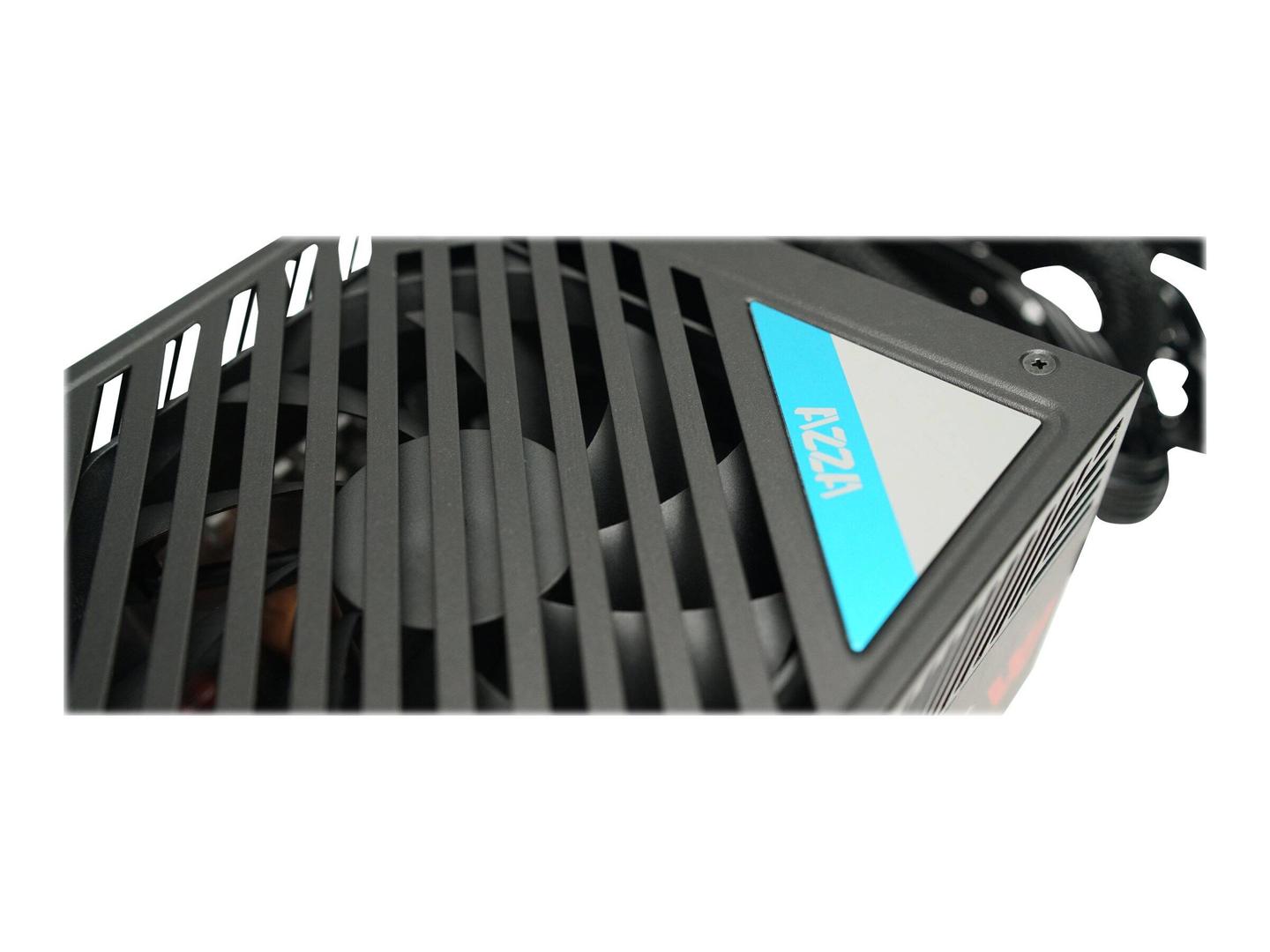

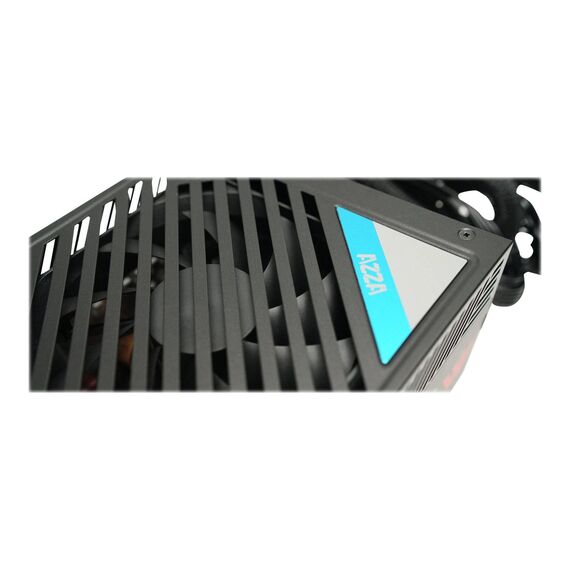

| Cooling System | 120 mm fan |
| Features | On/off switch, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, non-modular |
| Compliant Standards | TUV, FCC, RoHS, EuP, EAC, RCM, TUV Rheinland |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 16.5 cm |
| Height | 8.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 18.5 cm |
| Shipping Depth | 24 cm |
| Shipping Height | 11.5 cm |
Features - azza - PSAZ 550W
More Details
Product Code
04:342325
EAN Code
4712839557230
Manufacturer
azza
